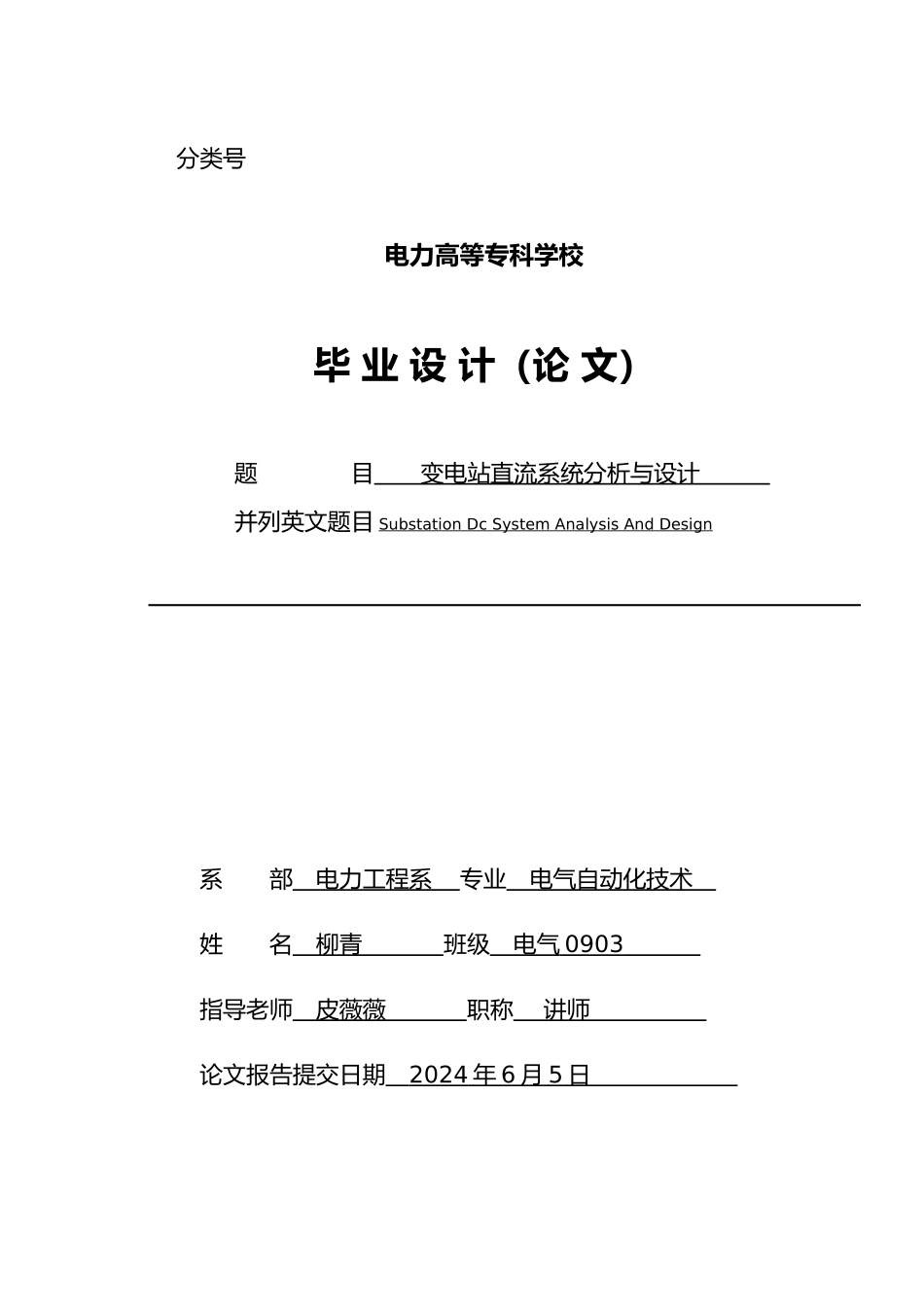

分类号电力高等专科学校毕 业 设 计(论 文)题 目 变电站直流系统分析与设计 并列英文题目 Substation D c S ystem A nalysis A nd D esign 系 部 电力工程系 专业 电气自动化技术 姓 名 柳青 班级 电气 0903 指导老师 皮薇薇 职称 讲师 论文报告提交日期 2024 年 6 月 5 日 电力高等专科学校摘要变电站直流电源系统是所所有继电保护、自动化以与二次控制回路、断路器分合闸、事故照明等设备工作的电源,直流电源部有蓄电池,能保证在沟通失电状态下不间断连续供电。直流电源使用蓄电池进行储能,结构简单可靠,容易满足设备对电源可靠性要求。其设计容主要包括直流系统接线方式,系统电压确定,蓄电池容量计算,直流充电模块选择,ups 不停电电源的选择,通信直流变换器的选择等。关键词: 直流系统、蓄电池组、不停电电源、充电装置AbstractThesubstation dc power system is the working power supply of relaying protection, automation, secondary control circuit,switching on or offcircuit breaker and emergency lighting equipments in the transformer substation. DC power has internal battery and can guarantee continuous power supply when losing electric state. Dc power uses storage battery to store energy, the structure is simple, reliable and easy to meet for power equipment requirement of reliability. The design includes DC system wiring, determining system voltage,the battery capacity calculation, the DC charging module selection, choice ofUPS and communication DC-DC converter.Key words : DC system 、 batteries 、 Uninterrupted power supply、charging devices.目录Abstract- 1 -前言- 5 -第一章变电站直流系统功能、重要性论述- 6 -1.1 变电站直流系统- 6 -1.2 直流电源系统在变电站的重要作用- 6 -第二章直流电源的技术分析- 7 -第三章蓄电池技术分析- 9 -3.1 蓄电池的定义与分类- 9 -3.2 铅酸蓄电池的电气特性- 10 -3.3 放电特性- 11 -3.3.1 持续放电特性- 11 -3.3.2 冲击放电特性- 13 -3.4 阀控铅酸蓄电池的充电方式- 14 -3.5 蓄电池组数- 16 -第四章直流系统的接线方式- 17 -4.1...
