毕业设计四柱液压汽车举升机的机构设计说明

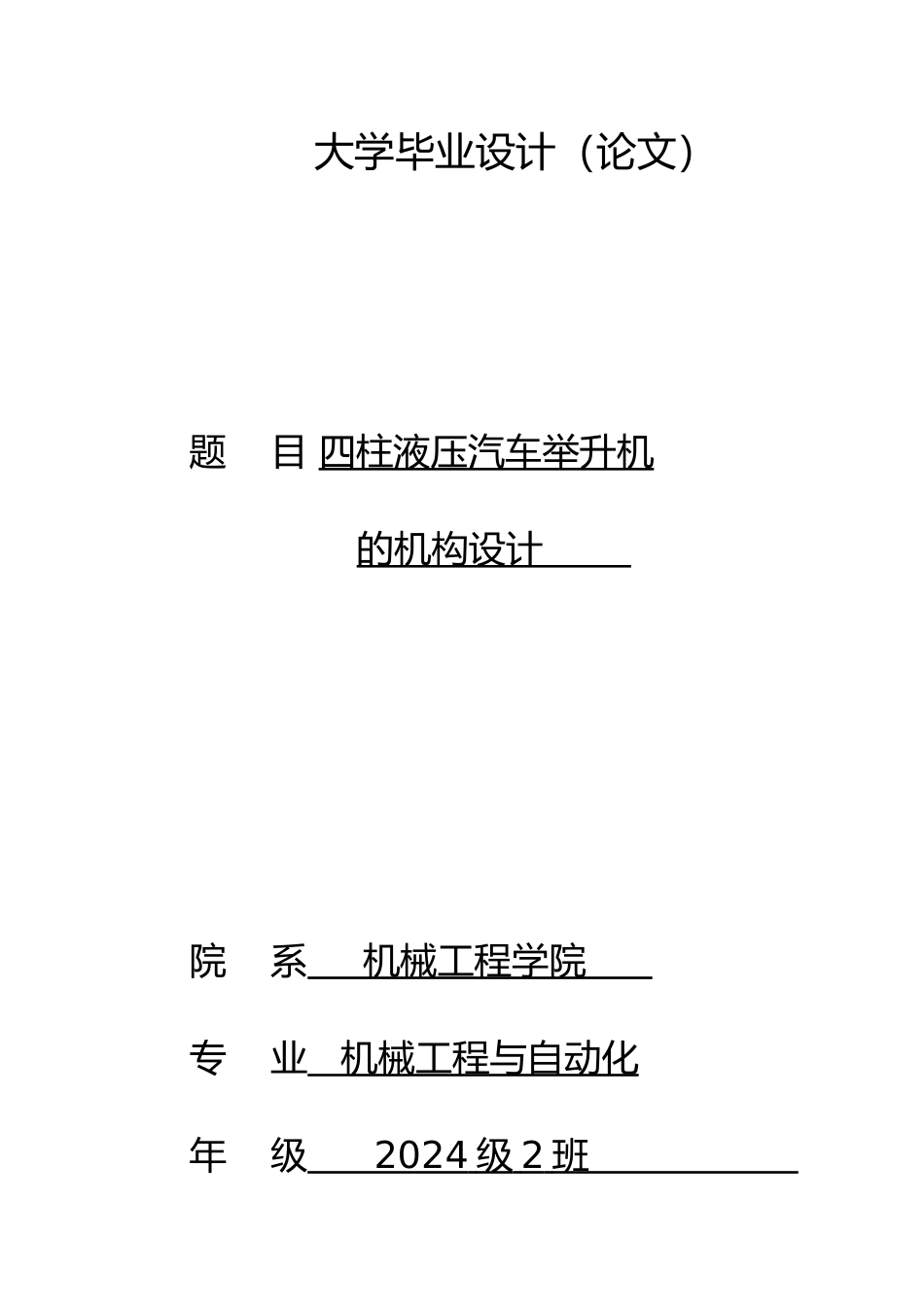

毕业设计四柱液压汽车举升机的机构设计说明_第1页
1/55

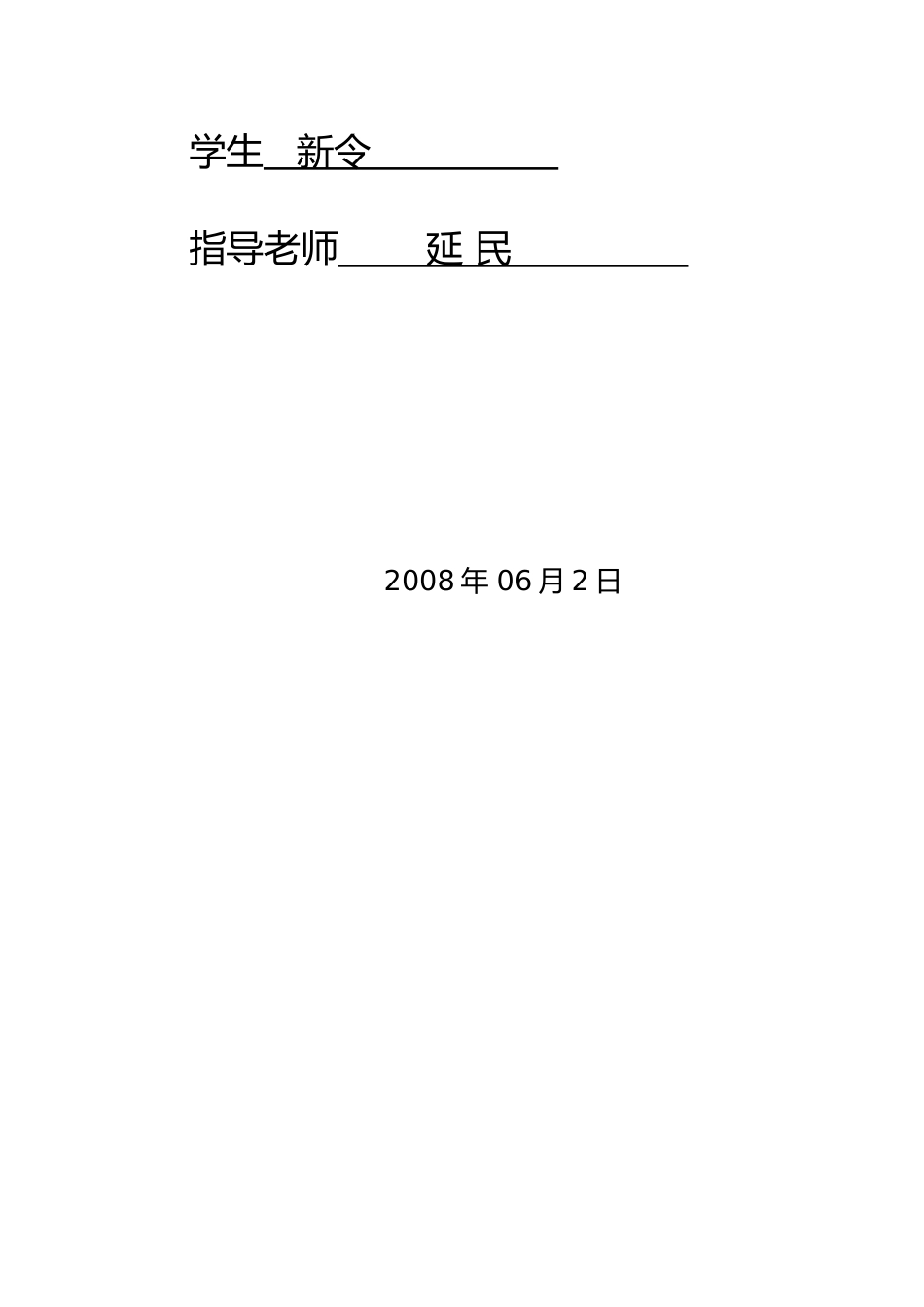

毕业设计四柱液压汽车举升机的机构设计说明_第2页
2/55
毕业设计四柱液压汽车举升机的机构设计说明_第3页
3/55
大学毕业设计(论文)题 目 四柱液压汽车举升机的机构设计 院 系 机械工程学院 专 业 机械工程与自动化 年 级 2024 级 2 班 学生 新令 指导老师 延 民 2008 年 06 月 2 日摘 要随着汽车行业的不断进展,随之而来的汽车维修的任务也愈来愈重。在汽车举升机没有出现之前,一般汽车维修工人都要趴在汽车底盘下面进行维修,在这样的环境下,不但维修活动围受到限制,而且维修质量、维修效率也同样受到一定程度的影响。随着汽车维修业的迅猛进展,这样的维修方法已经不能够满足繁忙的汽车维修工作。于是就有了汽车举升机的出现,这种机器是将整辆汽车举升到一定高度,这样可以使维修工人很方便的在汽车底部工作。本设计是四柱液压汽车举升机的结构设计,首先对题目进行分析,再结合现有的汽车举升机的结构和液压系统,加上对汽车举升机的深化讨论,然后对其中的方案进行拟定选择,并且对其中的重要零部件进行设计校核,并且画出装配图与零件图,从而将四柱液压汽车举升机设计完成。关键词: 汽车维修 四柱 液压 举升机AbstractWith the continuous development of the automotive industry, followed by the vehicle maintenance tasks also increasing. Before the life did not appear ,The general vehicle maintenance workers must expense under the car below the chassis for maintenance, in the environment, not only maintenance activities were restricted, and maintenance of quality and efficiency of maintenance is also to a certain extent affected. As the vehicle maintenance industry is rapidly developing, the maintenance of this has not be able to meet peak of vehicle maintenance work. So there is the emergence of the automobile lift, this machine is to give the whole vehicles rose to a certain height, so maintenance workers can make it convenient to work in the car at the bottom. The design is of four-post hydraulic car lift the structural design, the first topic for analysis, combined with the existing car lift the structure and the hydraulic system, coupled with the car lift-...
