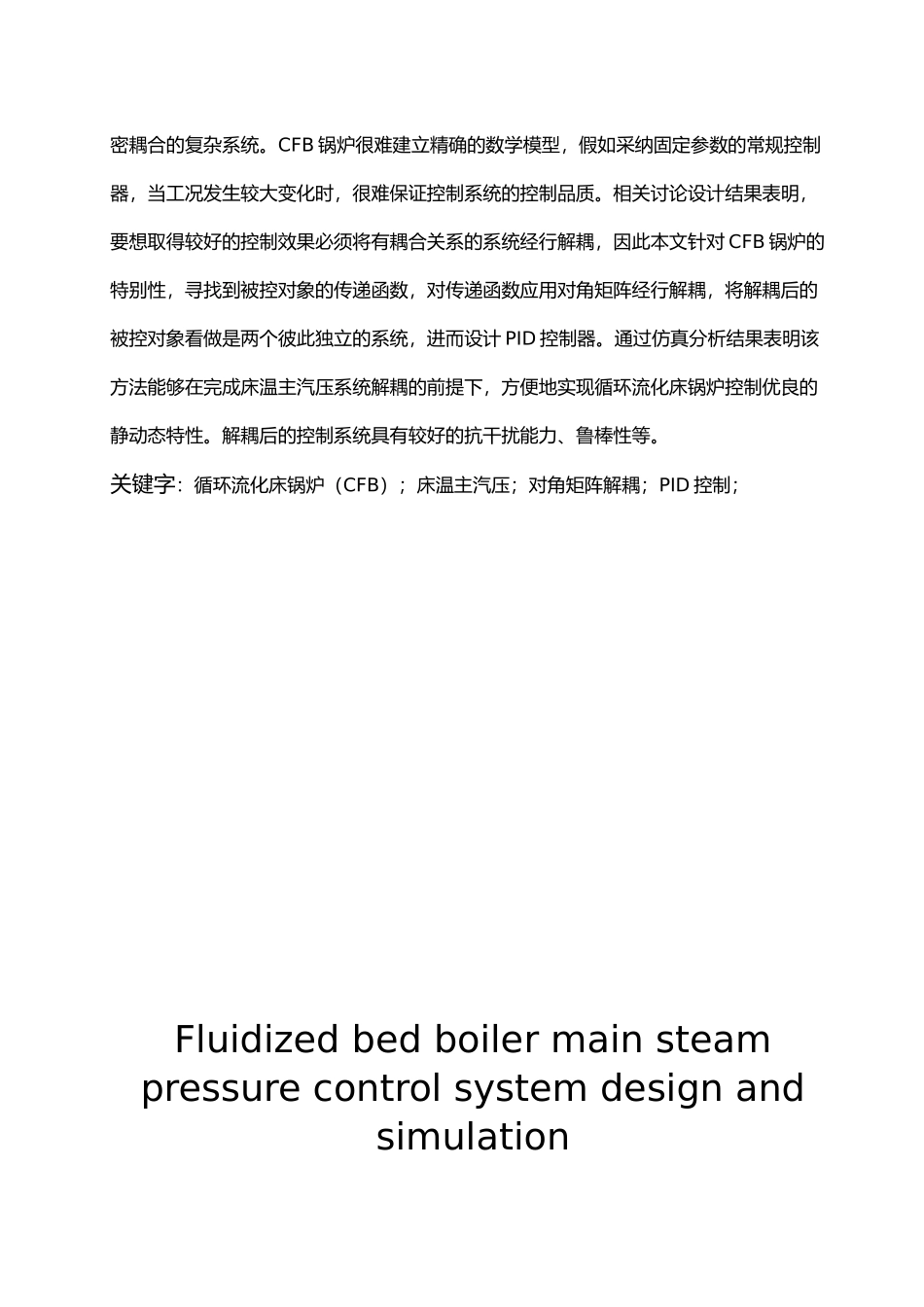

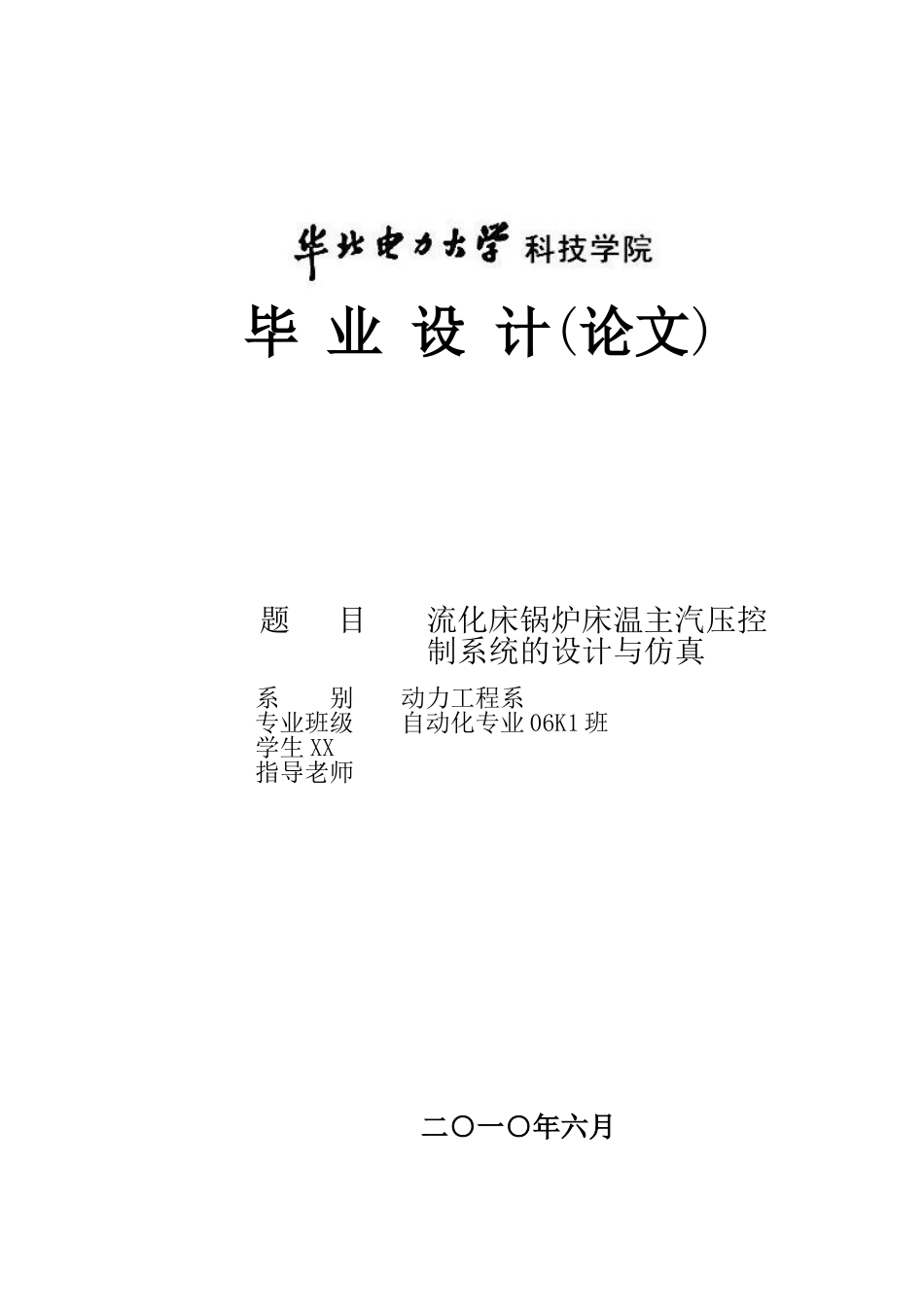

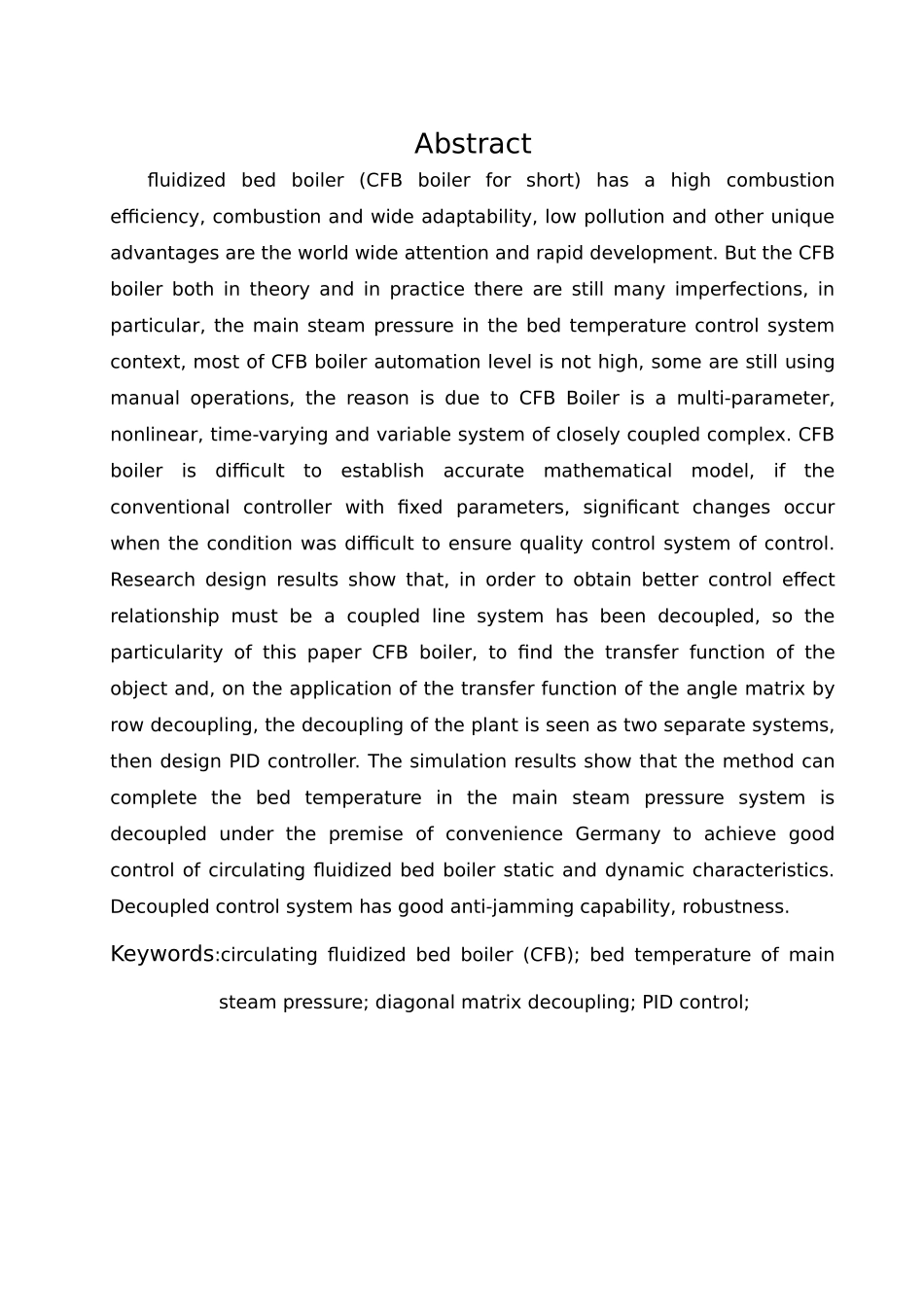

流化床锅炉床温与主汽压控制系统的设计与仿真摘要循环流化床锅炉(简称 CFB 锅炉)具有燃烧效率高、燃烧适应性广、低污染等独特优点,受到世界各国的广泛重视并得到迅速进展。但 CFB 锅炉在理论和实践两方面仍有许多不完善之处,尤其在床温主汽压控制系统方面,大多数 CFB 锅炉自动化水平不高,有的至今仍采纳手动操作,其原因是由于 CFB 锅炉是一个多参数、非线性、时变与变量紧毕 业 设 计(论文)系 别动力工程系专业班级自动化专业 06K1 班学生 XX指导老师二○一○年六月题 目 流化床锅炉床温主汽压控制系统的设计与仿真密耦合的复杂系统。CFB 锅炉很难建立精确的数学模型,假如采纳固定参数的常规控制器,当工况发生较大变化时,很难保证控制系统的控制品质。相关讨论设计结果表明,要想取得较好的控制效果必须将有耦合关系的系统经行解耦,因此本文针对 CFB 锅炉的特别性,寻找到被控对象的传递函数,对传递函数应用对角矩阵经行解耦,将解耦后的被控对象看做是两个彼此独立的系统,进而设计 PID 控制器。通过仿真分析结果表明该方法能够在完成床温主汽压系统解耦的前提下,方便地实现循环流化床锅炉控制优良的静动态特性。解耦后的控制系统具有较好的抗干扰能力、鲁棒性等。关键字:循环流化床锅炉(CFB);床温主汽压;对角矩阵解耦;PID 控制;Fluidized bed boiler main steam pressure control system design and simulationAbstractfluidized bed boiler (CFB boiler for short) has a high combustion efficiency, combustion and wide adaptability, low pollution and other unique advantages are the world wide attention and rapid development. But the CFB boiler both in theory and in practice there are still many imperfections, in particular, the main steam pressure in the bed temperature control system context, most of CFB boiler automation level is not high, some are still using manual operations, the reason is due to CFB Boiler is a multi-parameter, nonlinear, time-varying and variable system of closely coupled complex. CFB boiler is difficult to establish accurate mathematical model, if the conventional controller with fixed par...
