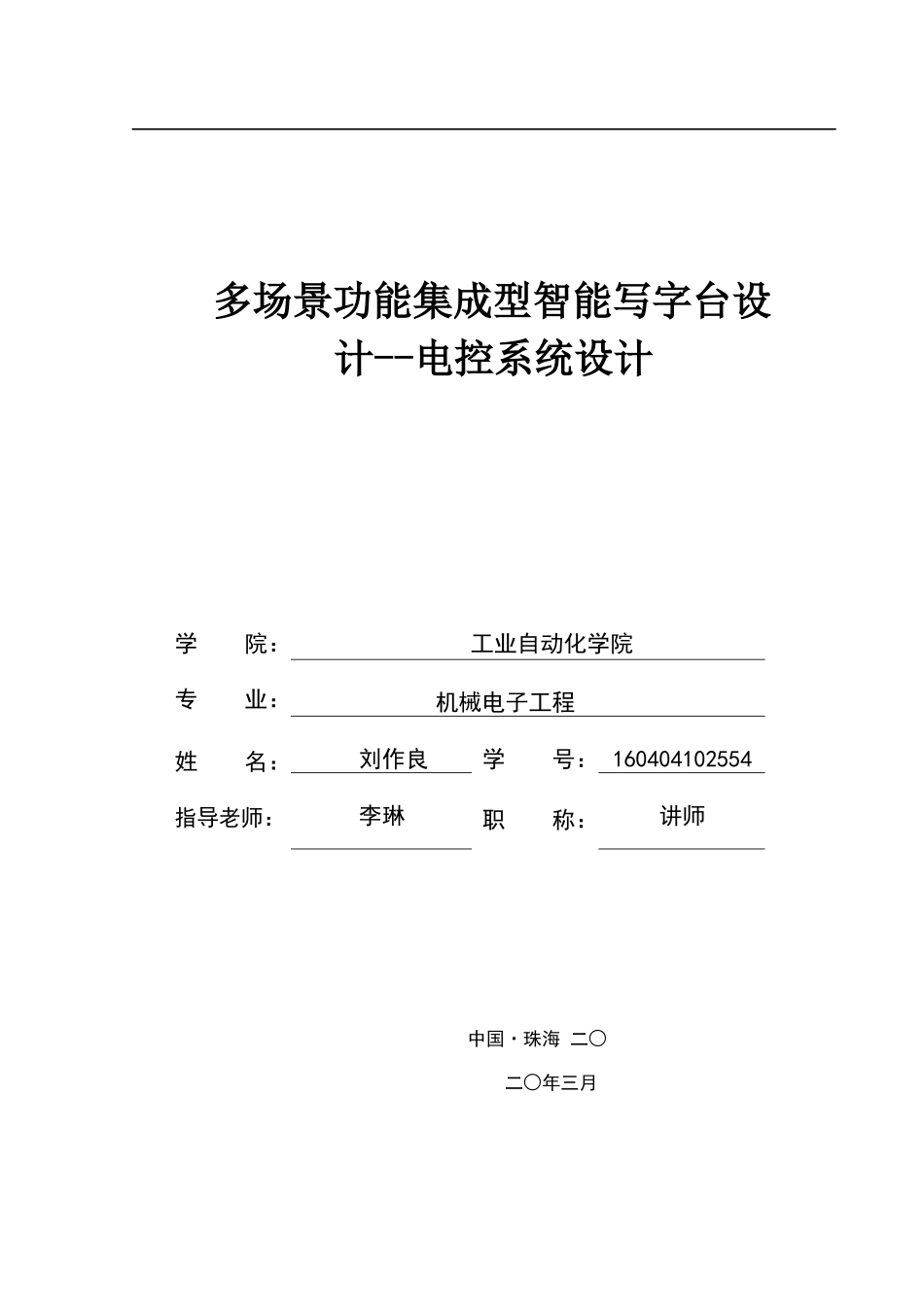

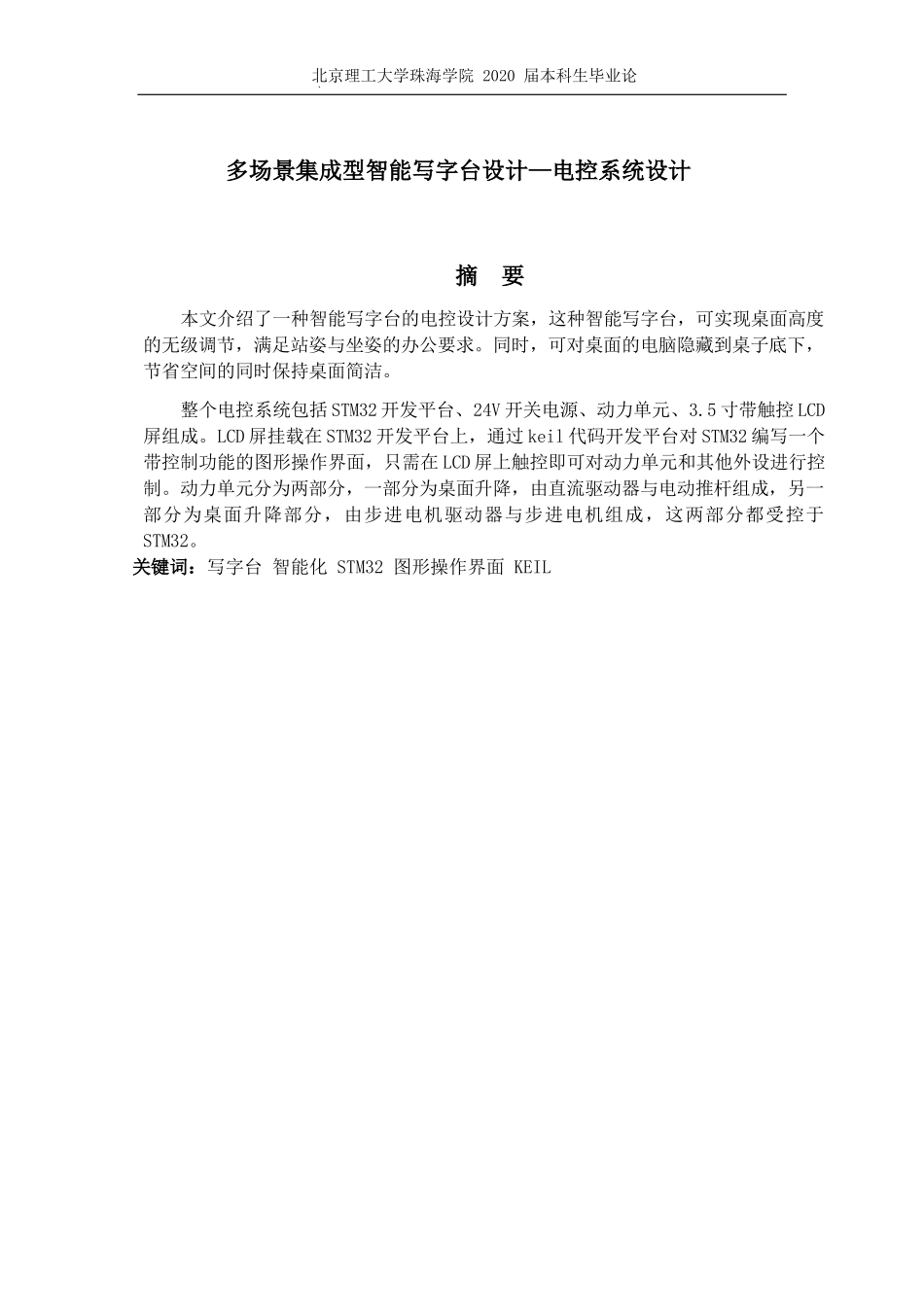

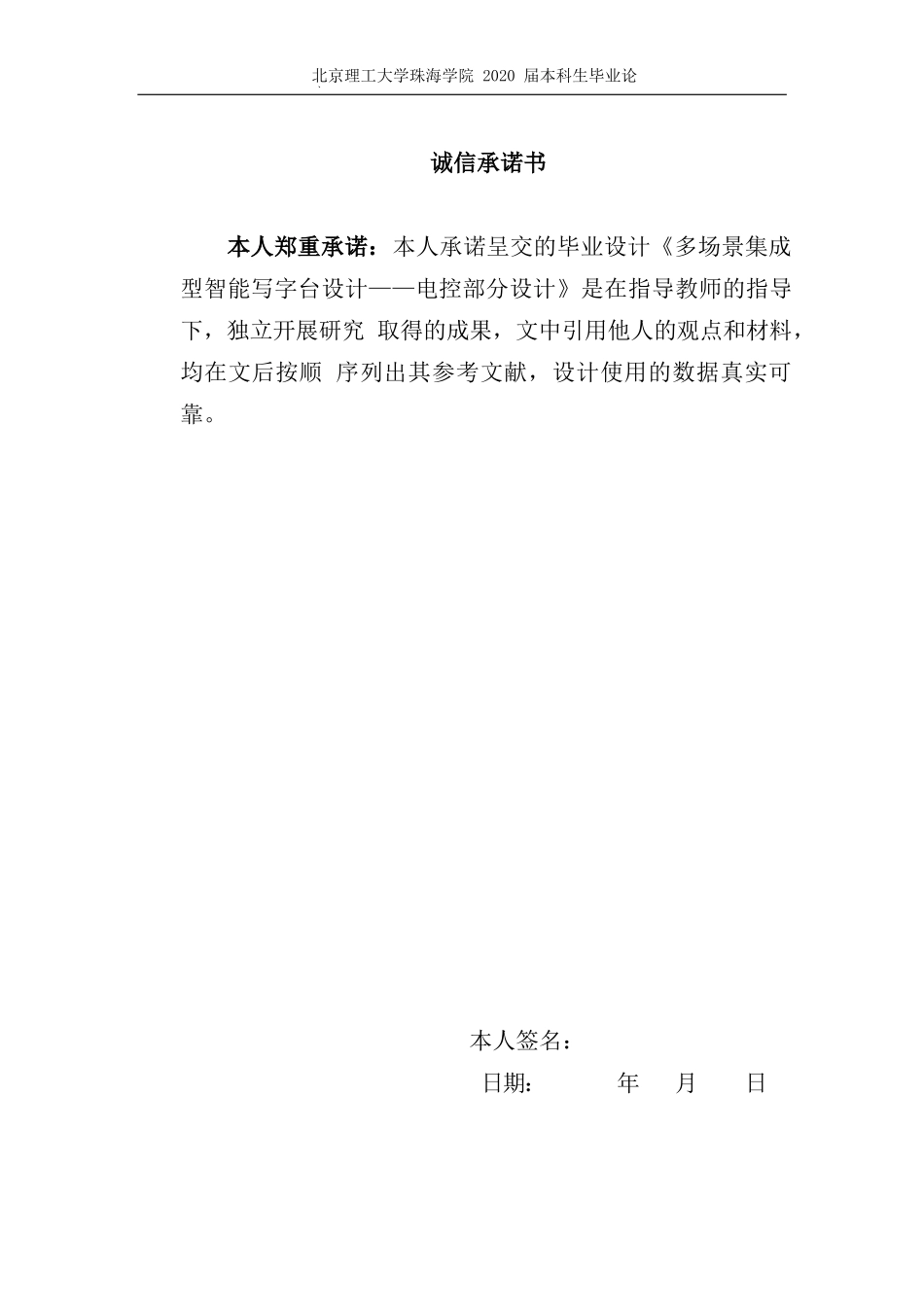

多场景功能集成型智能写字台设计--电控系统设计 学院:专业:姓名:指导老师:工业自动化学院机械电子工程刘作良学号:职称:160404102554李琳讲师中国·珠海 二○二○年三月北京理工大学珠海学院 2020 届本科生毕业论文诚信承诺书 本人郑重承诺:本人承诺呈交的毕业设计《多场景集成型智能写字台设计——电控部分设计》是在指导教师的指导下,独立开展研究 取得的成果,文中引用他人的观点和材料,均在文后按顺 序列出其参考文献,设计使用的数据真实可靠。 本人签名: 日期: 年 月 日 北京理工大学珠海学院 2020 届本科生毕业论文多场景集成型智能写字台设计—电控系统设计 摘 要 本文介绍了一种智能写字台的电控设计方案,这种智能写字台,可实现桌面高度的无级调节,满足站姿与坐姿的办公要求。同时,可对桌面的电脑隐藏到桌子底下,节省空间的同时保持桌面简洁。整个电控系统包括 STM32 开发平台、24V 开关电源、动力单元、3.5 寸带触控 LCD屏组成。LCD 屏挂载在 STM32 开发平台上,通过 keil 代码开发平台对 STM32 编写一个带控制功能的图形操作界面,只需在 LCD 屏上触控即可对动力单元和其他外设进行控制。动力单元分为两部分,一部分为桌面升降,由直流驱动器与电动推杆组成,另一部分为桌面升降部分,由步进电机驱动器与步进电机组成,这两部分都受控于STM32。关键词:写字台 智能化 STM32 图形操作界面 KEIL 北京理工大学珠海学院 2020 届本科生毕业论文Multi scene integrated intelligent desk design electric control system designAbstractThis paper introduces the electronic control design of a kind of intelligent desk. This kind of intelligent desk can realize the stepless adjustment of the height of the desktop and meet the office requirements of standing and sitting.At the same time, the desktop computer can be hidden under the table, save space while keeping the desktop simple.The entire electronic control system consists of STM32 development platform, 24V switching power supply, power unit and 3.5-inch LCD screen with touch control.The LCD screen is mounted on the STM32 development platform. Through the keil code deve...
