安医院门诊楼设计长安医院门诊楼设计

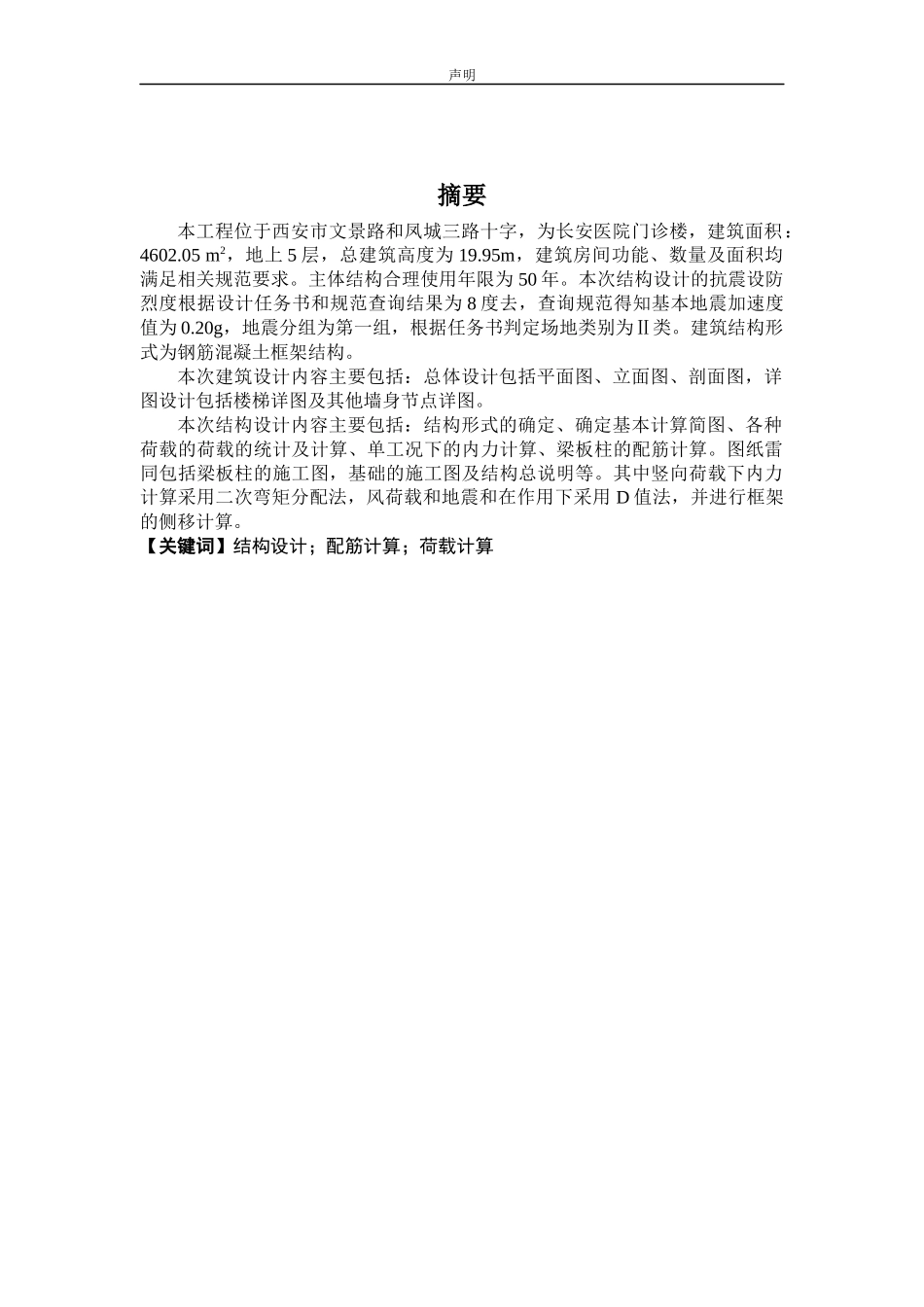

安医院门诊楼设计长安医院门诊楼设计_第1页
1/113

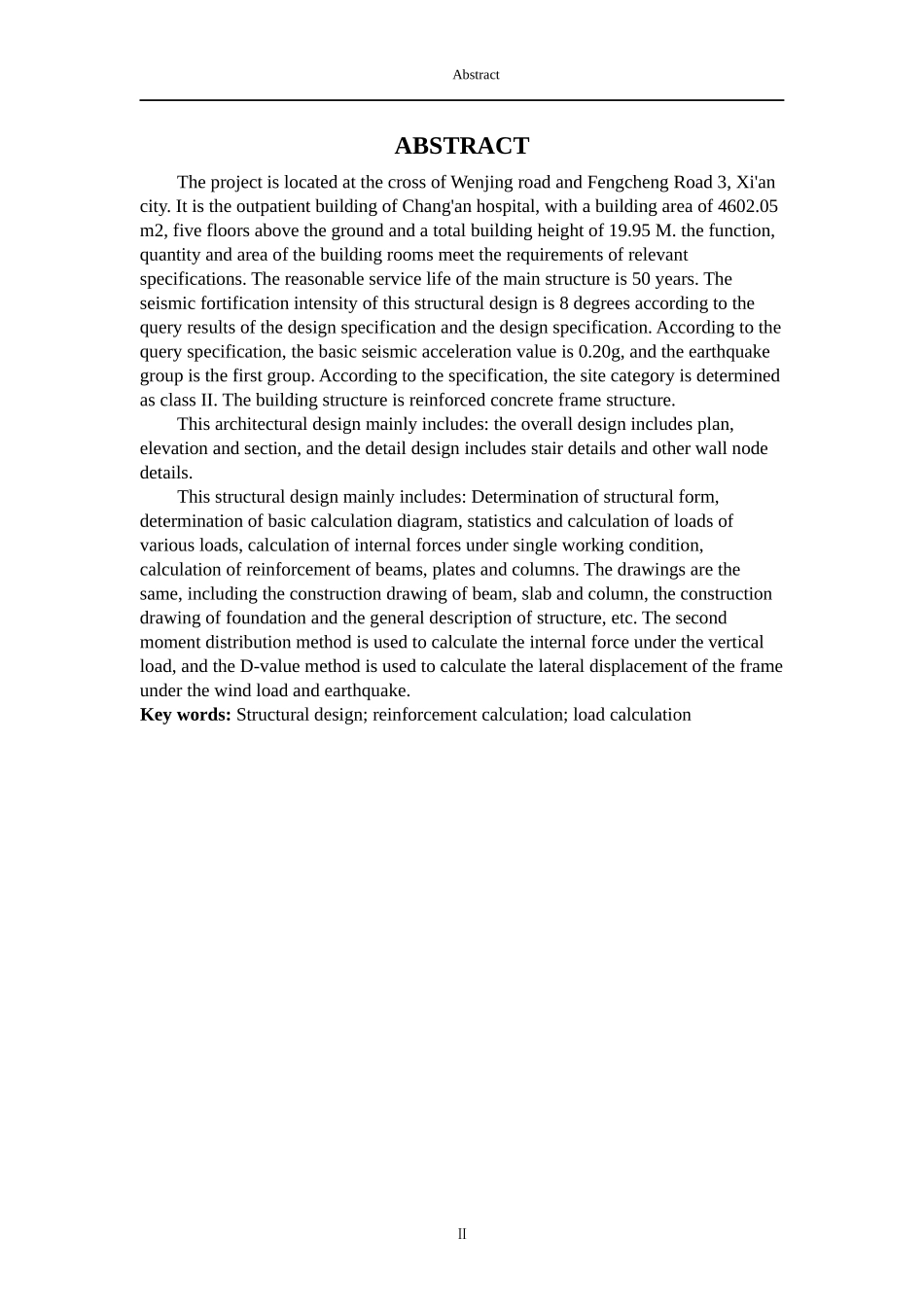

安医院门诊楼设计长安医院门诊楼设计_第2页
2/113
安医院门诊楼设计长安医院门诊楼设计_第3页
3/113
声明摘要本工程位于西安市文景路和凤城三路十字,为长安医院门诊楼,建筑面积:4602.05 m2,地上 5 层,总建筑高度为 19.95m,建筑房间功能、数量及面积均满足相关规范要求。主体结构合理使用年限为 50 年。本次结构设计的抗震设防烈度根据设计任务书和规范查询结果为 8 度去,查询规范得知基本地震加速度值为 0.20g,地震分组为第一组,根据任务书判定场地类别为Ⅱ类。建筑结构形式为钢筋混凝土框架结构。本次建筑设计内容主要包括:总体设计包括平面图、立面图、剖面图,详图设计包括楼梯详图及其他墙身节点详图。本次结构设计内容主要包括:结构形式的确定、确定基本计算简图、各种荷载的荷载的统计及计算、单工况下的内力计算、梁板柱的配筋计算。图纸雷同包括梁板柱的施工图,基础的施工图及结构总说明等。其中竖向荷载下内力计算采用二次弯矩分配法,风荷载和地震和在作用下采用 D 值法,并进行框架的侧移计算。【关键词】结构设计;配筋计算;荷载计算AbstractABSTRACTThe project is located at the cross of Wenjing road and Fengcheng Road 3, Xi'an city. It is the outpatient building of Chang'an hospital, with a building area of 4602.05 m2, five floors above the ground and a total building height of 19.95 M. the function, quantity and area of the building rooms meet the requirements of relevant specifications. The reasonable service life of the main structure is 50 years. The seismic fortification intensity of this structural design is 8 degrees according to the query results of the design specification and the design specification. According to the query specification, the basic seismic acceleration value is 0.20g, and the earthquake group is the first group. According to the specification, the site category is determined as class II. The building structure is reinforced concrete frame structure.This architectural design mainly includes: the overall design includes plan, elevation and section, and the detail design includes stair details and other wall node details...
