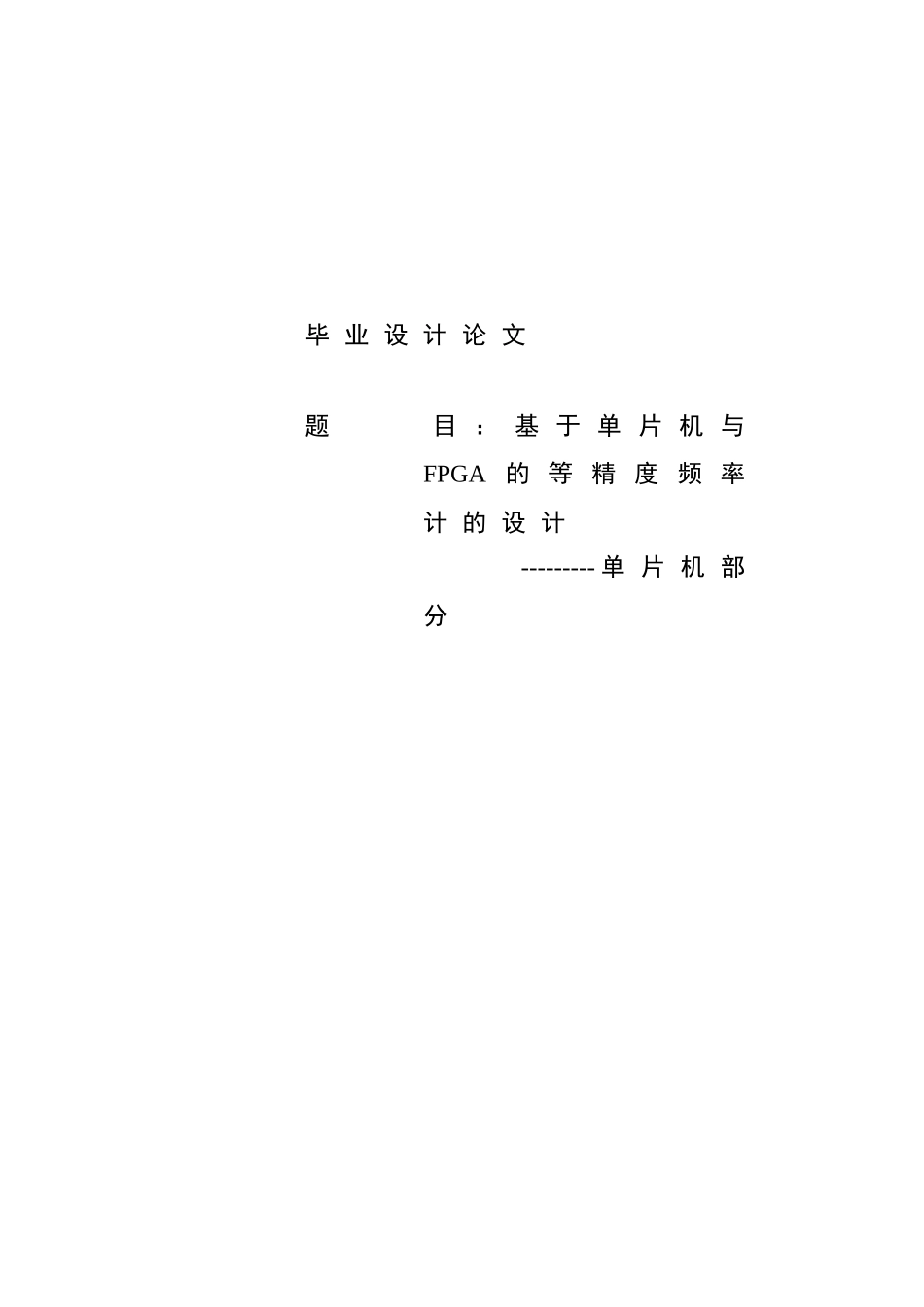

毕 业 设 计 论 文题 目 : 基 于 单 片 机 与FPGA 的 等 精 度 频 率计 的 设 计--------- 单 片 机 部分基 于 单 片 机 与 FPGA 的 等 精 度 频率计的设计---------单片 机 部 分摘 要本设计课题为基于单片机与FPGA 的等精度频率计的设计。本设计以AT89C51单片机作为系统的主控部件,实现整个电路的信号控制、数据运算处理等功能;一片现场可编程逻辑器件FPGA 芯片FLEX EPF10K20RC208-4完成各种时序逻辑控制、计数功能。本文详细论述了等精度数字频率计的测频原理、硬件电路的组成、设计和单片机软件编程设计、系统的误差分析。其中硬件电路包括键盘控制模块、显示模块和测量模块,键盘模块采纳独立式的键盘,实现了测频功能,还实现了周期、脉宽、占空比测量等功能的选择;显示模块采纳静态显示方式,因此电路结构简单,显示方便;AT89C51单片机的软件编程采纳灵活易读的C 语言。本设计将AT89C51单片机的控制灵活性和FPGA 芯片的现场可编程性相结合,不但大大缩短了开发研制周期,而且使本系统具有结构紧凑、体积小、可靠性高、测频范围宽、精度高等优点。关键词:EDA技术;单片机;频率计;FPGA Based on the MCU and FPGA such as the frequency accuracy of design---- SCM part AbstractThe design issues for the frequency of such as the frequency accuracy of design which based on the MCU and FPGA. In the design AT89C51 as a main component, completed the whole circuit’ s signal control, the data processing functions and so on; a field programmable logic device FPGA and chip FLEX EPF10K20RC208-4 completed logic controling and counting function.This paper discusses in detail the accuracy of the figures such as the frequency in frequency measurement principle, hardware circuit components, design and microcontroller software design. Circuit includes hardware keyboard control module, module and measurement module keyboard module of six keys choice, it not only completes the functional test frequency but also completes the cycle, pulse width, duty cycle measurement function of...
