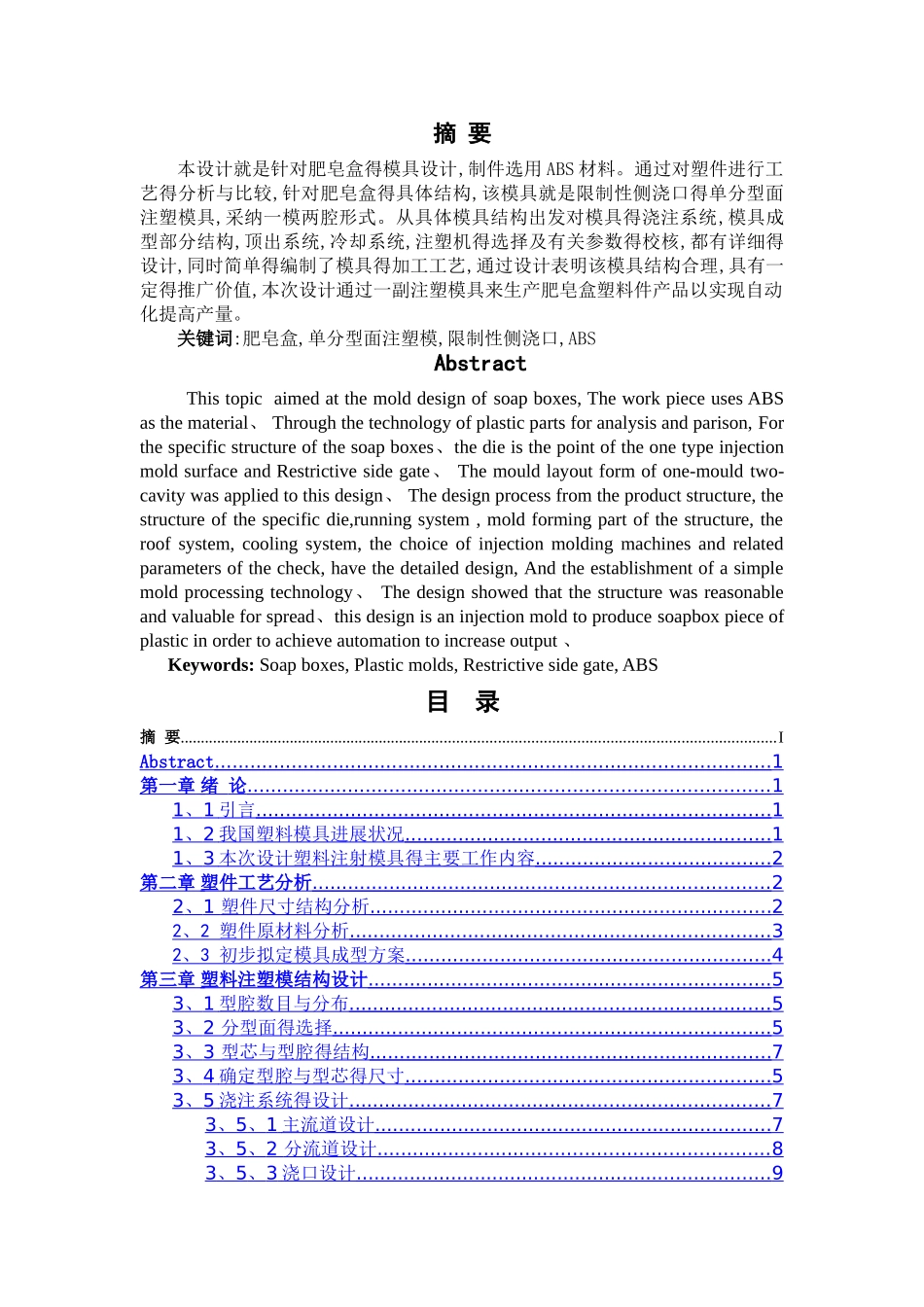

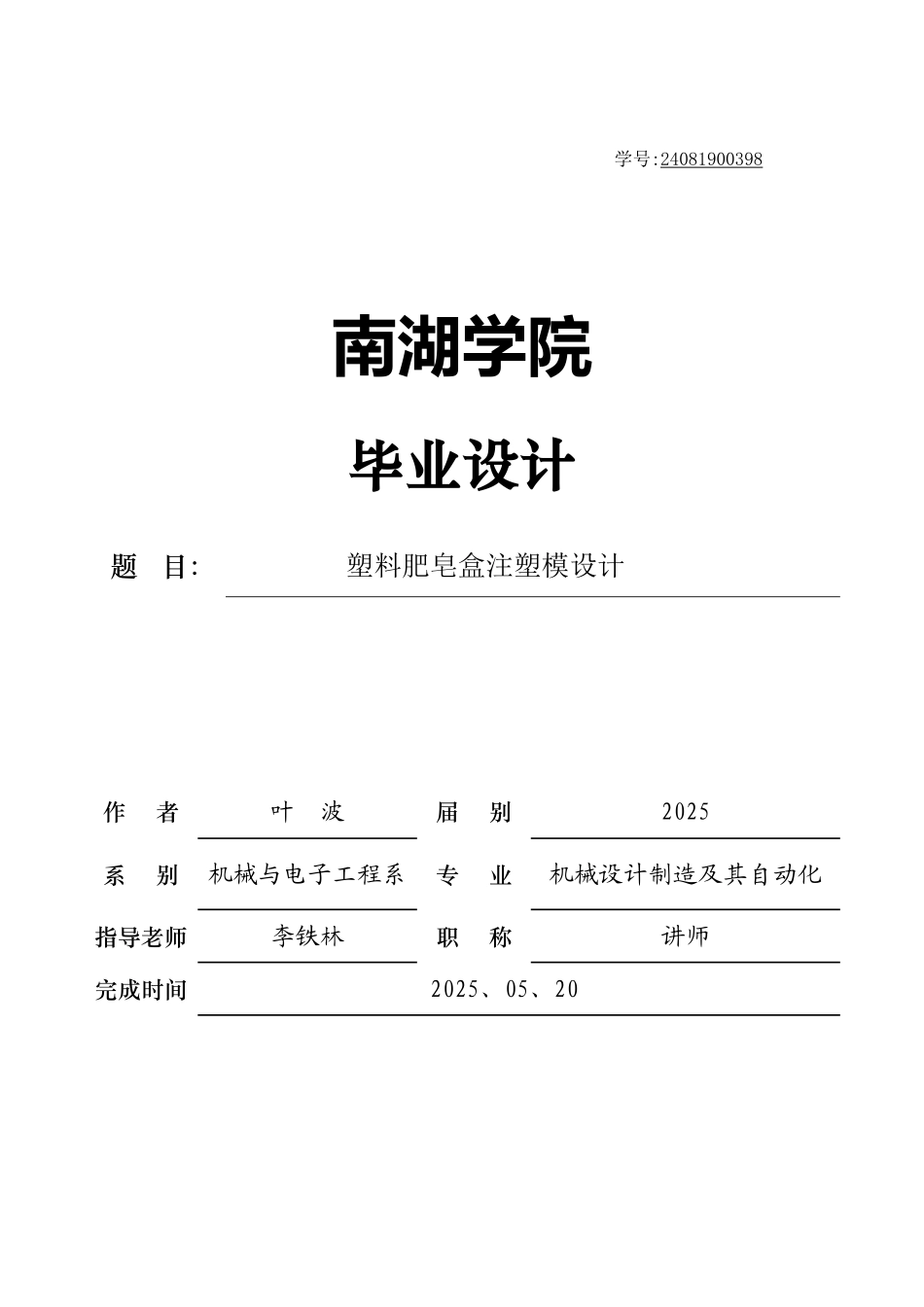

学号:24081900398南湖学院毕业设计题 目:塑料肥皂盒注塑模设计作 者叶 波届 别2025系 别机械与电子工程系专 业机械设计制造及其自动化指导老师李铁林职 称讲师完成时间2025、05、20摘 要本设计就是针对肥皂盒得模具设计,制件选用 ABS 材料。通过对塑件进行工艺得分析与比较,针对肥皂盒得具体结构,该模具就是限制性侧浇口得单分型面注塑模具,采纳一模两腔形式。从具体模具结构出发对模具得浇注系统,模具成型部分结构,顶出系统,冷却系统,注塑机得选择及有关参数得校核,都有详细得设计,同时简单得编制了模具得加工工艺,通过设计表明该模具结构合理,具有一定得推广价值,本次设计通过一副注塑模具来生产肥皂盒塑料件产品以实现自动化提高产量。关键词:肥皂盒,单分型面注塑模,限制性侧浇口,ABS AbstractThis topic aimed at the mold design of soap boxes, The work piece uses ABS as the material、 Through the technology of plastic parts for analysis and parison, For the specific structure of the soap boxes、the die is the point of the one type injection mold surface and Restrictive side gate、 The mould layout form of one-mould two-cavity was applied to this design、 The design process from the product structure, the structure of the specific die,running system , mold forming part of the structure, the roof system, cooling system, the choice of injection molding machines and related parameters of the check, have the detailed design, And the establishment of a simple mold processing technology、 The design showed that the structure was reasonable and valuable for spread、this design is an injection mold to produce soapbox piece of plastic in order to achieve automation to increase output 、 Keywords: Soap boxes, Plastic molds, Restrictive side gate, ABS 目 录摘 要.................................................................................................................................................IAbstract ......................................................
