毕业设计-CA6140主轴工艺与夹具设计(含全套CAD图纸)VIP专享

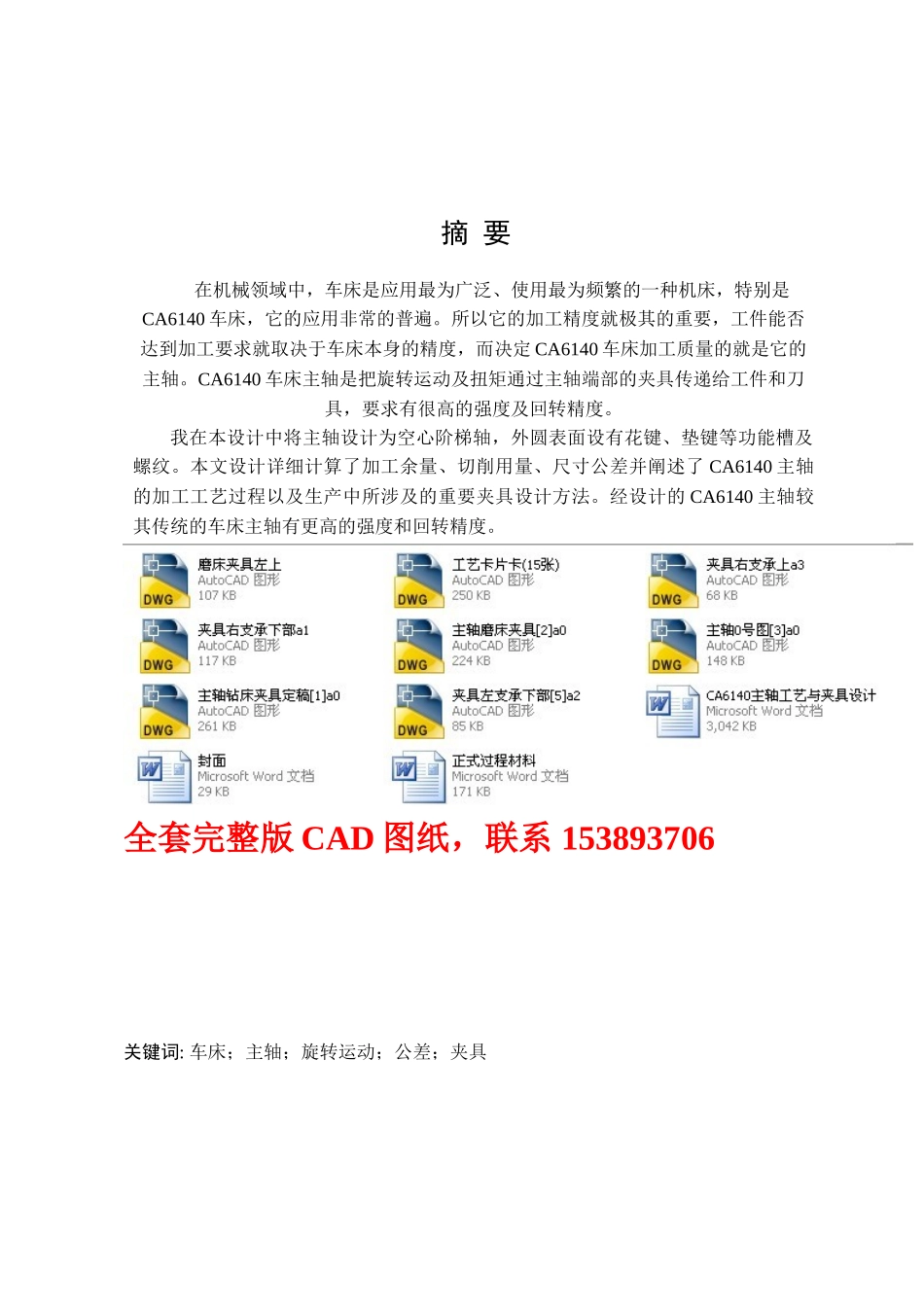

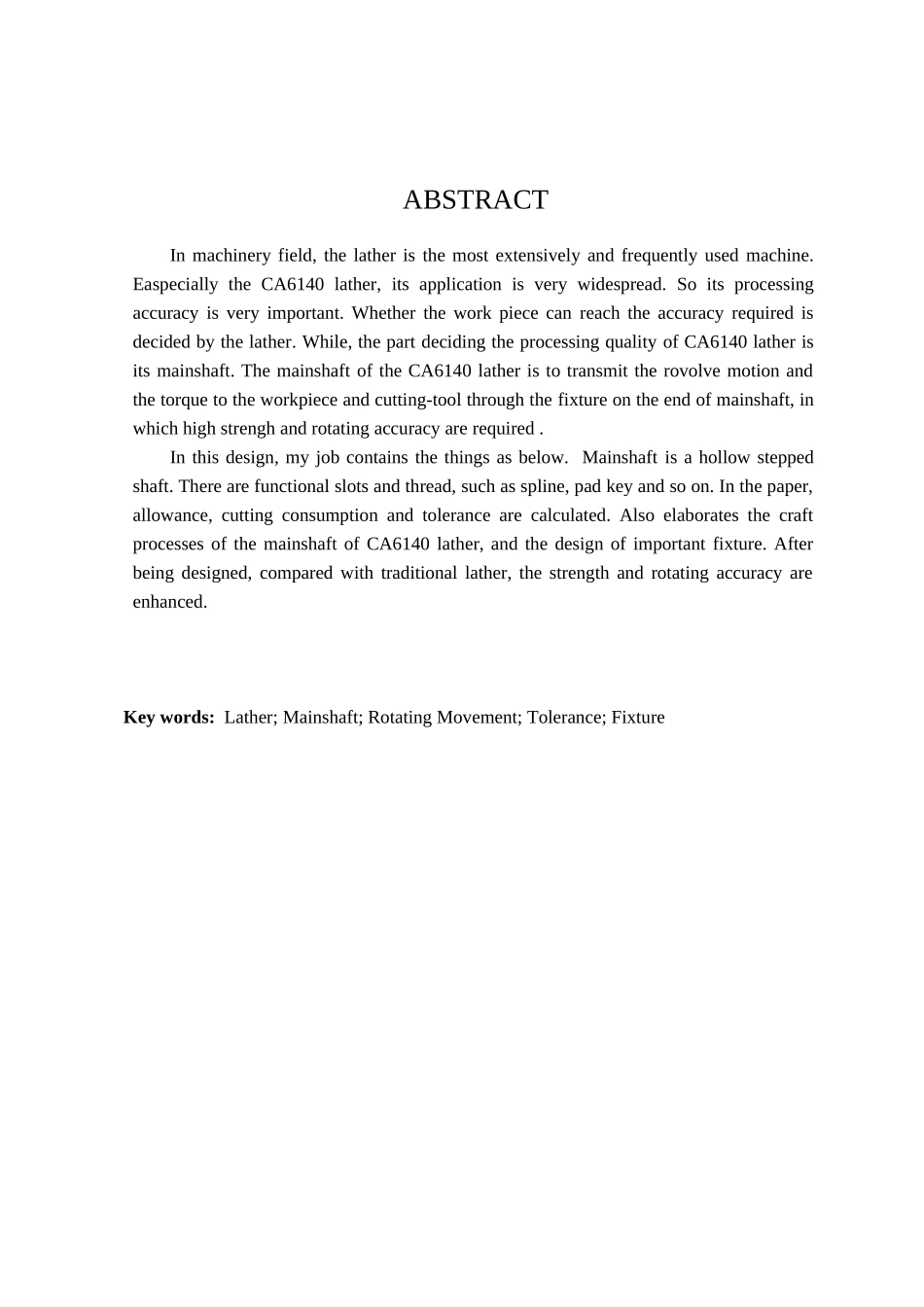

提供全套毕业设计，各专业都有摘 要在机械领域中，车床是应用最为广泛、使用最为频繁的一种机床，特别是CA6140 车床，它的应用非常的普遍。所以它的加工精度就极其的重要，工件能否达到加工要求就取决于车床本身的精度，而决定 CA6140 车床加工质量的就是它的主轴。CA6140 车床主轴是把旋转运动及扭矩通过主轴端部的夹具传递给工件和刀具，要求有很高的强度及回转精度。我在本设计中将主轴设计为空心阶梯轴，外圆表面设有花键、垫键等功能槽及螺纹。本文设计详细计算了加工余量、切削用量、尺寸公差并阐述了 CA6140 主轴的加工工艺过程以及生产中所涉及的重要夹具设计方法。经设计的 CA6140 主轴较其传统的车床主轴有更高的强度和回转精度。全套完整版 CAD 图纸，联系 153893706关键词: 车床；主轴；旋转运动；公差；夹具ABSTRACTIn machinery field, the lather is the most extensively and frequently used machine. Easpecially the CA6140 lather, its application is very widespread. So its processing accuracy is very important. Whether the work piece can reach the accuracy required is decided by the lather. While, the part deciding the processing quality of CA6140 lather is its mainshaft. The mainshaft of the CA6140 lather is to transmit the rovolve motion and the torque to the workpiece and cutting-tool through the fixture on the end of mainshaft, in which high strengh and rotating accuracy are required .In this design, my job contains the things as below. Mainshaft is a hollow stepped shaft. There are functional slots and thread, such as spline, pad key and so on. In the paper, allowance, cutting consumption and tolerance are calculated. Also elaborates the craft processes of the mainshaft of CA6140 lather, and the design of important fixture. After being designed, compared with traditional lather, the strength and rotating accuracy are enhanced.Key words: Lather; Mainshaft; Rotating Movement; Tolerance; Fixture 目 录摘要...........................
