PLC与变频器结合实现电动机恒转矩控制

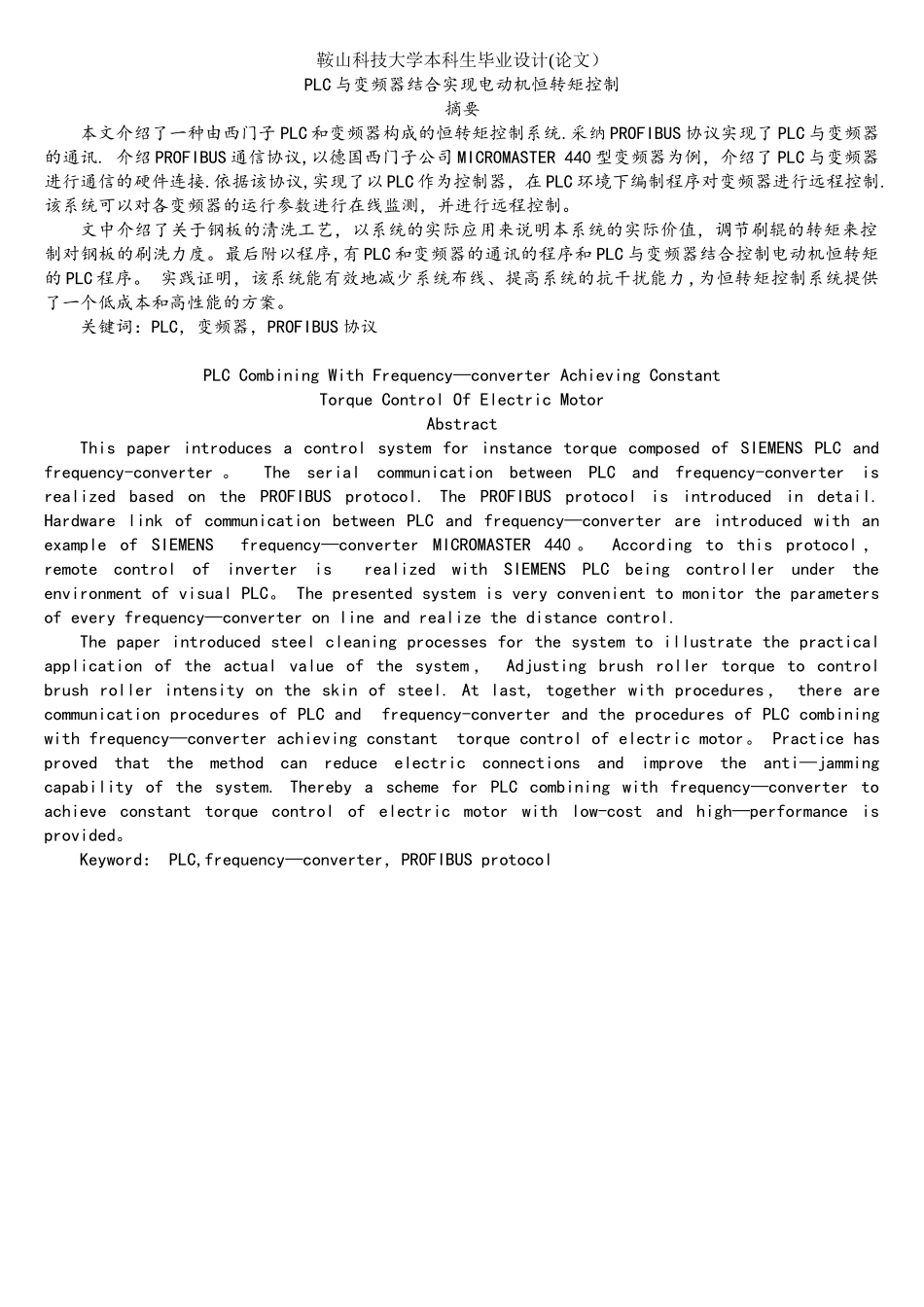

鞍山科技大学本科生毕业设计(论文） PLC 与变频器结合实现电动机恒转矩控制 摘要 本文介绍了一种由西门子 PLC 和变频器构成的恒转矩控制系统.采纳 PROFIBUS 协议实现了 PLC 与变频器的通讯. 介绍 PROFIBUS 通信协议,以德国西门子公司 MICROMASTER 440 型变频器为例，介绍了 PLC 与变频器进行通信的硬件连接.依据该协议,实现了以 PLC 作为控制器，在 PLC 环境下编制程序对变频器进行远程控制.该系统可以对各变频器的运行参数进行在线监测，并进行远程控制。文中介绍了关于钢板的清洗工艺，以系统的实际应用来说明本系统的实际价值，调节刷辊的转矩来控制对钢板的刷洗力度。最后附以程序,有 PLC 和变频器的通讯的程序和 PLC 与变频器结合控制电动机恒转矩的 PLC 程序。 实践证明，该系统能有效地减少系统布线、提高系统的抗干扰能力 ,为恒转矩控制系统提供了一个低成本和高性能的方案。关键词：PLC，变频器，PROFIBUS 协议PLC Combining With Frequency—converter Achieving Constant Torque Control Of Electric Motor Abstract This paper introduces a control system for instance torque composed of SIEMENS PLC and frequency-converter 。 The serial communication between PLC and frequency-converter is realized based on the PROFIBUS protocol. The PROFIBUS protocol is introduced in detail. Hardware link of communication between PLC and frequency—converter are introduced with an example of SIEMENS frequency—converter MICROMASTER 440 。 According to this protocol ， remote control of inverter is realized with SIEMENS PLC being controller under the environment of visual PLC。 The presented system is very convenient to monitor the parameters of every frequency—converter on line and realize the distance control.The paper introduced steel cleaning processes for the system to illustrate the practical application of the actual value of the system ， Adjusting brush roller torque to control brush roller intensity on the skin of steel. At last, together with procedures， the...
