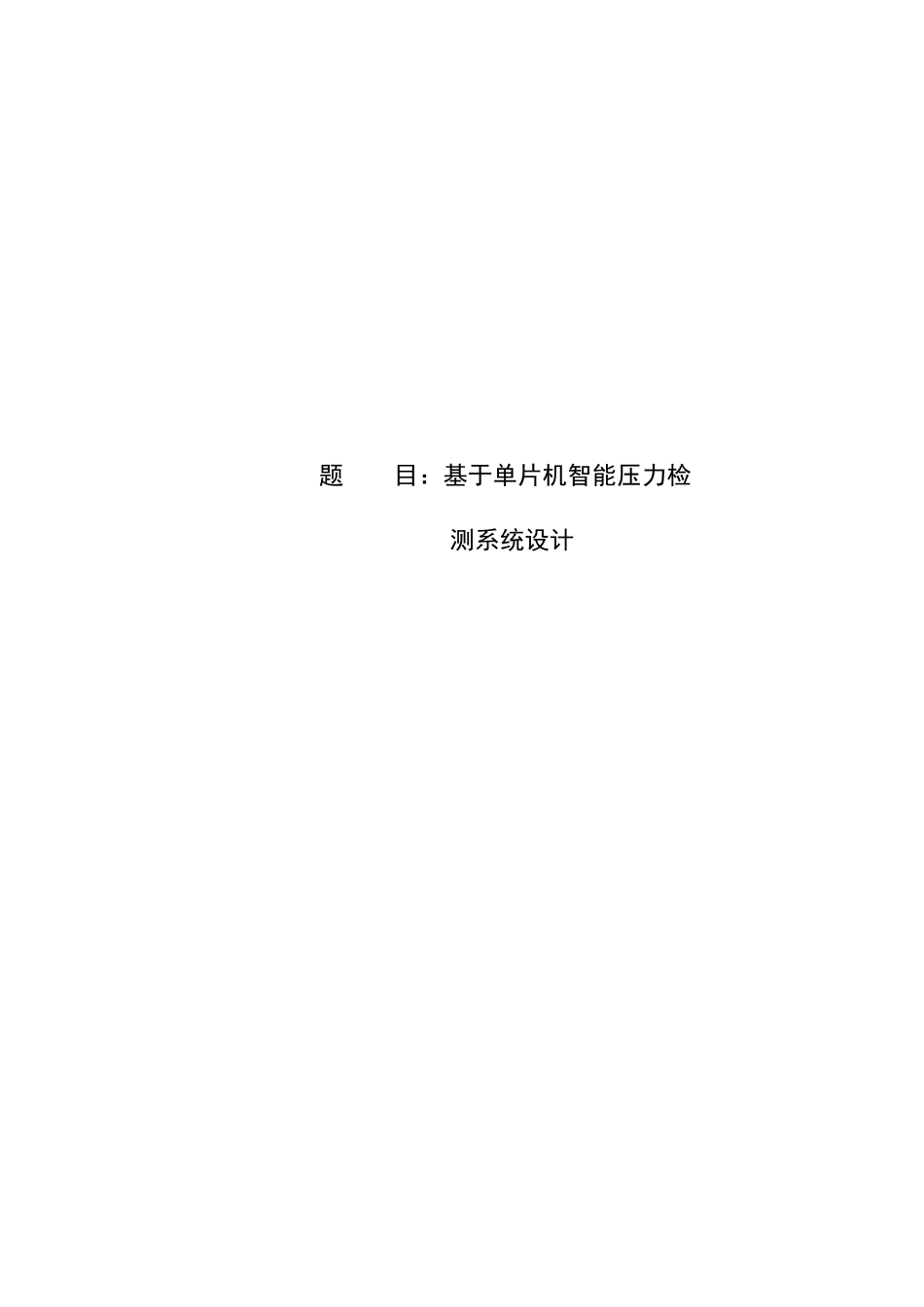

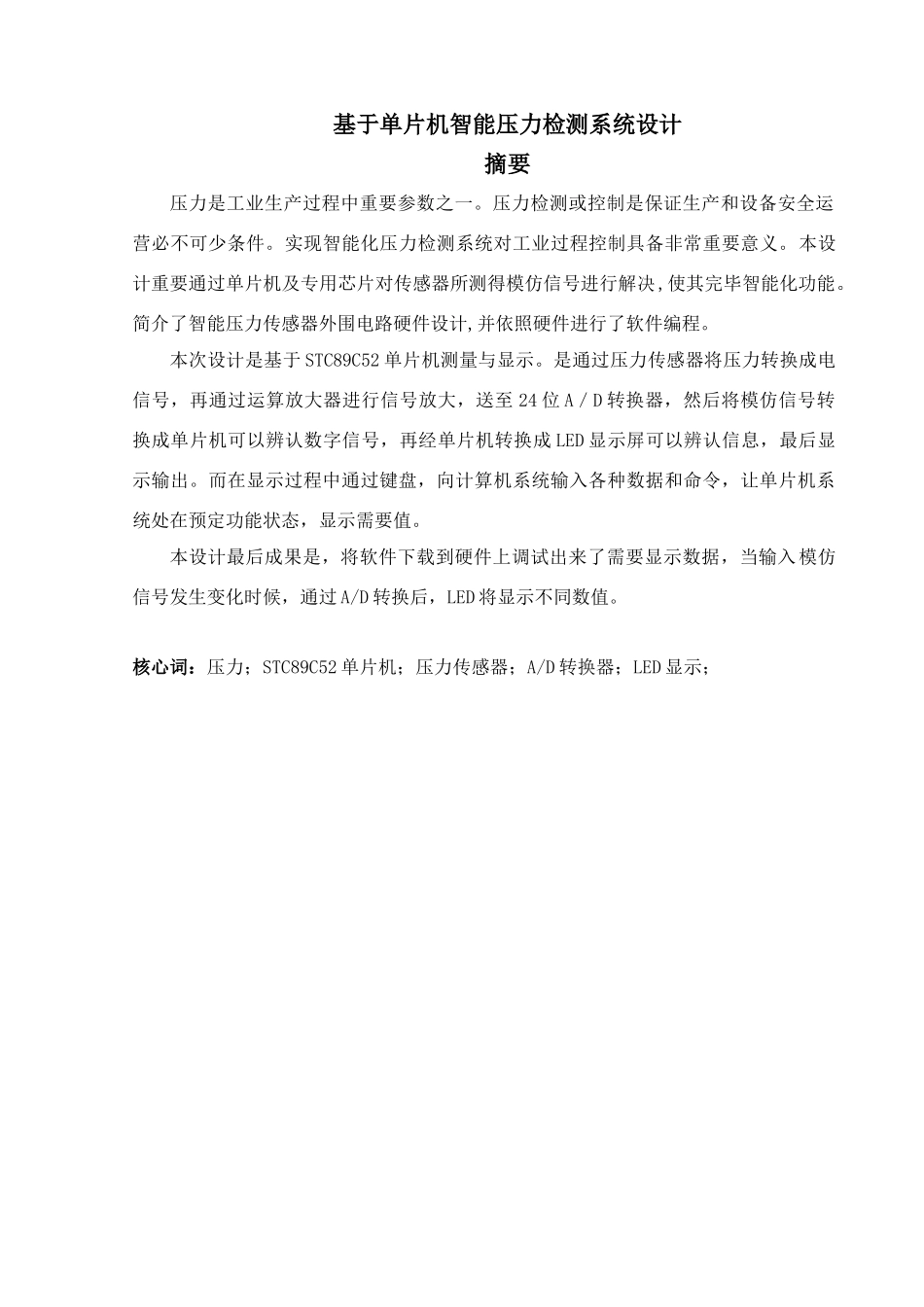

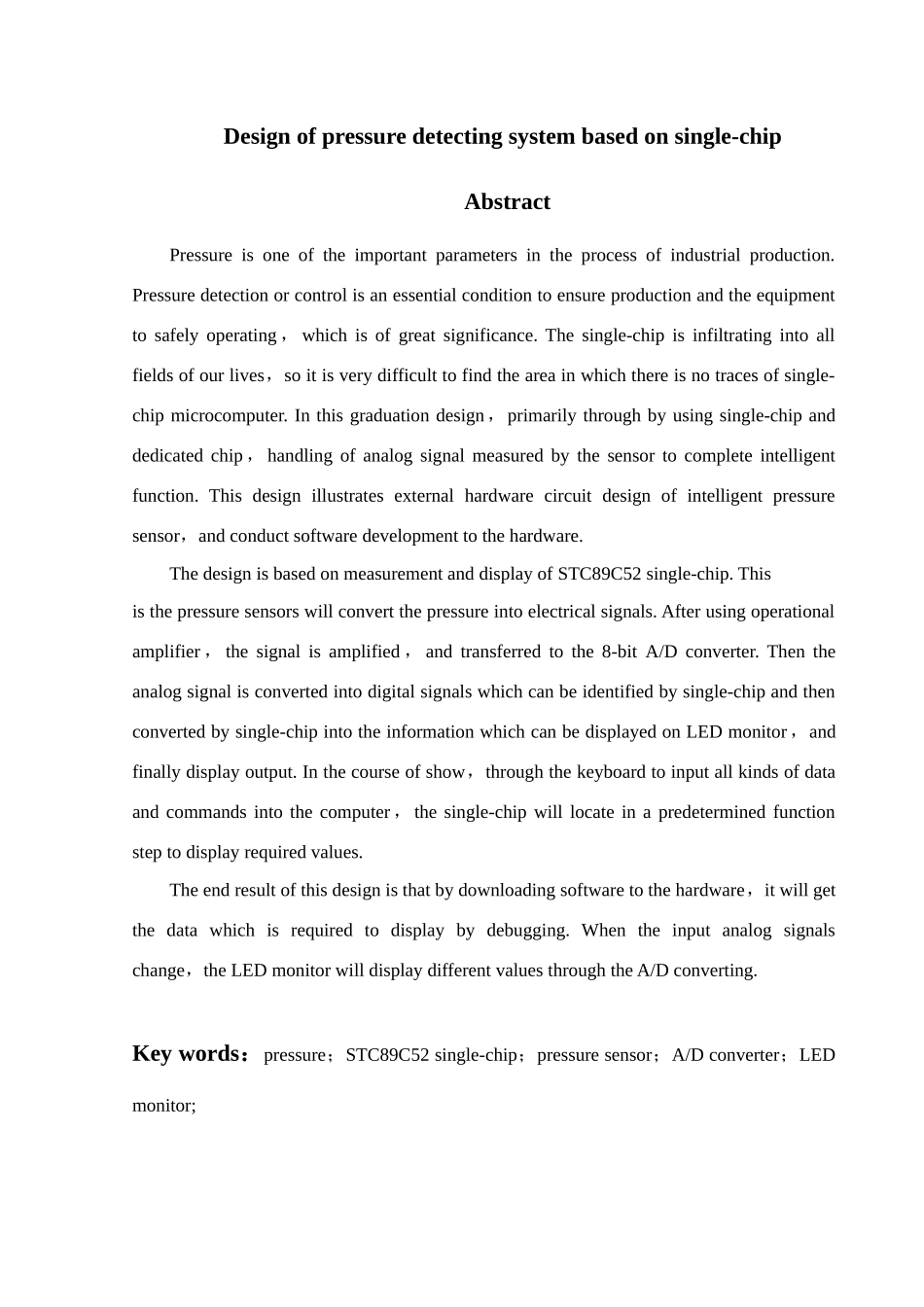

题 目：基于单片机智能压力检测系统设计基于单片机智能压力检测系统设计摘要压力是工业生产过程中重要参数之一。压力检测或控制是保证生产和设备安全运营必不可少条件。实现智能化压力检测系统对工业过程控制具备非常重要意义。本设计重要通过单片机及专用芯片对传感器所测得模仿信号进行解决,使其完毕智能化功能。简介了智能压力传感器外围电路硬件设计,并依照硬件进行了软件编程。本次设计是基于 STC89C52 单片机测量与显示。是通过压力传感器将压力转换成电信号，再通过运算放大器进行信号放大，送至 24 位 A／D 转换器，然后将模仿信号转换成单片机可以辨认数字信号，再经单片机转换成 LED 显示屏可以辨认信息，最后显示输出。而在显示过程中通过键盘，向计算机系统输入各种数据和命令，让单片机系统处在预定功能状态，显示需要值。本设计最后成果是，将软件下载到硬件上调试出来了需要显示数据，当输入模仿信号发生变化时候，通过 A/D 转换后，LED 将显示不同数值。核心词：压力；STC89C52 单片机；压力传感器；A/D 转换器；LED 显示；Design of pressure detecting system based on single-chipAbstractPressure is one of the important parameters in the process of industrial production. Pressure detection or control is an essential condition to ensure production and the equipment to safely operating ， which is of great significance. The single-chip is infiltrating into all fields of our lives，so it is very difficult to find the area in which there is no traces of single-chip microcomputer. In this graduation design，primarily through by using single-chip and dedicated chip ， handling of analog signal measured by the sensor to complete intelligent function. This design illustrates external hardware circuit design of intelligent pressure sensor，and conduct software development to the hardware.The design is based on measurement and display of STC89C52 single-chip. This is the pressure sensors will convert the pressure into electrical signals. After using operational amplifier ， the signal...
