基本设计建筑文字说明

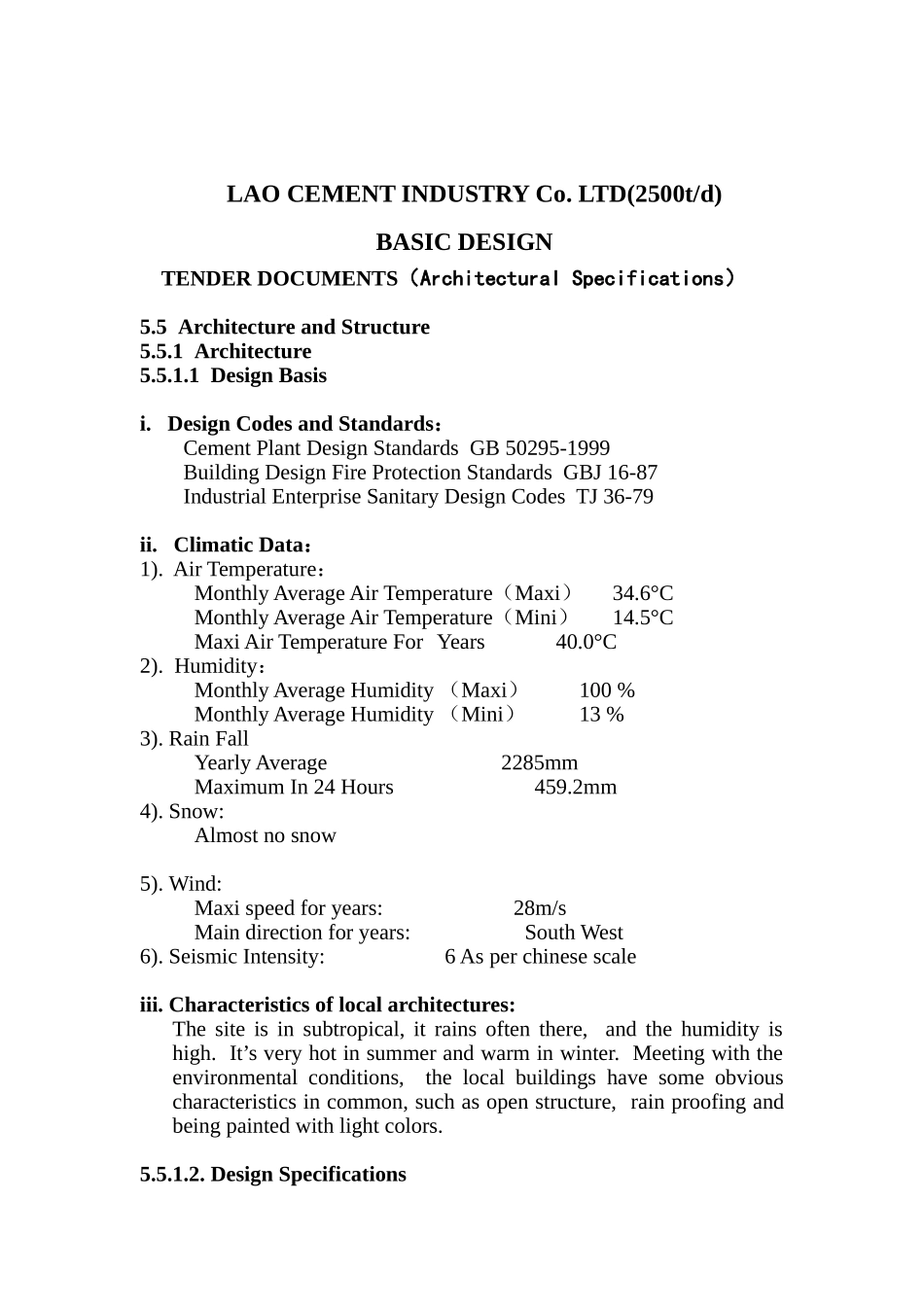

LAO CEMENT INDUSTRY Co. LTD(2500t/d)BASIC DESIGNTENDER DOCUMENTS（Architectural Specifications）5.5 Architecture and Structure5.5.1 Architecture5.5.1.1 Design Basisi. Design Codes and Standards：Cement Plant Design Standards GB 50295-1999Building Design Fire Protection Standards GBJ 16-87Industrial Enterprise Sanitary Design Codes TJ 36-79ii. Climatic Data：1). Air Temperature：Monthly Average Air Temperature（Maxi） 34.6°CMonthly Average Air Temperature（Mini） 14.5°CMaxi Air Temperature For Years 40.0°C2). Humidity：Monthly Average Humidity （Maxi） 100 % Monthly Average Humidity （Mini） 13 % 3). Rain FallYearly Average 2285mmMaximum In 24 Hours 459.2mm4). Snow:Almost no snow5). Wind:Maxi speed for years: 28m/sMain direction for years: South West6). Seismic Intensity: 6 As per chinese scaleiii. Characteristics of local architectures:The site is in subtropical, it rains often there, and the humidity is high. It’s very hot in summer and warm in winter. Meeting with the environmental conditions, the local buildings have some obvious characteristics in common, such as open structure, rain proofing and being painted with light colors. 5.5.1.2. Design Specificationsi. Design Principle：a). Some current state standards, codes would be strictly executed in design. Some technical measures would be adopted, such as fire protection, explosion protection, labor safety, industrial hygiene, etc.b). Ventilation, damp proofing, rain proofing and heat insulation in summer would be considered in the design. the enclosure wall shall be open possibly. Building design would be simple and bright. We would create a good spatial environment and building group with modern specialty as possible.ii. Building Constructions of main workshops: a). Wall: Brick...
