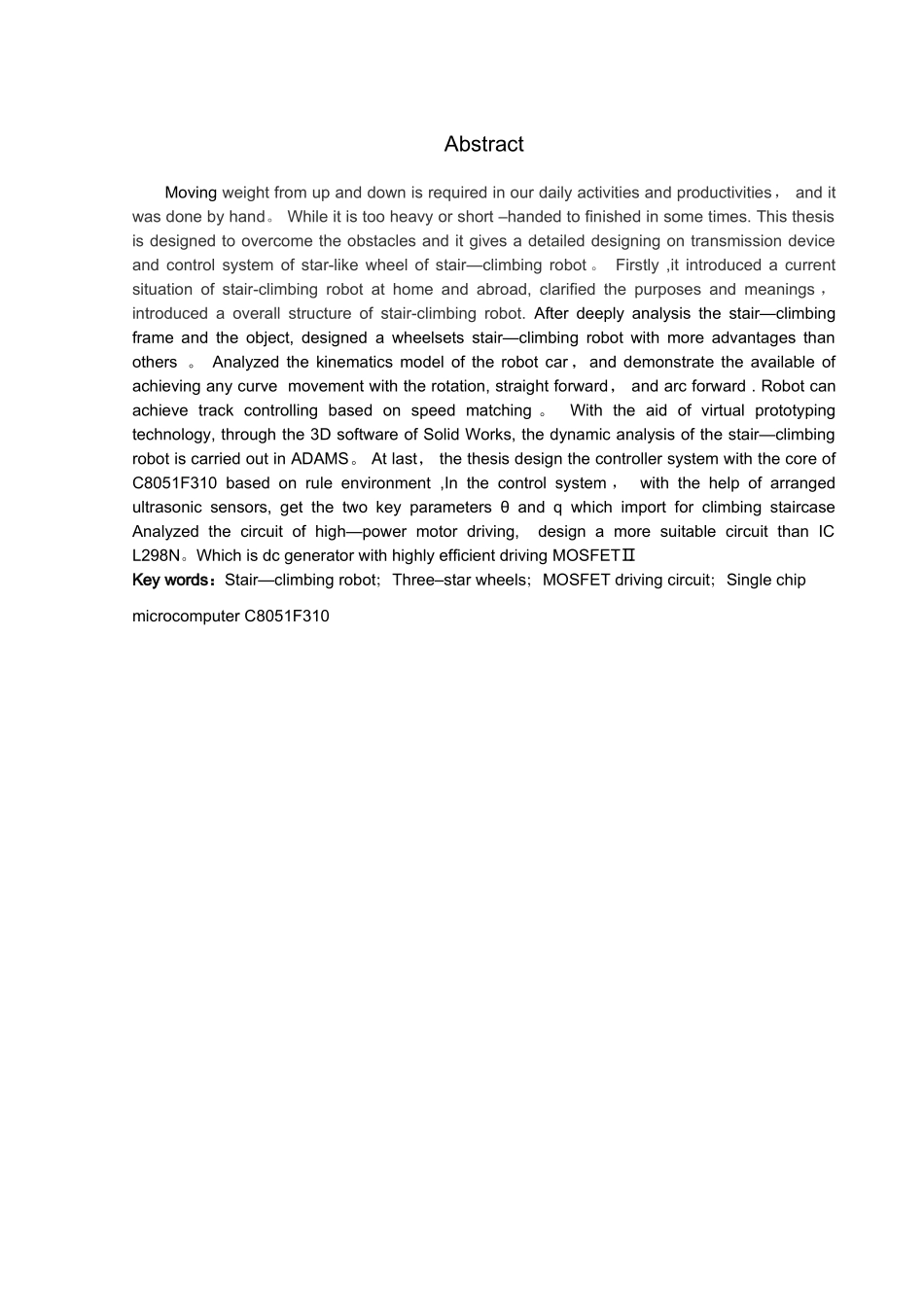

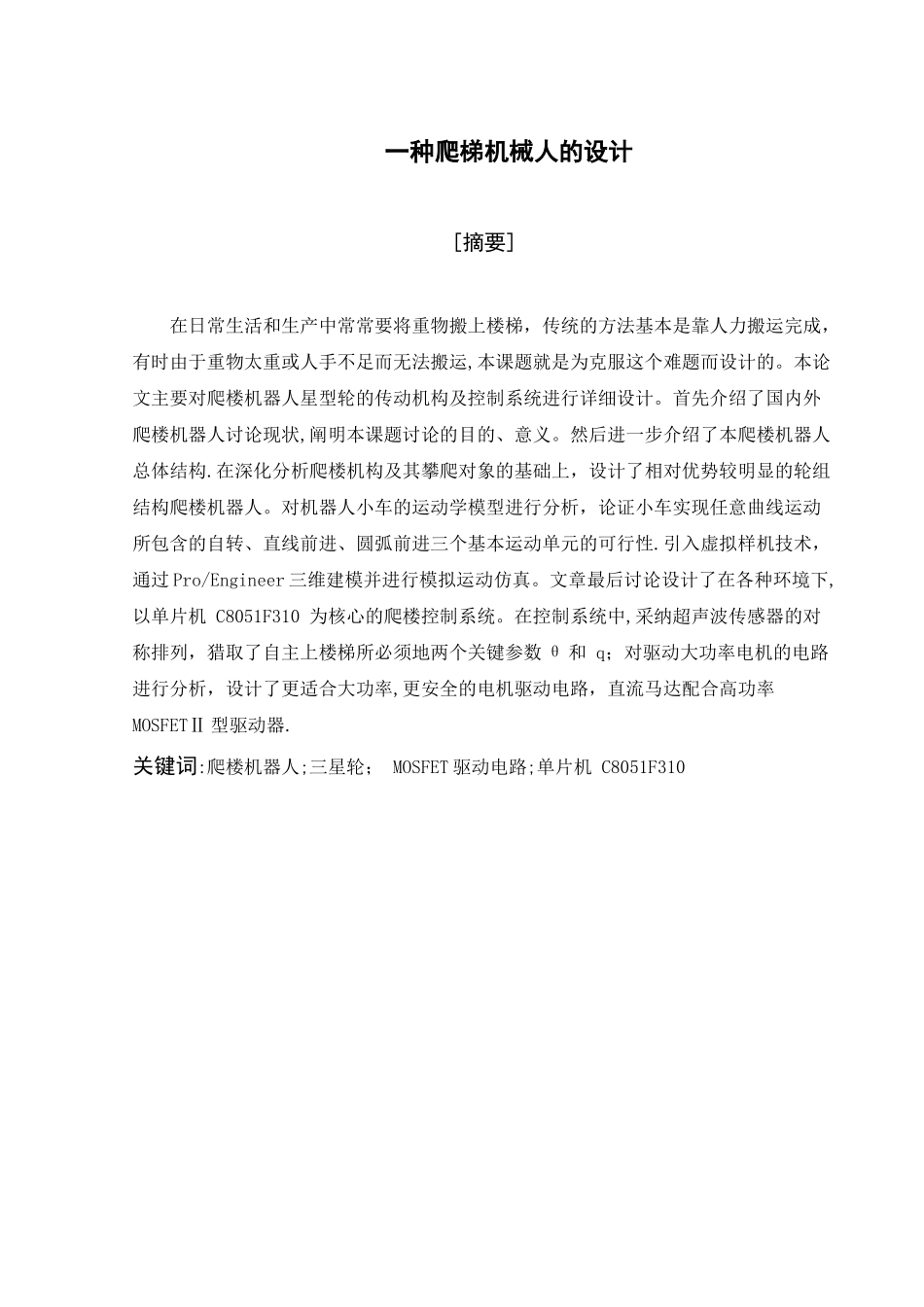

一种爬梯机械人的设计[摘要]在日常生活和生产中常常要将重物搬上楼梯，传统的方法基本是靠人力搬运完成，有时由于重物太重或人手不足而无法搬运,本课题就是为克服这个难题而设计的。本论文主要对爬楼机器人星型轮的传动机构及控制系统进行详细设计。首先介绍了国内外爬楼机器人讨论现状,阐明本课题讨论的目的、意义。然后进一步介绍了本爬楼机器人总体结构.在深化分析爬楼机构及其攀爬对象的基础上，设计了相对优势较明显的轮组结构爬楼机器人。对机器人小车的运动学模型进行分析，论证小车实现任意曲线运动所包含的自转、直线前进、圆弧前进三个基本运动单元的可行性.引入虚拟样机技术，通过 Pro/Engineer 三维建模并进行模拟运动仿真。文章最后讨论设计了在各种环境下,以单片机 C8051F310 为核心的爬楼控制系统。在控制系统中,采纳超声波传感器的对称排列，猎取了自主上楼梯所必须地两个关键参数 θ 和 q；对驱动大功率电机的电路进行分析，设计了更适合大功率,更安全的电机驱动电路，直流马达配合高功率MOSFETⅡ 型驱动器. 关键词:爬楼机器人;三星轮； MOSFET 驱动电路;单片机 C8051F310AbstractMoving weight from up and down is required in our daily activities and productivities， and it was done by hand。 While it is too heavy or short –handed to finished in some times. This thesis is designed to overcome the obstacles and it gives a detailed designing on transmission device and control system of star-like wheel of stair—climbing robot 。 Firstly ,it introduced a current situation of stair-climbing robot at home and abroad, clarified the purposes and meanings ， introduced a overall structure of stair-climbing robot. After deeply analysis the stair—climbing frame and the object, designed a wheelsets stair—climbing robot with more advantages than others 。 Analyzed the kinematics model of the robot car ，and demonstrate the available of achieving any curve movement with the rotation, straight forward， and arc forward . Robot can achieve track controlling based on speed matching 。 With ...
