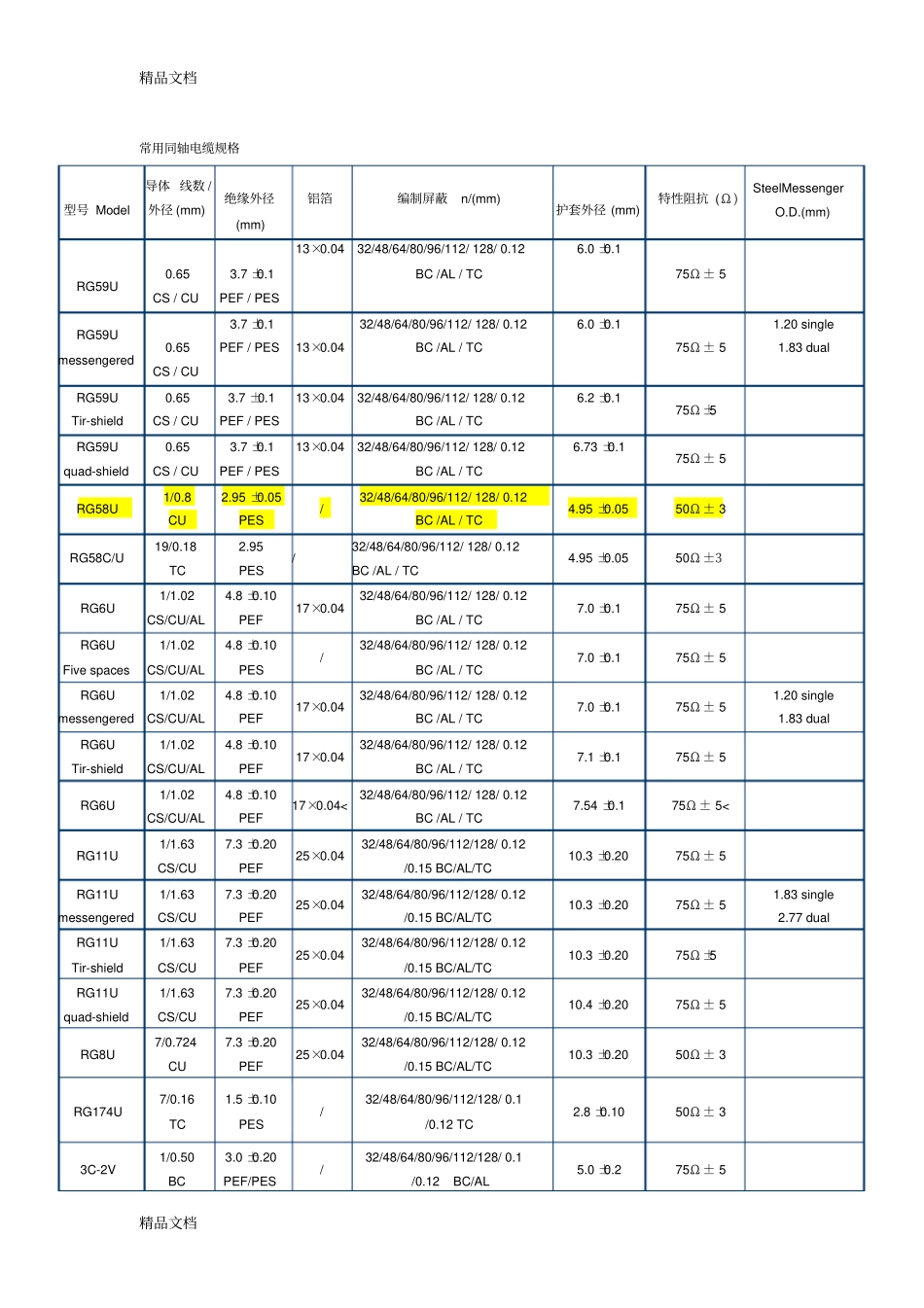

精品文档精品文档常用同轴电缆规格型号Model导体线数/外径(mm)绝缘外径(mm)铝箔编制屏蔽n/(mm)护套外径(mm)特性阻抗(Ω)SteelMessengerO.D.(mm)RG59U0.65CS/CU3.7±0.1PEF/PES13×0.0432/48/64/80/96/112/128/0.12BC/AL/TC6.0±0.175Ω±5RG59Umessengered0.65CS/CU3.7±0.1PEF/PES13×0.0432/48/64/80/96/112/128/0.12BC/AL/TC6.0±0.175Ω±51.20single1.83dualRG59UTir-shield0.65CS/CU3.7±0.1PEF/PES13×0.0432/48/64/80/96/112/128/0.12BC/AL/TC6.2±0.175Ω±5RG59Uquad-shield0.65CS/CU3.7±0.1PEF/PES13×0.0432/48/64/80/96/112/128/0.12BC/AL/TC6.73±0.175Ω±5RG58U1/0.8CU2.95±0.05PES/32/48/64/80/96/112/128/0.12BC/AL/TC4.95±0.0550Ω±3RG58C/U19/0.18TC2.95PES/32/48/64/80/96/112/128/0.12BC/AL/TC4.95±0.0550Ω±3RG6U1/1.02CS/CU/AL4.8±0.10PEF17×0.0432/48/64/80/96/112/128/0.12BC/AL/TC7.0±0.175Ω±5RG6UFivespaces1/1.02CS/CU/AL4.8±0.10PES/32/48/64/80/96/112/128/0.12BC/AL/TC7.0±0.175Ω±5RG6Umessengered1/1.02CS/CU/AL4.8±0.10PEF17×0.0432/48/64/80/96/112/128/0.12BC/AL/TC7.0±0.175Ω±51.20single1.83dualRG6UTir-shield1/1.02CS/CU/AL4.8±0.10PEF17×0.0432/48/64/80/96/112/128/0.12BC/AL/TC7.1±0.175Ω±5RG6U1/1.02CS/CU/AL4.8±0.10PEF17×0.04<32/48/64/80/96/112/128/0.12BC/AL/TC7.54±0.175Ω±5
