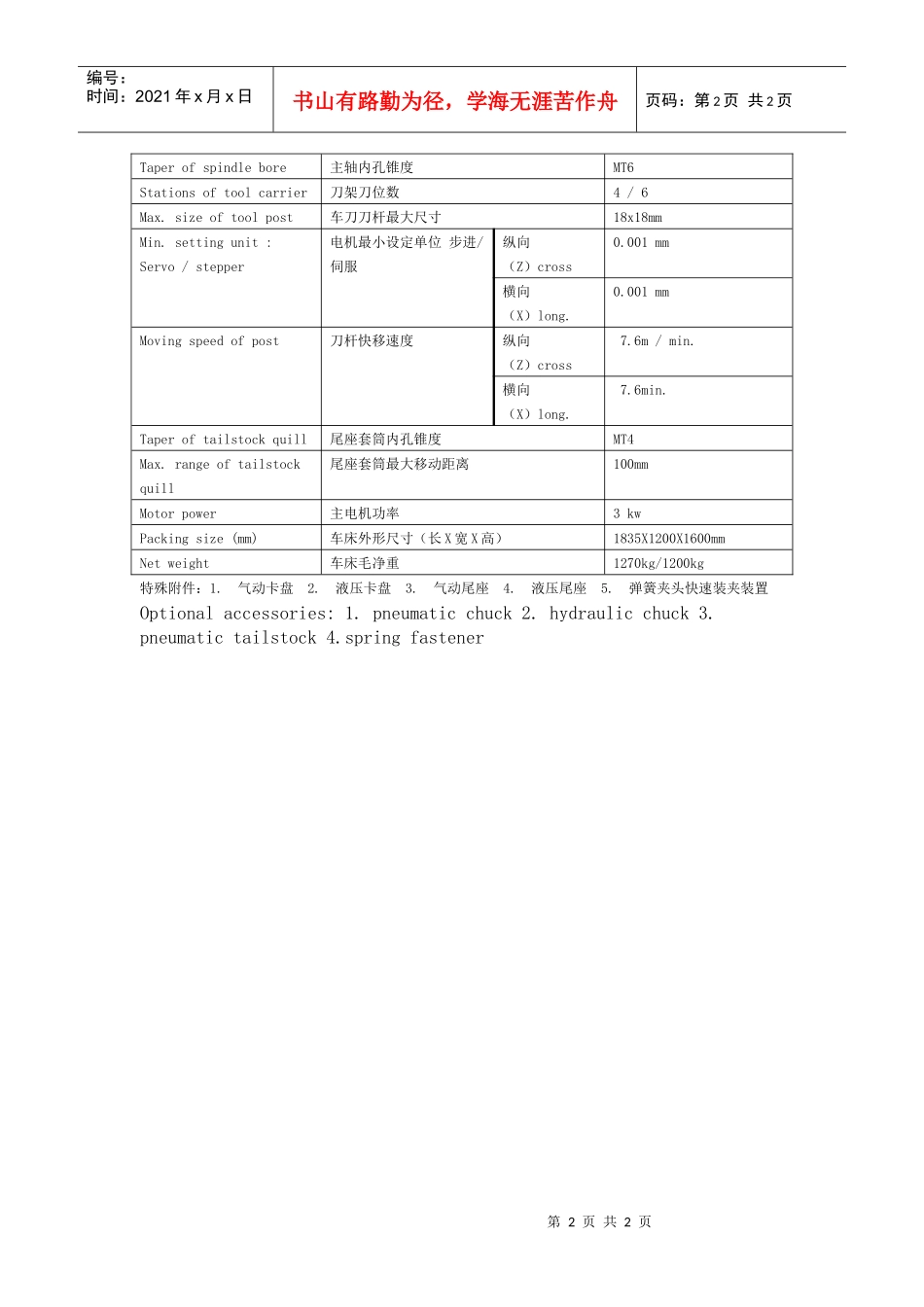

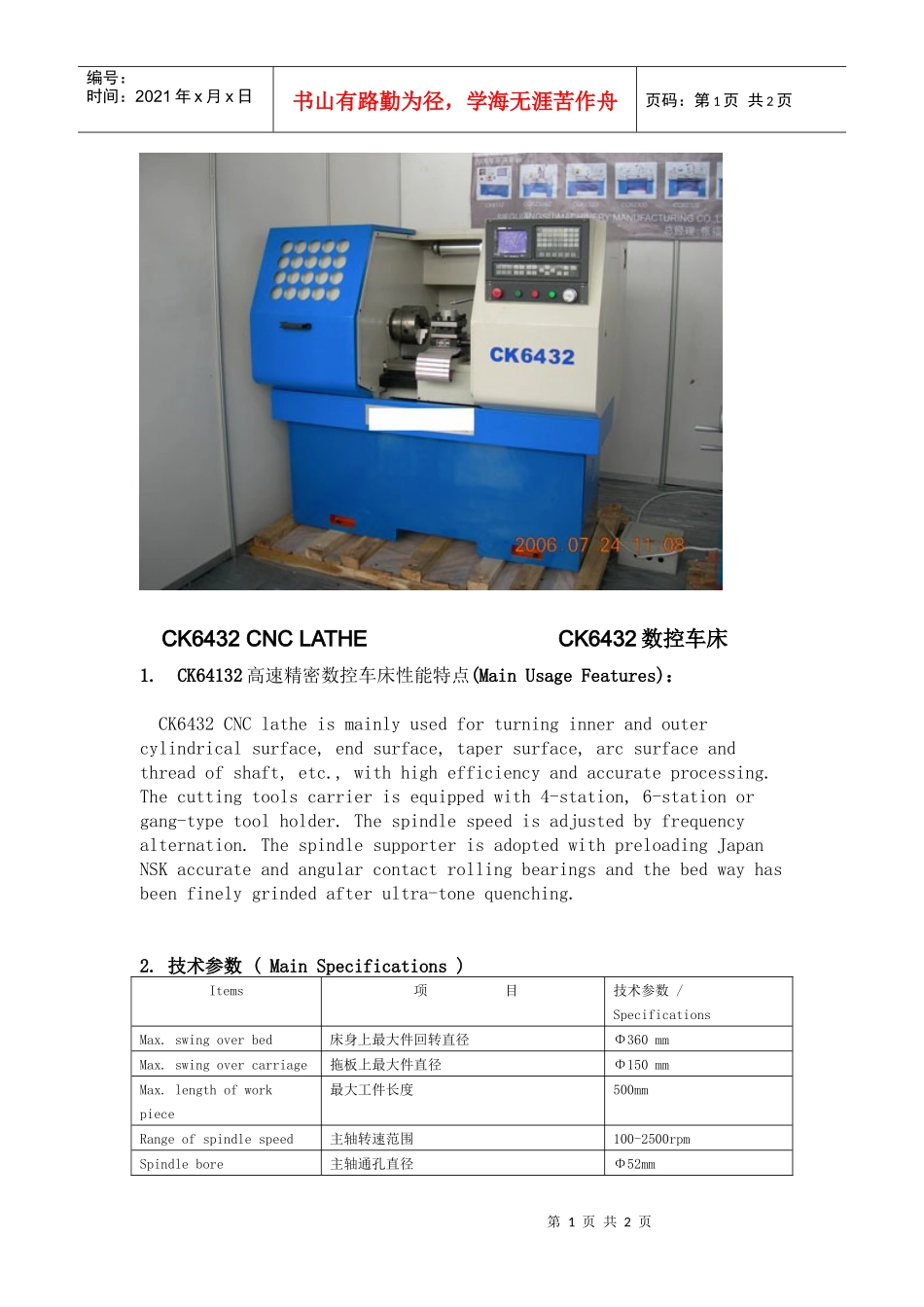

第1页共2页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第1页共2页CK6432CNCLATHECK6432数控车床1.CK64132高速精密数控车床性能特点(MainUsageFeatures)：CK6432CNClatheismainlyusedforturninginnerandoutercylindricalsurface,endsurface,tapersurface,arcsurfaceandthreadofshaft,etc.,withhighefficiencyandaccurateprocessing.Thecuttingtoolscarrierisequippedwith4-station,6-stationorgang-typetoolholder.Thespindlespeedisadjustedbyfrequencyalternation.ThespindlesupporterisadoptedwithpreloadingJapanNSKaccurateandangularcontactrollingbearingsandthebedwayhasbeenfinelygrindedafterultra-tonequenching.2.技术参数(MainSpecifications)Items项目技术参数/SpecificationsMax.swingoverbed床身上最大件回转直径Φ360mmMax.swingovercarriage拖板上最大件直径Φ150mmMax.lengthofworkpiece最大工件长度500mmRangeofspindlespeed主轴转速范围100-2500rpmSpindlebore主轴通孔直径Φ52mm第2页共2页第1页共2页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共2页Taperofspindlebore主轴内孔锥度MT6Stationsoftoolcarrier刀架刀位数4/6Max.sizeoftoolpost车刀刀杆最大尺寸18x18mmMin.settingunit:Servo/stepper电机最小设定单位步进/伺服纵向（Z）cross0.001mm横向（X）long.0.001mmMovingspeedofpost刀杆快移速度纵向（Z）cross7.6m/min.横向（X）long.7.6min.Taperoftailstockquill尾座套筒内孔锥度MT4Max.rangeoftailstockquill尾座套筒最大移动距离100mmMotorpower主电机功率3kwPackingsize(mm)车床外形尺寸（长X宽X高）1835X1200X1600mmNetweight车床毛净重1270kg/1200kg特殊附件：1.气动卡盘2.液压卡盘3.气动尾座4.液压尾座5.弹簧夹头快速装夹装置Optionalaccessories:1.pneumaticchuck2.hydraulicchuck3.pneumatictailstock4.springfastener
