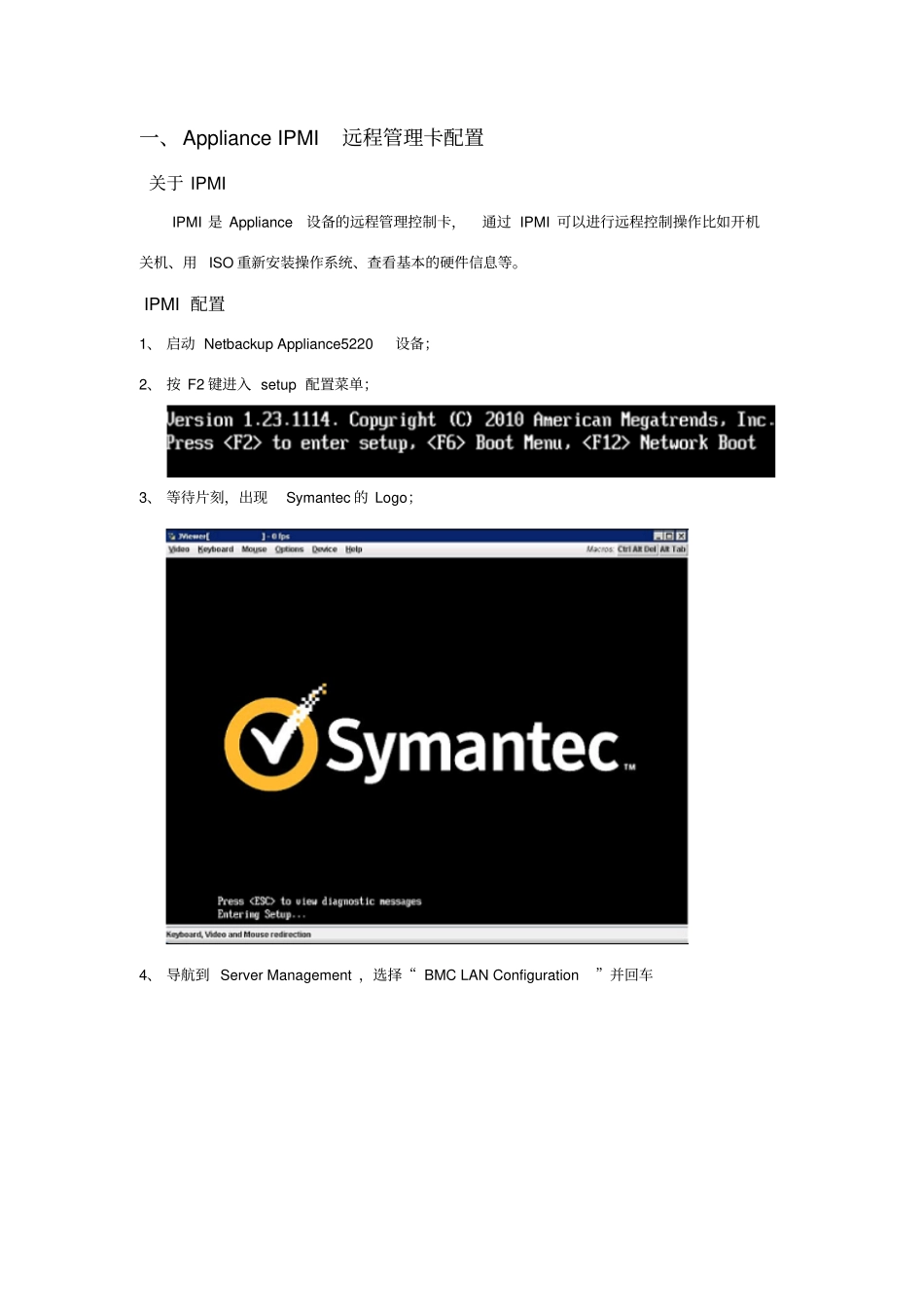

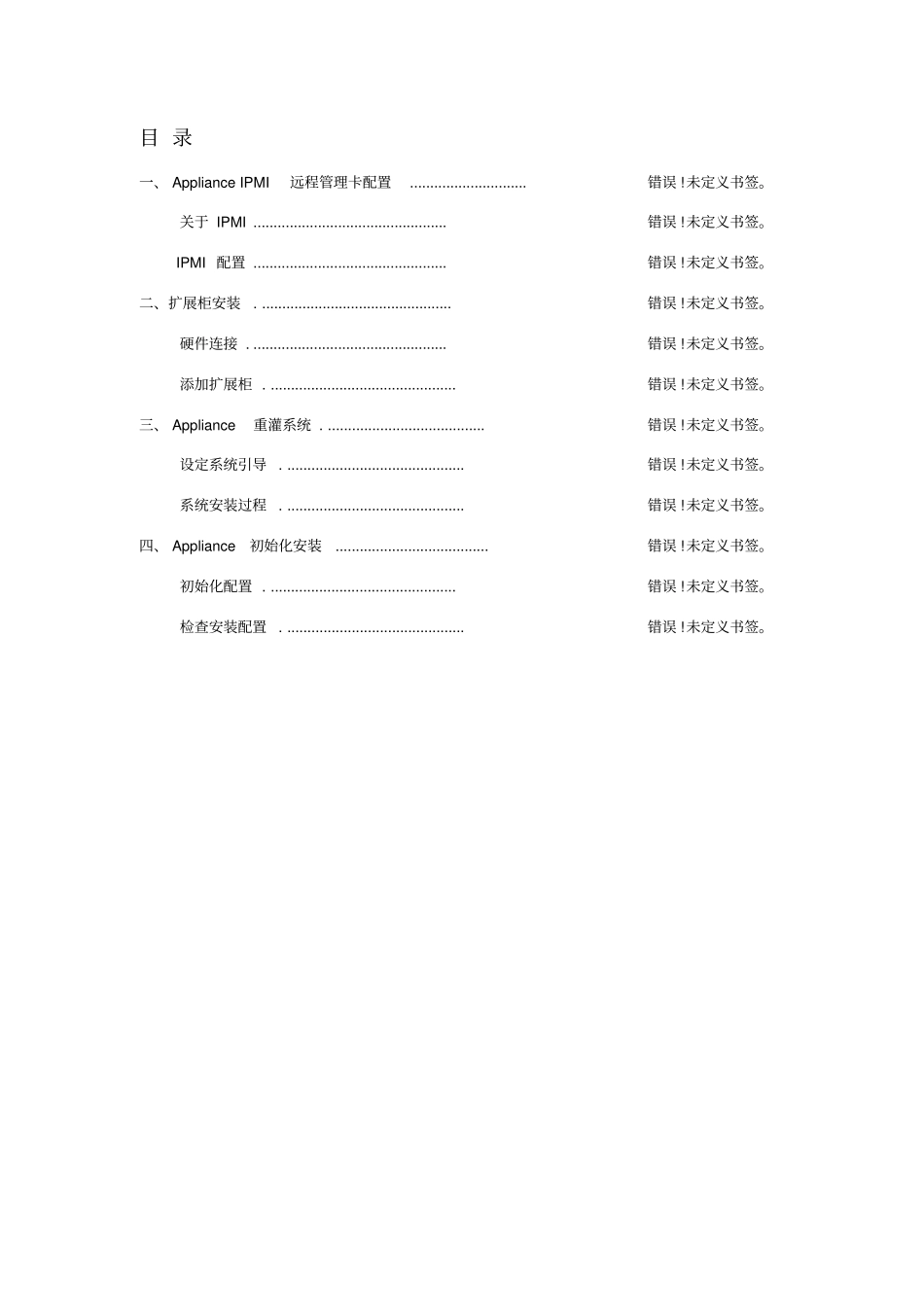

SymantecNetBackupAppliance安装配置指南目录一、ApplianceIPMI远程管理卡配置.............................错误!未定义书签。关于IPMI................................................错误!未定义书签。IPMI配置................................................错误!未定义书签。二、扩展柜安装................................................错误!未定义书签。硬件连接.................................................错误!未定义书签。添加扩展柜...............................................错误!未定义书签。三、Appliance重灌系统........................................错误!未定义书签。设定系统引导.............................................错误!未定义书签。系统安装过程.............................................错误!未定义书签。四、Appliance初始化安装......................................错误!未定义书签。初始化配置...............................................错误!未定义书签。检查安装配置.............................................错误!未定义书签。一、ApplianceIPMI远程管理卡配置关于IPMIIPMI是Appliance设备的远程管理控制卡，通过IPMI可以进行远程控制操作比如开机关机、用ISO重新安装操作系统、查看基本的硬件信息等。IPMI配置1、启动NetbackupAppliance5220设备；2、按F2键进入setup配置菜单；3、等待片刻，出现Symantec的Logo；4、导航到ServerManagement，选择“BMCLANConfiguration”并回车5、在RMM3LANCconfiguration选项中，将IPsource由DHPC改为Static，在IPaddress、Subnetmask、GatewayIP中分别输入IP地址、子网掩码及网关6、按F10保存退出7、打开浏览器输入配置的IP地址尝试登陆IPMI；默认用户名及密码是sysadmin/P@ssw0rd二、扩展柜安装注意：扩展柜安装可以在系统重灌之前或者之后进行；但是建议在重灌之前安装。初始化过程将自动创建dedupdiskpool；如果初始化完成之后再添加扩展柜，需要手动创建dedupdiskpool。硬件连接注意：将主柜SAS连接线分别接入扩展柜的IN口；扩展柜的OUT口用于连接第二个扩展柜的IN口。连接图示（一个扩展柜）连接图示（两个扩展柜）注意：开启Appliance的时候先开扩展柜2-3分钟后，再开主柜。添加扩展柜1、用SSH登录到Appliance命令行菜单注意：如果采用SecureCRT连接工具，可能要修改Authentication认证方式为KeyboardInteractive，否则系统将拒绝您登录；如下2、转到manage->storage菜单，输入show，列出当前的存储信息，如下可以看出Uni_2是扩展柜，状态为NewAvailable;>show----------------------------------------------------------------------------Device|Total|Unallocated|Status----------------------------------------------------------------------------ApplianceOperatingSystem|GB|-|InUseBaseUnitStorage(unit_1)|TB|TB|InUseExpansionUnitStorage(unit_2)|TB|-|NewAvailableNOTE:Thenamethatappearsin()(ex:unit_1)isthedevicename.Usetheappropriatedevicenamewhileissuingthecommandstomanipulatethestorage.----------------------------------------------------------------Partition|Total|Available|Used|%Used----------------------------------------------------------------AdvancedDisk|0GB|0GB|0GB|0%Deduplication|0GB|0GB|0GB|0%Unallocated|TB|-|-|-3、使用Add命令将扩展柜添加到系统>Add-[Info]Followingexpansionunitscanbeadded:-[Info]unit_2>Addunit_2-[Info]Checkingthetypeofthe'unit_2'device...-[Info]Checkingthestateofthe'unit_2'expansionunitdevicestorage...-[Info]Initializing'unit_2'expansionstorage...-[Info]Configuring'unit_2'expansionunitstorage...-[Info]Adding'unit_2'expansionunitstoragespaceto'Unallocated'space...-[Info]Succeeded.4、用show命令检查扩展柜是否已经被系统正常识别>show---------------------------------------------------------------------Device|Total|Unallocated|...
