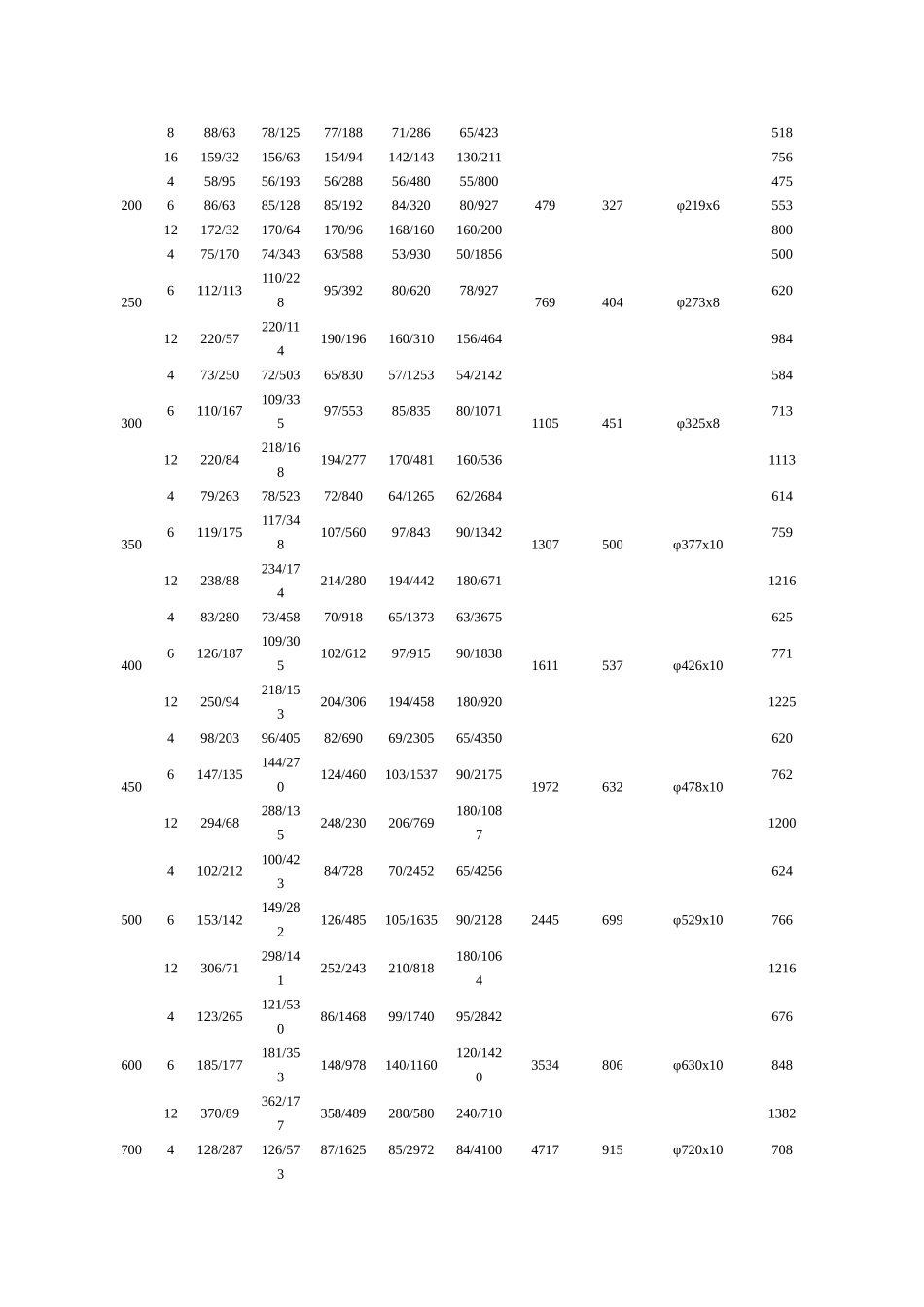

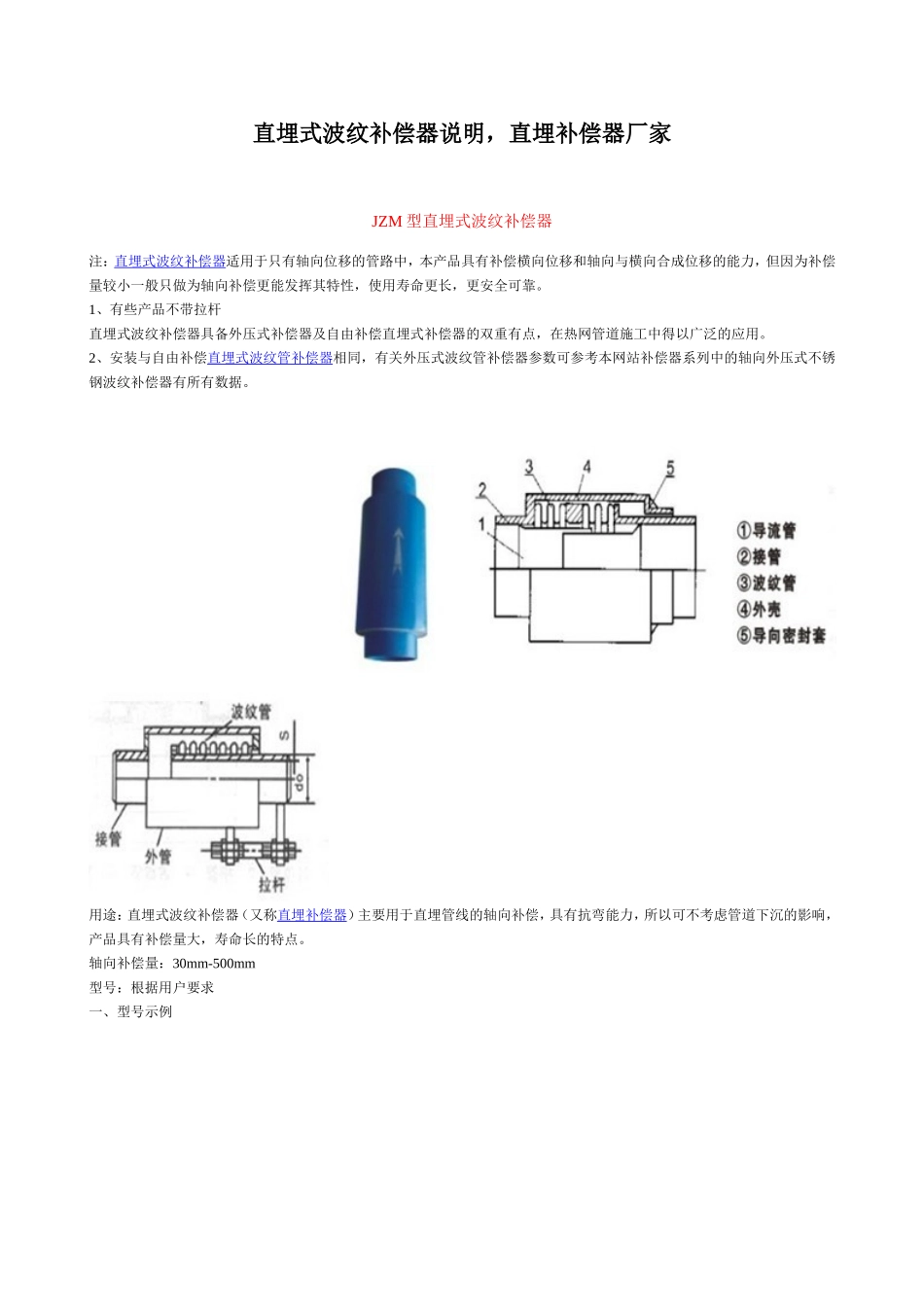

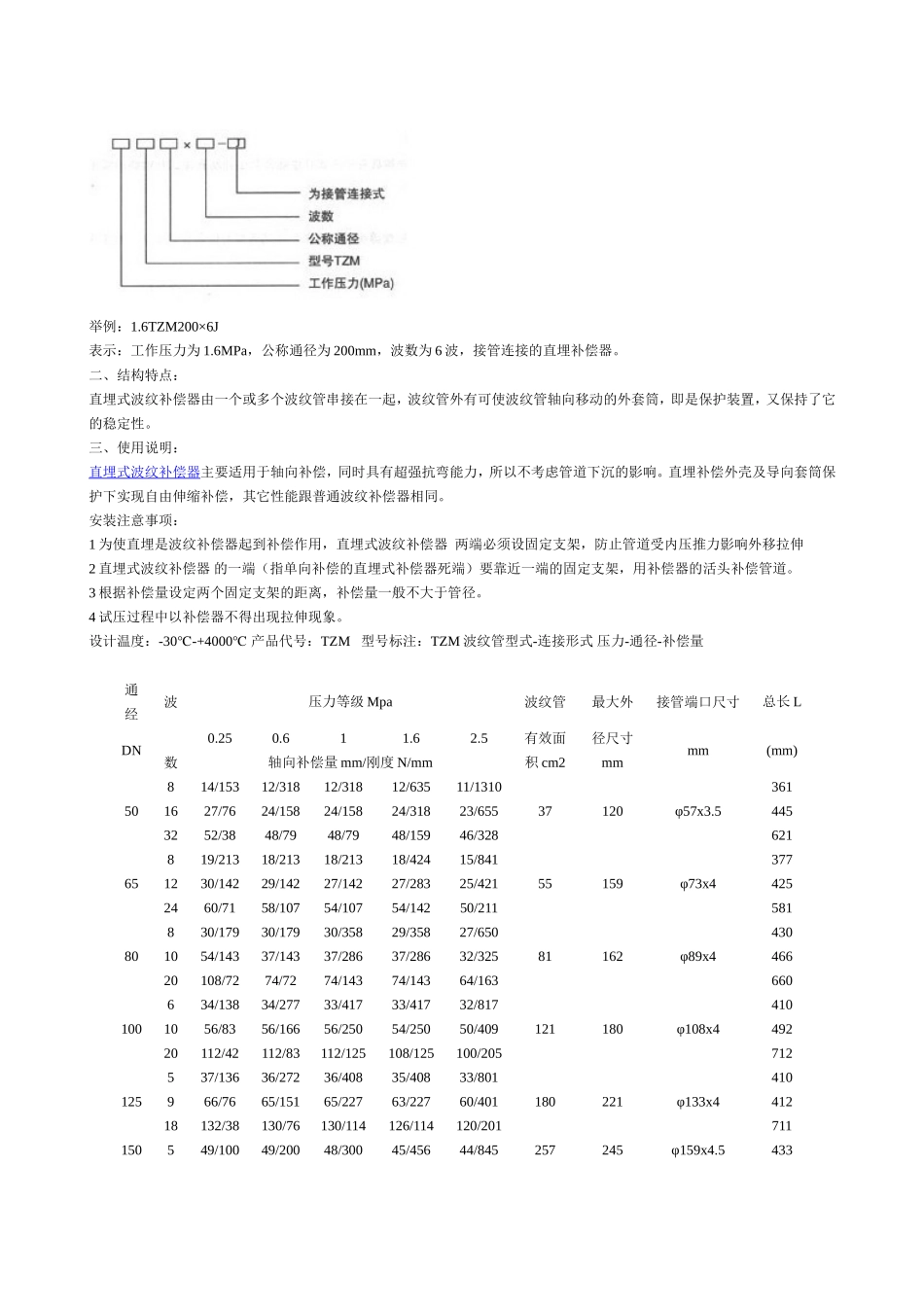

直埋式波纹补偿器说明，直埋补偿器厂家JZM型直埋式波纹补偿器注：直埋式波纹补偿器适用于只有轴向位移的管路中，本产品具有补偿横向位移和轴向与横向合成位移的能力，但因为补偿量较小一般只做为轴向补偿更能发挥其特性，使用寿命更长，更安全可靠。1、有些产品不带拉杆直埋式波纹补偿器具备外压式补偿器及自由补偿直埋式补偿器的双重有点，在热网管道施工中得以广泛的应用。2、安装与自由补偿直埋式波纹管补偿器相同，有关外压式波纹管补偿器参数可参考本网站补偿器系列中的轴向外压式不锈钢波纹补偿器有所有数据。用途：直埋式波纹补偿器（又称直埋补偿器）主要用于直埋管线的轴向补偿，具有抗弯能力，所以可不考虑管道下沉的影响，产品具有补偿量大，寿命长的特点。轴向补偿量：30mm-500mm型号：根据用户要求一、型号示例举例：1.6TZM200×6J表示：工作压力为1.6MPa，公称通径为200mm，波数为6波，接管连接的直埋补偿器。二、结构特点：直埋式波纹补偿器由一个或多个波纹管串接在一起，波纹管外有可使波纹管轴向移动的外套筒，即是保护装置，又保持了它的稳定性。三、使用说明：直埋式波纹补偿器主要适用于轴向补偿，同时具有超强抗弯能力，所以不考虑管道下沉的影响。直埋补偿外壳及导向套筒保护下实现自由伸缩补偿，其它性能跟普通波纹补偿器相同。安装注意事项：1为使直埋是波纹补偿器起到补偿作用，直埋式波纹补偿器两端必须设固定支架，防止管道受内压推力影响外移拉伸2直埋式波纹补偿器的一端（指单向补偿的直埋式补偿器死端）要靠近一端的固定支架，用补偿器的活头补偿管道。3根据补偿量设定两个固定支架的距离，补偿量一般不大于管径。4试压过程中以补偿器不得出现拉伸现象。设计温度：-30-+4000℃℃产品代号：TZM型号标注：TZM波纹管型式-连接形式压力-通径-补偿量通经波压力等级Mpa波纹管最大外接管端口尺寸总长LDN0.250.611.62.5有效面径尺寸mm(mm)数轴向补偿量mm/刚度N/mm积cm2mm50814/15312/31812/31812/63511/131037120φ57x3.53611627/7624/15824/15824/31823/6554453252/3848/7948/7948/15946/32862165819/21318/21318/21318/42415/84155159φ73x43771230/14229/14227/14227/28325/4214252460/7158/10754/10754/14250/21158180830/17930/17930/35829/35827/65081162φ89x44301054/14337/14337/28637/28632/32546620108/7274/7274/14374/14364/163660100634/13834/27733/41733/41732/817121180φ108x44101056/8356/16656/25054/25050/40949220112/42112/83112/125108/125100/205712125537/13636/27236/40835/40833/801180221φ133x4410966/7665/15165/22763/22760/40141218132/38130/76130/114126/114120/201711150549/10049/20048/30045/45644/845257245φ159x4.5433888/6378/12577/18871/28665/42351816159/32156/63154/94142/143130/211756200458/9556/19356/28856/48055/800479327φ219x6475686/6385/12885/19284/32080/92755312172/32170/64170/96168/160160/200800250475/17074/34363/58853/93050/1856769404φ273x85006112/113110/22895/39280/62078/92762012220/57220/114190/196160/310156/464984300473/25072/50365/83057/125354/21421105451φ325x85846110/167109/33597/55385/83580/107171312220/84218/168194/277170/481160/5361113350479/26378/52372/84064/126562/26841307500φ377x106146119/175117/348107/56097/84390/134275912238/88234/174214/280194/442180/6711216400483/28073/45870/91865/137363/36751611537φ426x106256126/187109/305102/61297/91590/183877112250/94218/153204/306194/458180/9201225450498/20396/40582/69069/230565/43501972632φ478x106206147/135144/270124/460103/153790/217576212294/68288/135248/230206/769180/108712005004102/212100/42384/72870/245265/42562445699φ529x106246153/142149/282126/485105/163590/212876612306/71298/141252/243210/818180/106412166004123/265121/53086/146899/174095/28423534806φ630x106766185/177181/353148/978140/1160120/142084812370/89362/177358/489280/580240/71013827004128/287126/57387/162585/297284/41004717915φ720x107086192/192188/382168/1083131/1982120/205088212384/96376/191336/542262/991240/1102514228004128/310126/62084/177885/318384/623458221005φ820x107248256/155252/310168/889170/1591168/3117107112384/103378/207252/596241/1061236/155815389004151/378149/758118/1329117/257576201137φ920x101928302/189298/379236/664234/1288121112453/126447/253351/443354/825165010004140/423140/845115/277090/503890431227φ1020x108008280/212280/423230/1385180/2519120012420/141420/282345/923270/16791616
