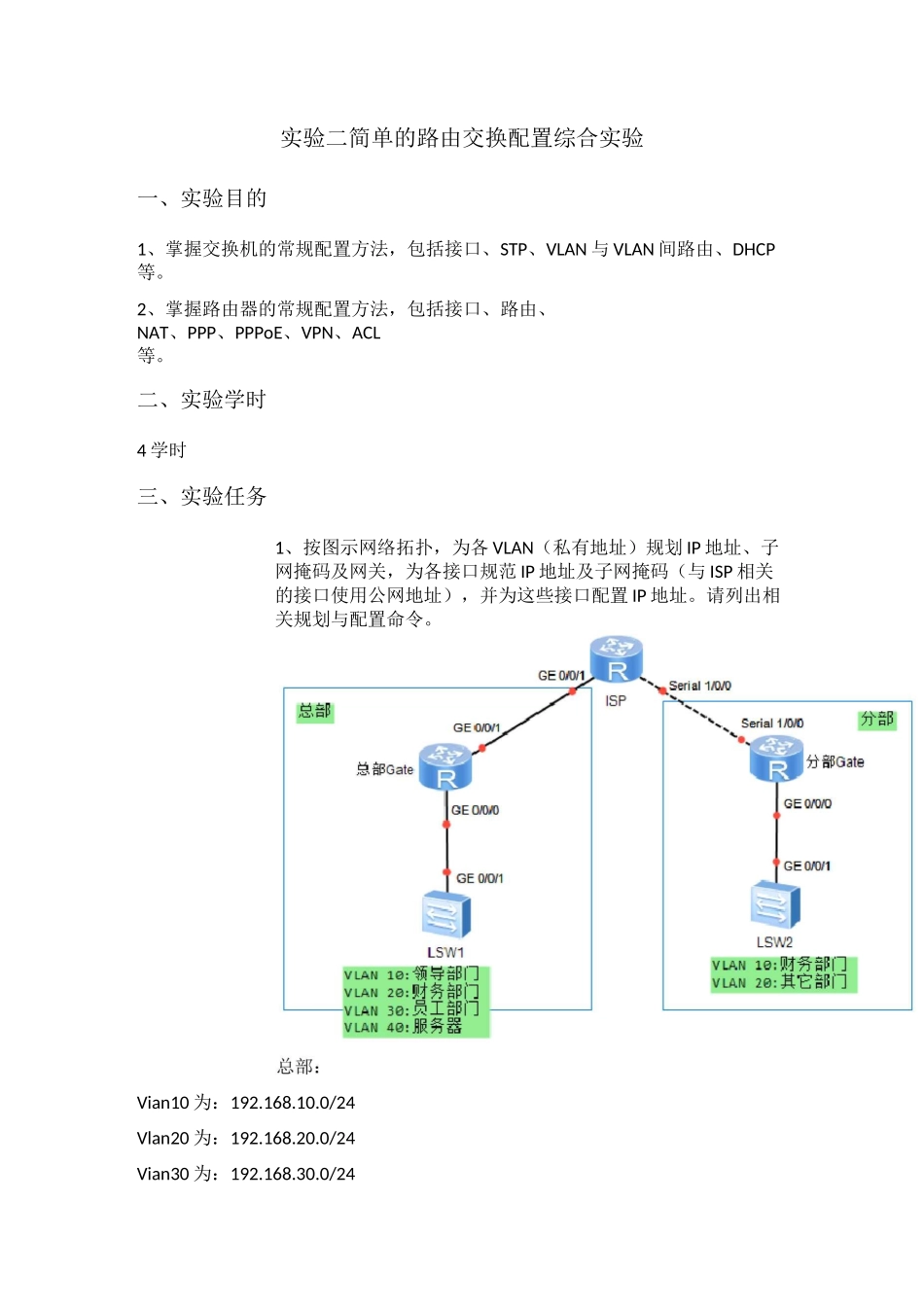

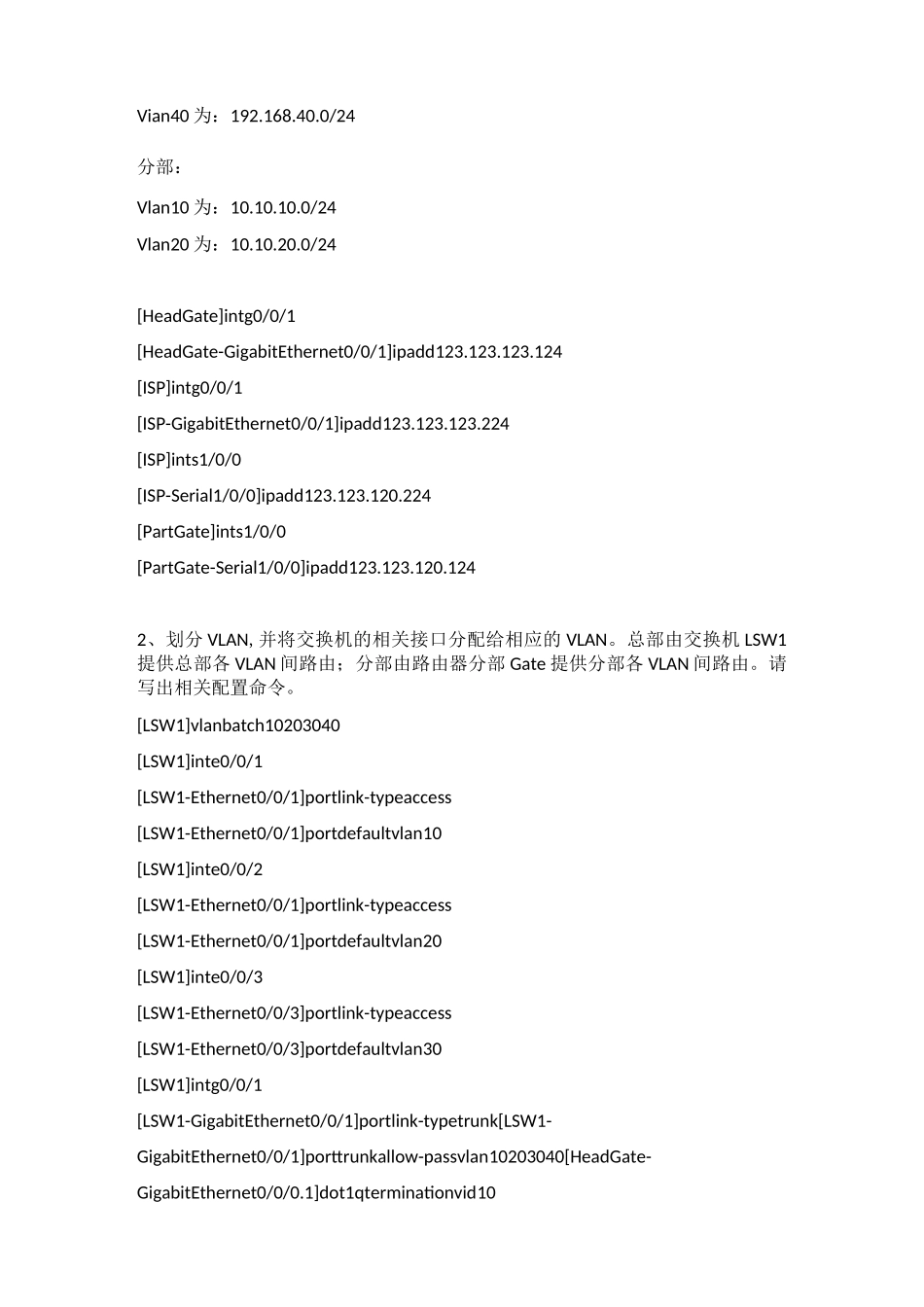

实验二简单的路由交换配置综合实验一、实验目的1、掌握交换机的常规配置方法，包括接口、STP、VLAN与VLAN间路由、DHCP等。2、掌握路由器的常规配置方法，包括接口、路由、NAT、PPP、PPPoE、VPN、ACL等。二、实验学时4学时三、实验任务1、按图示网络拓扑，为各VLAN（私有地址）规划IP地址、子网掩码及网关，为各接口规范IP地址及子网掩码（与ISP相关的接口使用公网地址），并为这些接口配置IP地址。请列出相关规划与配置命令。Vian10为：192.168.10.0/24Vlan20为：192.168.20.0/24Vian30为：192.168.30.0/24Vian40为：192.168.40.0/24分部：Vlan10为：10.10.10.0/24Vlan20为：10.10.20.0/24[HeadGate]intg0/0/1[HeadGate-GigabitEthernet0/0/1]ipadd123.123.123.124[ISP]intg0/0/1[ISP-GigabitEthernet0/0/1]ipadd123.123.123.224[ISP]ints1/0/0[ISP-Serial1/0/0]ipadd123.123.120.224[PartGate]ints1/0/0[PartGate-Serial1/0/0]ipadd123.123.120.1242、划分VLAN,并将交换机的相关接口分配给相应的VLAN。总部由交换机LSW1提供总部各VLAN间路由；分部由路由器分部Gate提供分部各VLAN间路由。请写出相关配置命令。[LSW1]vlanbatch10203040[LSW1]inte0/0/1[LSW1-Ethernet0/0/1]portlink-typeaccess[LSW1-Ethernet0/0/1]portdefaultvlan10[LSW1]inte0/0/2[LSW1-Ethernet0/0/1]portlink-typeaccess[LSW1-Ethernet0/0/1]portdefaultvlan20[LSW1]inte0/0/3[LSW1-Ethernet0/0/3]portlink-typeaccess[LSW1-Ethernet0/0/3]portdefaultvlan30[LSW1]intg0/0/1[LSW1-GigabitEthernet0/0/1]portlink-typetrunk[LSW1-GigabitEthernet0/0/1]porttrunkallow-passvlan10203040[HeadGate-GigabitEthernet0/0/0.1]dot1qterminationvid10[HeadGate-GigabitEthernet0/0/0.1]ipadd192.168.10.25424[HeadGate-GigabitEthernet0/0/0.1]arpbroadcastenable[HeadGate-GigabitEthernet0/0/0.2]dot1qterminationvid20[HeadGate-GigabitEthernet0/0/0.2]ipadd192.168.20.25424[HeadGate-GigabitEthernet0/0/0.2]arpbroadcastenable[HeadGate-GigabitEthernet0/0/0.3]dot1qterminationvid30[HeadGate-GigabitEthernet0/0/0.3]ipadd192.168.30.25424[HeadGate-GigabitEthernet0/0/0.3]arpbroadcastenable[HeadGate-GigabitEthernet0/0/0.4]dot1qterminationvid40[HeadGate-GigabitEthernet0/0/0.4]ipadd192.168.40.25424[HeadGate-GigabitEthernet0/0/0.4]arpbroadcastenable[LSW2]vlanbatch1020[LSW2]inte0/0/1[LSW2-Ethernet0/0/1]portlink-typeaccess[LSW2-Ethernet0/0/1]portdefaultvlan10[LSW2]inte0/0/2[LSW2-Ethernet0/0/1]portlink-typeaccess[LSW2-Ethernet0/0/1]portdefaultvlan20[PartGate-GigabitEthernet0/0/0.1]dot1qterminationvid10[PartGate-GigabitEthernet0/0/0.1]ipadd10.10.10.25424[PartGate-GigabitEthernet0/0/0.1]arpbroadcastenable[PartGate-GigabitEthernet0/0/0.2]dot1qterminationvid20[PartGate-GigabitEthernet0/0/0.2]ipadd10.10.20.25424[PartGate-GigabitEthernet0/0/0.2]arpbroadcastenable3、在总部的LWS1交换机上为总部各VLAN的主机提供DHCP服务；在分部的路由器分部Gate上为分部各VLAN的主机提供DHCP服务。请写出相关配置命令。[HeadGate]ippoolvlan10[HeadGate-ip-pool-vlan10]gateway-list192.168.10.254[HeadGate-ip-pool-vlan10]network192.168.10.0mask255.255.255.0[HeadGate]ippoolvlan20[HeadGate-ip-pool-vlan20]gateway-list192.168.20.254[HeadGate-ip-pool-vlan20]network192.168.20.0mask255.255.255.0[HeadGate]ippoolvlan30[HeadGate-ip-pool-vlan30]gateway-list192.168.30.254[HeadGate-ip-pool-vlan30]network192.168.30.0mask255.255.255.0[HeadGate]dhcpenable[HeadGate-GigabitEthernet0/0/0.1]dhcpselectglobal[HeadGate]dhcpenable[HeadGate-GigabitEthernet0/0/0.2]dhcpselectglobal[HeadGate]dhcpenable[HeadGate-GigabitEthernet0/0/0.3]dhcpselectglobal[HeadGate]dhcpenable[HeadGate-GigabitEthernet0/0/0.4]dhcpselectglobal[PartGate]ippoolv...
