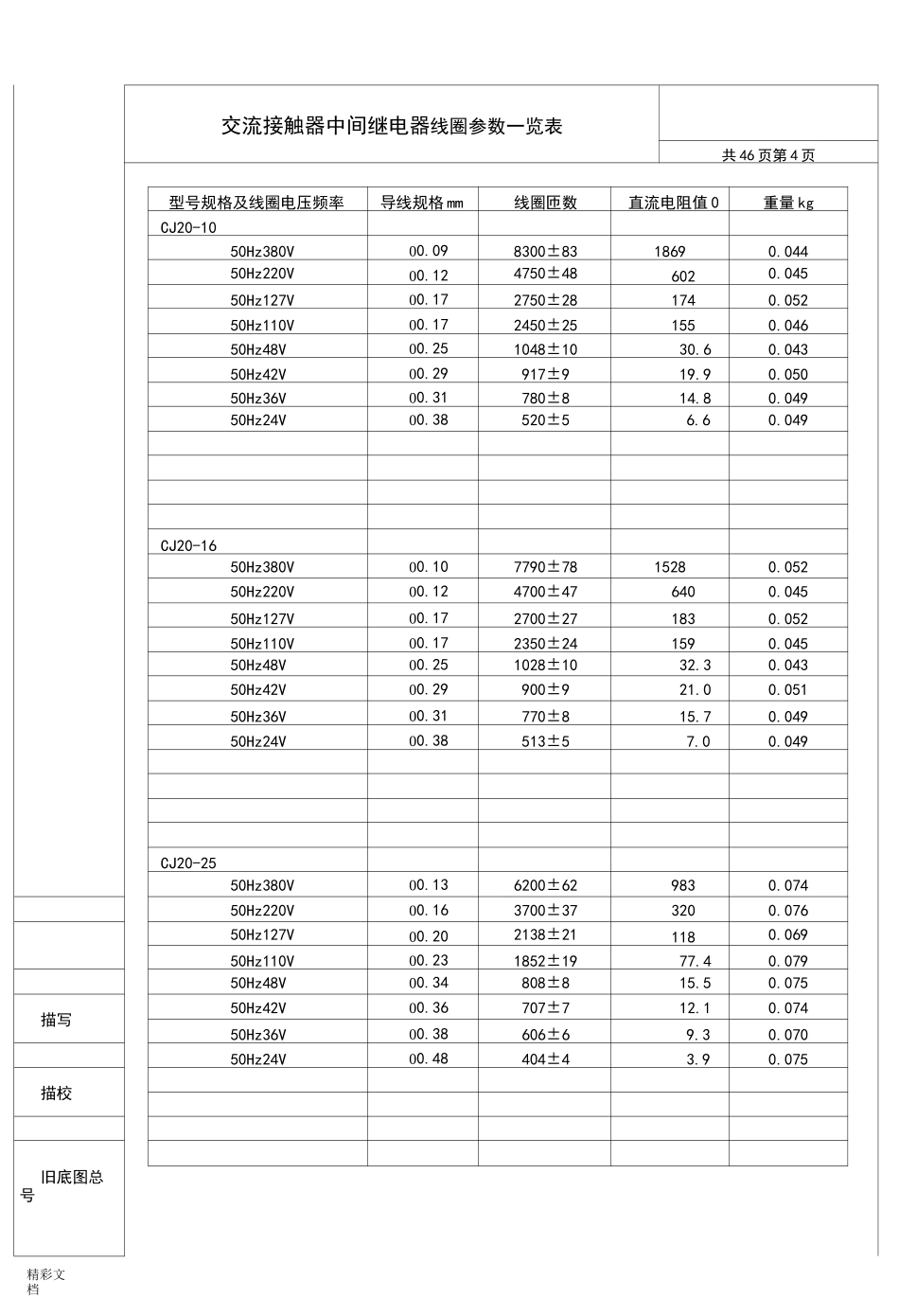

精彩文档交流接触器中间继电器线圈参数一览表共46页第4页型号规格及线圈电压频率导线规格mm线圈匝数直流电阻值0重量kgCJ20-1050Hz380V00.098300±8318690.04450Hz220V00.124750±486020.04550Hz127V00.172750±281740.05250Hz110V00.172450±251550.04650Hz48V00.251048±1030.60.04350Hz42V00.29917±919.90.05050Hz36V00.31780±814.80.04950Hz24V00.38520±56.60.049CJ20-1650Hz380V00.107790±7815280.05250Hz220V00.124700±476400.04550Hz127V00.172700±271830.05250Hz110V00.172350±241590.04550Hz48V00.251028±1032.30.04350Hz42V00.29900±921.00.05150Hz36V00.31770±815.70.04950Hz24V00.38513±57.00.049CJ20-2550Hz380V00.136200±629830.07450Hz220V00.163700±373200.07650Hz127V00.202138±211180.06950Hz110V00.231852±1977.40.07950Hz48V00.34808±815.50.075描写50Hz42V00.36707±712.10.07450Hz36V00.38606±69.30.07050Hz24V00.48404±43.90.075描校旧底图总号实用标准文案精彩文档底图总号签1标记处数更改文件号签字日期标记处数更改文件号签字日期标记处数更改文件号签字日期日期交流接触器中间继电器线圈参数一览表共46页第5页精彩文档描写描校旧底图总号型号规格及线圈电压频率导线规格mm线圈匝数直流电阻值0重量kgCJ20-4050Hz380V00.174700±474250.11150Hz220V00.232820±281390.12250Hz127V00.291630±1650.650.11250Hz110V00.311412±1438.400.11150Hz48V00.48616±66.990.11650Hz42V00.51539±55.420.11550Hz36V00.57465±53.740.12350Hz24V00.68308±31.740.116CJ20-63CJ40-63〜12550Hz380V00.292X(1380±14)1070.24750Hz220V00.382X(810±8)36.60.24950Hz127V00.502X(470±5)12.30.25050Hz110V00.532X(405±4)9.40.24250Hz48V00.822X(170±2)1.650.24350Hz42V00.872X(148±1)1.280.23850Hz36V00.902X(128±1)1.030.22150Hz24V01.122X(89±1)0.460.238CJ20-10050Hz380V00.292X(1225±12)950.22750Hz220V00.382X(720±7)32.50.22950Hz127V00.502X(410±4)10.70.22650Hz110V00.532X(354±4)8.220.21950Hz48V00.822X(154±2)1.490.22850Hz42V00.872X(135±1)1.160.22550Hz36V00.902X(110±1)0.890.19650Hz24V01.122X(77±1)0.400.213实用标准文案精彩文档精彩文档底图总号字标记处数更改文件号签字日期标记处数更改文件号签更改文件号字日期实用标准文案精彩文档描写描校旧底图总号型号规格及线圈电压频率导线规格mm线圈匝数直流电阻值0重量kgCJ20-160CJ40-160〜25050Hz380V00.352X(900±9)640.32450Hz220V00.442X(520±5)23.40.29650Hz127V00.642X(280±3)9.950.33750Hz110V00.642X(260±3)5.530.31350Hz48V00.982X(112±1)1.020.31650Hz42V01.052X(99±1)0.780.32150Hz36V01.122X(85±1)0.590.31350Hz24V01.372X(56±1)0.260.309CJ20-25050Hz380V00.532X(478±5)18.90.50550Hz220V00.672X(300±3)7.420.50750Hz127V00.902X(177±2)2.430.53950Hz110V00.942X(150±2)1.890.49850Hz48V01.412X(65±1)1.120.48650Hz42V01.502X(57±1)0.860.48250Hz36V01.602X(50±1)0.560.481实用标准文案底图总号精彩文档底图总号标记处数更改文件号签字日期标记处数更改文件号签字日期标记处数更改文件号签字日期签1日期实用标准文案精彩文档实用标准文案底图总号精彩文档描写描校旧底图总号型号规格及线圈电压频率导线规格mm线圈匝数直流电阻值0重量kgCJ20-400CJ40-315〜50050Hz380V00.532X(430±4)16.70.45050Hz220V00.722X(248±3)5.520.45350Hz127V00.902X(165±2)2.220.49850Hz110V00.942X(142±1)1.750.46750Hz48V01.412X(61±1)0.330.45250Hz42V01.502X(53±1)0.260.44450Hz36V01.602X(46±1)0.200.439CJ20-63050Hz660V00.722X(495±5)17.71.26050Hz380V01.002X(248±3)4.61.21850Hz220V01.352X(141±1)1.431.26250Hz127V01.732X(83±1)0.511.22050Hz110V01.862X(72±1)0.391.22350Hz48V02.812X310.0721.20250Hz42V03.002X270.0561.19350Hz36V03.252X240.0421.245实用标准文案精彩文档实用标准文案底图总号精彩文档实用标准文案精彩文档实用标准文案底图总号精彩文档实用标准文案精彩文档实用标准文案底图总号精彩文档实用标准文案精彩文档实用标准文案底图总号精彩文档实用标准文案精彩文档实用标准文案底图总号精彩文档实用标准文案精彩文档
