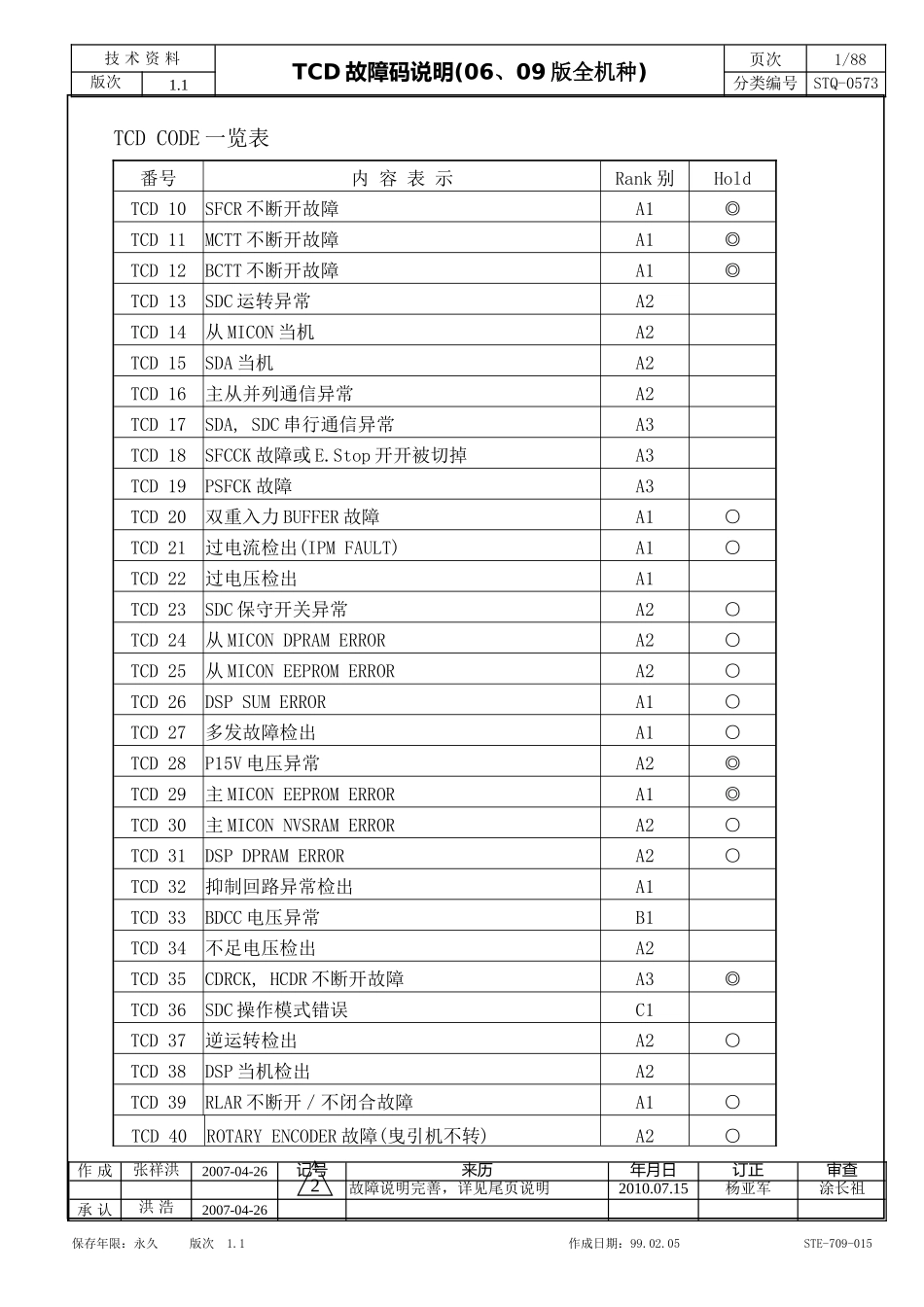

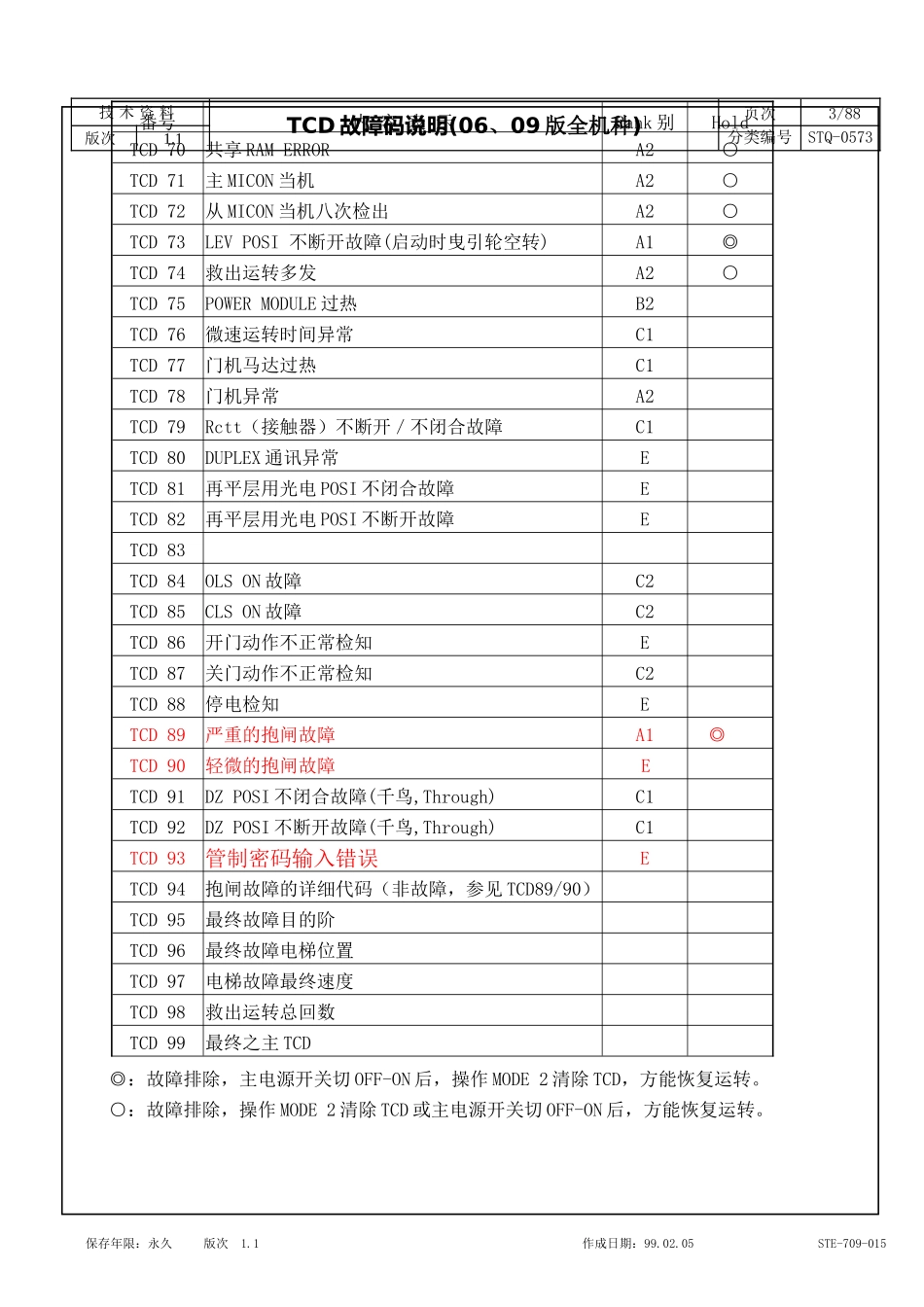

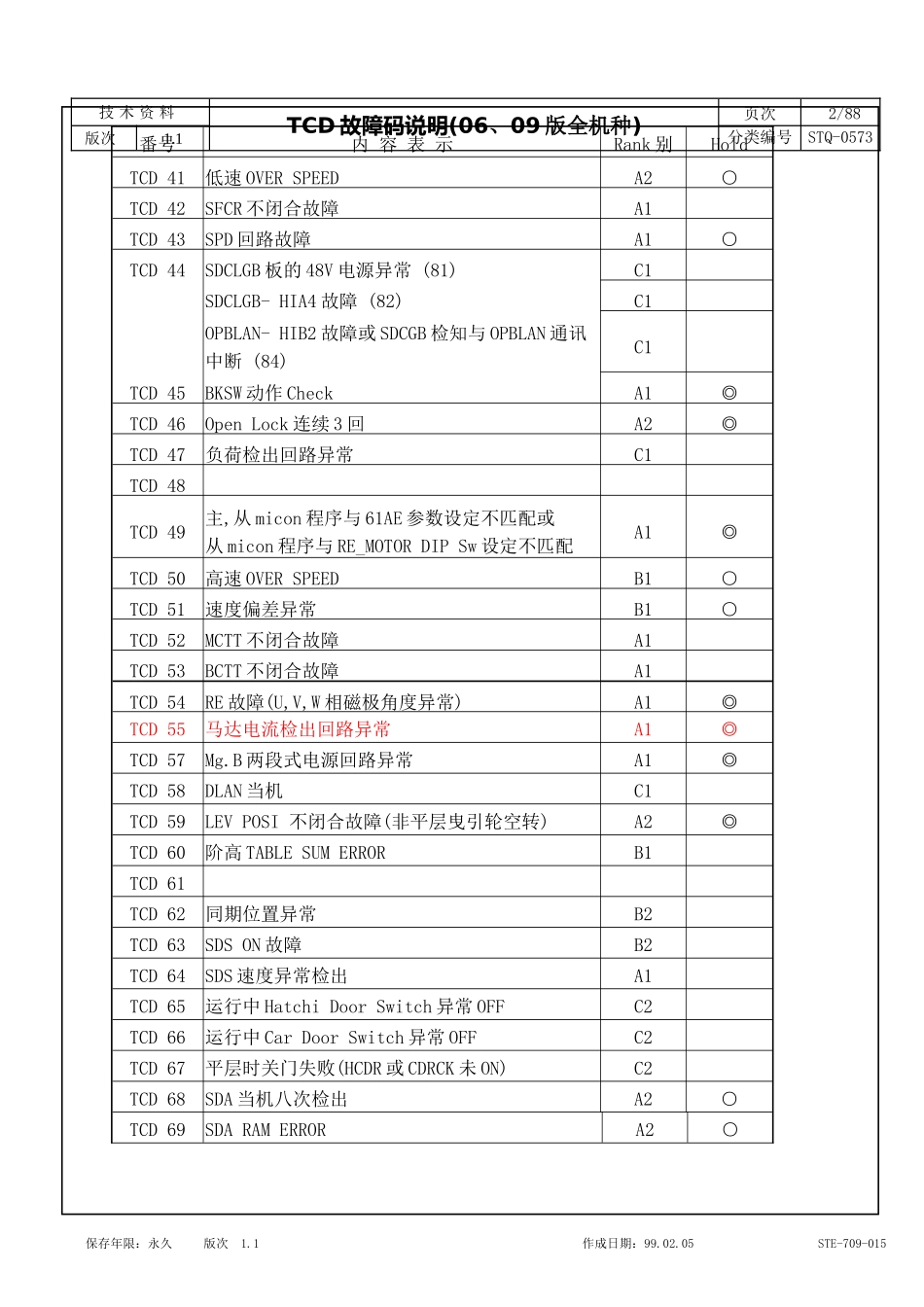

技术资料TCD故障码说明(06、09版全机种)页次1/88版次1.1分类编号STQ-05732TCDCODE一览表番号内容表示Rank别HoldTCD10SFCR不断开故障A1◎TCD11MCTT不断开故障A1◎TCD12BCTT不断开故障A1◎TCD13SDC运转异常A2TCD14从MICON当机A2TCD15SDA当机A2TCD16主从并列通信异常A2TCD17SDA,SDC串行通信异常A3TCD18SFCCK故障或E.Stop开开被切掉A3TCD19PSFCK故障A3TCD20双重入力BUFFER故障A1○TCD21过电流检出(IPMFAULT)A1○TCD22过电压检出A1TCD23SDC保守开关异常A2○TCD24从MICONDPRAMERRORA2○TCD25从MICONEEPROMERRORA2○TCD26DSPSUMERRORA1○TCD27多发故障检出A1○TCD28P15V电压异常A2◎TCD29主MICONEEPROMERRORA1◎TCD30主MICONNVSRAMERRORA2○TCD31DSPDPRAMERRORA2○TCD32抑制回路异常检出A1TCD33BDCC电压异常B1TCD34不足电压检出A2TCD35CDRCK,HCDR不断开故障A3◎TCD36SDC操作模式错误C1TCD37逆运转检出A2○TCD38DSP当机检出A2TCD39RLAR不断开／不闭合故障A1○TCD40ROTARYENCODER故障(曳引机不转)A2○作成张祥洪2007-04-26记号来历年月日订正审查故障说明完善，详见尾页说明2010.07.15杨亚军涂长祖承认洪浩2007-04-26保存年限：永久版次1.1作成日期：99.02.05STE-709-015技术资料TCD故障码说明(06、09版全机种)页次2/88版次1.1分类编号STQ-0573番号内容表示Rank别HoldTCD41低速OVERSPEEDA2○TCD42SFCR不闭合故障A1TCD43SPD回路故障A1○TCD44SDCLGB板的48V电源异常(81)C1SDCLGB-HIA4故障(82)C1OPBLAN-HIB2故障或SDCGB检知与OPBLAN通讯中断(84)C1TCD45BKSW动作CheckA1◎TCD46OpenLock连续3回A2◎TCD47负荷检出回路异常C1TCD48TCD49主,从micon程序与61AE参数设定不匹配或从micon程序与RE_MOTORDIPSw设定不匹配A1◎TCD50高速OVERSPEEDB1○TCD51速度偏差异常B1○TCD52MCTT不闭合故障A1TCD53BCTT不闭合故障A1TCD54RE故障(U,V,W相磁极角度异常)A1◎TCD55马达电流检出回路异常A1◎TCD57Mg.B两段式电源回路异常A1◎TCD58DLAN当机C1TCD59LEVPOSI不闭合故障(非平层曳引轮空转)A2◎TCD60阶高TABLESUMERRORB1TCD61TCD62同期位置异常B2TCD63SDSON故障B2TCD64SDS速度异常检出A1TCD65运行中HatchiDoorSwitch异常OFFC2TCD66运行中CarDoorSwitch异常OFFC2TCD67平层时关门失败(HCDR或CDRCK未ON)C2TCD68SDA当机八次检出A2○TCD69SDARAMERRORA2○保存年限：永久版次1.1作成日期：99.02.05STE-709-015技术资料TCD故障码说明(06、09版全机种)页次3/88版次1.1分类编号STQ-0573番号内容表示Rank别HoldTCD70共享RAMERRORA2○TCD71主MICON当机A2○TCD72从MICON当机八次检出A2○TCD73LEVPOSI不断开故障(启动时曳引轮空转)A1◎TCD74救出运转多发A2○TCD75POWERMODULE过热B2TCD76微速运转时间异常C1TCD77门机马达过热C1TCD78门机异常A2TCD79Rctt（接触器）不断开／不闭合故障C1TCD80DUPLEX通讯异常ETCD81再平层用光电POSI不闭合故障ETCD82再平层用光电POSI不断开故障ETCD83TCD84OLSON故障C2TCD85CLSON故障C2TCD86开门动作不正常检知ETCD87关门动作不正常检知C2TCD88停电检知ETCD89严重的抱闸故障A1◎TCD90轻微的抱闸故障ETCD91DZPOSI不闭合故障(千鸟,Through)C1TCD92DZPOSI不断开故障(千鸟,Through)C1TCD93管制密码输入错误ETCD94抱闸故障的详细代码（非故障，参见TCD89/90）TCD95最终故障目的阶TCD96最终故障电梯位置TCD97电梯故障最终速度TCD98救出运转总回数TCD99最终之主TCD◎：故障排除，主电源开关切OFF-ON后，操作MODE2清除TCD，方能恢复运转。○：故障排除，操作MODE2清除TCD或主电源开关切OFF-ON后，方能恢复运转。保存年限：永久版次1.1作成日期：99.02.05STE-709-015技术资料TCD故障码说明(06、09版全机种)页次4/88版次1.1分类编号STQ-0573TCD故障等级内容HOLD10A1SFCR不断开故障◎检出目的SFCRRelay应OFF而未OFF时，表示SFCRRelayON故障，电梯应立即紧急停止，防止制御系统的信赖性低下。检出条件无人叫车三分钟后，主Micon透过MYSFCR出力Buffer控制SFCRRelayOFF-ON一次，并侦测MYSFCR及SYSFCR入力Buffer信号，来判定SFCRRelay是否正常动作。也就是当MYSFCR出力BufferOFF，而MXSFCCK及SXSFCCK入力Buffer未在200...
