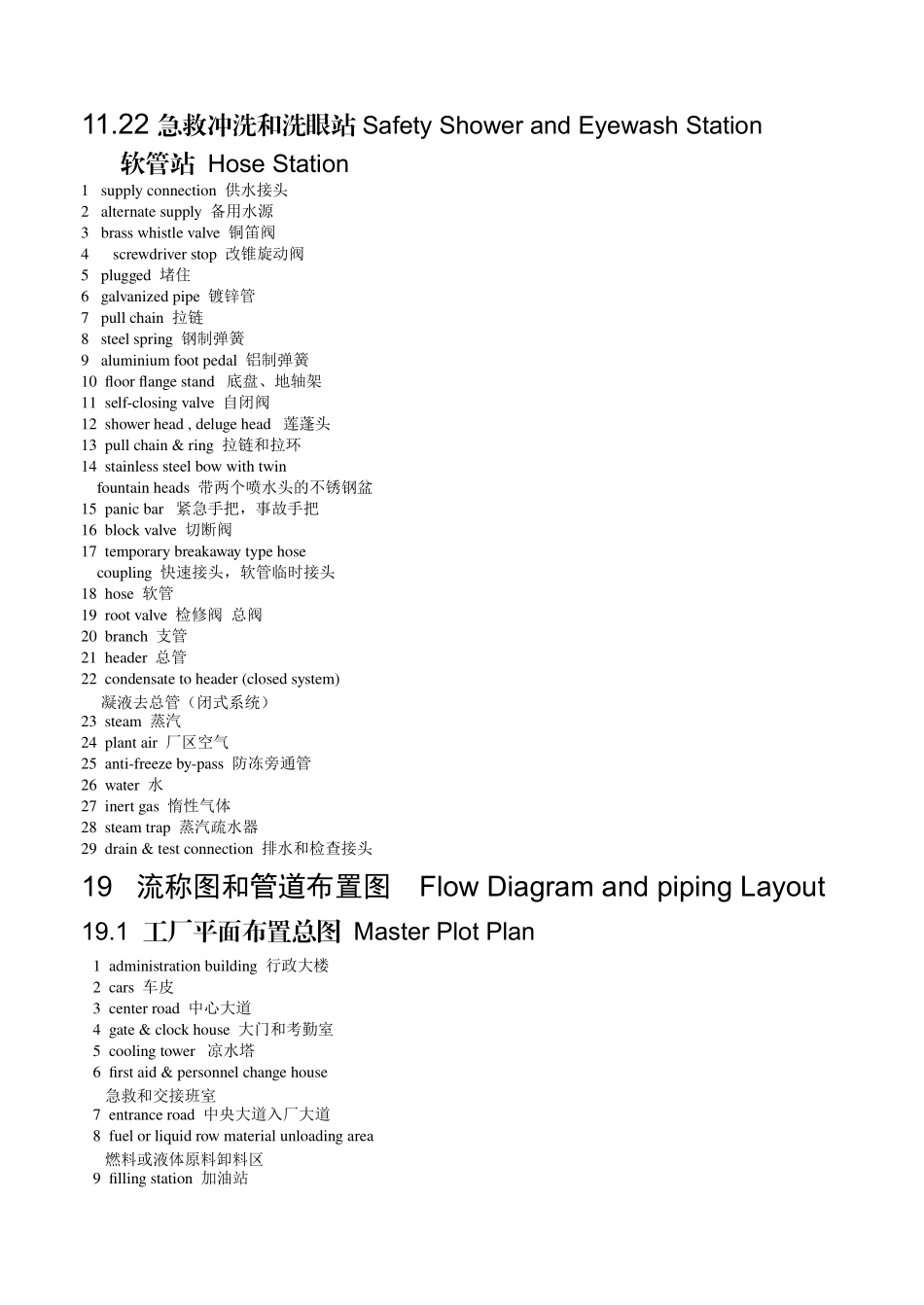

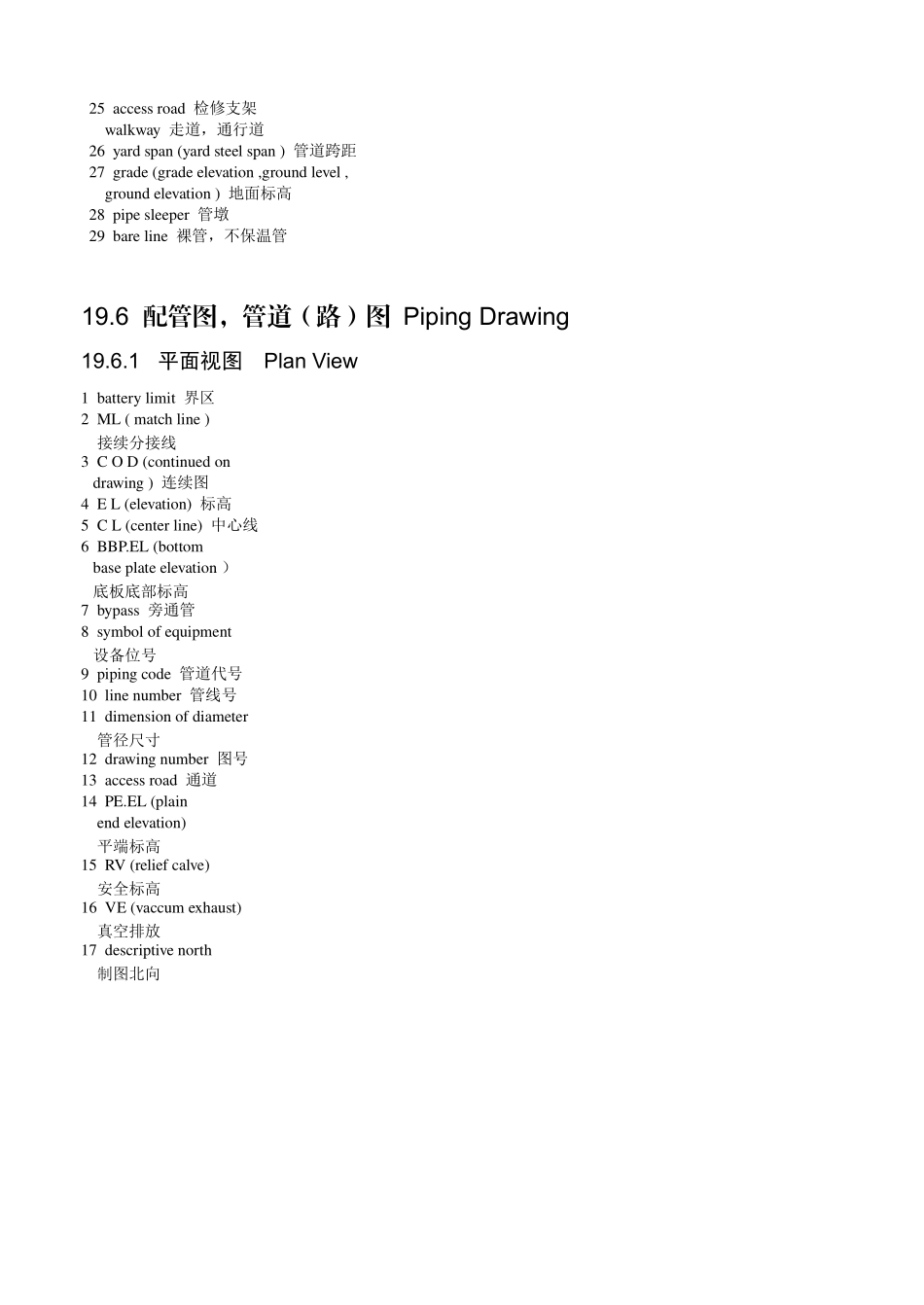

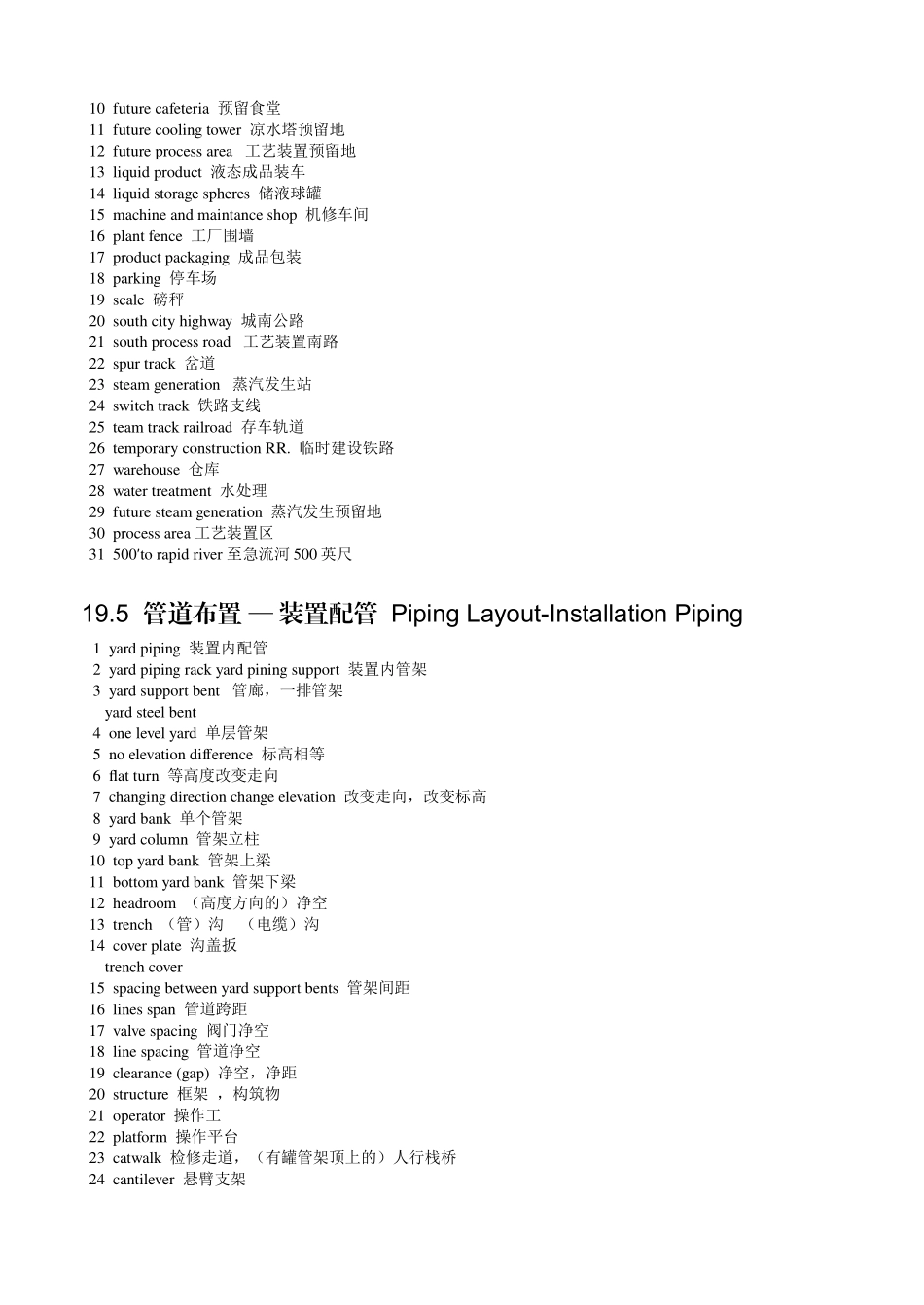

11.22 急救冲洗和洗眼站 Safety Shower and Eyewash Station 软管站 Hose Station1 supply connection 供水接头2 alternate supply 备用水源 3 brass whistle valve 铜笛阀4screwdriver stop 改锥旋动阀5 plugged 堵住6 galvanized pipe 镀锌管7 pull chain 拉链8 steel spring 钢制弹簧9 aluminium foot pedal 铝制弹簧10 floor flange stand 底盘、地轴架11 self-closing valve 自闭阀12 shower head , deluge head 莲蓬头13 pull chain & ring 拉链和拉环14 stainless steel bow with twin fountain heads 带两个喷水头的不锈钢盆15 panic bar 紧急手把，事故手把16 block valve 切断阀17 temporary breakaway type hose coupling 快速接头，软管临时接头18 hose 软管19 root valve 检修阀 总阀 20 branch 支管21 header 总管22 condensate to header (closed system) 凝液去总管（闭式系统） 23 steam 蒸汽24 plant air 厂区空气25 anti-freeze by-pass 防冻旁通管26 water 水27 inert gas 惰性气体28 steam trap 蒸汽疏水器29 drain & test connection 排水和检查接头19 流称图和管道布置图 Flow Diagram and piping Layout19.1 工厂平面布置总图 Master Plot Plan 1 administration building 行政大楼 2 cars 车皮 3 center road 中心大道 4 gate & clock house 大门和考勤室 5 cooling tower 凉水塔 6 first aid & personnel change house 急救和交接班室 7 entrance road 中央大道入厂大道 8 fuel or liquid row material unloading area 燃料或液体原料卸料区 9 filling station 加油站 10 future cafeteria 预留食堂 11 future cooling tower 凉水塔预留地 12 future process area 工艺装置预留地 13 liquid product 液态成品装车 14 liquid storage spheres 储液球罐 15 machine and maintance shop 机修车间 16 plant fence 工厂围墙 17 product packaging 成品包装 18 parking 停车场 19 scale 磅秤 20 south city highway 城南公路 21 south process road 工艺装置南路 22 spur track 岔道 23 steam generation 蒸汽发生站 24 switch track 铁路支线 25 team track railroad ...
