活塞机械加工工艺及其夹具设计VIP免费

活塞机械加工工艺及其夹具设计_第1页

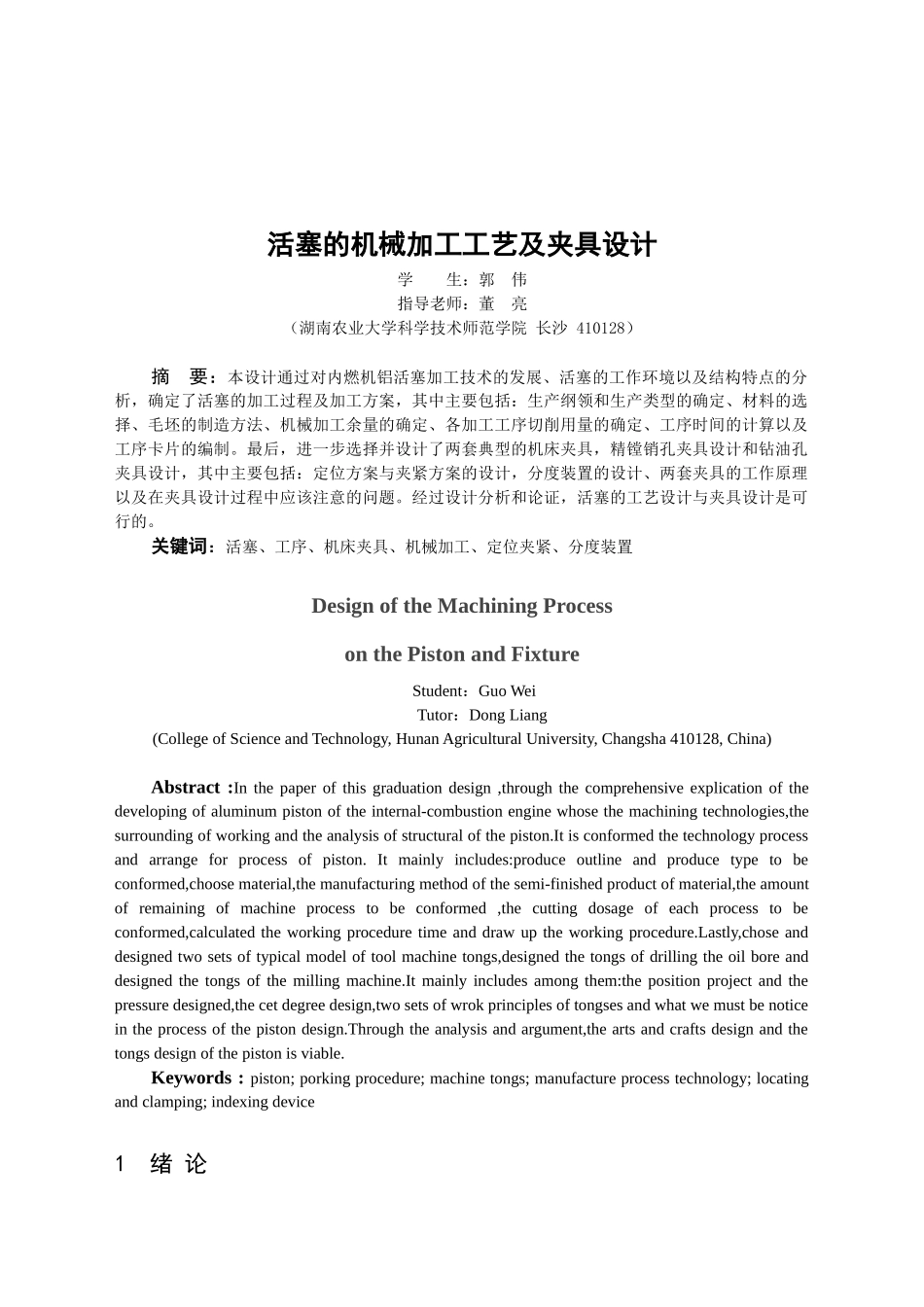

1/37
活塞机械加工工艺及其夹具设计_第2页
2/37
活塞机械加工工艺及其夹具设计_第3页

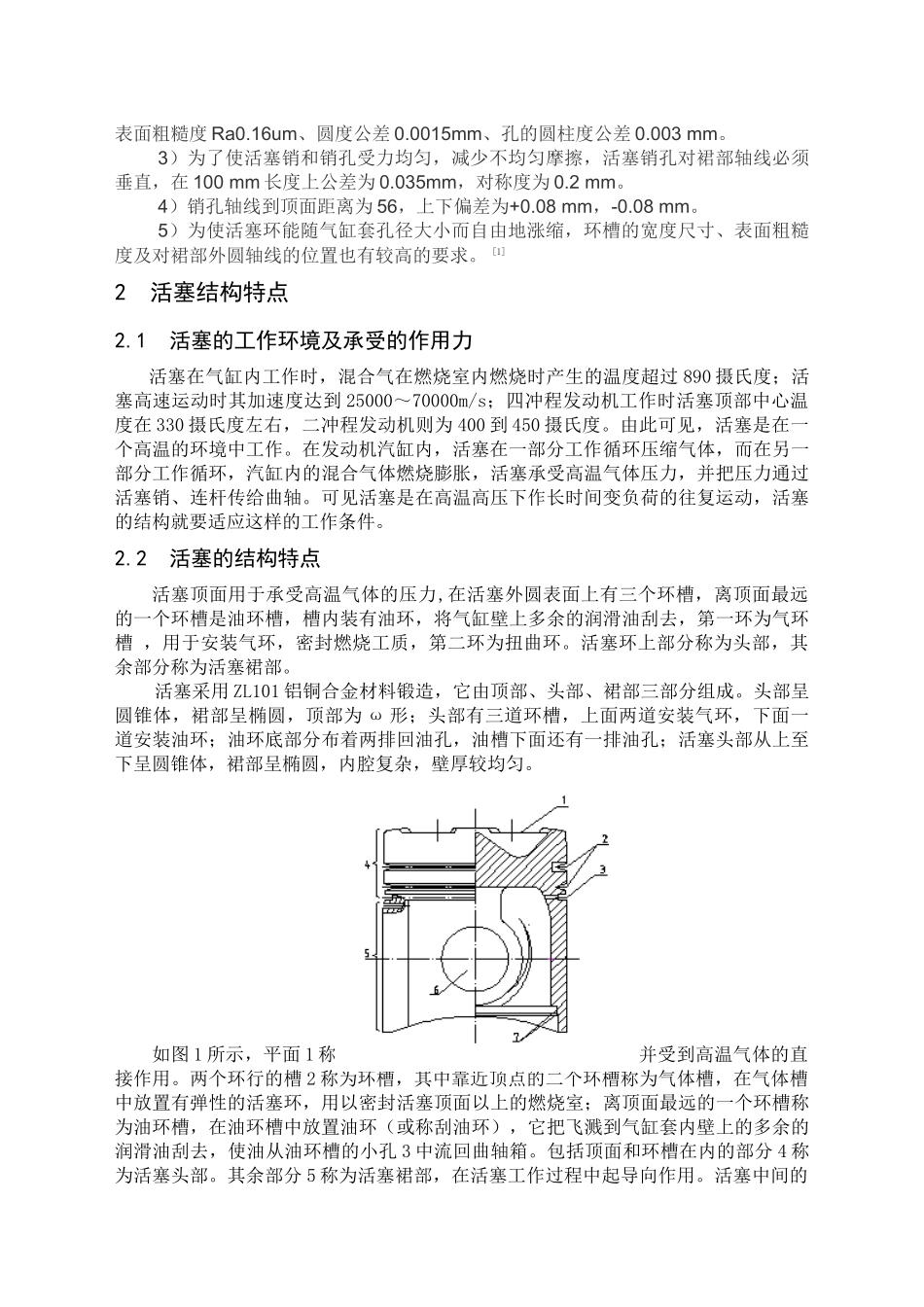

3/37
活塞的机械加工工艺及夹具设计学 生:郭 伟指导老师:董 亮(湖南农业大学科学技术师范学院 长沙 410128)摘 要:本设计通过对内燃机铝活塞加工技术的发展、活塞的工作环境以及结构特点的分析,确定了活塞的加工过程及加工方案,其中主要包括:生产纲领和生产类型的确定、材料的选择、毛坯的制造方法、机械加工余量的确定、各加工工序切削用量的确定、工序时间的计算以及工序卡片的编制。最后,进一步选择并设计了两套典型的机床夹具,精镗销孔夹具设计和钻油孔夹具设计,其中主要包括:定位方案与夹紧方案的设计,分度装置的设计、两套夹具的工作原理以及在夹具设计过程中应该注意的问题。经过设计分析和论证,活塞的工艺设计与夹具设计是可行的。关键词:活塞、工序、机床夹具、机械加工、定位夹紧、分度装置Design of the Machining Processon the Piston and FixtureStudent:Guo Wei Tutor:Dong Liang(College of Science and Technology, Hunan Agricultural University, Changsha 410128, China)Abstract :In the paper of this graduation design ,through the comprehensive explication of the developing of aluminum piston of the internal-combustion engine whose the machining technologies,the surrounding of working and the analysis of structural of the piston.It is conformed the technology process and arrange for process of piston. It mainly includes:produce outline and produce type to be conformed,choose material,the manufacturing method of the semi-finished product of material,the amount of remaining of machine process to be conformed ,the cutting dosage of each process to be conformed,calculated the working procedure time and draw up the working procedure.Lastly,chose and designed two sets of typical model of tool machine tongs,designed the tongs of drilling the oil bore and designed the tongs of the milling machine.It mainly includes among them:the position project and the pressure designed,the cet degree design,two sets of wrok principles of tongses and what we mu...
