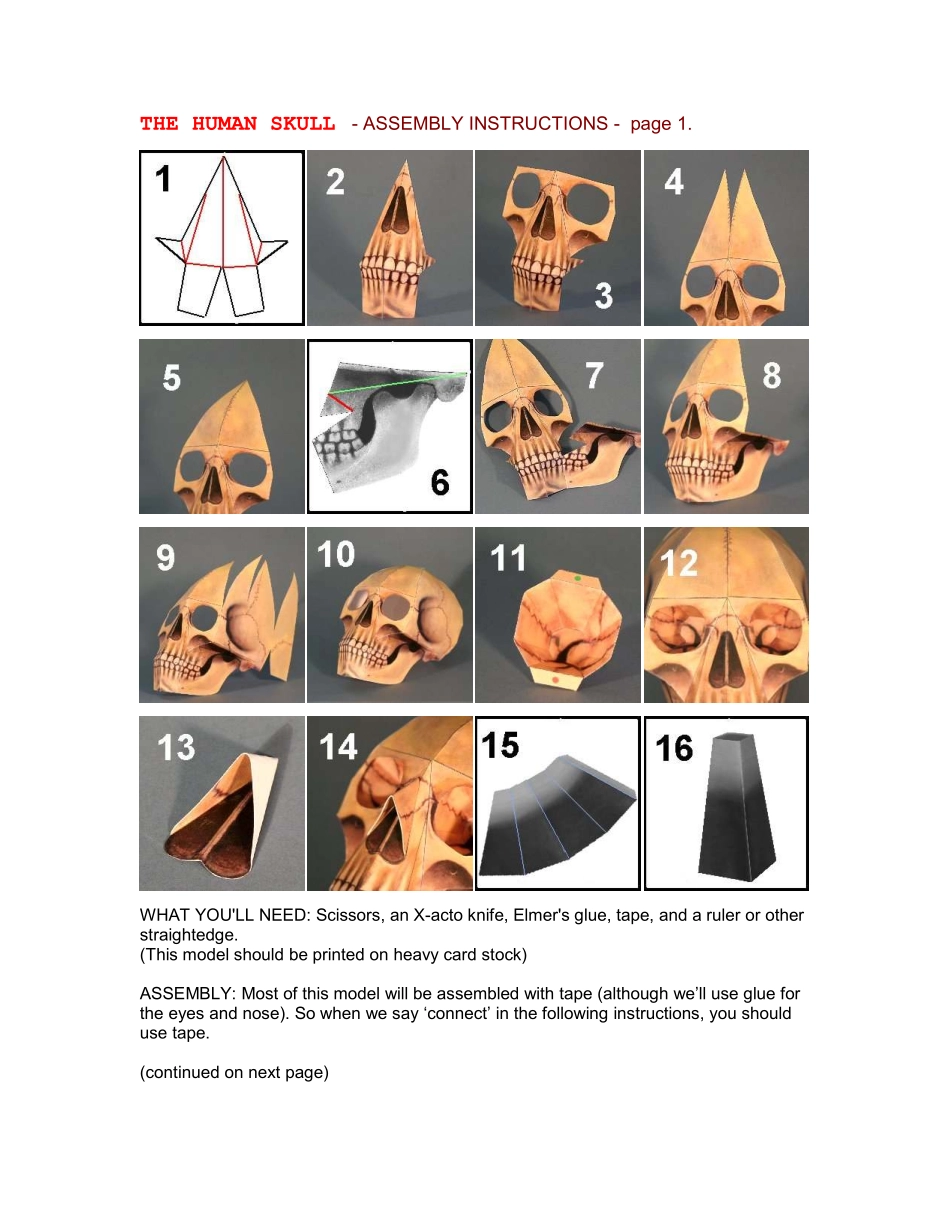

THE HUMAN SKULL - ASSEMBLY INSTRUCTIONS - page 1. WHAT YOU'LL NEED: Scissors, an X-acto knife, Elmer's glue, tape, and a ruler or other straightedge. (This model should be printed on heavy card stock) ASSEMBLY: Most of this model will be assembled with tape (although we’ll use glue for the eyes and nose). So when we say ‘connect’ in the following instructions, you should use tape. (continued on next page) THE HUMAN SKULL -ASSEMBLY INSTRUCTIONS- Page 2. Before cutting out any of the parts, locate the LEFT EYE and RIGHT EYE pieces on Page 1. Use the X-acto knife to remove the white area from inside each piece. Next, cut out the CENTER piece. There are seven fold lines on this piece, and they should all be folded DOWNWARD. They are only marked faintly on the model so refer to Figure 1 for their location. After making all seven folds, connect the two lower panels as shown in Figure 2. Now cut out the LEFT EYE piece and the RIGHT EYE piece. Connect the inner edge of each piece to the CENTER piece as shown in Figure 3. If tape extends over the eye holes, use the X-acto knife to trim it away. Next, cut out the LEFT FOREHEAD and RIGHT FOREHEAD pieces. Connect them to the upper edges of the eye pieces as shown in Figure 4. Now connect the two forehead pieces to each other. This can be a little tricky but works fine if you only connect a little bit (about an inch) at a time, curving the pieces as you go. Your model should now resemble Figure 5. Cut out the LEFT JAW piece and the RIGHT JAW piece on Page 2. Each jaw piece has two fold lines, again marked only faintly on the model but indicated more clearly in Figure 6. For each piece, fold the small triangular tab...
