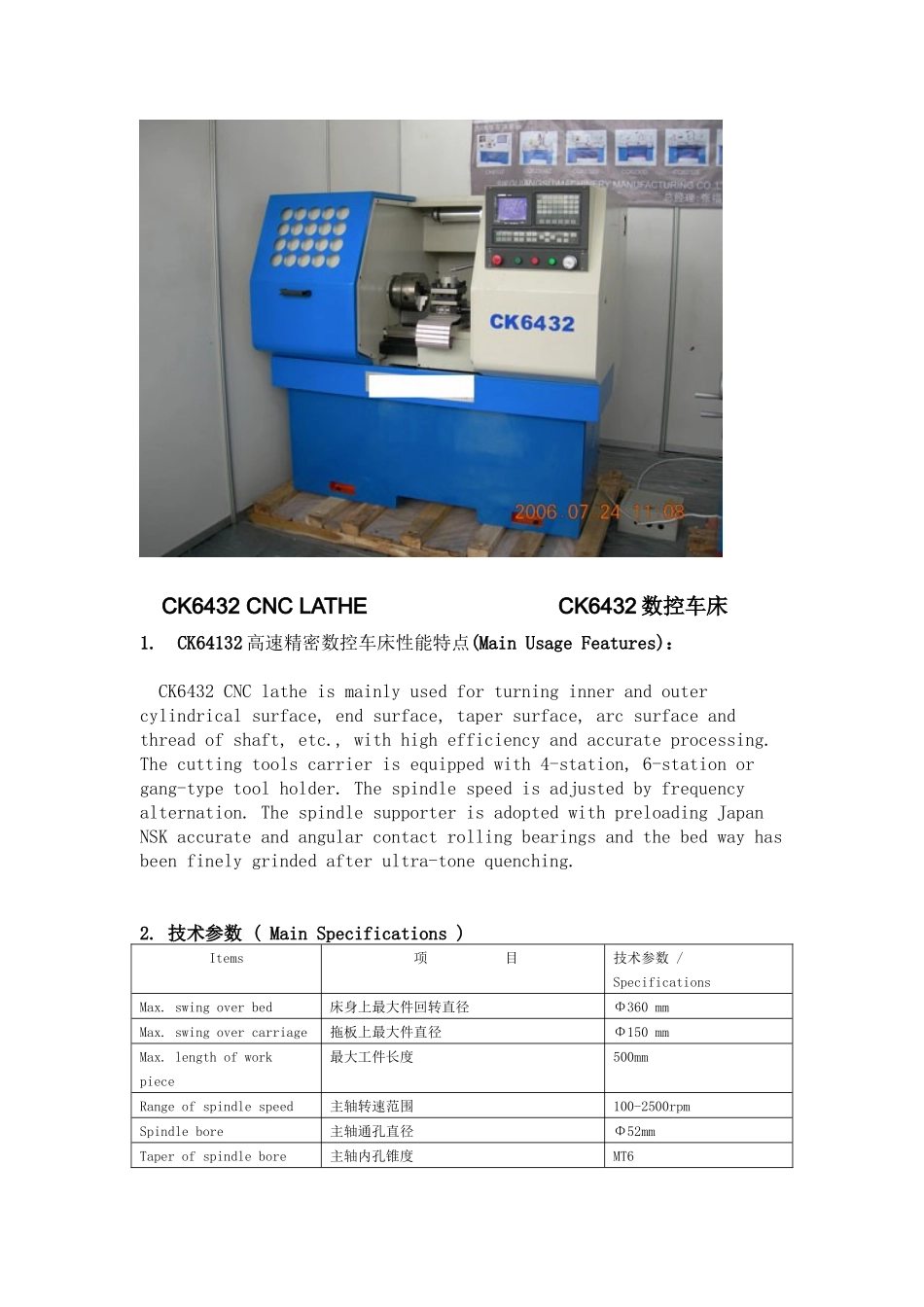

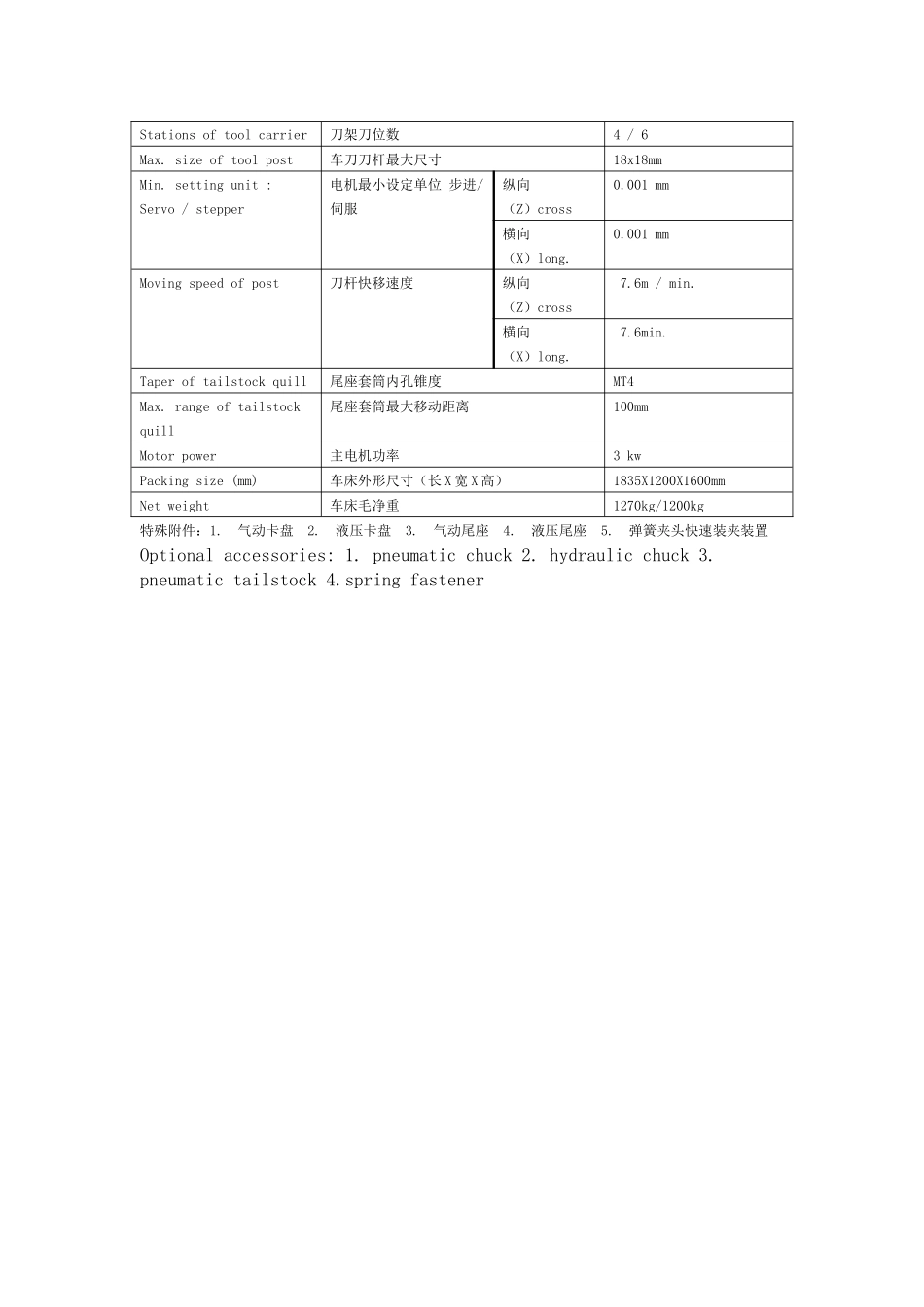

CK6432 CNC LATHE CK6432 数控车床1. CK64132 高速精密数控车床性能特点(Main Usage Features)：CK6432 CNC lathe is mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etc., with high efficiency and accurate processing. The cutting tools carrier is equipped with 4-station, 6-station or gang-type tool holder. The spindle speed is adjusted by frequency alternation. The spindle supporter is adopted with preloading Japan NSK accurate and angular contact rolling bearings and the bed way has been finely grinded after ultra-tone quenching. 2. 技术参数 ( Main Specifications )Items 项 目技术参数 / SpecificationsMax. swing over bed床身上最大件回转直径Φ360 mmMax. swing over carriage拖板上最大件直径Φ150 mmMax. length of work piece最大工件长度500mmRange of spindle speed主轴转速范围100-2500rpmSpindle bore主轴通孔直径Φ52mmTaper of spindle bore主轴内孔锥度MT6Stations of tool carrier刀架刀位数4 / 6Max. size of tool post车刀刀杆最大尺寸18x18mmMin. setting unit :Servo / stepper电机最小设定单位 步进/伺服纵向（Z）cross0.001 mm横向（X）long.0.001 mmMoving speed of post刀杆快移速度纵向（Z）cross 7.6m / min.横向（X）long. 7.6min.Taper of tailstock quill尾座套筒内孔锥度MT4Max. range of tailstock quill尾座套筒最大移动距离100mmMotor power主电机功率3 kwPacking size (mm)车床外形尺寸（长 X 宽 X 高）1835X1200X1600mmNet weight 车床毛净重1270kg/1200kg特殊附件：1. 气动卡盘 2. 液压卡盘 3. 气动尾座 4. 液压尾座 5. 弹簧夹头快速装夹装置Optional accessories: 1. pneumatic chuck 2. hydraulic chuck 3. pneumatic tailstock 4.spring fastener
