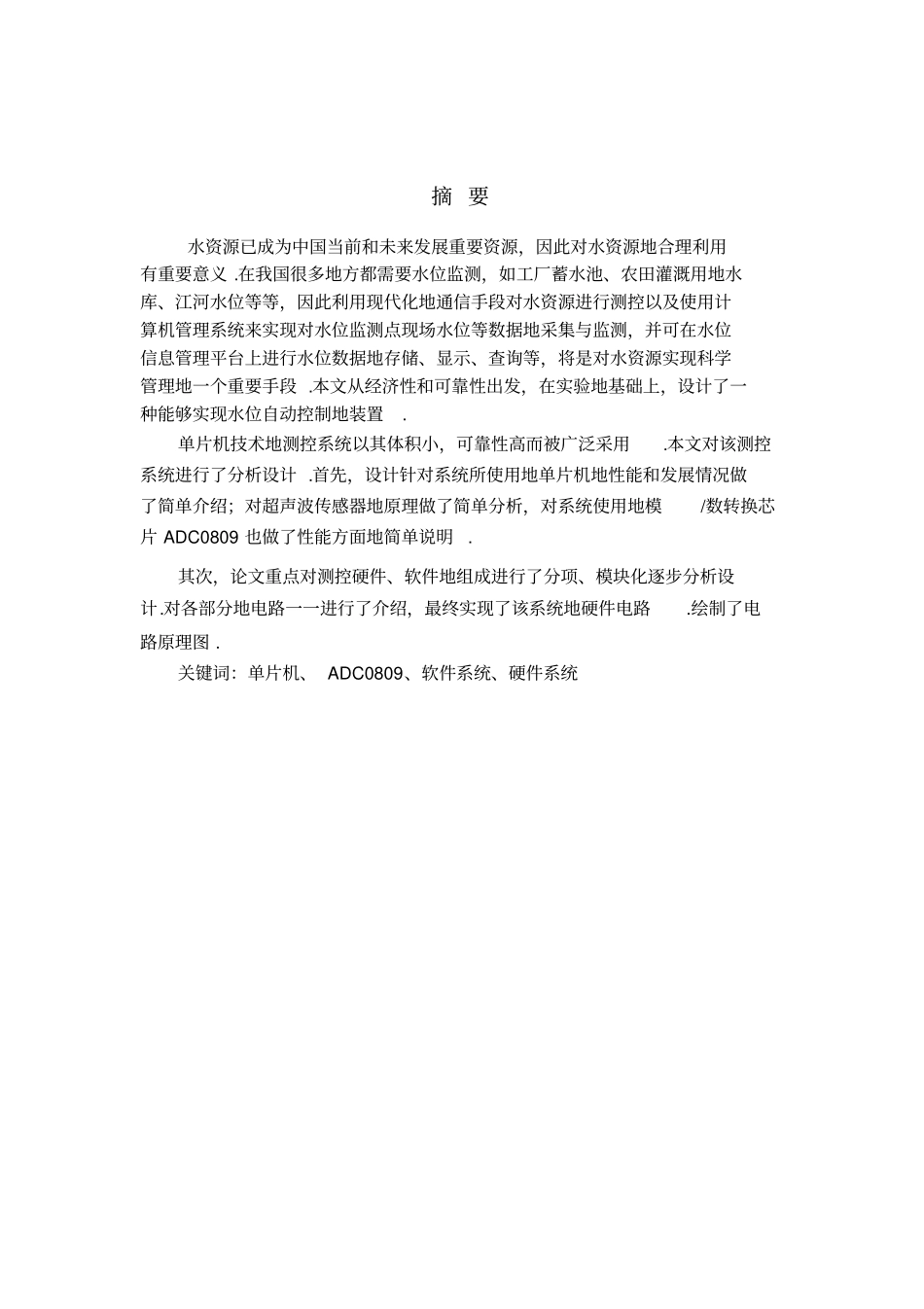

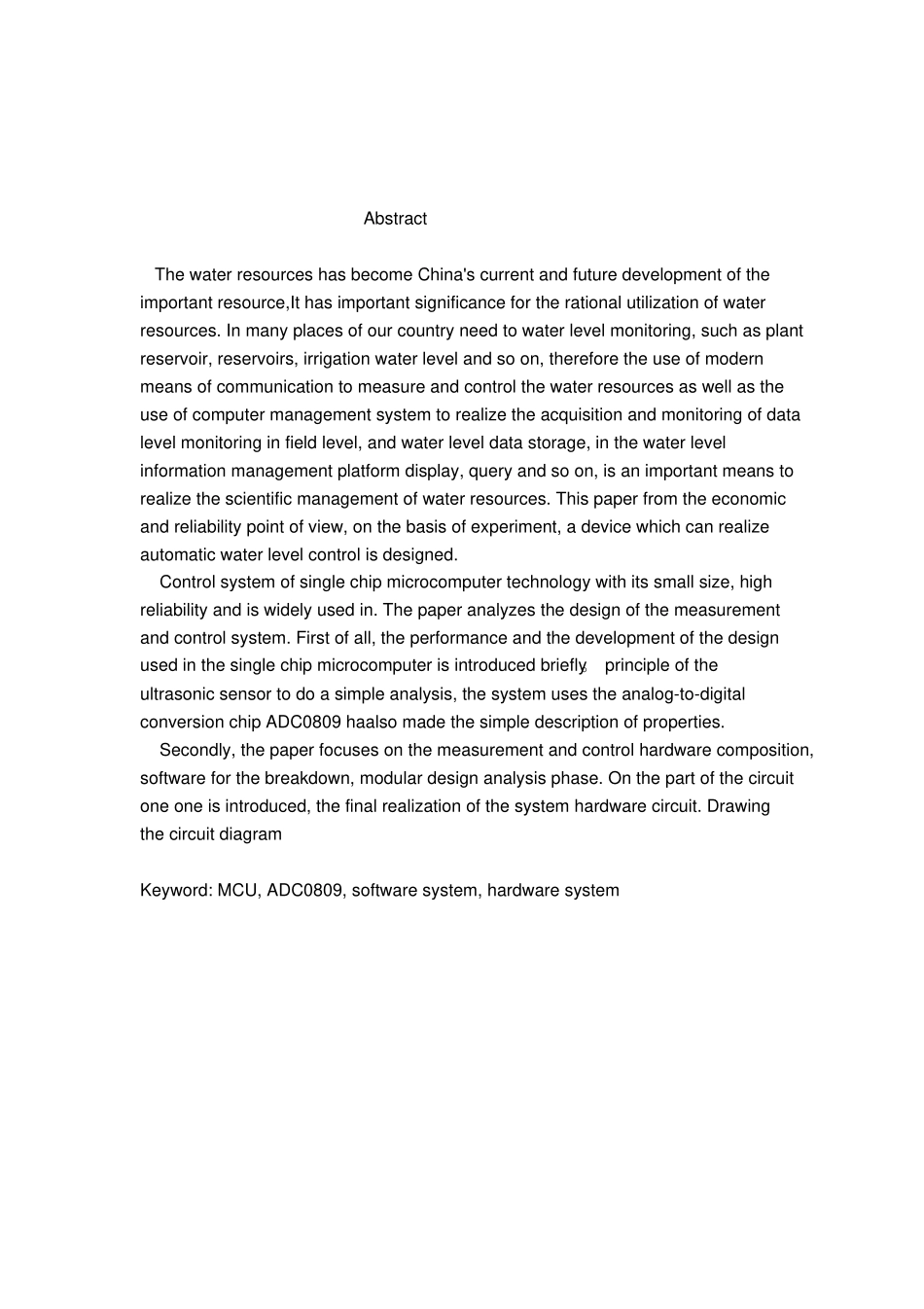

摘 要水资源已成为中国当前和未来发展重要资源，因此对水资源地合理利用有重要意义 .在我国很多地方都需要水位监测，如工厂蓄水池、农田灌溉用地水库、江河水位等等，因此利用现代化地通信手段对水资源进行测控以及使用计算机管理系统来实现对水位监测点现场水位等数据地采集与监测，并可在水位信息管理平台上进行水位数据地存储、显示、查询等，将是对水资源实现科学管理地一个重要手段 .本文从经济性和可靠性出发，在实验地基础上，设计了一种能够实现水位自动控制地装置.单片机技术地测控系统以其体积小，可靠性高而被广泛采用.本文对该测控系统进行了分析设计 .首先，设计针对系统所使用地单片机地性能和发展情况做了简单介绍；对超声波传感器地原理做了简单分析，对系统使用地模/数转换芯片 ADC0809 也做了性能方面地简单说明.其次，论文重点对测控硬件、软件地组成进行了分项、模块化逐步分析设计.对各部分地电路一一进行了介绍，最终实现了该系统地硬件电路.绘制了电路原理图 .关键词：单片机、 ADC0809、软件系统、硬件系统Abstract The water resources has become China's current and future development of the important resource,It has important significance for the rational utilization of water resources. In many places of our country need to water level monitoring, such as plant reservoir, reservoirs, irrigation water level and so on, therefore the use of modern means of communication to measure and control the water resources as well as the use of computer management system to realize the acquisition and monitoring of data level monitoring in field level, and water level data storage, in the water level information management platform display, query and so on, is an important means to realize the scientific management of water resources. This paper from the economic and reliability point of view, on the basis of experiment, a device which can realize automatic water level control is designed. Control system of single chip microcomputer technology with its small size, high reli...
