超高速MOSFET驱动芯片DEIC420VIP免费

超高速MOSFET驱动芯片DEIC420_第1页
1/7
超高速MOSFET驱动芯片DEIC420_第2页
2/7

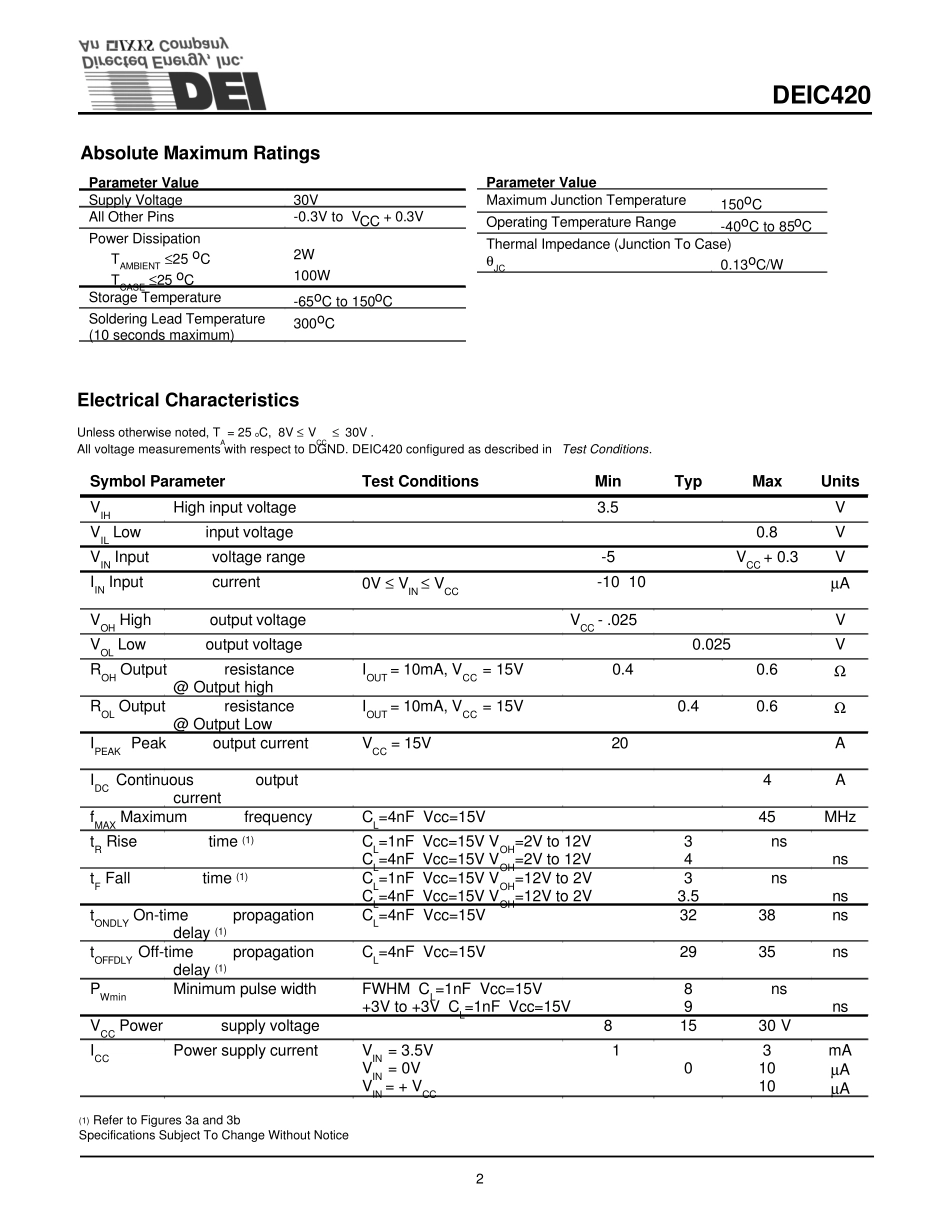

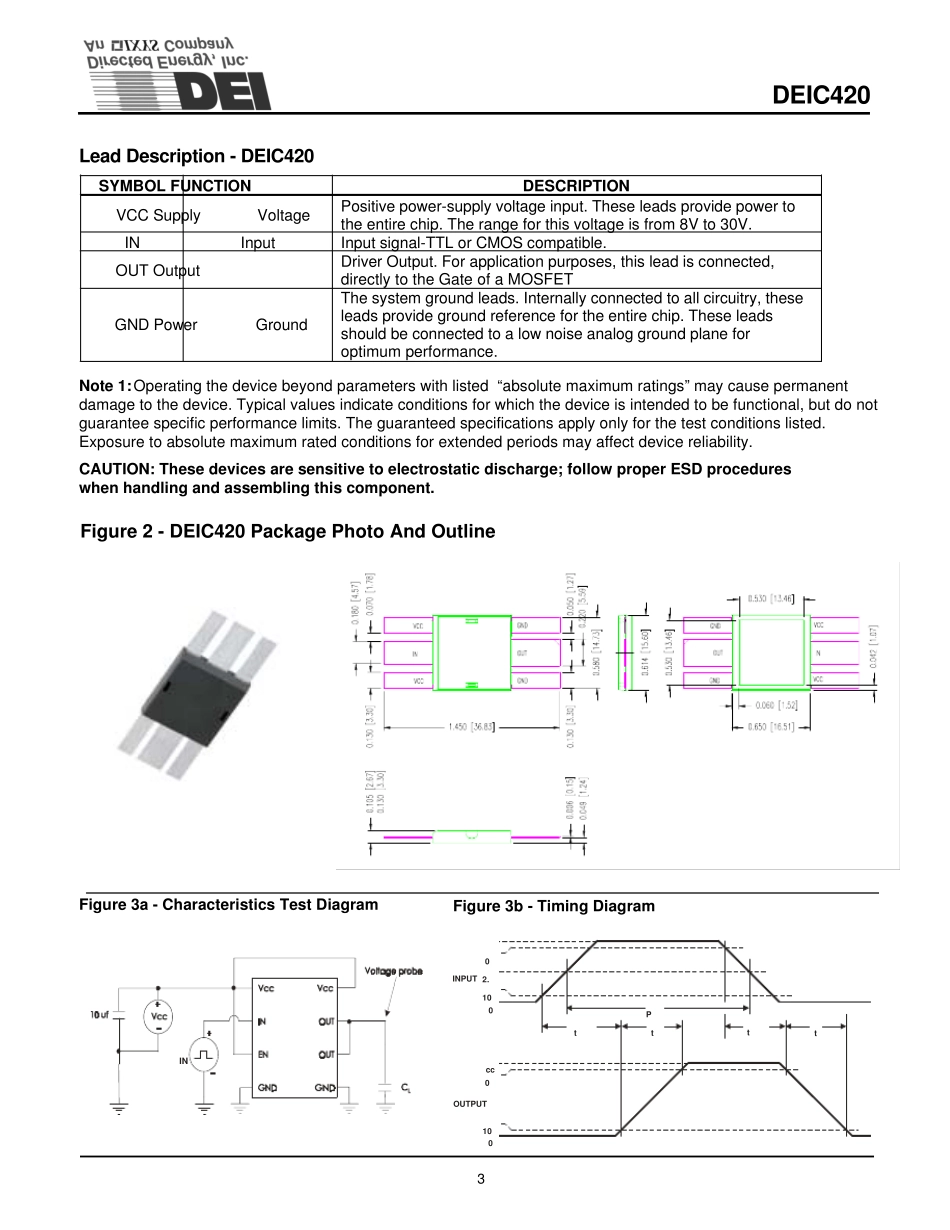

超高速MOSFET驱动芯片DEIC420_第3页
3/7
Features• Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes• Latch-Up Protected• High Peak Output Current: 20A Peak• Wide Operating Range: 8V to 30V• Rise And Fall Times of <4ns• Minimum Pulse Width Of 8ns• High Capacitive Load Drive Capability: 4nF in <4ns• Matched Rise And Fall Times• 32ns Input To Output Delay Time• Low Output Impedance• Low Quiescent Supply CurrenttApplications• Driving RF MOSFETs• Class D or E Switching Amplifier Drivers• Multi MHz Switch Mode Power Supplies (SMPS)• Pulse Generators• Acoustic Transducer Drivers• Pulsed Laser Diode Drivers• DC to DC Converters• Pulse Transformer Driver20 Ampere Low -Side Ultrafast RF MOSFET DriverFirst ReleaseCopyright © DIRECTED ENERGY, INC. 2001DescriptionTheDEIC420 is a CMOS high speed high current gatedriver specifically designed to drive MOSFETs in Class Dand E HF RF applications at up to 45MHz, as well asother applications requiring ultrafast rise and fall times orshort minimum pulse widths. The DEIC420 can sourceand sink 20A of peak current while producing voltage riseand fall times of less than 4ns, and minimum pulsewidths of 8ns. The input of the driver is compatible withTTL or CMOS and is fully immune to latch up over theentire operating range. Designed with small internaldelays, cross conduction/current shoot-through isvirtually eliminated in the DEIC420. Its features and widesafety margin in operating voltage and power make theDEIC420 unmatched in performance and value.The DEIC420 is packaged in DEI's low inductance RFpackage incorporating DEI's patented (1) RF layouttechniques to minimize stray lead inductances foroptimum switching performance. For applications that donot require the power dissipation...
