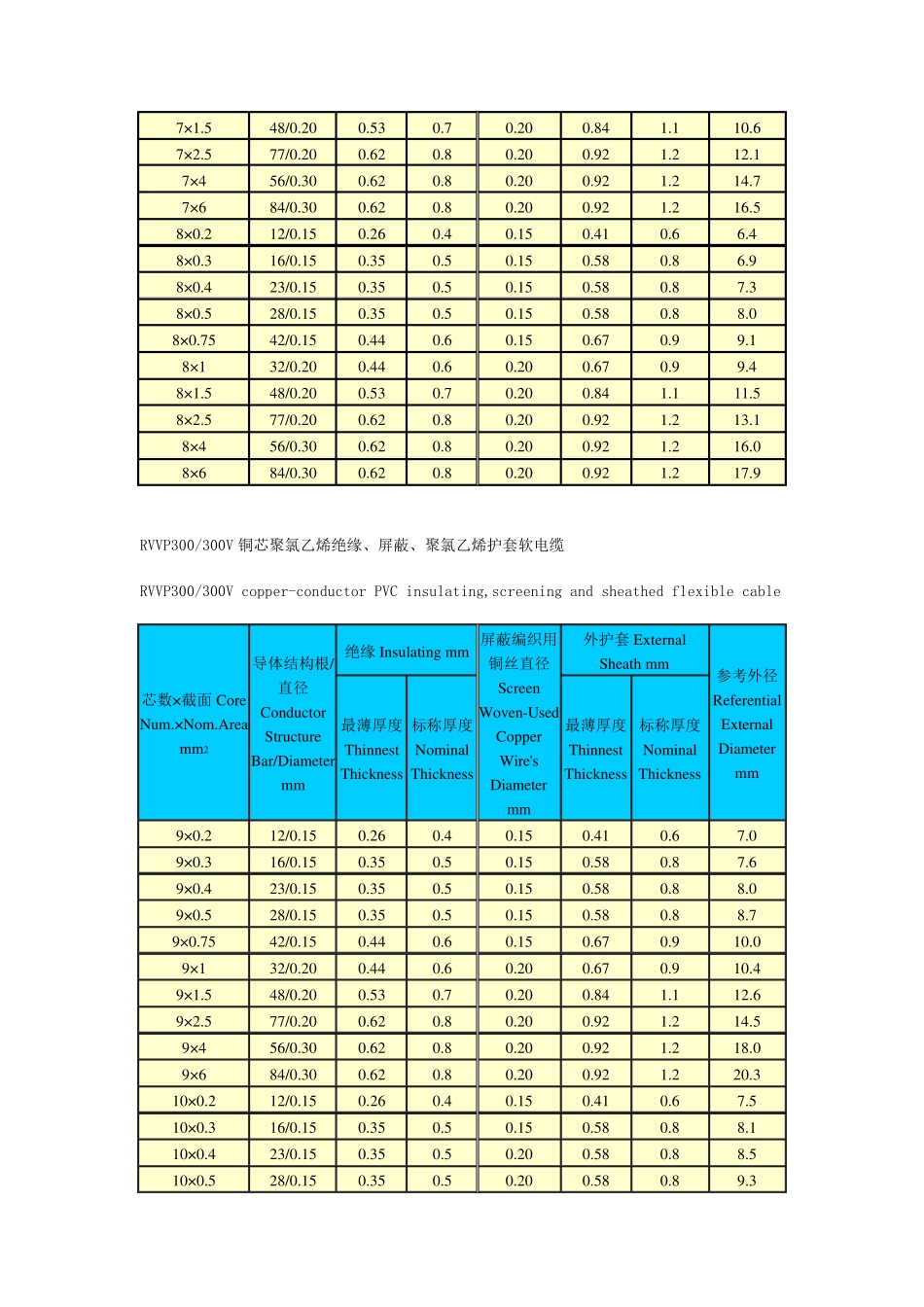

RVVP 300/300V 铜芯聚氯乙烯绝缘、屏蔽、聚氯乙烯护套软电缆 RVVP 300/300V copper-conductor PVC insulating,screening and sheathed flexible cable 芯数×截面 Core Num.×Nom.Area mm2 导体结构根/直径Conductor Structure Bar/Diameter mm 绝缘Insulating mm 屏蔽编织用铜丝直径Screen Woven-Used Copper Wire's Diameter mm 外护套 External Sheath mm 参考外径Referential External Diameter mm 最薄厚度Thinnest Thickness 标称厚度Nominal Thickness 最薄厚度Thinnest Thickness 标称厚度Nominal Thickness 2×0.2 12/0.15 0.26 0.4 0.10 0.41 0.6 4.8 2×0.3 16/0.15 0.35 0.5 0.15 0.41 0.6 5.5 2×0.4 23/0.15 0.35 0.5 0.15 0.41 0.6 5.5 2×0.5 28/0.15 0.35 0.5 0.15 0.41 0.6 5.8 2×0.75 42/0.15 0.35 0.5 0.15 0.41 0.6 6.6 2×1 32/0.20 0.44 0.6 0.15 0.58 0.8 7.0 2×1.5 48/0.20 0.53 0.7 0.15 0.58 0.8 8.0 2×2.5 77/0.20 0.62 0.8 0.15 0.75 1.0 9.4 2×4 56/0.30 0.62 0.8 0.15 0.75 1.0 11.1 2×6 84/0.30 0.62 0.8 0.15 0.75 1.0 12.3 3×0.2 12/0.15 0.26 0.4 0.15 0.41 0.6 4.6 3×0.3 16/0.15 0.35 0.5 0.15 0.41 0.6 5.0 3×0.4 23/0.15 0.35 0.5 0.15 0.41 0.6 5.2 3×0.5 28/0.15 0.35 0.5 0.15 0.41 0.6 5.8 3×0.75 42/0.15 0.44 0.6 0.15 0.58 0.8 6.5 3×1 32/0.20 0.44 0.6 0.15 0.58 0.8 6.8 3×1.5 48/0.20 0.53 0.7 0.20 0.67 0.9 7.9 3×2.5 77/0.20 0.62 0.8 0.20 0.75 1.0 9.7 3×4 56/0.30 0.62 0.8 0.20 0.75 1.0 11.5 3×6 84/0.30 0.62 0.8 0.20 0.75 1.0 12.8 4×0.2 12/0.15 0.26 0.4 0.15 0.41 0.6 5.3 4×0.3 16/0.15 0.35 0.5 0.15 0.41 0.6 5.7 4×0.4 23/0.15 0.35 0.5 0.15 0.41 0.6 5.9 4×0.5 28/0.15 0.35 0.5 0.15 0.58 0.8 6.4 4×0.75 42/0.15 0.44 0.6 0.15 0.58 0.8 7.2 4×1 32/0.20 0.44 0.6 0.15 0.67 0.9 7.5 4×1.5 48/0.20 0.53 0.7 0.20 0.75 1.0 9.0 4×2.5 77/0.20 0.62 0.8 0.20 0.84 1.1 10.2 4×4 56/0.30 0.62 0.8 0.20 0.84 1.1 12.2 4×6 84/0.30 0.62 0.8 0.20...
