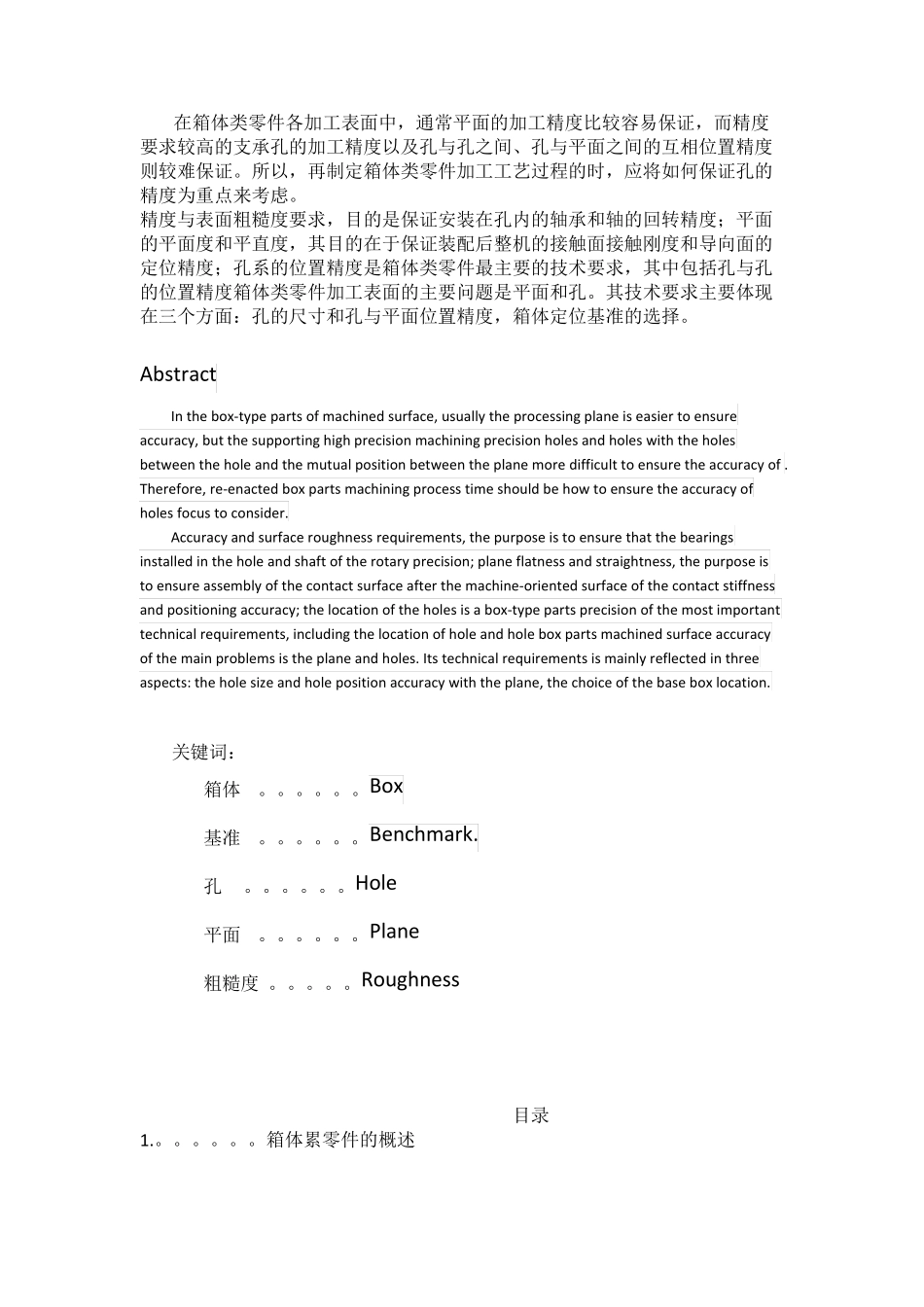

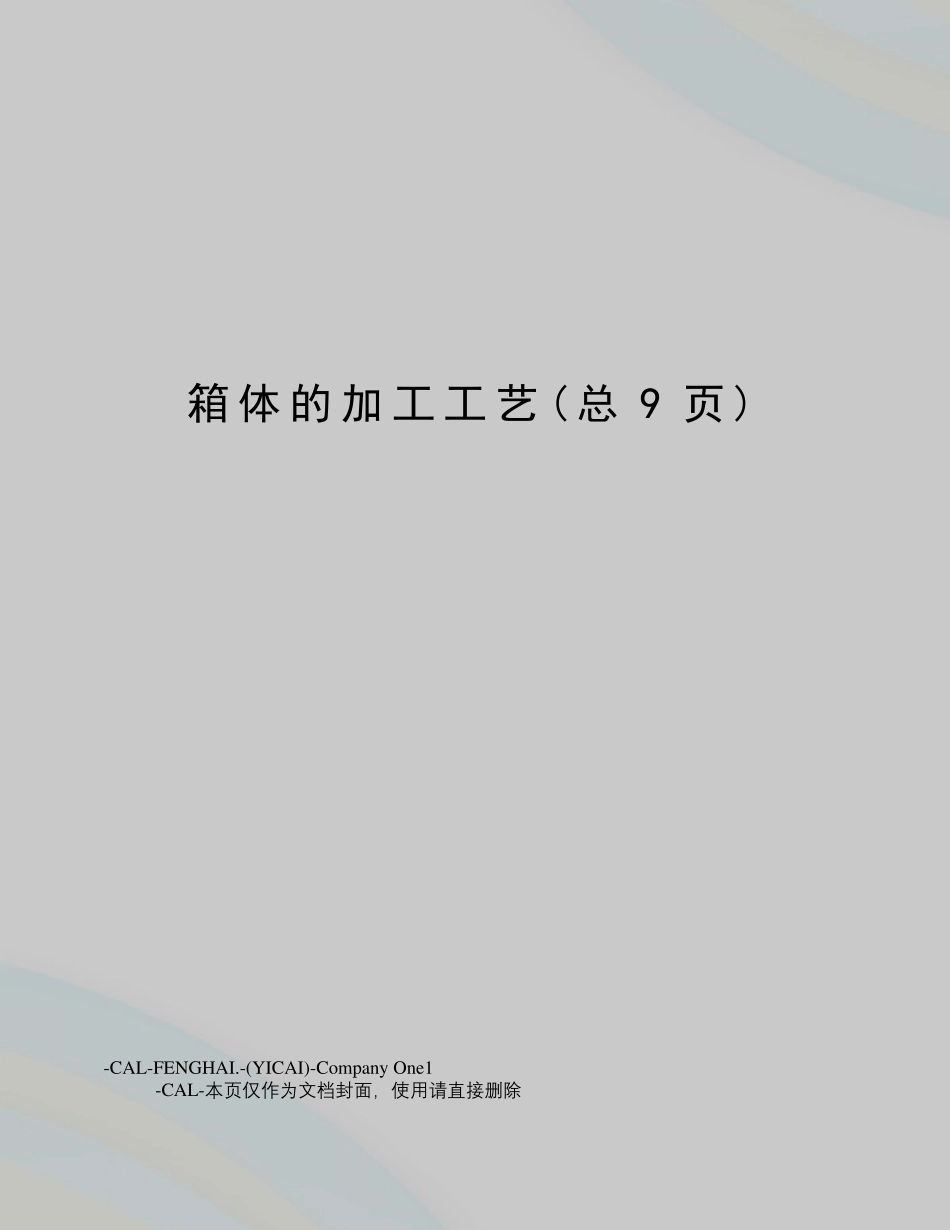

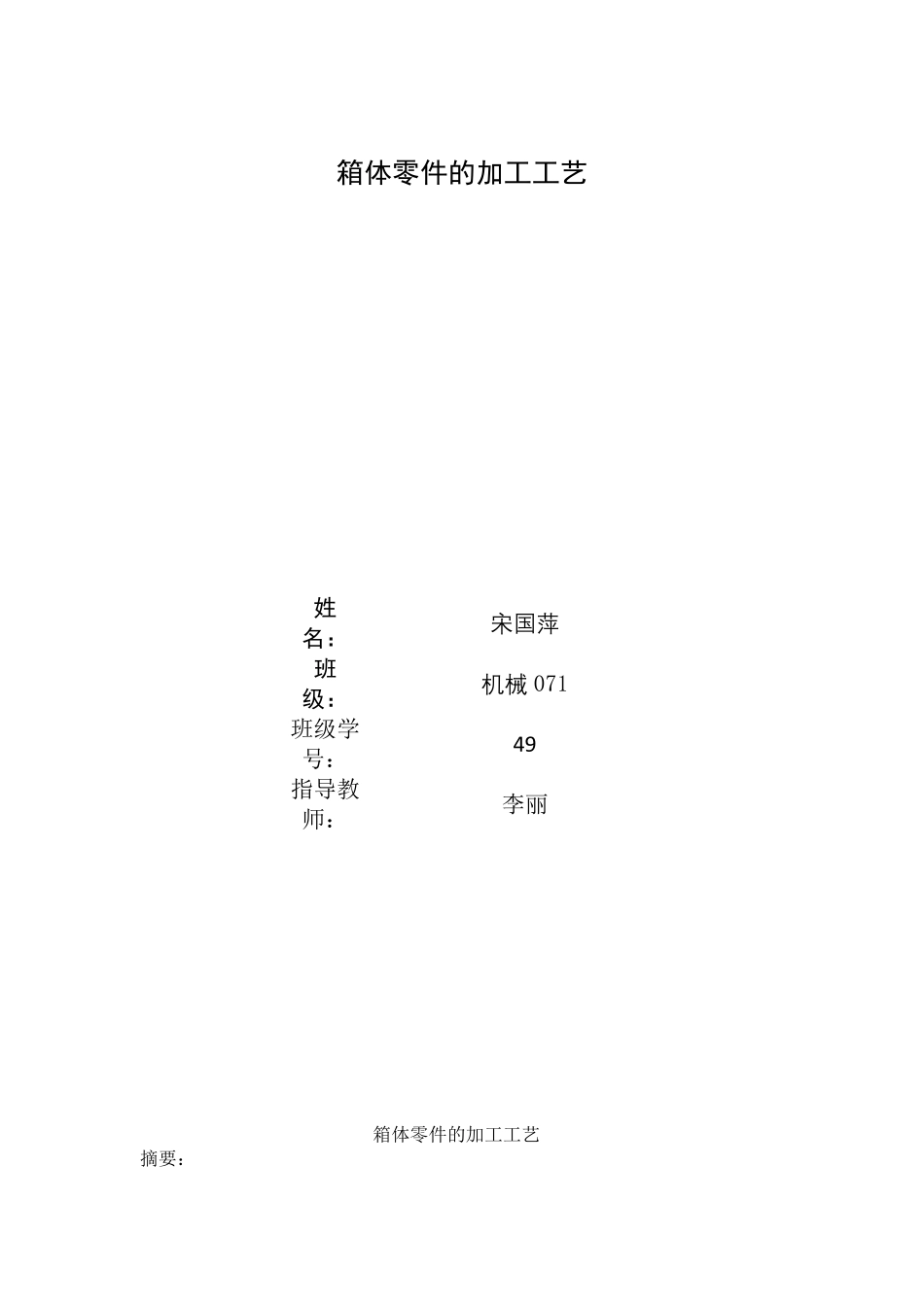

箱体 的加工工艺( 总9 页) -CAL-FENGHAI.-(YICAI)-Company One1 -CAL-本 页 仅 作 为文 档 封 面 ， 使 用 请 直 接 删 除 箱体零件的加工工艺 箱体零件的加工工艺 摘要： 姓 名： 宋 国萍 班 级： 机 械 071 班级学号： 49 指导教师： 李丽 在箱体类零件各加工表面中，通常平面的加工精度比较容易保证，而精度要求较高的支承孔的加工精度以及孔与孔之间、孔与平面之间的互相位置精度则较难保证。所以，再制定箱体类零件加工工艺过程的时，应将如何保证孔的精度为重点来考虑。 精度与表面粗糙度要求，目的是保证安装在孔内的轴承和轴的回转精度；平面的平面度和平直度，其目的在于保证装配后整机的接触面接触刚度和导向面的定位精度；孔系的位置精度是箱体类零件最主要的技术要求，其中包括孔与孔的位置精度箱体类零件加工表面的主要问题是平面和孔。其技术要求主要体现在三个方面：孔的尺寸和孔与平面位置精度，箱体定位基准的选择。 Abstract In the box-type parts of machined surface, usually the processing plane is easier to ensure accuracy, but the supporting high precision machining precision holes and holes with the holes between the hole and the mutual position between the plane more difficult to ensure the accuracy of . Therefore, re-enacted box parts machining process time should be how to ensure the accuracy of holes focus to consider. Accuracy and surface roughness requirements, the purpose is to ensure that the bearings installed in the hole and shaft of the rotary precision; plane flatness and straightness, the purpose is to ensure assembly of the contact surface after the machine-oriented surface of the contact stiffness and positioning accuracy; the location of the holes is a box-type parts precision of the most important technical requirements, including the location of hole and hole box parts machined surface accuracy of the main problems is the plane and holes. Its technical requirements is mainly reflected in three asp...
