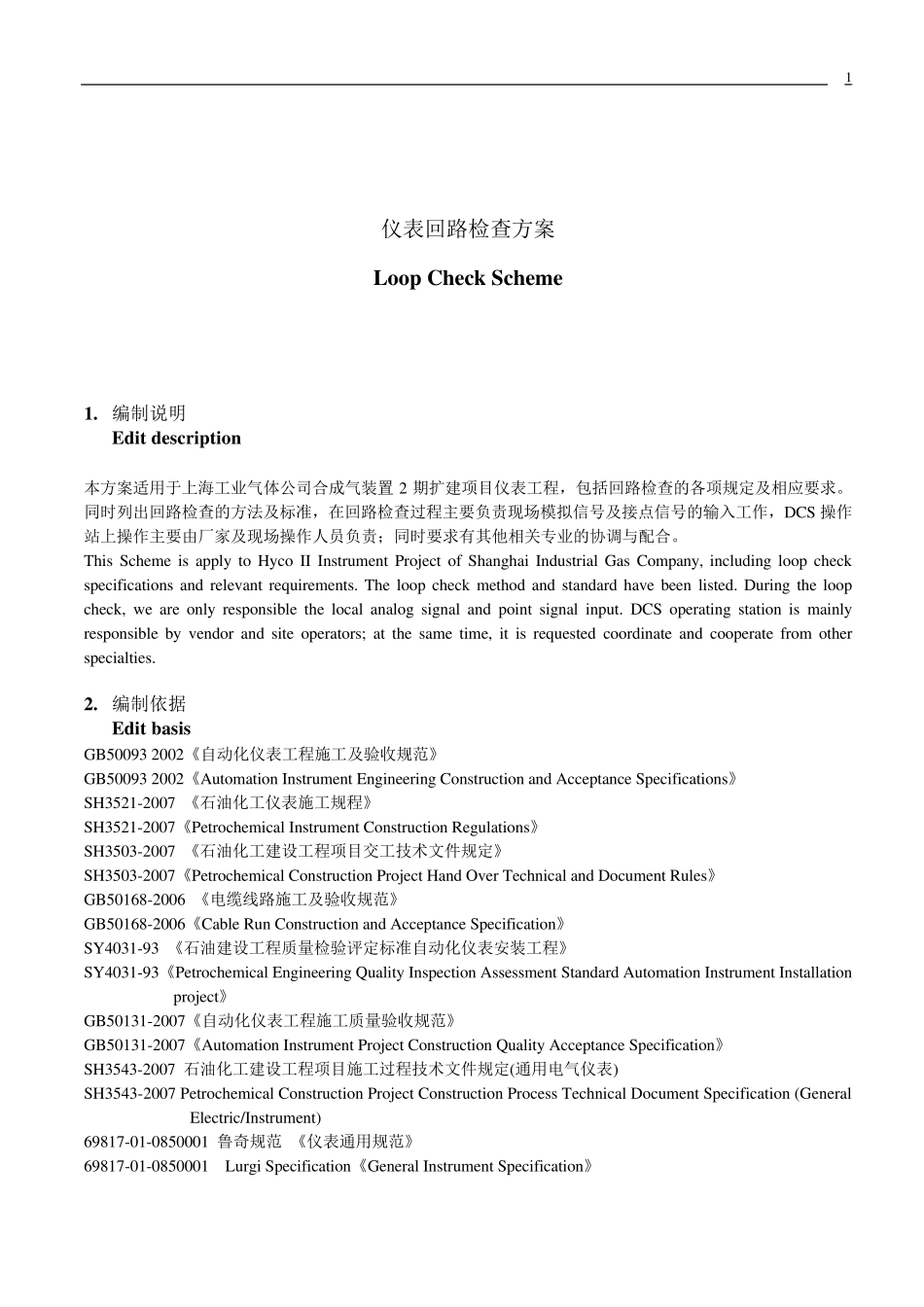

1 仪表回路检查方案 Loop Check Scheme 1. 编制说明 Edit description 本方案适用于上海工业气体公司合成气装置2 期扩建项目仪表工程，包括回路检查的各项规定及相应要求。同时列出回路检查的方法及标准，在回路检查过程主要负责现场模拟信号及接点信号的输入工作，DCS 操作站上操作主要由厂家及现场操作人员负责；同时要求有其他相关专业的协调与配合。 This Scheme is apply to Hyco II Instrument Project of Shanghai Industrial Gas Company, including loop check specifications and relevant requirements. The loop check method and standard have been listed. During the loop check, we are only responsible the local analog signal and point signal input. DCS operating station is mainly responsible by vendor and site operators; at the same time, it is requested coordinate and cooperate from other specialties. 2. 编制依据 Edit basis GB50093 2002《自动化仪表工程施工及验收规范》 GB50093 2002《Automation Instrument Engineering Construction and Acceptance Specifications》 SH3521-2007 《石油化工仪表施工规程》 SH3521-2007《Petrochemical Instrument Construction Regulations》 SH3503-2007 《石油化工建设工程项目交工技术文件规定》 SH3503-2007《Petrochemical Construction Project Hand Over Technical and Document Rules》 GB50168-2006 《电缆线路施工及验收规范》 GB50168-2006《Cable Run Construction and Acceptance Specification》 SY4031-93 《石油建设工程质量检验评定标准自动化仪表安装工程》 SY4031-93《Petrochemical Engineering Quality Inspection Assessment Standard Automation Instrument Installation project》 GB50131-2007《自动化仪表工程施工质量验收规范》 GB50131-2007《Automation Instrument Project Construction Quality Acceptance Specification》 SH3543-2007 石油化工建设工程项目施工过程技术文件规定(通用电气仪表) SH3543-2007 Petrochemical Construction Project Construction Process Technical Document Specification (General Electric/Instrument) 69817-01-0850001 鲁奇规范...
