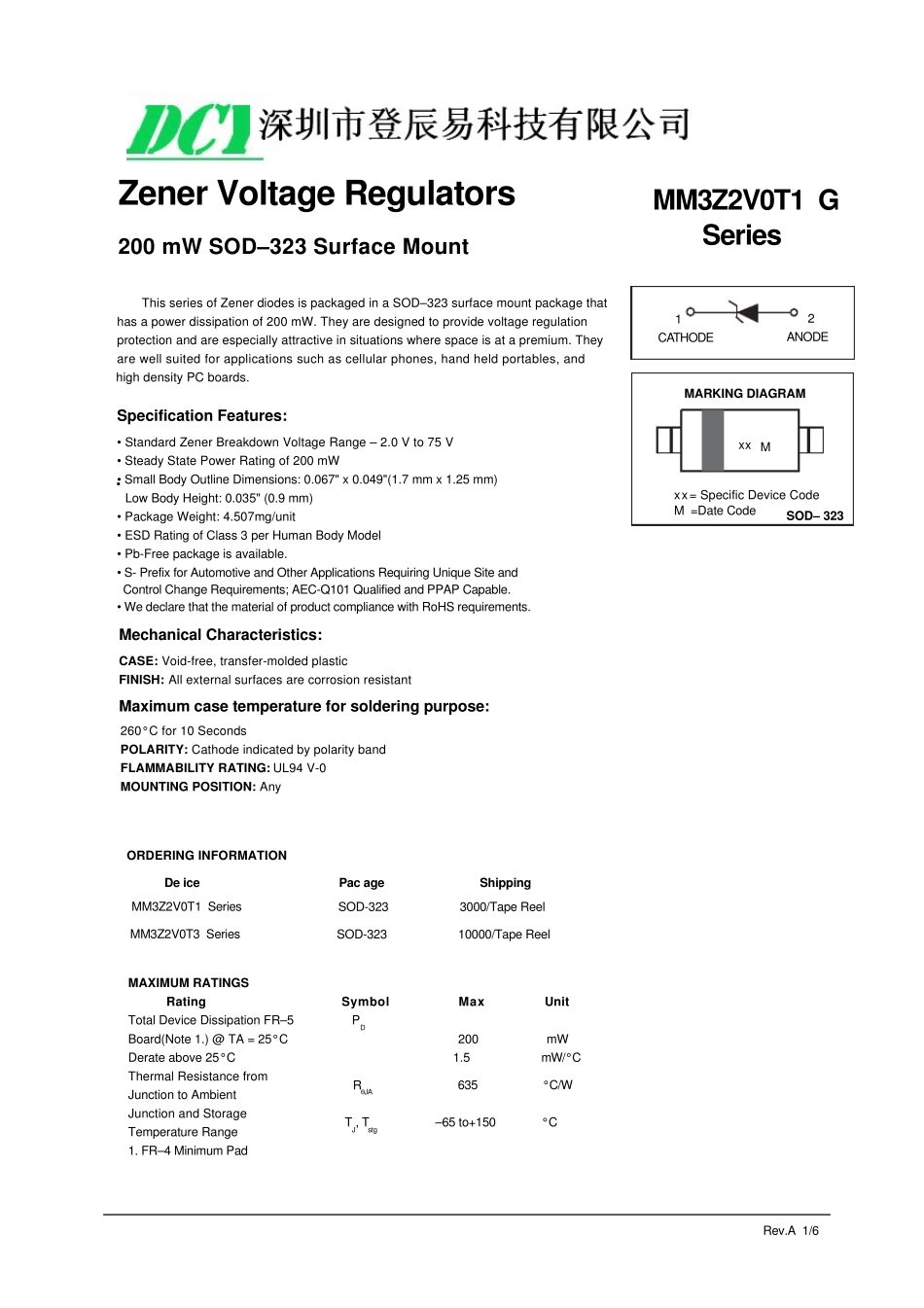

Zener Voltage Regulators200 mW SOD–323 Surface MountMM3Z2V0T1 GSeriesxxMARKING DIAGRAMxx= Specific Device CodeM =Date CodeThis series of Zener diodes is packaged in a SOD–323 surface mount package thathas a power dissipation of 200 mW. They are designed to provide voltage regulationprotection and are especially attractive in situations where space is at a premium. Theyare well suited for applications such as cellular phones, hand held portables, and high density PC boards.Specification Features:• Standard Zener Breakdown Voltage Range – 2.0 V to 75 V• Steady State Power Rating of 200 mW• Small Body Outline Dimensions: 0.067" x 0.049"(1.7 mm x 1.25 mm).Low Body Height: 0.035" (0.9 mm)• Package Weight: 4.507mg/unit• ESD Rating of Class 3 per Human Body Model• Pb-Free package is available.Mechanical Characteristics:CASE: Void-free, transfer-molded plasticFINISH: All external surfaces are corrosion resistant260° C for 10 SecondsPOLARITY: Cathode indicated by polarity bandFLAMMABILITY RATING: UL94 V-0MOUNTING POSITION: Any 2ANODE 1CATHODEMAXIMUM RATINGSRatingSymbolMaxUnitTotal Device Dissipation FR–5 PDBoard(Note 1.) @ TA = 25° C 200 mWDerate above 25° C 1.5mW/° CThermal Resistance fromRθJA635 ° C/WJunction to AmbientJunction and StorageTJ, Tstg–65 to+150 ° CTemperature Range1. FR–4 Minimum Pad DevicePackageShipping MM3Z2V0T1G SeriesSOD-3233000/Tape&Reel MM3Z2V0T3G SeriesSOD-32310000/Tape&ReelRev.A 1/6• S- Prefix for Automotive and Other Applications Requiring Unique Site andControl Change Requirements; AEC-Q101 Qualified and PPAP Capable.• We declare that the material of product compliance with RoHS requirements. ORDERING INFORMATIONSOD– 323MMaximum case temperature for soldering purpose:MM3Z2V0T1G SeriesZener Voltage Regula...
