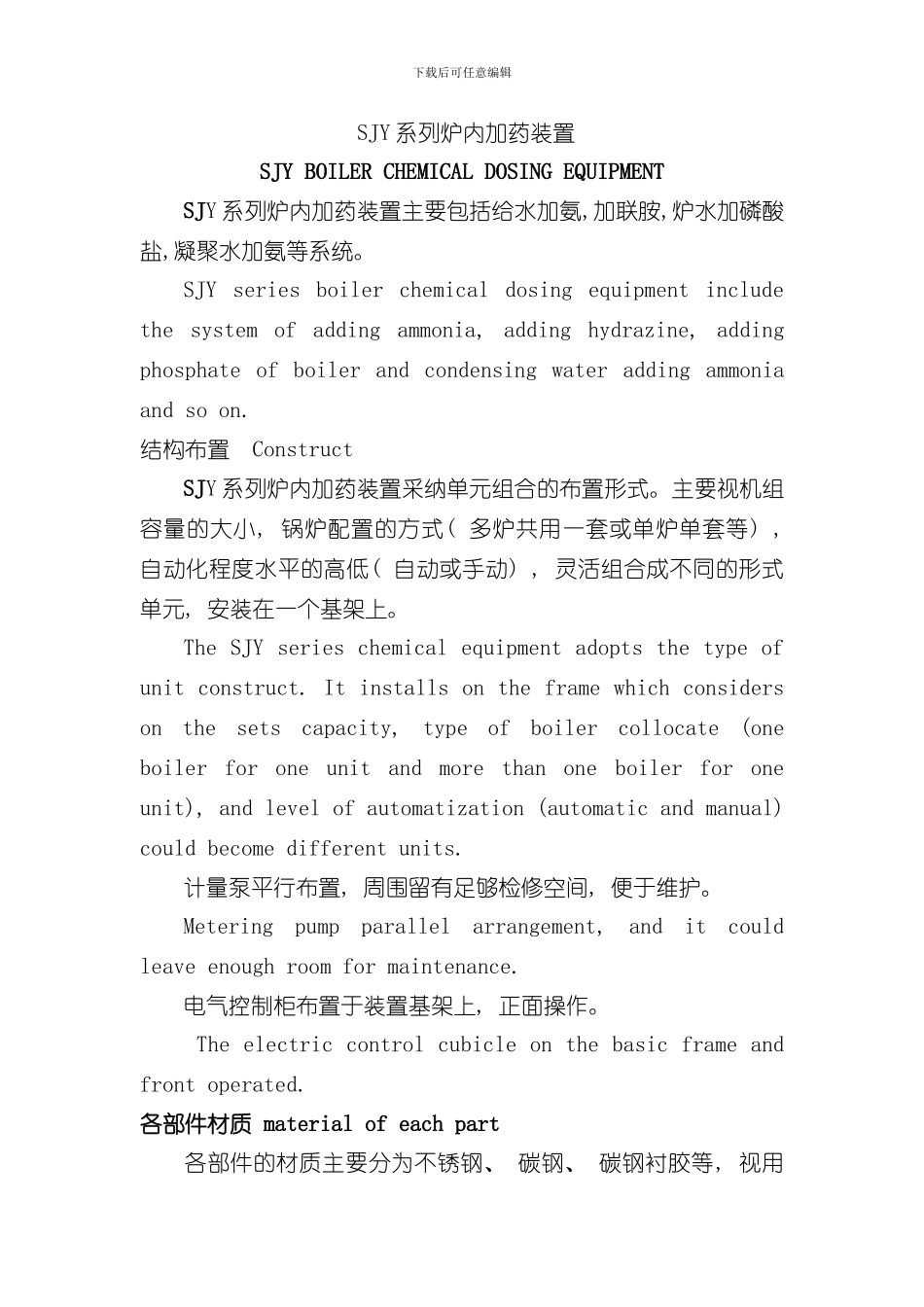

下载后可任意编辑SJY 系列炉内加药装置SJY Series Boiler Chemical Dosing Equipment操 作 维 护 手 册Maintenance Manual版 号: 01Edition :01文件编号:ZG/WH001- Document No. ZG/WH001- 中美合资苏州赛华仪控有限公司SINO-US SUZHOU SAIHUA INSTRUMENT CONTROL CO.,LTD二○○六年一月下载后可任意编辑SJY 系列炉内加药装置 SJY BOILER CHEMICAL DOSING EQUIPMENTSJY 系列炉内加药装置主要包括给水加氨,加联胺,炉水加磷酸盐,凝聚水加氨等系统。SJY series boiler chemical dosing equipment include the system of adding ammonia, adding hydrazine, adding phosphate of boiler and condensing water adding ammonia and so on. 结构布置 ConstructSJY 系列炉内加药装置采纳单元组合的布置形式。主要视机组容量的大小, 锅炉配置的方式( 多炉共用一套或单炉单套等) , 自动化程度水平的高低( 自动或手动) , 灵活组合成不同的形式单元, 安装在一个基架上。The SJY series chemical equipment adopts the type of unit construct. It installs on the frame which considers on the sets capacity, type of boiler collocate (one boiler for one unit and more than one boiler for one unit), and level of automatization (automatic and manual) could become different units. 计量泵平行布置, 周围留有足够检修空间, 便于维护。Metering pump parallel arrangement, and it could leave enough room for maintenance. 电气控制柜布置于装置基架上, 正面操作。 The electric control cubicle on the basic frame and front operated.各部件材质 material of each part各部件的材质主要分为不锈钢、 碳钢、 碳钢衬胶等, 视用下载后可任意编辑户需要和药品种类而定。The material of each part is stainless, carbon steel and its gum which consider on customer needed and kinds of chemical. 液位检测、 自动停泵The pump of liquid level testing and stopping automatically溶液箱设置磁性翻板液位计, 实现就地液位显示、 液位远传、 高低限报警, 低低液位自动停泵, 防止计量泵空转。There is a magnetic drop-leaf liquid level m...
