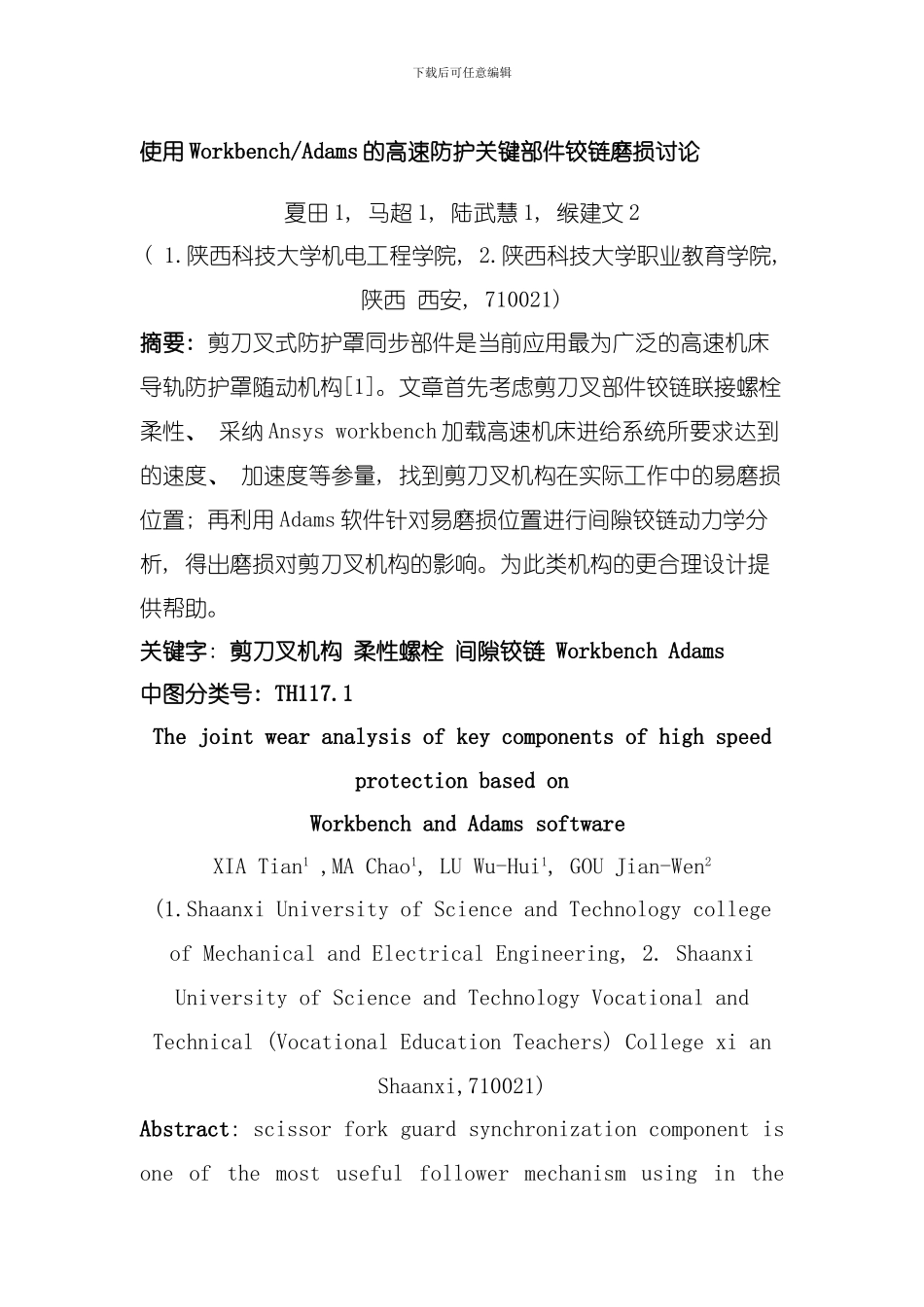

下载后可任意编辑使用 Workbench/Adams 的高速防护关键部件铰链磨损讨论夏田 1, 马超 1, 陆武慧 1, 缑建文 2( 1.陕西科技大学机电工程学院, 2.陕西科技大学职业教育学院, 陕西 西安, 710021) 摘要: 剪刀叉式防护罩同步部件是当前应用最为广泛的高速机床导轨防护罩随动机构[1]。文章首先考虑剪刀叉部件铰链联接螺栓柔性、 采纳 Ansys workbench 加载高速机床进给系统所要求达到的速度、 加速度等参量, 找到剪刀叉机构在实际工作中的易磨损位置; 再利用 Adams 软件针对易磨损位置进行间隙铰链动力学分析, 得出磨损对剪刀叉机构的影响。为此类机构的更合理设计提供帮助。关键字: 剪刀叉机构 柔性螺栓 间隙铰链 Workbench Adams中图分类号: TH117.1The joint wear analysis of key components of high speed protection based on Workbench and Adams software XIA Tian1 ,MA Chao1, LU Wu-Hui1, GOU Jian-Wen2(1.Shaanxi University of Science and Technology college of Mechanical and Electrical Engineering, 2. Shaanxi University of Science and Technology Vocational and Technical (Vocational Education Teachers) College xi an Shaanxi,710021)Abstract: scissor fork guard synchronization component is one of the most useful follower mechanism using in the 下载后可任意编辑high-speed machine guard rails. Firstly, We consider the hinge bolts on scissors member as flexible bodies, using Ansys workbench software loading the required speed, acceleration and other parameters to find the wear position of the scissor fork guard synchronization component. Then we knew how the wear influent the component by doing the joint gap kinetic analysis focus on the easy wear location which is found before. This research can provide assistance to more rational design of such institutions.Keywords: scissor fork component, flexible bolts, joint gap, Workbench, Adams1.引言当前, 高速高精度切削机床和多轴联动机床已经成为中国装备制造业进展的主要方向。随着高速高精度机床在主轴速度、 进...
