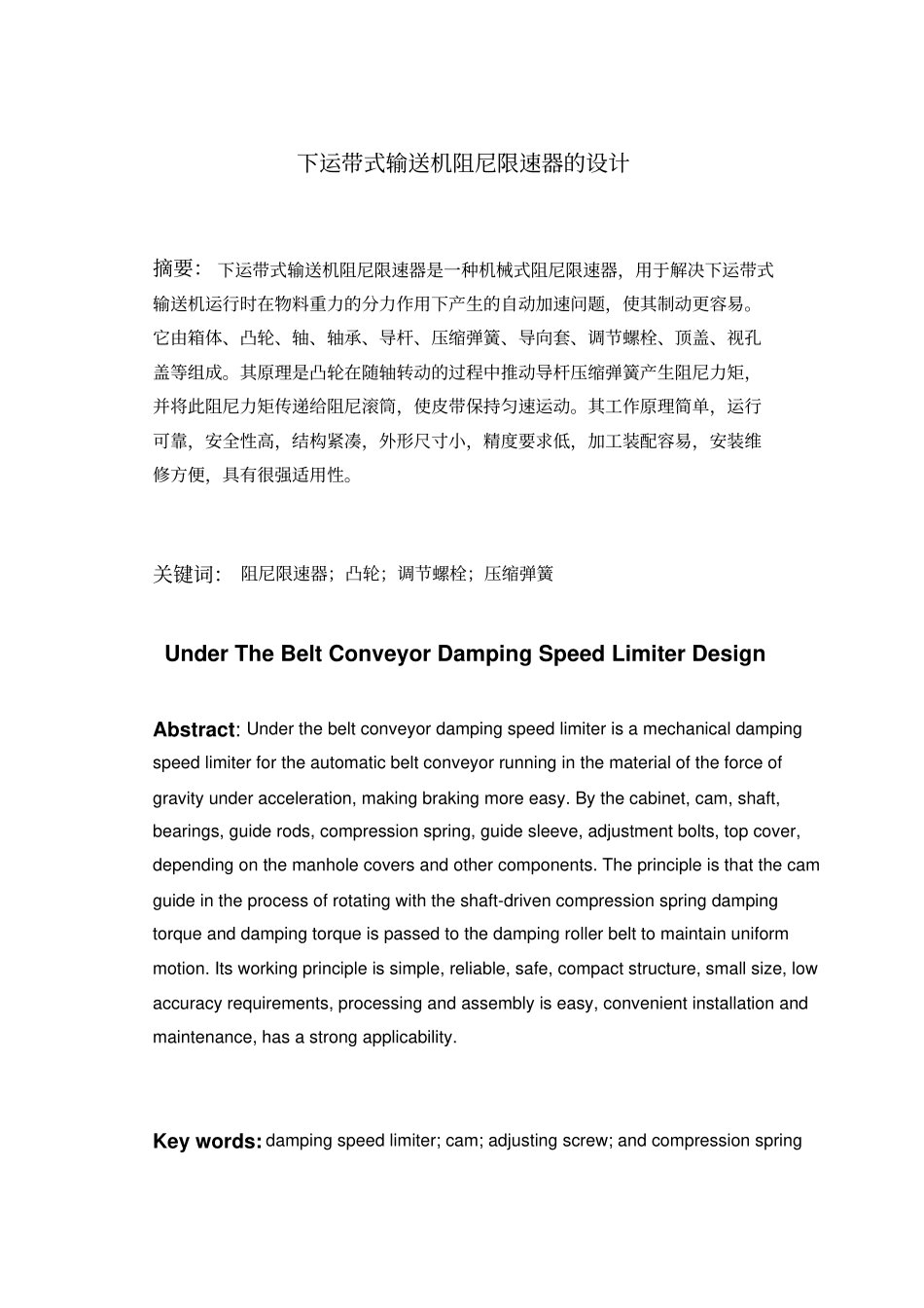

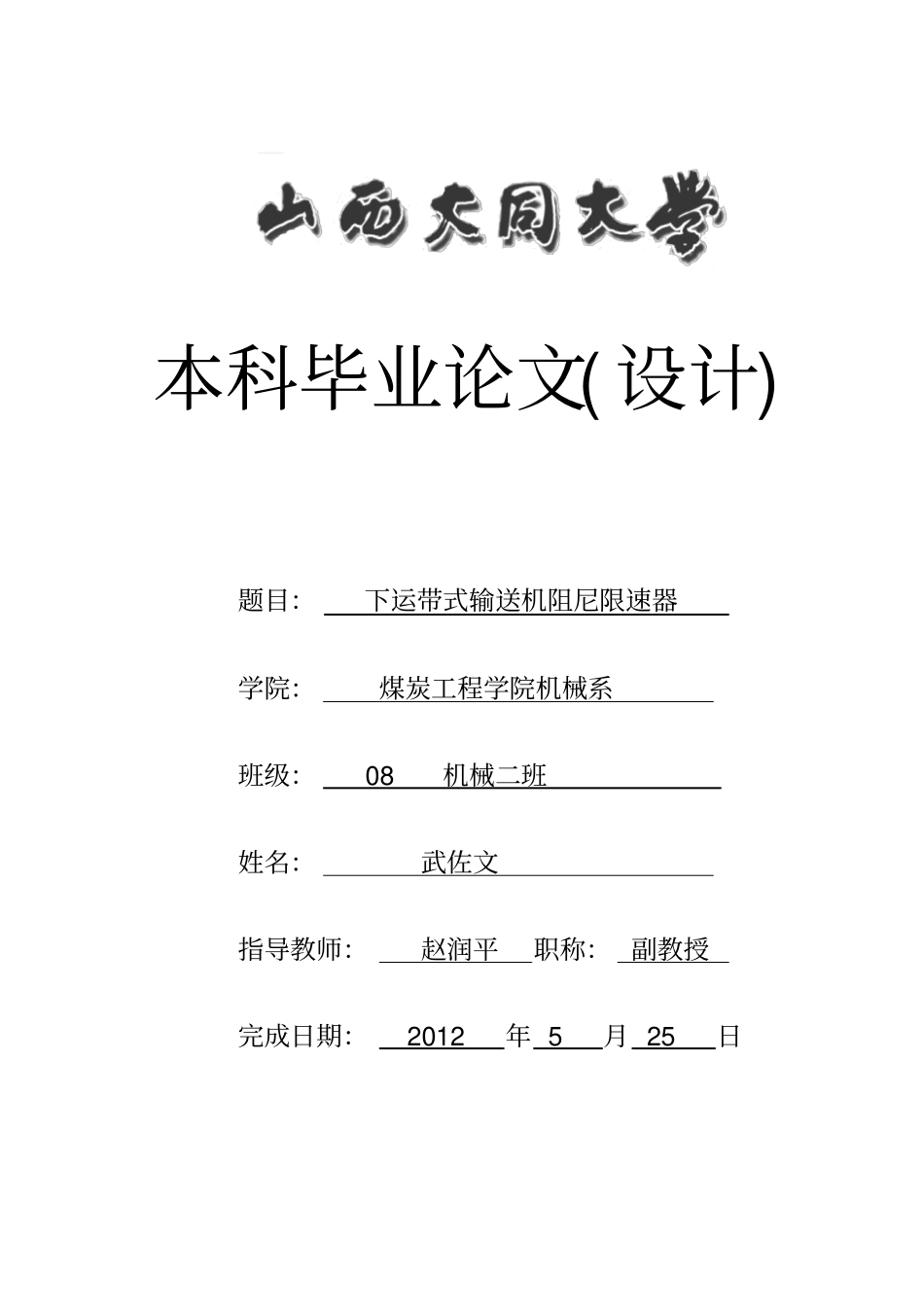

本科毕业论文( 设计) 题目：下运带式输送机阻尼限速器学院：煤炭工程学院机械系班级： 08机械二班姓名：武佐文指导教师：赵润平职称： 副教授完成日期： 2012 年 5 月 25 日下运带式输送机阻尼限速器的设计摘要： 下运带式输送机阻尼限速器是一种机械式阻尼限速器，用于解决下运带式输送机运行时在物料重力的分力作用下产生的自动加速问题，使其制动更容易。它由箱体、凸轮、轴、轴承、导杆、压缩弹簧、导向套、调节螺栓、顶盖、视孔盖等组成。其原理是凸轮在随轴转动的过程中推动导杆压缩弹簧产生阻尼力矩，并将此阻尼力矩传递给阻尼滚筒，使皮带保持匀速运动。其工作原理简单，运行可靠，安全性高，结构紧凑，外形尺寸小，精度要求低，加工装配容易，安装维修方便，具有很强适用性。关键词： 阻尼限速器；凸轮；调节螺栓；压缩弹簧Under The Belt Conveyor Damping Speed Limiter Design Abstract: Under the belt conveyor damping speed limiter is a mechanical damping speed limiter for the automatic belt conveyor running in the material of the force of gravity under acceleration, making braking more easy. By the cabinet, cam, shaft, bearings, guide rods, compression spring, guide sleeve, adjustment bolts, top cover, depending on the manhole covers and other components. The principle is that the cam guide in the process of rotating with the shaft-driven compression spring damping torque and damping torque is passed to the damping roller belt to maintain uniform motion. Its working principle is simple, reliable, safe, compact structure, small size, low accuracy requirements, processing and assembly is easy, convenient installation and maintenance, has a strong applicability. Key words: damping speed limiter; cam; adjusting screw; and compression spring目录1 绪论 .............................................................. 41.1 问题的提出 .................................................... 4 1.2 国内外相应技术的比较 ......................................... 4 2 方案设计 ...
