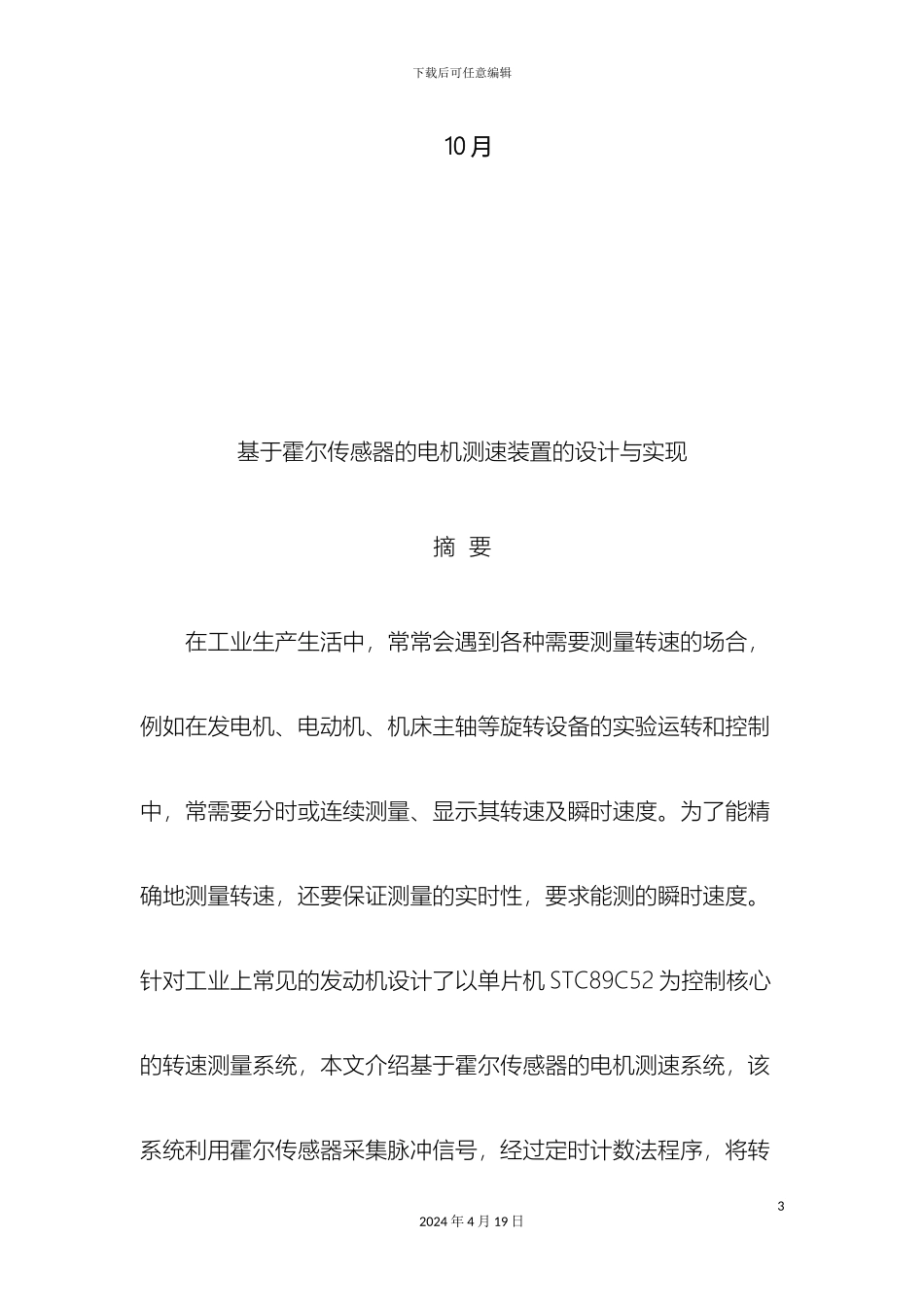

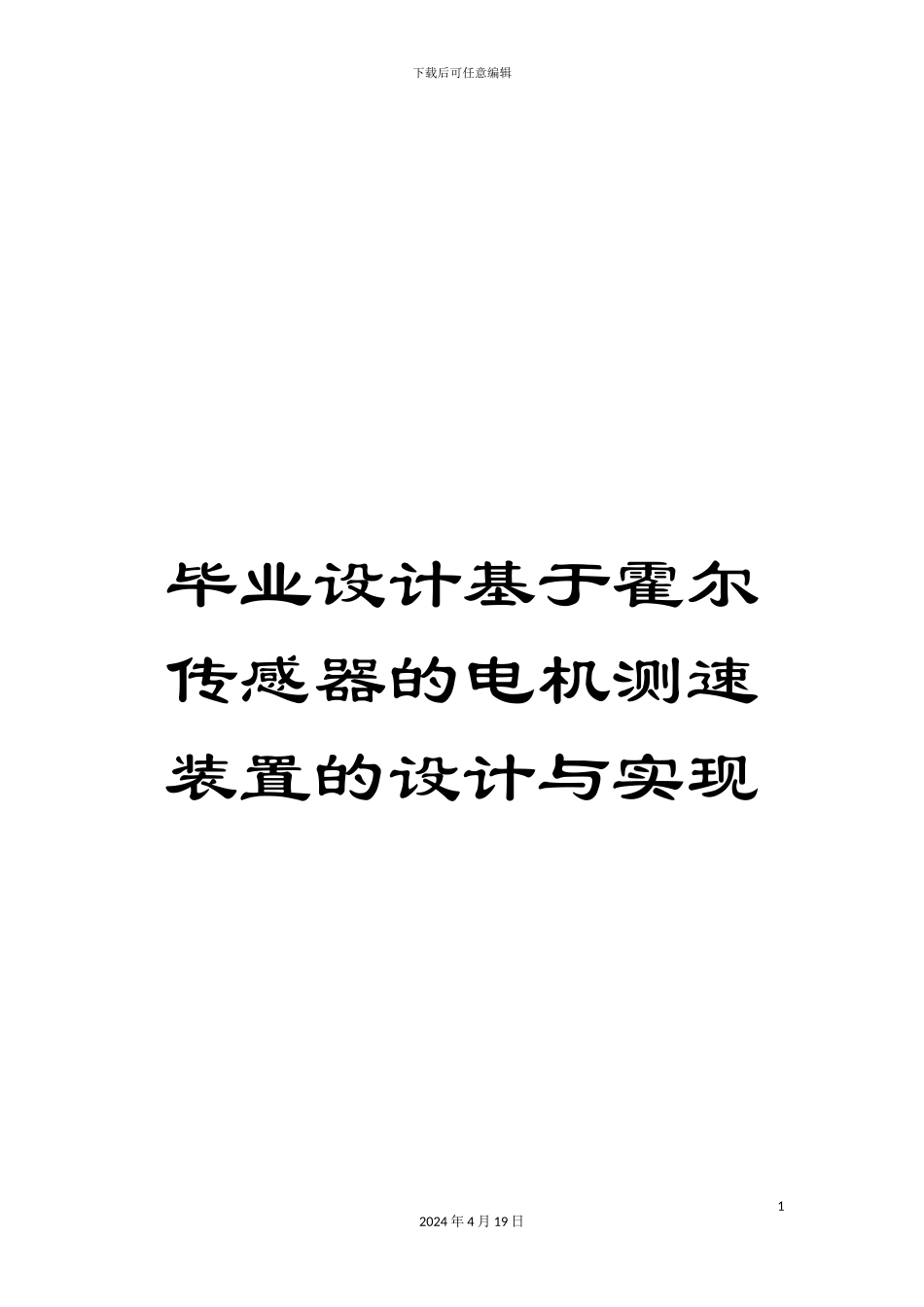

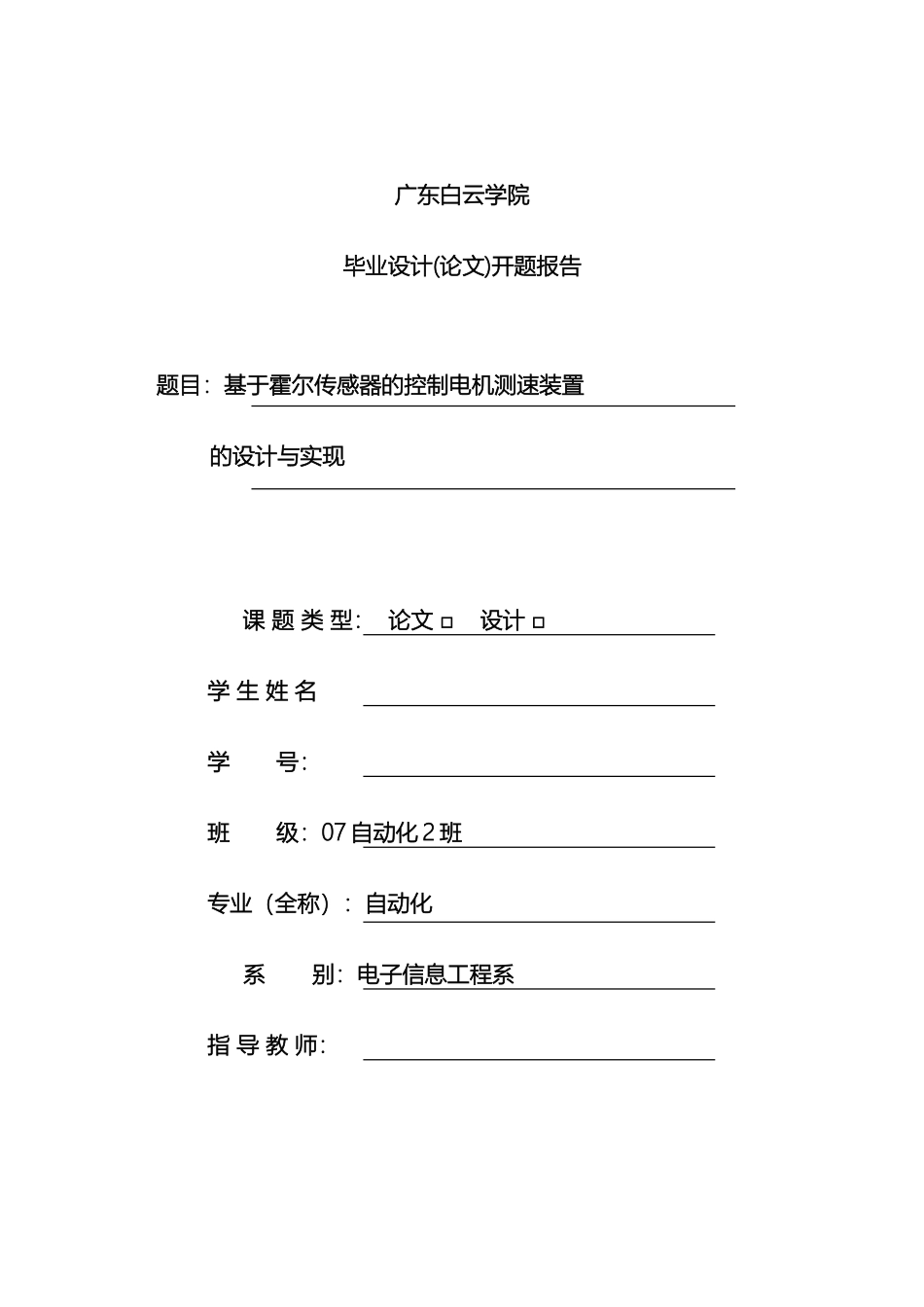

下载后可任意编辑毕业设计基于霍尔传感器的电机测速装置的设计与实现12024 年 4 月 19 日广东白云学院毕业设计(论文)开题报告题目:基于霍尔传感器的控制电机测速装置 的设计与实现 课 题 类 型: 论文 □ 设计 □ 学 生 姓 名学 号:班 级:07 自动化 2 班专业(全称):自动化系 别:电子信息工程系指 导 教 师:下载后可任意编辑 10 月基于霍尔传感器的电机测速装置的设计与实现摘 要在工业生产生活中,常常会遇到各种需要测量转速的场合,例如在发电机、电动机、机床主轴等旋转设备的实验运转和控制中,常需要分时或连续测量、显示其转速及瞬时速度。为了能精确地测量转速,还要保证测量的实时性,要求能测的瞬时速度。针对工业上常见的发动机设计了以单片机 STC89C52 为控制核心的转速测量系统,本文介绍基于霍尔传感器的电机测速系统,该系统利用霍尔传感器采集脉冲信号,经过定时计数法程序,将转32024 年 4 月 19 日下载后可任意编辑速结果实时显示出来。实际测试表明,该系统能满足发动机转速测量要求。关键词: 单片机;电机测速系统;霍尔传感器;定时42024 年 4 月 19 日下载后可任意编辑 SENSOR BASED ON HALL OF MOTOR SPEED DEVICE DESIGNABSTRACTIn the course of industrial production in life often need to measure speed encounter various occasions. For example, AT the engines motors machine tool spindles and other rotating equipment’s operation and control of the piolt often need frequent time-sharing or continuous measurements show its speed and instantaneous velocity.In order to accurately measured. The rotate spee measurement system for the common engine is designed with the single chip 52024 年 4 月 19 日下载后可任意编辑STC89C52.This paper inroduces a microcomputer-based hall sensor speed system,the syetem uses Hall sensor pulse signal collected through the timer counting algorithm programs,will speed the results of real-time disply. The result of the experiment shows that the measurement system is able to satisfy the requirement of the engine rotate speed measuremen...
