特殊玻璃纤维套管规格书

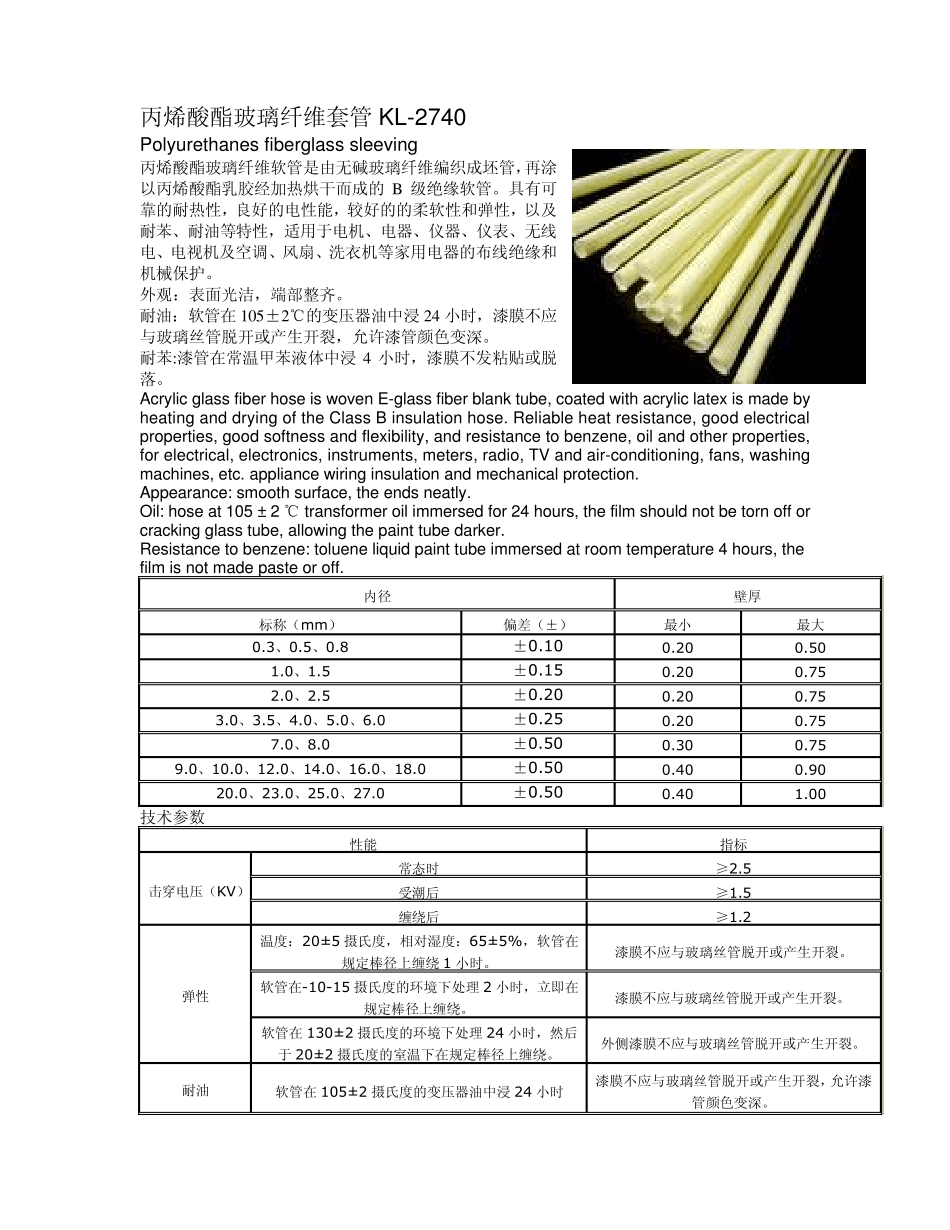

特殊玻璃纤维套管规格书_第1页
1/9

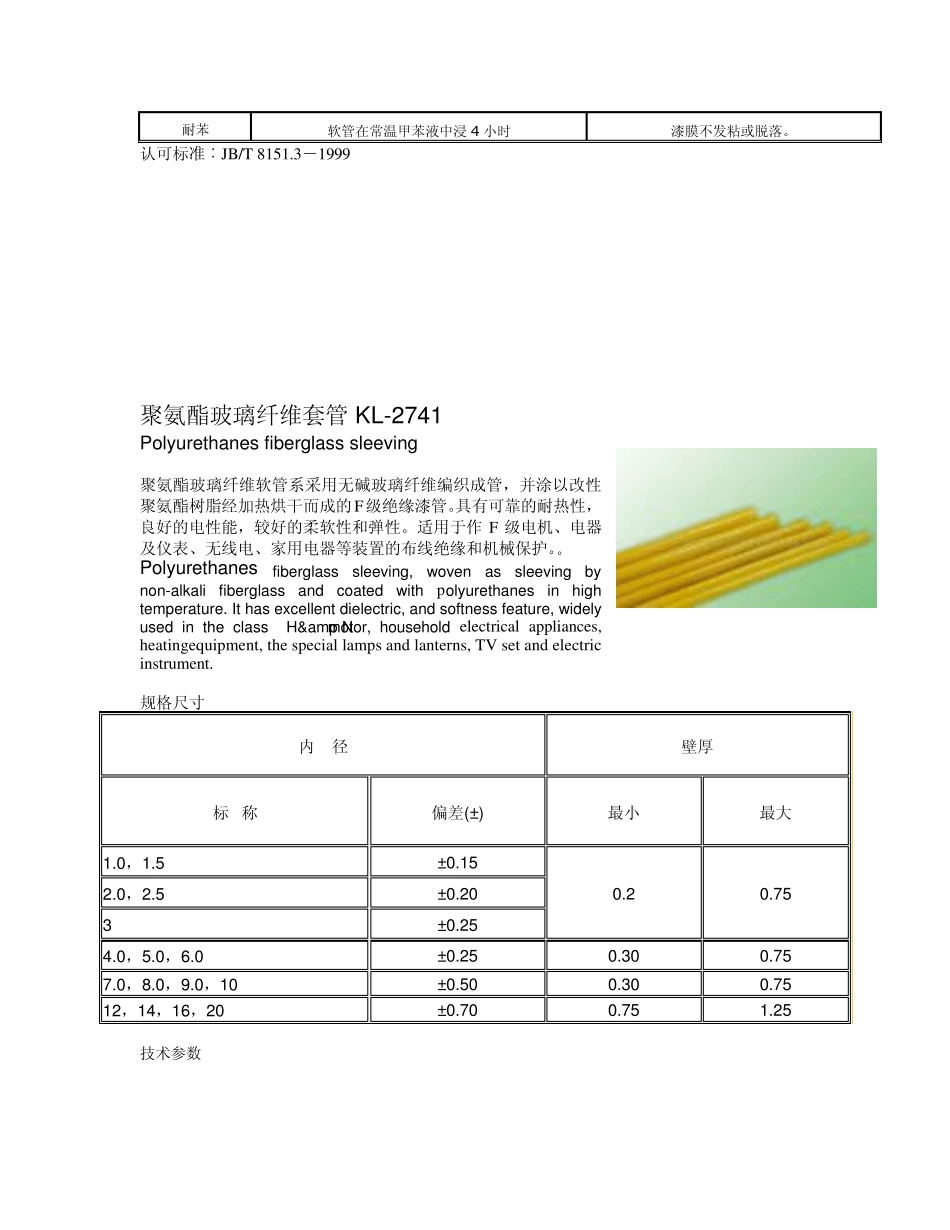

特殊玻璃纤维套管规格书_第2页
2/9

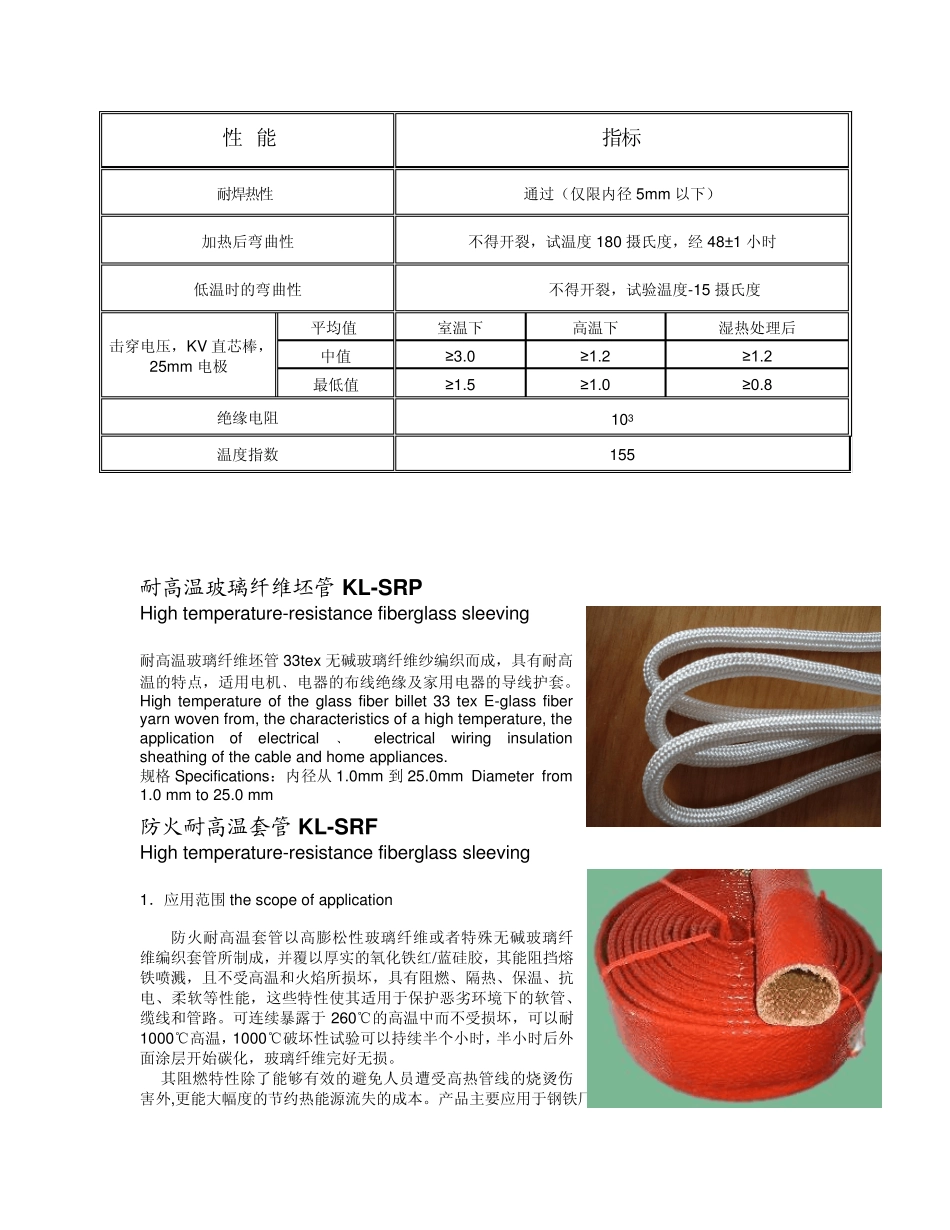

特殊玻璃纤维套管规格书_第3页
3/9
丙烯酸酯玻璃纤维套管KL-2740 Polyurethanes fiberglass sleeving 丙烯酸酯玻璃纤维软管是由无碱玻璃纤维编织成坯管,再涂以丙烯酸酯乳胶经加热烘干而成的B级绝缘软管。具有可靠的耐热性,良好的电性能,较好的的柔软性和弹性,以及耐苯、耐油等特性,适用于电机、电器、仪器、仪表、无线电、电视机及空调、风扇、洗衣机等家用电器的布线绝缘和机械保护。 外观:表面光洁,端部整齐。 耐油:软管在105±2℃的变压器油中浸 24 小时,漆膜不应与玻璃丝管脱开或产生开裂,允许漆管颜色变深。 耐苯:漆管在常温甲苯液体中浸 4 小时,漆膜不发粘贴或脱落。 Acrylic glass fiber hose is woven E-glass fiber blank tube, coated with acrylic latex is made by heating and drying of the Class B insulation hose. Reliable heat resistance, good electrical properties, good softness and flexibility, and resistance to benzene, oil and other properties, for electrical, electronics, instruments, meters, radio, TV and air-conditioning, fans, washing machines, etc. appliance wiring insulation and mechanical protection. Appearance: smooth surface, the ends neatly. Oil: hose at 105 ± 2 ℃ transformer oil immersed for 24 hours, the film should not be torn off or cracking glass tube, allowing the paint tube darker. Resistance to benzene: toluene liquid paint tube immersed at room temperature 4 hours, the film is not made paste or off. 内径 壁厚 标称(mm) 偏差(±) 最小 最大 0.3、0.5、0.8 ±0.10 0.20 0.50 1.0、1.5 ±0.15 0.20 0.75 2.0、2.5 ±0.20 0.20 0.75 3.0、3.5、4.0、5.0、6.0 ±0.25 0.20 0.75 7.0、8.0 ±0.50 0.30 0.75 9.0、10.0、12.0、14.0、16.0、18.0 ±0.50 0.40 0.90 20.0、23.0、25.0、27.0 ±0.50 0.40 1.00 技术参数 性能 指标 击穿电压(KV) 常态时 ≥2.5 受潮后 ≥1.5 缠绕后 ≥1.2 弹性 温度:20±5 摄氏度,相对湿度:65±5%,软管在规定棒径上缠绕 1 小时。 漆膜不应与玻璃丝管脱开或产生开裂。 软管在-10-15 摄氏度的环境下处理 2 小时,立即在规定棒径上缠绕。 漆...
