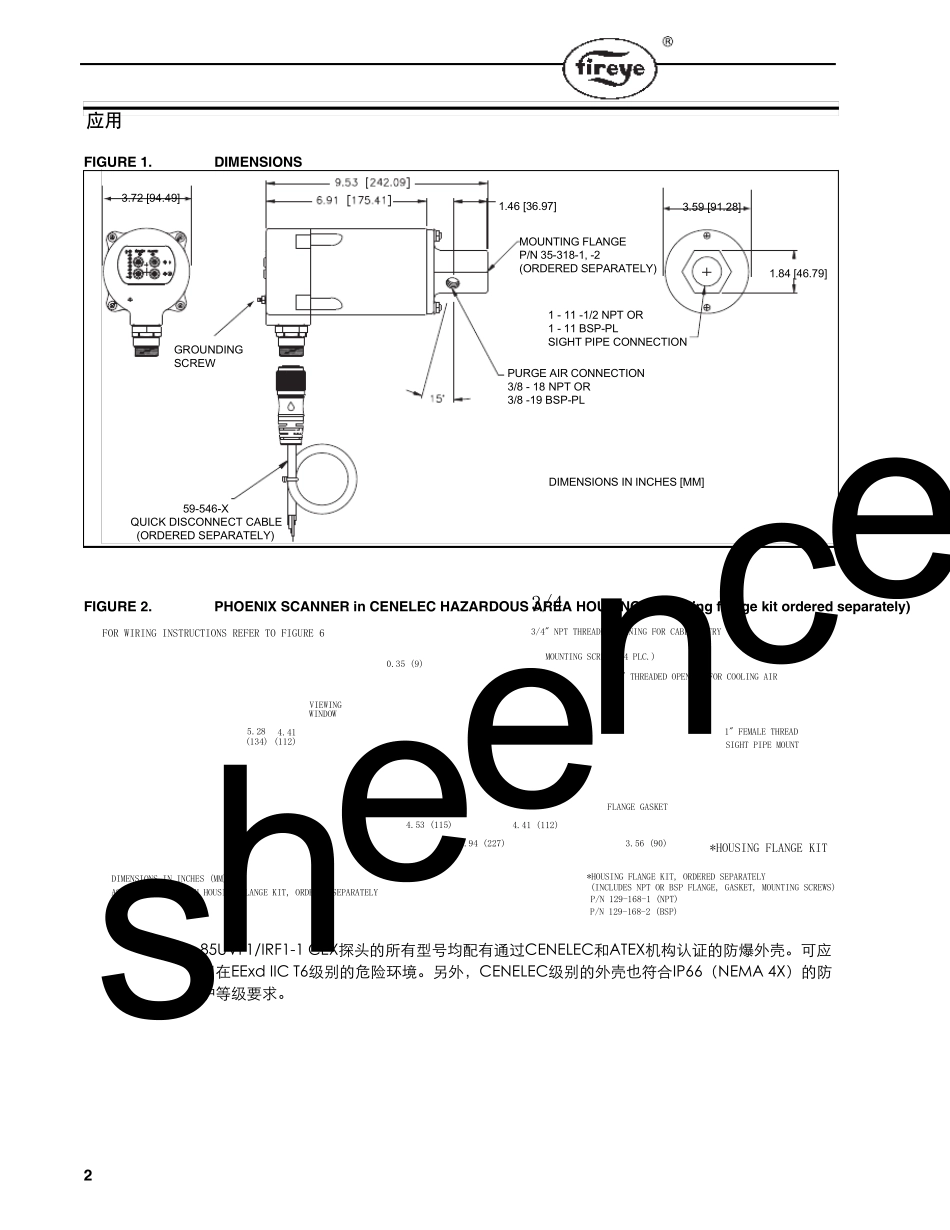

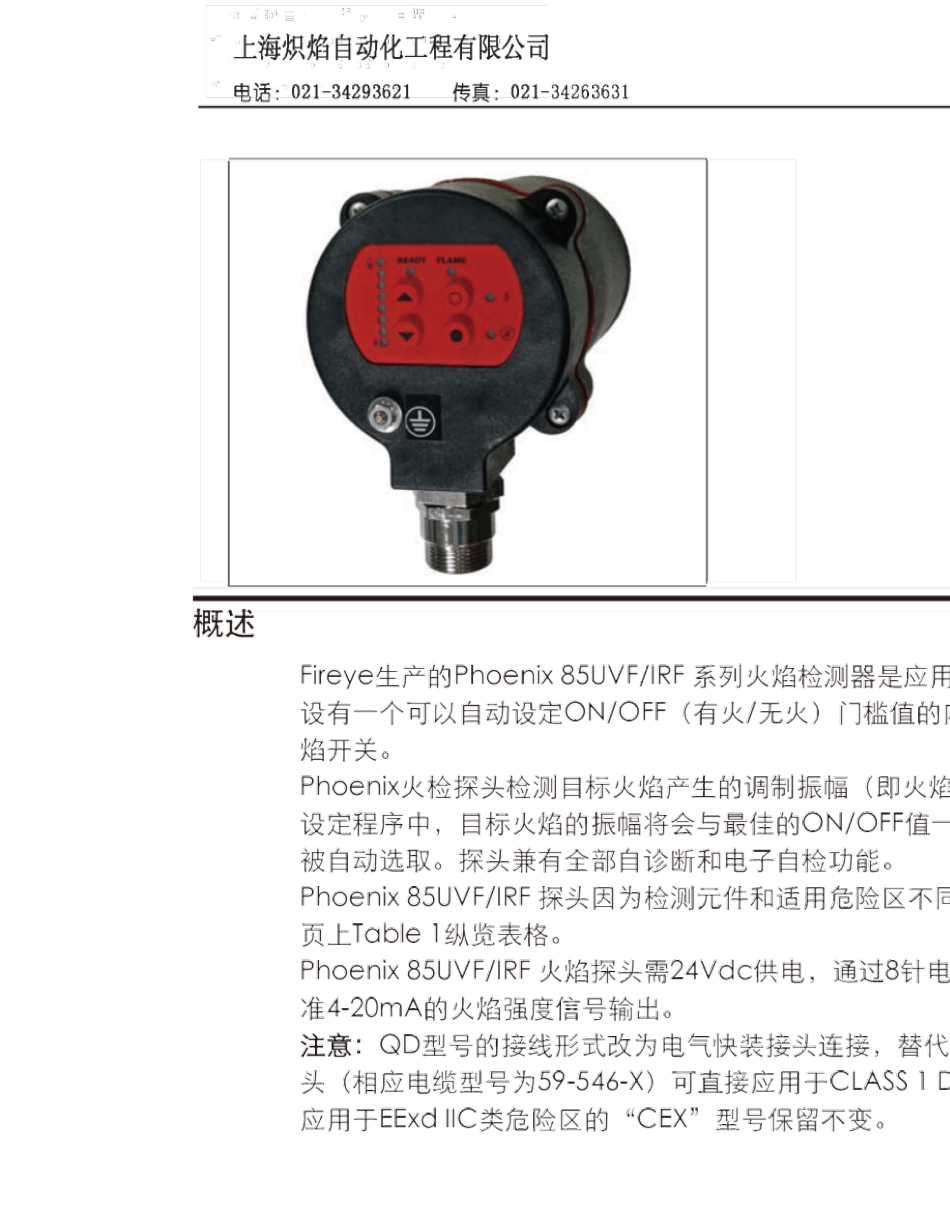

上海炽焰自动化工程有限公司 85U V F1-1Q D 一体化火焰检测器 2FIGURE 1.DIMENSIONSFIGURE 2.PHOENIX SCANNER in CENELEC HAZARDOUS AREA HOUSING (mounting flange kit ordered separately)3.59 [91.28]3.72 [94.49]GROUNDING SCREW 59-546-XQUICK DISCONNECT CABLE (ORDERED SEPARATELY)MOUNTING FLANGEP/N 35-318-1, -2(ORDERED SEPARATELY)DIMENSIONS IN INCHES [MM] PURGE AIR CONNECTION3/8 - 18 NPT OR3/8 -19 BSP-PL1 - 11 -1/2 NPT OR1 - 11 BSP-PL SIGHT PIPE CONNECTION1.46 [36.97]1.84 [46.79]*HOUSING FLANGE KIT, ORDERED SEPARATELY(INCLUDES NPT OR BSP FLANGE, GASKET, MOUNTING SCREWS) P/N 129-168-1 (NPT)P/N 129-168-2 (BSP)DIMENSIONS IN INCHES (MM)ASSEMBLY SHOWN WITH HOUSING FLANGE KIT, ORDERED SEPARATELYMOUNTING SCREWS (4 PLC.) 3/8" THREADED OPENING FOR COOLING AIR1" FEMALE THREADSIGHT PIPE MOUNTVIEWING WINDOW*HOUSING FLANGE KITFLANGE GASKET 0.35 (9)4.41(112)5.28(134)8.94 (227)4.53 (115)4.41 (112)3.56 (90)FOR WIRING INSTRUCTIONS REFER TO FIGURE 63/43/4" NPT THREADED OPENING FOR CABLE ENTRY应用85UVF1/IRF1-1 CEX探 头 的 所 有 型 号 均 配 有 通 过 CENELEC和 ATEX机 构 认 证 的 防 爆 外 壳 。 可 应用 在 EExd IIC T6级 别 的 危 险 环 境 。 另 外 ， CENELEC级 别 的 外 壳 也 符 合 IP66（ NEMA 4X） 的 防护 等 级 要 求 。sheence3®SCANNER PART NUMBERS AND APPROVALSTable 1:CE = 90/396/EEC Gas Appliance directive-EN298 Oil Burning Applications-EN230ACCESSORIESFireye recommends the use of the P/N 35-127 Heat Insulating Nipple.Notes: 1. Rated output is when power supply is vertically mounted, and with an ambient temperature of 122°F (50°C) maximum. When supply is mounted vertically, at 140°F (60°C) the output is de-rated 25%.2. When mounted in a row, allow at least 0.79" (20mm) between adjacent power supplies.AGENCY APPROVALSATEXSCANNER MODEL FMULC/USCECLASS ...
