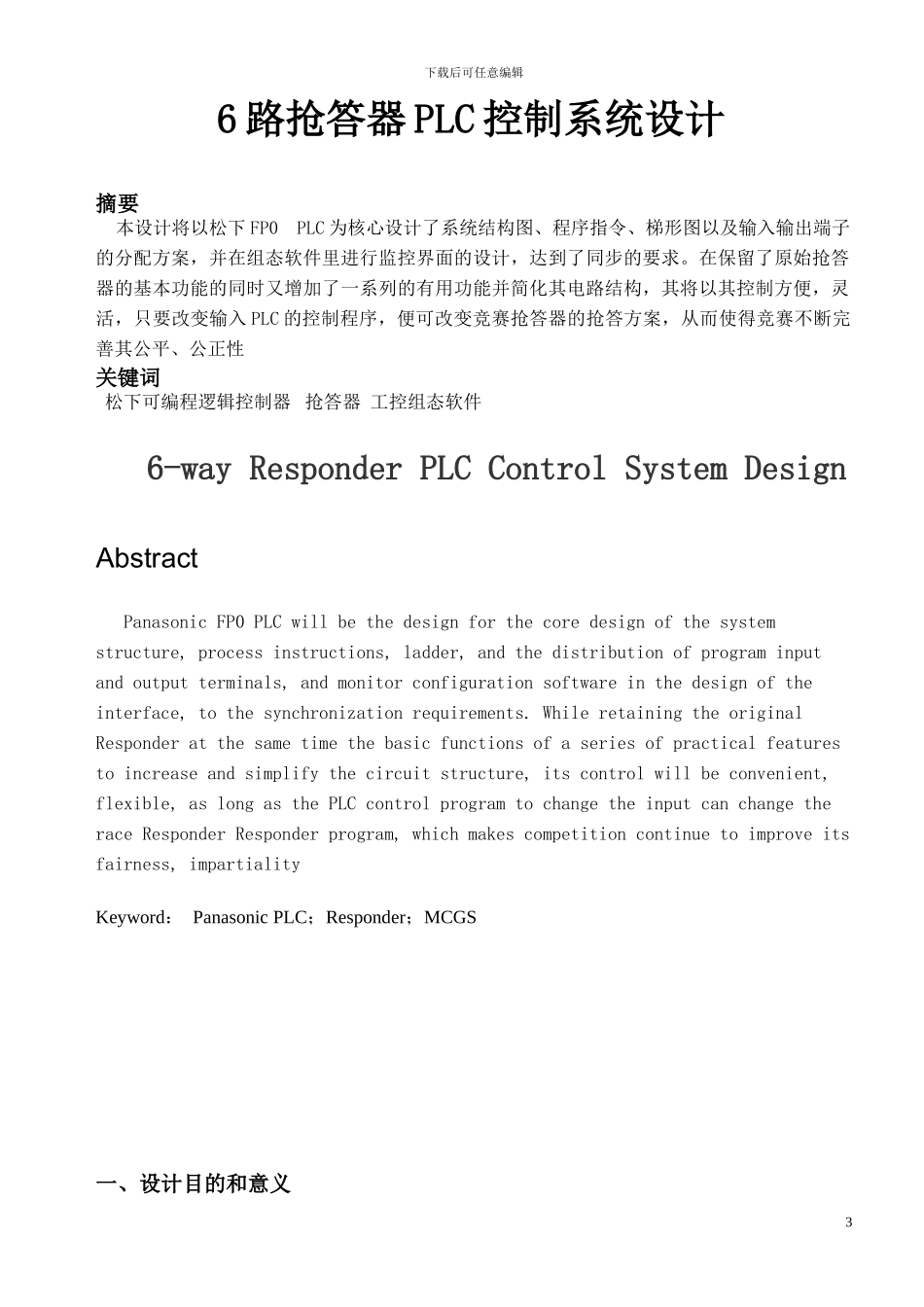

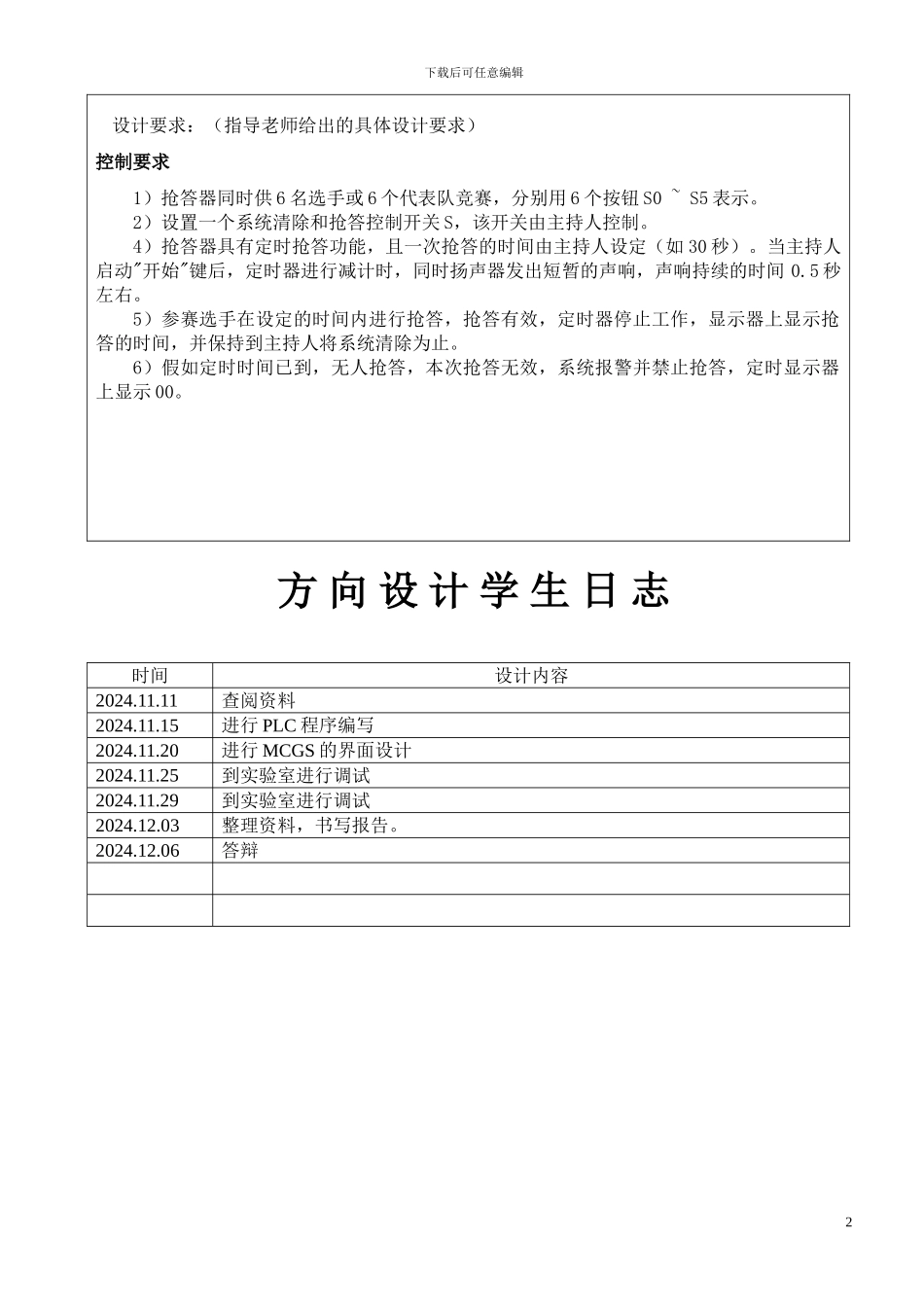

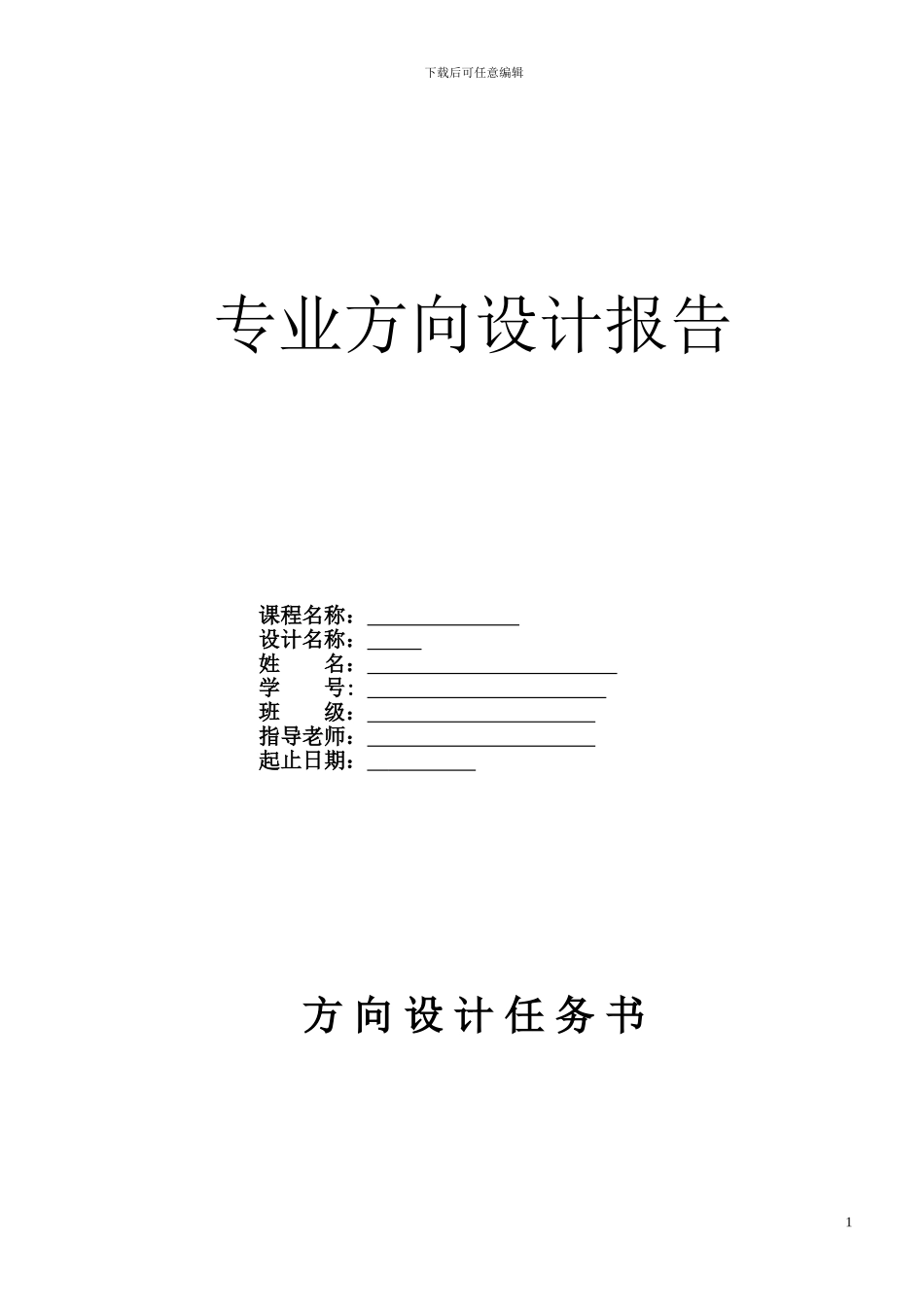

下载后可任意编辑专业方向设计报告课程名称: 设计名称: 姓 名: 学 号: 班 级: 指导老师: 起止日期: 方 向 设 计 任 务 书1下载后可任意编辑设计要求:(指导老师给出的具体设计要求)控制要求1)抢答器同时供 6 名选手或 6 个代表队竞赛,分别用 6 个按钮 S0 ~ S5 表示。2)设置一个系统清除和抢答控制开关 S,该开关由主持人控制。4)抢答器具有定时抢答功能,且一次抢答的时间由主持人设定(如 30 秒)。当主持人启动"开始"键后,定时器进行减计时,同时扬声器发出短暂的声响,声响持续的时间 0.5 秒左右。5)参赛选手在设定的时间内进行抢答,抢答有效,定时器停止工作,显示器上显示抢答的时间,并保持到主持人将系统清除为止。6)假如定时时间已到,无人抢答,本次抢答无效,系统报警并禁止抢答,定时显示器上显示 00。方 向 设 计 学 生 日 志时间设计内容2024.11.11查阅资料2024.11.15进行 PLC 程序编写2024.11.20进行 MCGS 的界面设计2024.11.25到实验室进行调试2024.11.29到实验室进行调试2024.12.03整理资料,书写报告。2024.12.06答辩2下载后可任意编辑6 路抢答器 PLC 控制系统设计摘要 本设计将以松下 FP0 PLC 为核心设计了系统结构图、程序指令、梯形图以及输入输出端子的分配方案,并在组态软件里进行监控界面的设计,达到了同步的要求。在保留了原始抢答器的基本功能的同时又增加了一系列的有用功能并简化其电路结构,其将以其控制方便,灵活,只要改变输入 PLC 的控制程序,便可改变竞赛抢答器的抢答方案,从而使得竞赛不断完善其公平、公正性关键词松下可编程逻辑控制器 抢答器 工控组态软件 6-way Responder PLC Control System DesignAbstractPanasonic FP0 PLC will be the design for the core design of the system structure, process instructions, ladder, and the distribution of program input and output terminals, and monitor configuration software in the design of the interface, to the synchronization requirements. While retaining the original Responder at the same time the basic functions of a series of practical features to increase and simplify the circuit structure, its control will be convenient, flexible, as long as the PLC...
