1000kV-GIS变电站雷电侵入波的分析研究的开题报告

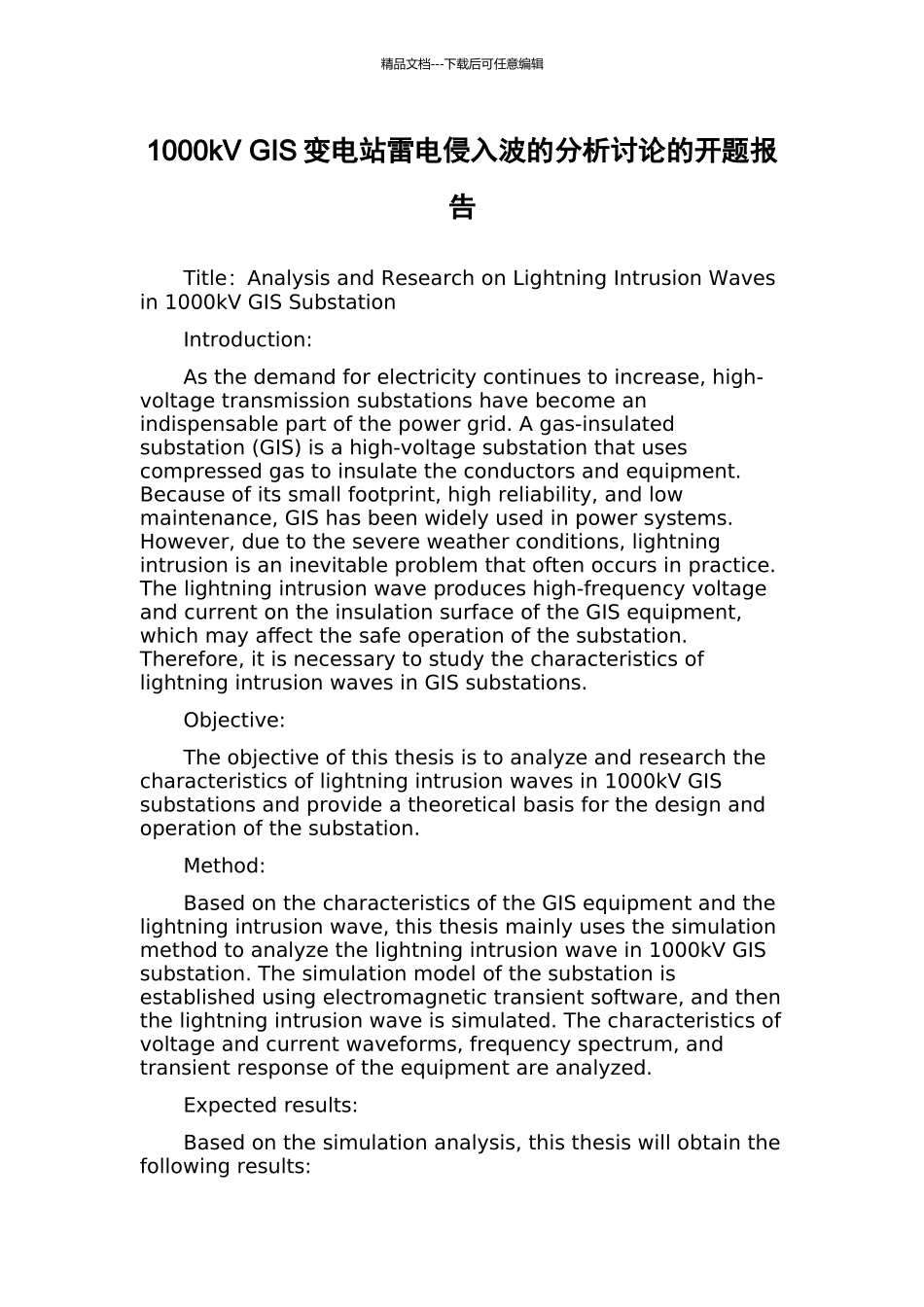

精品文档---下载后可任意编辑1000kV GIS 变电站雷电侵入波的分析讨论的开题报告Title：Analysis and Research on Lightning Intrusion Waves in 1000kV GIS SubstationIntroduction: As the demand for electricity continues to increase, high-voltage transmission substations have become an indispensable part of the power grid. A gas-insulated substation (GIS) is a high-voltage substation that uses compressed gas to insulate the conductors and equipment. Because of its small footprint, high reliability, and low maintenance, GIS has been widely used in power systems. However, due to the severe weather conditions, lightning intrusion is an inevitable problem that often occurs in practice. The lightning intrusion wave produces high-frequency voltage and current on the insulation surface of the GIS equipment, which may affect the safe operation of the substation. Therefore, it is necessary to study the characteristics of lightning intrusion waves in GIS substations.Objective:The objective of this thesis is to analyze and research the characteristics of lightning intrusion waves in 1000kV GIS substations and provide a theoretical basis for the design and operation of the substation.Method:Based on the characteristics of the GIS equipment and the lightning intrusion wave, this thesis mainly uses the simulation method to analyze the lightning intrusion wave in 1000kV GIS substation. The simulation model of the substation is established using electromagnetic transient software, and then the lightning intrusion wave is simulated. The characteristics of voltage and current waveforms, frequency spectrum, and transient response of the equipment are analyzed.Expected results:Based on the simulation analysis, this thesis will obtain the following results:精品文档---下载后可任意编辑1. The characteristics of voltage and current waveforms of lightning intrusion waves in 1000kV GIS substations.2. The frequency spectrum of lightning intrusion waves and the influence on the GIS equipment.3. The transient response of GIS equipment to lightning intrusion waves.Conclusion:Through the analysis and research of lightning intrusion waves in 1000kV GIS substations, this thesis can provide a theoretical basis for the design and operation of the substation, and provide a reference for the research on lightning protection in the future.
