发格(FAGOR)与海德汉(HEIDENHAIN)光栅尺互换表

发格(FAGOR)与海德汉(HEIDENHAIN)光栅尺互换表_第1页
1/6
发格(FAGOR)与海德汉(HEIDENHAIN)光栅尺互换表_第2页
2/6
发格(FAGOR)与海德汉(HEIDENHAIN)光栅尺互换表_第3页
3/6

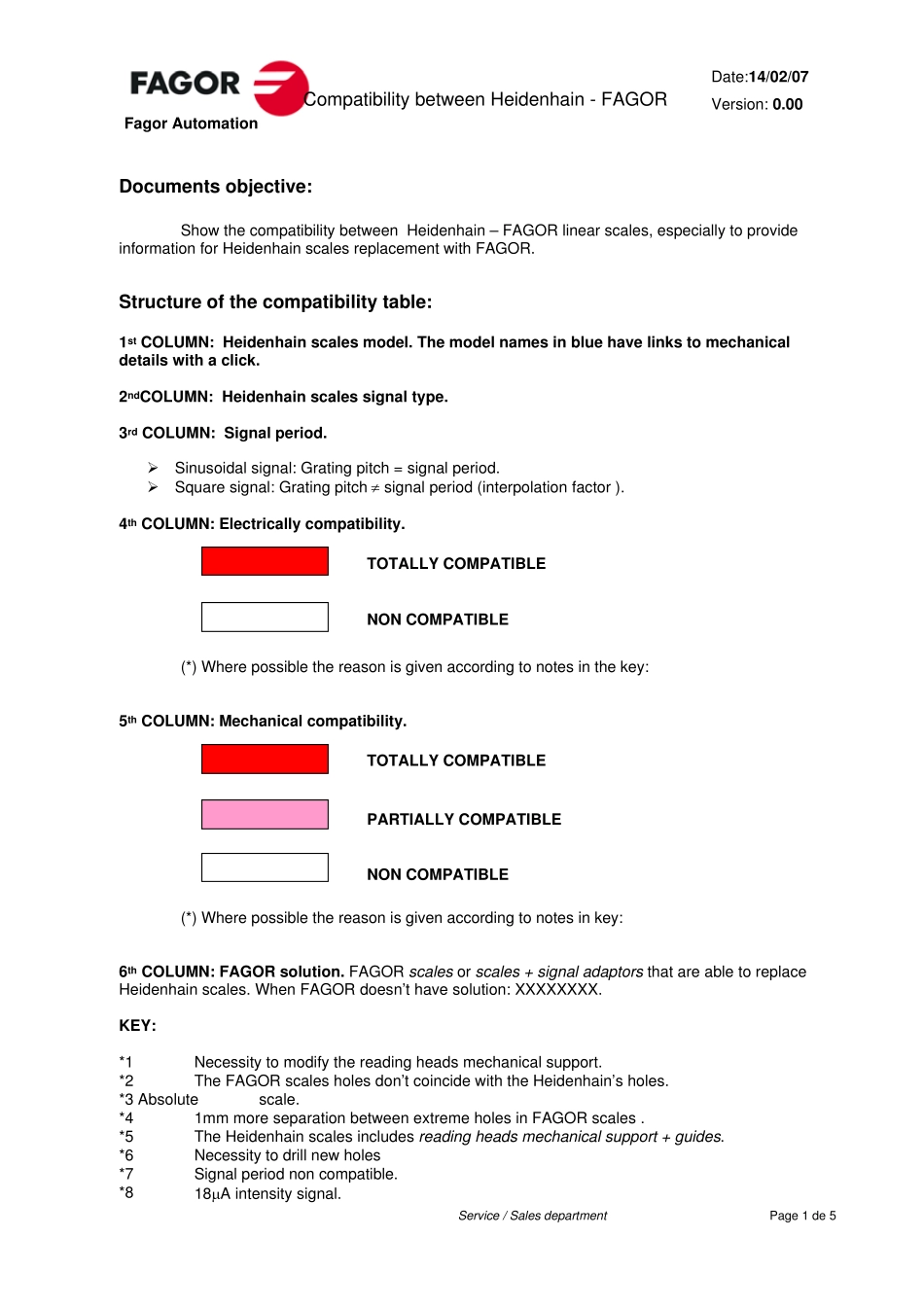

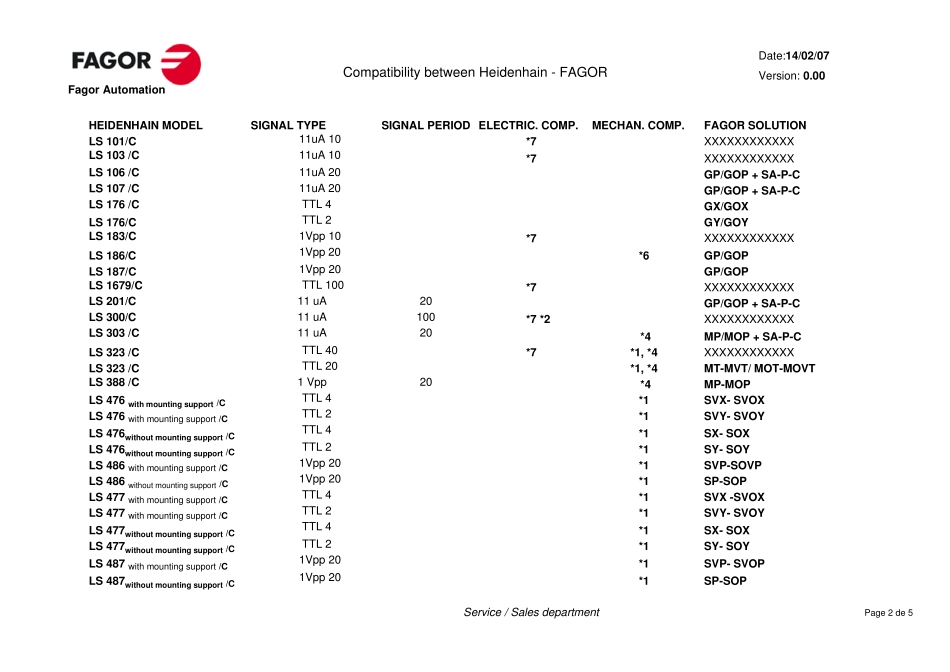

Compatibility of Linear Scales Heidenhain - FAGOR Fagor Automation Compatibility between Heidenhain - FAGOR Date:14/02/07 Version: 0.00 Service / Sales department Page 1 de 5 Documents objective: Show the compatibility between Heidenhain – FAGOR linear scales, especially to provide information for Heidenhain scales replacement with FAGOR. Structure of the compatibility table: 1st COLUMN: Heidenhain scales model. The model names in blue have links to mechanical details with a click. 2ndCOLUMN: Heidenhain scales signal type. 3rd COLUMN: Signal period.  Sinusoidal signal: Grating pitch = signal period.  Square signal: Grating pitch ≠ signal period (interpolation factor ). 4th COLUMN: Electrically compatibility. (*) Where possible the reason is given according to notes in the key: 5th COLUMN: Mechanical compatibility. (*) Where possible the reason is given according to notes in key: 6th COLUMN: FAGOR solution. FAGOR scales or scales + signal adaptors that are able to replace Heidenhain scales. When FAGOR doesn’t have solution: XXXXXXXX. KEY: *1 Necessity to modify the reading heads mechanical support. *2 The FAGOR scales holes don’t coincide with the Heidenhain’s holes. *3 Absolute scale. *4 1mm more separation between extreme holes in FAGOR scales . *5 The Heidenhain scales includes reading heads mechanical support + guides. *6 Necessity to drill new holes *7 Signal period non compatible. *8 18µA intensity signal. TOTALLY COMPATIBLENON COMPATIBLETOTALLY COMPATIBLENON COMPATIBLEPARTIALLY COMPATIBLE Fagor Automation Compatibility between Heidenhain - FAGOR Date:14/02/07 Version: 0.00 Serv ice / Sales department Page 2 de 5 HEIDENHAIN MODEL SIGNAL TYPE SIGNAL PERIOD ELECTRIC. COMP. MECHAN. COMP. FAGOR SOLUTION L...
