自制高增益数字电视接收天线

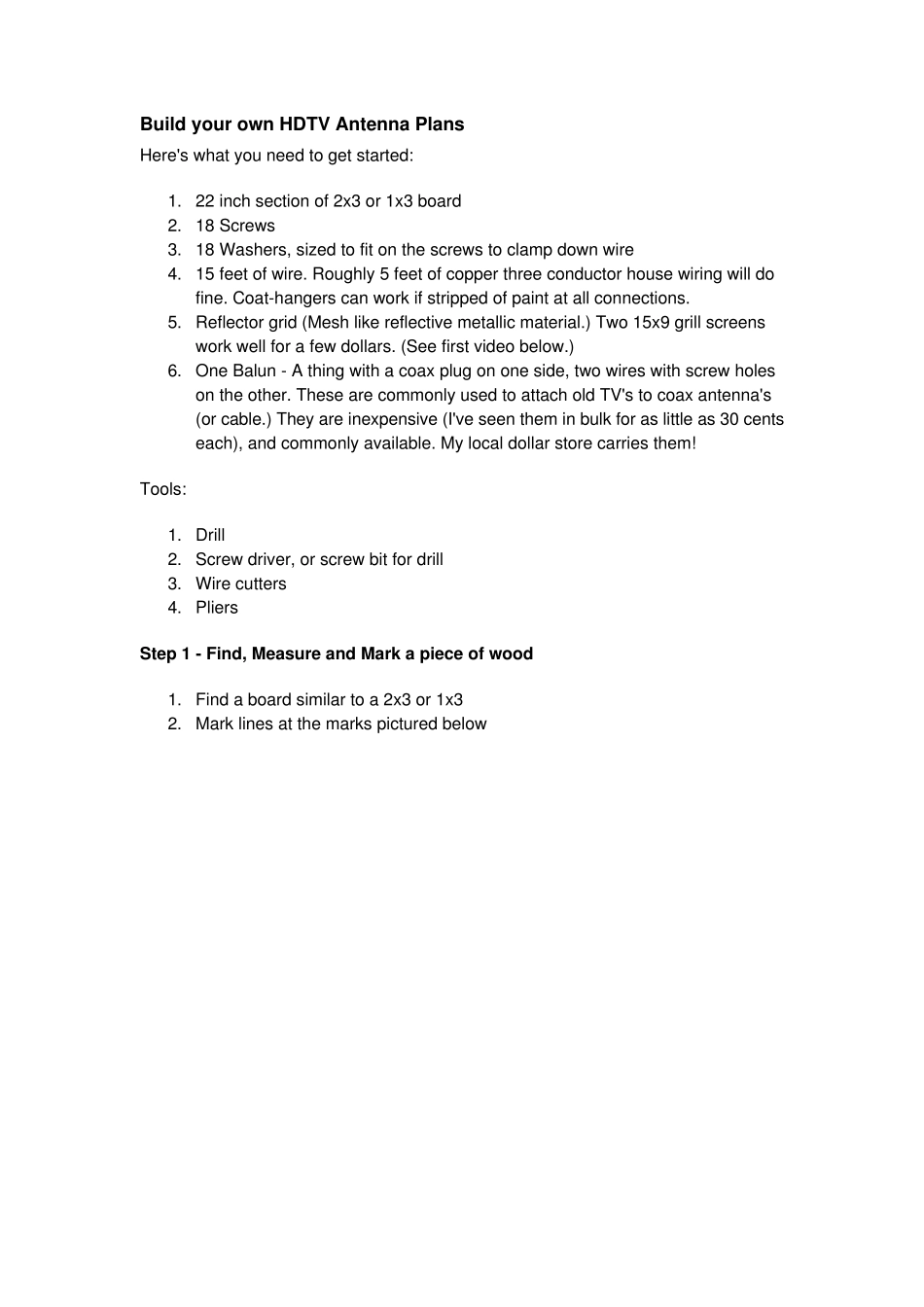

自制高增益数字电视接收天线_第1页
1/7

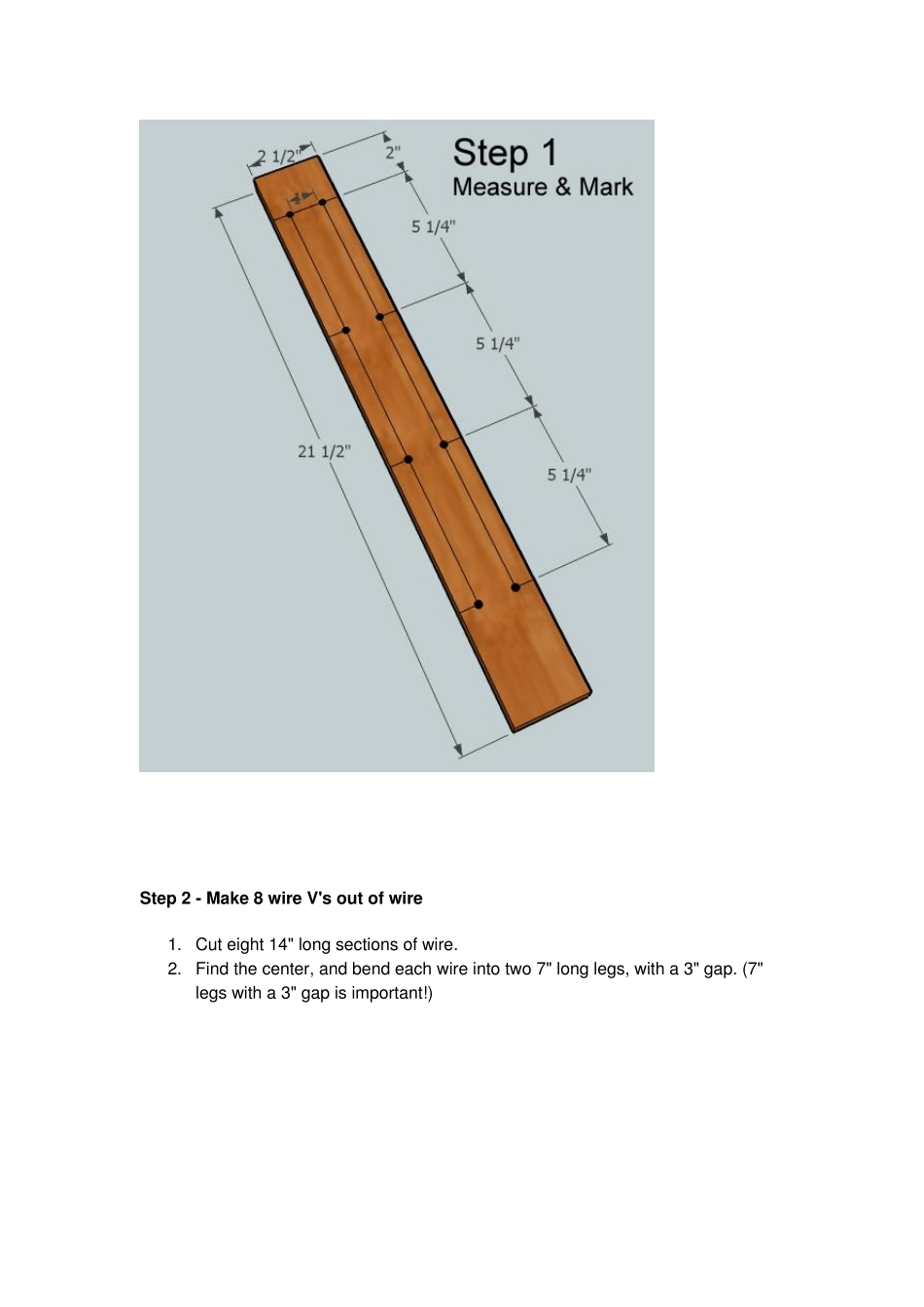

自制高增益数字电视接收天线_第2页
2/7

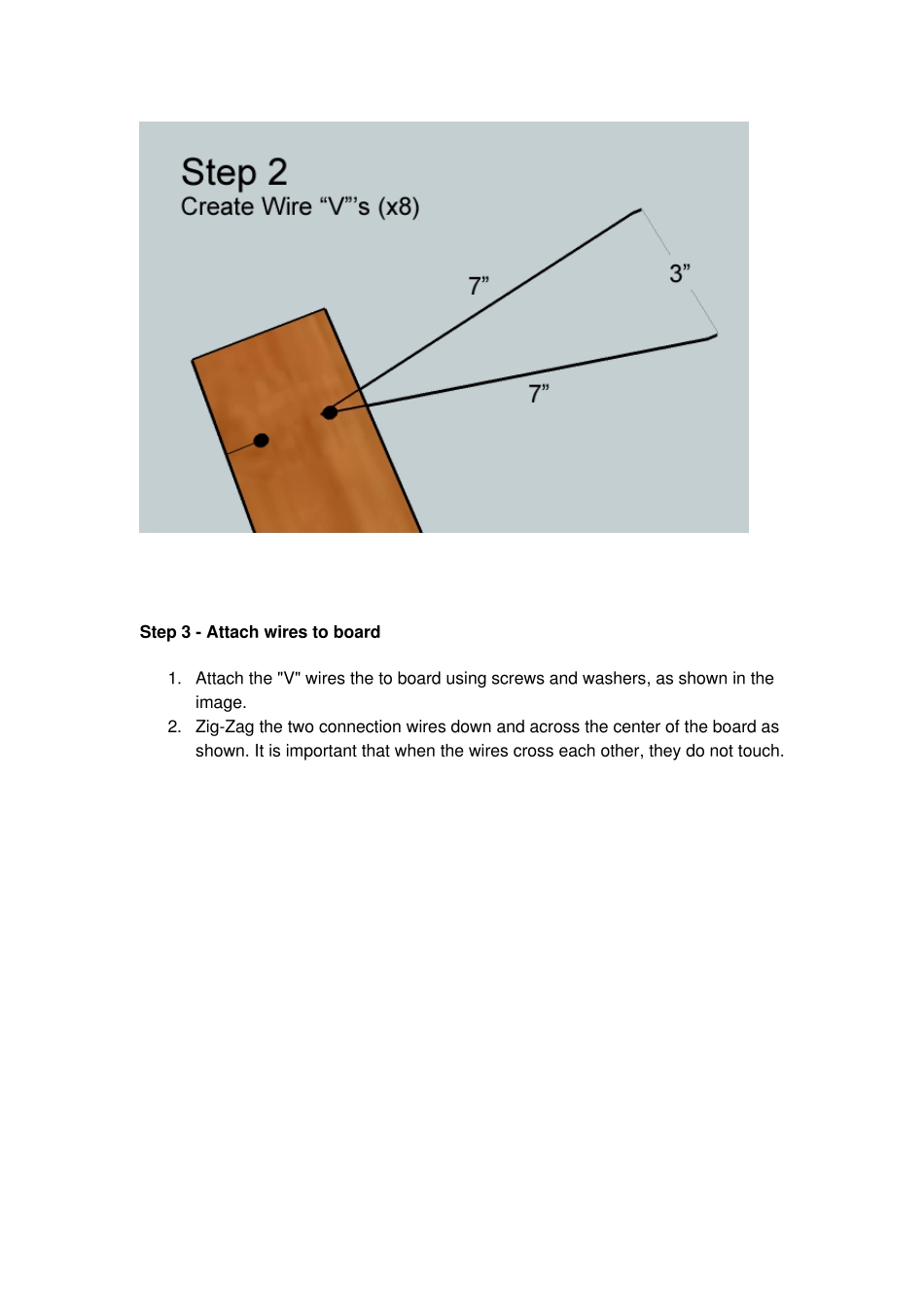

自制高增益数字电视接收天线_第3页
3/7
Build your own HDTV Antenna Plans Here's what you need to get started: 1. 22 inch section of 2x3 or 1x3 board 2. 18 Screws 3. 18 Washers, sized to fit on the screws to clamp down wire 4. 15 feet of wire. Roughly 5 feet of copper three conductor house wiring will do fine. Coat-hangers can work if stripped of paint at all connections. 5. Reflector grid (Mesh like reflective metallic material.) Two 15x9 grill screens work well for a few dollars. (See first video below.) 6. One Balun - A thing with a coax plug on one side, two wires with screw holes on the other. These are commonly used to attach old TV's to coax antenna's (or cable.) They are inexpensive (I've seen them in bulk for as little as 30 cents each), and commonly available. My local dollar store carries them! Tools: 1. Drill 2. Screw driver, or screw bit for drill 3. Wire cutters 4. Pliers Step 1 - Find, Measure and Mark a piece of wood 1. Find a board similar to a 2x3 or 1x3 2. Mark lines at the marks pictured below Step 2 - Make 8 w ire V's out of w ire 1. Cut eight 14" long sections of w ire. 2. Find the center, and bend each w ire into tw o 7" long legs, w ith a 3" gap. (7" legs w ith a 3" gap is important!) Step 3 - Attach w ires to board 1. Attach the "V" wires the to board using screws and washers, as shown in the image. 2. Zig-Zag the two connection wires down and across the center of the board as shown. It is important that when the wires cross each other, they do not touch. Step 4 - Attach Reflector 1. Attach the Reflectors to the back using screw s. The Reflectors must not touch the "V" w ires. Step 5 - Attach the Balu n 1. Attach the Balun to the tw o center sections of w ire. Make sure the tw o connections do not touch each other. Step 6 - You're Done! Test your antenna! 1. Attach your antenna to your HDTV using a coax cable, and see how it works! These plans to ugly for you? These plans are functional, but some people describe them as ugly...and they'd be right. The same core technical design and base measurements can be used in other ways. Here's one example I made: 21 1/2 英寸=54.61 厘米 1 块 2 1/2 英寸=6.35 厘米 2 英寸=5.08 厘米 5 1/4 英寸=13.335 厘米 3 英寸=7.62 厘米 7 英寸=17.78 16 根
