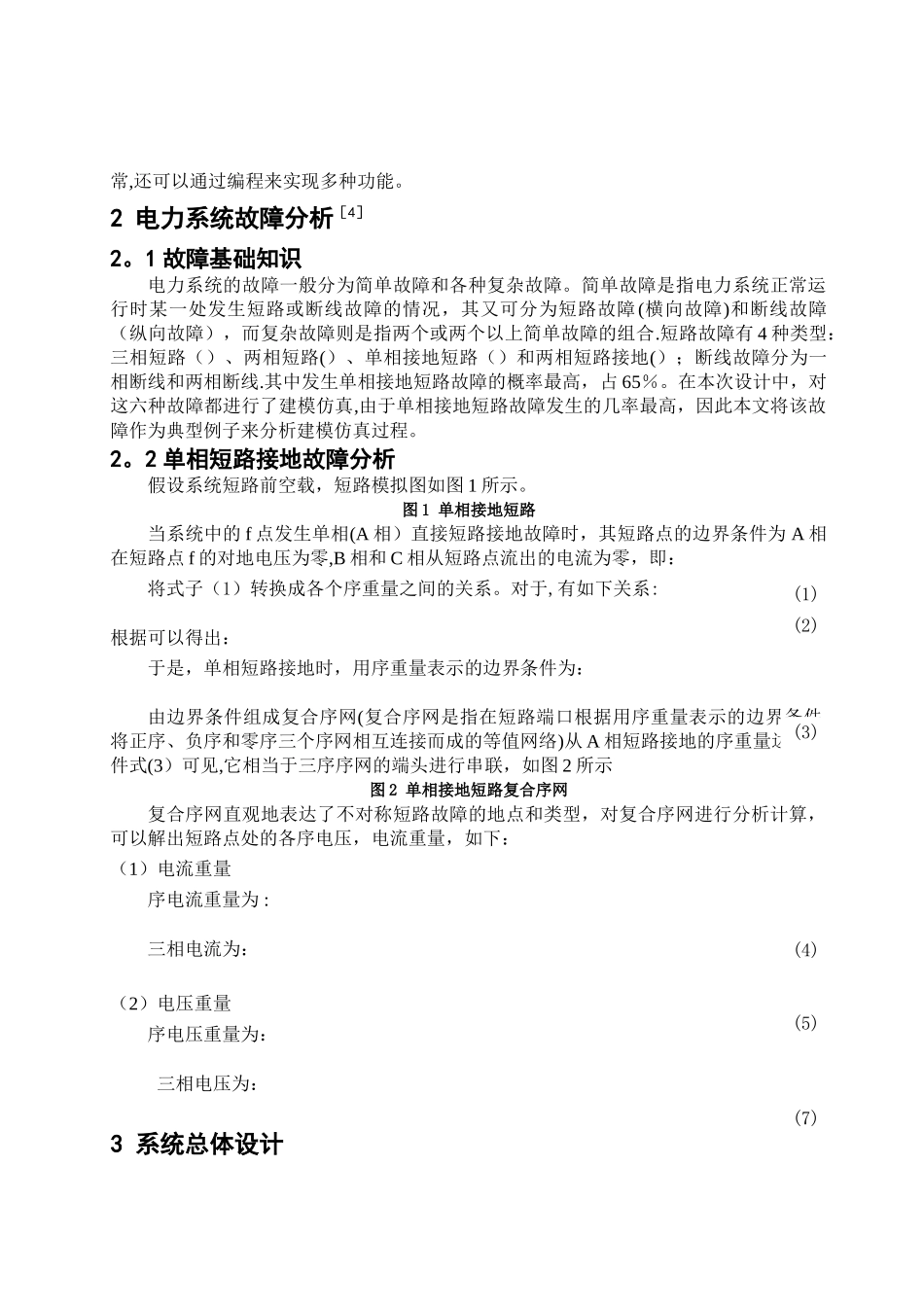

基于 Matlab 的电力系统故障分析与仿真摘 要:本文介绍了 MATLAB 软件在电力系统中的应用,以及利用动态仿真工具 Simulink和电力系统工具箱 PSD 进行仿真的基本方法.在仿真平台上,以单机-无穷大系统为建模对象,通过选择模块,参数设置,以及连线,对电力系统的多种故障进行仿真分析。同时,设计一个 GUI 图形界面,将仿真波形清楚地显示在界面上以便比较和分析.结果表明,仿真波形基本符合理论分析,说明了 MATLAB 是电力系统仿真讨论的有力工具.关键词:电力系统;仿真;故障;MATLAB;GUIAbstract:This paper introduces the applications of MATLAB in power system analysis, and the basic simulation method of taking use of Simulink and PSD 。 On MATLAB simulation platform, take a single machine—infinite-bus system as modeling objects, by selecting the module, parameter settings, and connectingmodules to simulate and analysevariousfault of power system。 At the same time, in order to facilitate comparison and analysis simulation waveform, design a GUI for showing waveform clearly.The results show that the simulation waveform in line with theoretical analysis, indicates that MATLAB is a powerful tool for researching simulation of power system。Keywords:PowerSystem; Simulation; Fault; Matlab; GUI0 前言[1,2]随着电力工业的进展,电力系统规划、运行和控制的复杂性亦日益增加,电力系统的生产和讨论中仿真软件的应用也越来越广泛。现在,我们主要使用的电力系统仿真软件有:EMTP 程序,用于电力系统电磁暂态计算,电力系统暂态过电压分析,暂态保护装置的综合选择等。PSCAD/EMTDC 程序,典型应用是计算电力系统遭受扰动或参数变化时,参数随时间变化的规律.PSASP,其功能主要有稳态分析、故障分析和机电暂态分析。还有 MathWorks 公司开发的 MATLAB 软件.在 MATLAB 中,电力系统模型可以在 Simulink环境下直接搭建,也可以进行封装和自定义模块库,充分显现了其仿真平台的优越性。更重要的是,MATLAB 提供了丰富的工具箱资源,以及大量的有用模块,使我们可以更加深化地讨论电力系统的行为特性。本篇论文将在熟练掌握 MATLAB 软件的基础上,对电力系统的...
