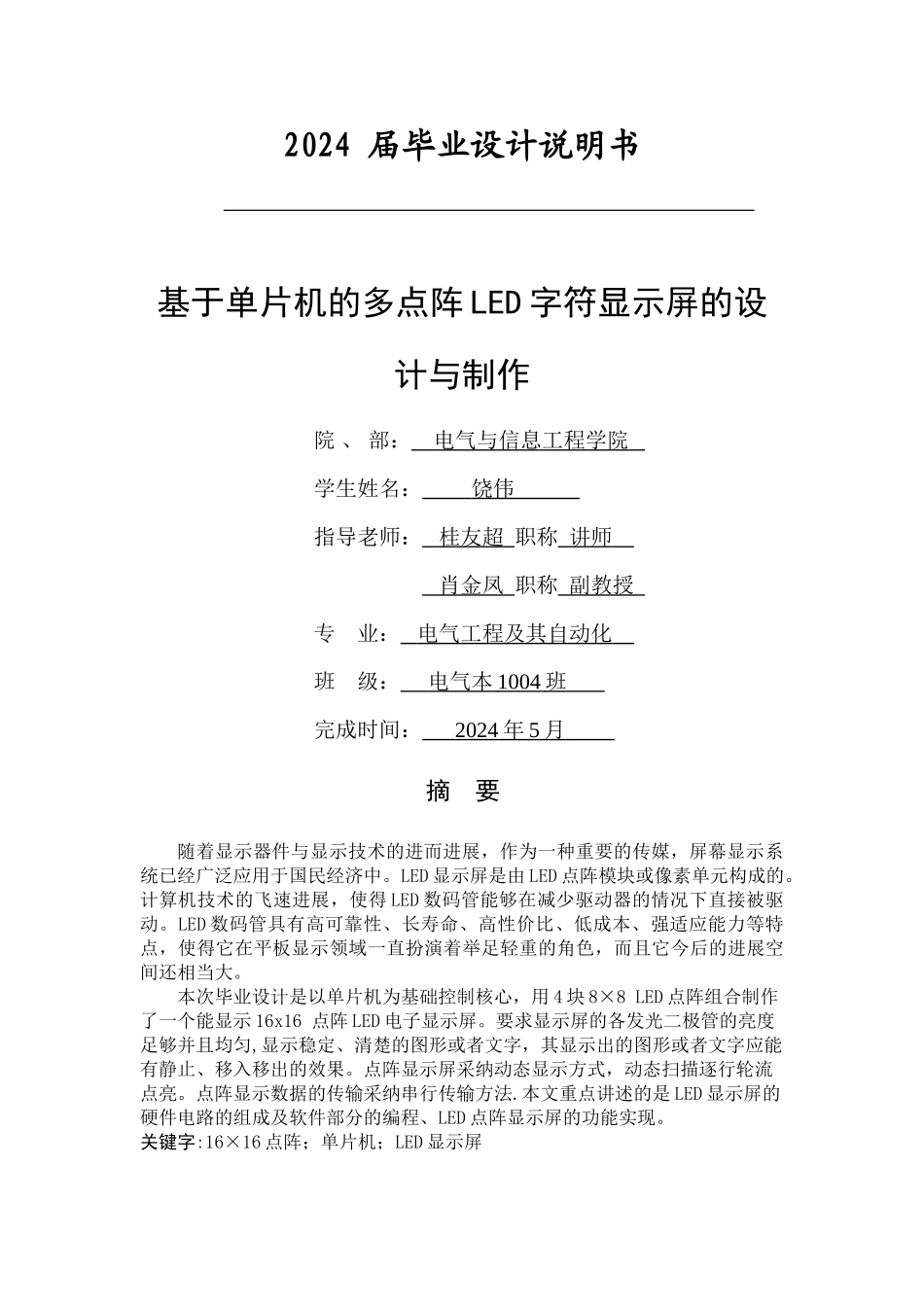

2024 届毕业设计说明书基于单片机的多点阵 LED 字符显示屏的设计与制作院 、 部: 电气与信息工程学院 学生姓名: 饶伟 指导老师: 桂友超 职称 讲师 肖金凤 职称 副教授 专 业: 电气工程及其自动化 班 级: 电气本 1004 班 完成时间: 2024 年 5 月 摘 要随着显示器件与显示技术的进而进展,作为一种重要的传媒,屏幕显示系统已经广泛应用于国民经济中。LED 显示屏是由 LED 点阵模块或像素单元构成的。计算机技术的飞速进展,使得 LED 数码管能够在减少驱动器的情况下直接被驱动。LED 数码管具有高可靠性、长寿命、高性价比、低成本、强适应能力等特点,使得它在平板显示领域一直扮演着举足轻重的角色,而且它今后的进展空间还相当大。本次毕业设计是以单片机为基础控制核心,用 4 块 8×8 LED 点阵组合制作了一个能显示 16x16 点阵 LED 电子显示屏。要求显示屏的各发光二极管的亮度足够并且均匀,显示稳定、清楚的图形或者文字,其显示出的图形或者文字应能有静止、移入移出的效果。点阵显示屏采纳动态显示方式,动态扫描逐行轮流点亮。点阵显示数据的传输采纳串行传输方法.本文重点讲述的是 LED 显示屏的硬件电路的组成及软件部分的编程、LED 点阵显示屏的功能实现。关键字:16×16 点阵;单片机;LED 显示屏ABSTRACTWith the further development of display devices and display technologies , as an important media -screen display system has been widely used in the national economy 。 LED display is a LED dot matrix module or pixel units. The rapid development of computer technology , makes digital LED can be driven directly in the drive to reduce the case 。 LED digital tube with high reliability, long life , cost—effective , low—cost, adaptable characteristics, making it the field of flat panel display has been playing a pivotal role in the future development of space and it is also quite large。The graduation project is a microcontroller —based control center, with four 8 × 8 LED dot matrix display combination can produce a 16x16 dot matrix LED display . Requirements of e...
