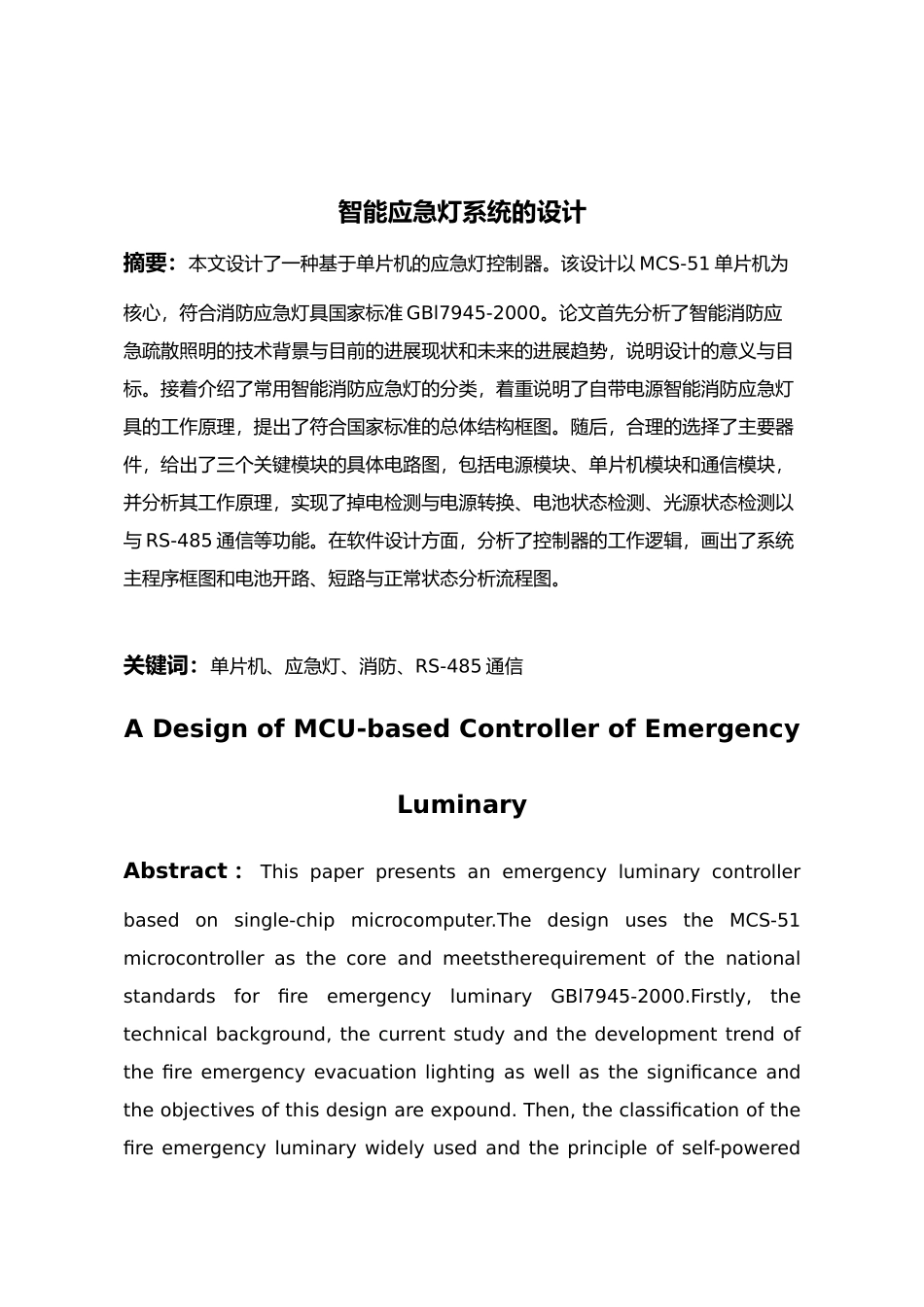

毕业设计（论文）报告题 目 智能应急灯系统的设计系 别专 业班 级学生学 号指导老师2024 年 4 月智能应急灯系统的设计摘要：本文设计了一种基于单片机的应急灯控制器。该设计以 MCS-51 单片机为核心，符合消防应急灯具国家标准 GBl7945-2000。论文首先分析了智能消防应急疏散照明的技术背景与目前的进展现状和未来的进展趋势，说明设计的意义与目标。接着介绍了常用智能消防应急灯的分类，着重说明了自带电源智能消防应急灯具的工作原理，提出了符合国家标准的总体结构框图。随后，合理的选择了主要器件，给出了三个关键模块的具体电路图，包括电源模块、单片机模块和通信模块，并分析其工作原理，实现了掉电检测与电源转换、电池状态检测、光源状态检测以与 RS-485 通信等功能。在软件设计方面，分析了控制器的工作逻辑，画出了系统主程序框图和电池开路、短路与正常状态分析流程图。关键词：单片机、应急灯、消防、RS-485 通信A Design of MCU-based Controller of Emergency LuminaryAbstract ： This paper presents an emergency luminary controller based on single-chip microcomputer.The design uses the MCS-51 microcontroller as the core and meetstherequirement of the national standards for fire emergency luminary GBl7945-2000.Firstly, the technical background, the current study and the development trend of the fire emergency evacuation lighting as well as the significance and the objectives of this design are expound. Then, the classification of the fire emergency luminary widely used and the principle of self-powered emergency luminary for fire fighting are highlighted.The overall structurediagram according to the national standard is also presented.Subsequently, after the key devices were reasonably chosen, the specific circuit diagram of three important modulesincluding the power modules, the CPU module and the photo-electrical isolated communication module are presented. The operation of every module is analyzed.The functions of power-down detection, power conversion,battery st...
