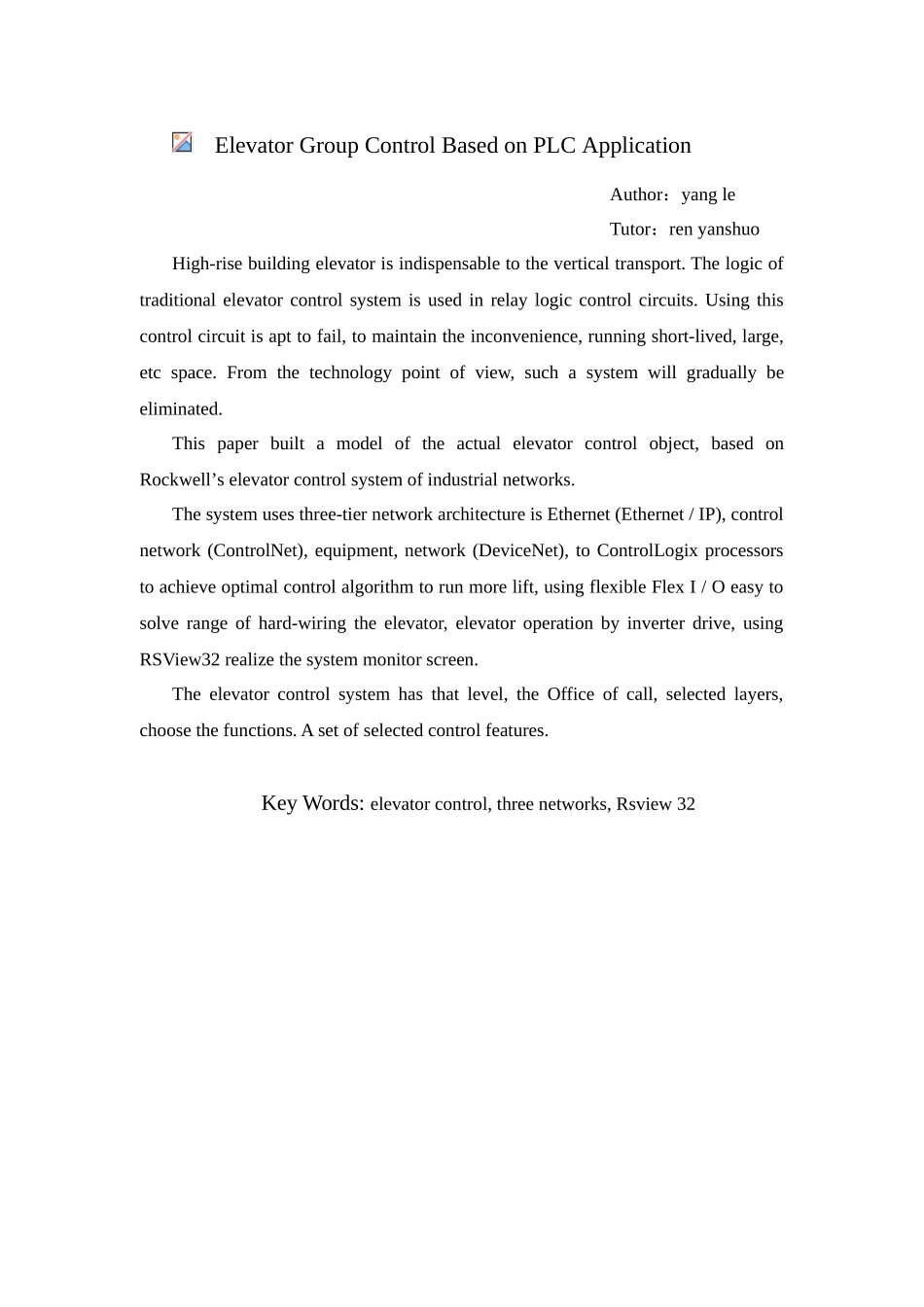

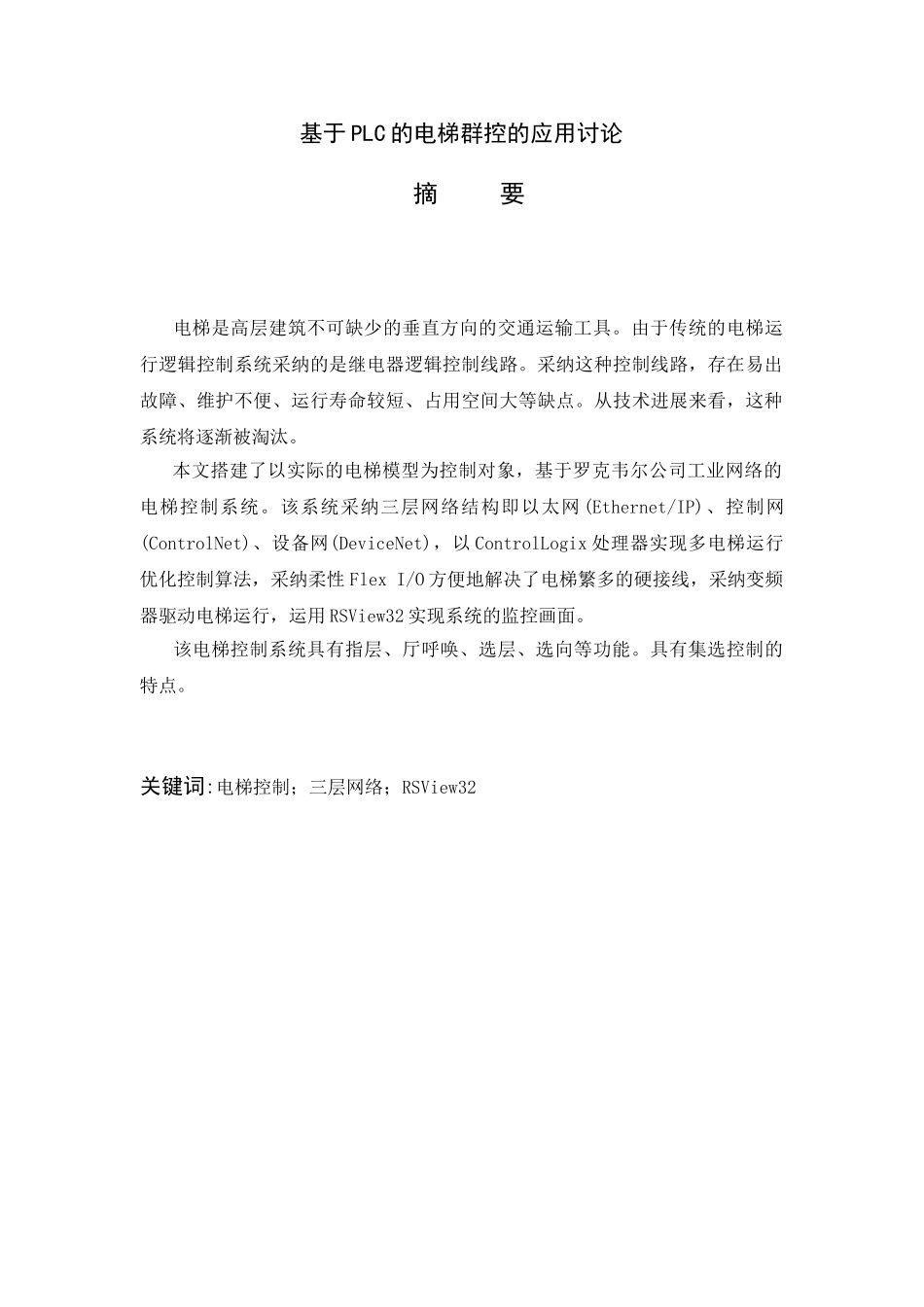

基于 PLC 的电梯群控的应用讨论 摘 要电梯是高层建筑不可缺少的垂直方向的交通运输工具。由于传统的电梯运行逻辑控制系统采纳的是继电器逻辑控制线路。采纳这种控制线路,存在易出故障、维护不便、运行寿命较短、占用空间大等缺点。从技术进展来看,这种系统将逐渐被淘汰。本文搭建了以实际的电梯模型为控制对象,基于罗克韦尔公司工业网络的电梯控制系统。该系统采纳三层网络结构即以太网 (Ethernet/IP)、控制网(ControlNet)、设备网(DeviceNet),以 ControlLogix 处理器实现多电梯运行优化控制算法,采纳柔性 Flex I/O 方便地解决了电梯繁多的硬接线,采纳变频器驱动电梯运行,运用 RSView32 实现系统的监控画面。该电梯控制系统具有指层、厅呼唤、选层、选向等功能。具有集选控制的特点。关键词:电梯控制;三层网络;RSView32 Elevator Group Control Based on PLC ApplicationAuthor:yang leTutor:ren yanshuo High-rise building elevator is indispensable to the vertical transport. The logic of traditional elevator control system is used in relay logic control circuits. Using this control circuit is apt to fail, to maintain the inconvenience, running short-lived, large, etc space. From the technology point of view, such a system will gradually be eliminated. This paper built a model of the actual elevator control object, based on Rockwell’s elevator control system of industrial networks.The system uses three-tier network architecture is Ethernet (Ethernet / IP), control network (ControlNet), equipment, network (DeviceNet), to ControlLogix processors to achieve optimal control algorithm to run more lift, using flexible Flex I / O easy to solve range of hard-wiring the elevator, elevator operation by inverter drive, using RSView32 realize the system monitor screen. The elevator control system has that level, the Office of call, selected layers, choose the functions. A set of selected control features. Key Words: elevator control, three networks, Rsview...
