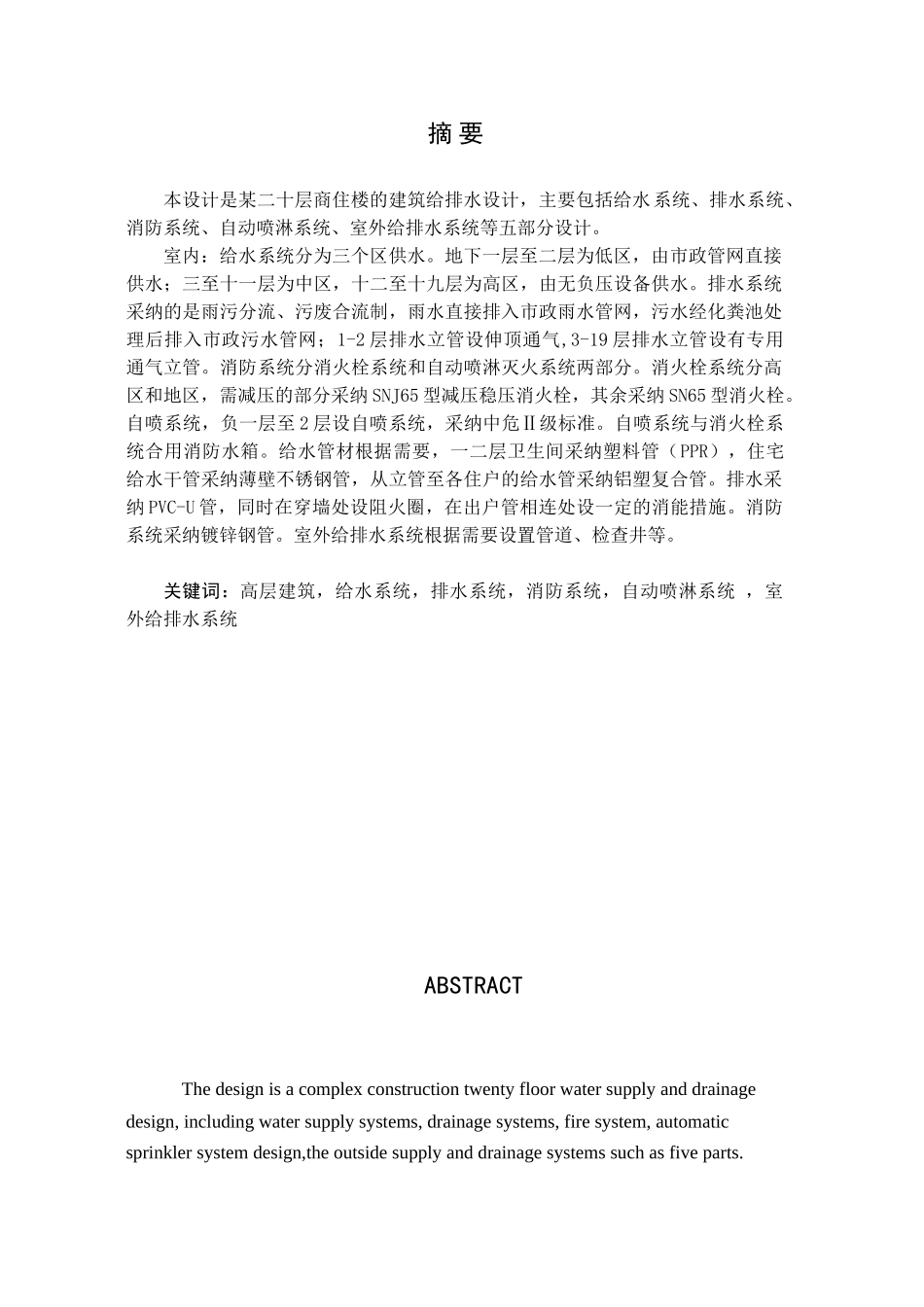

摘 要本设计是某二十层商住楼的建筑给排水设计，主要包括给水系统、排水系统、消防系统、自动喷淋系统、室外给排水系统等五部分设计。室内：给水系统分为三个区供水。地下一层至二层为低区，由市政管网直接供水；三至十一层为中区，十二至十九层为高区，由无负压设备供水。排水系统采纳的是雨污分流、污废合流制，雨水直接排入市政雨水管网，污水经化粪池处理后排入市政污水管网；1-2 层排水立管设伸顶通气,3-19 层排水立管设有专用通气立管。消防系统分消火栓系统和自动喷淋灭火系统两部分。消火栓系统分高区和地区，需减压的部分采纳 SNJ65 型减压稳压消火栓，其余采纳 SN65 型消火栓。自喷系统，负一层至 2 层设自喷系统，采纳中危Ⅱ级标准。自喷系统与消火栓系统合用消防水箱。给水管材根据需要，一二层卫生间采纳塑料管（PPR），住宅给水干管采纳薄壁不锈钢管，从立管至各住户的给水管采纳铝塑复合管。排水采纳 PVC-U 管，同时在穿墙处设阻火圈，在出户管相连处设一定的消能措施。消防系统采纳镀锌钢管。室外给排水系统根据需要设置管道、检查井等。关键词：高层建筑，给水系统，排水系统，消防系统，自动喷淋系统 ，室外给排水系统ABSTRACT The design is a complex construction twenty floor water supply and drainage design, including water supply systems, drainage systems, fire system, automatic sprinkler system design,the outside supply and drainage systems such as five parts. The inside: Water supply system is divided into three districts. Minus first to second for the low areas, directly from the municipal water supply pipe network; 3th-11th layer is middler ,12th-19th layer is higher,from frequency-changing pressure water equipment. Drainage system uses is the rain dirt divergence, the dirt waste combined system, the rain water disperses into the municipal administration storm sewer system directly, the sewage disperses into the municipal administration sewage pipe network after septic tank processing; 1-2 draining water pipe riser supposes extends goes against the ventilation ,3th-19th draining water pipe...
