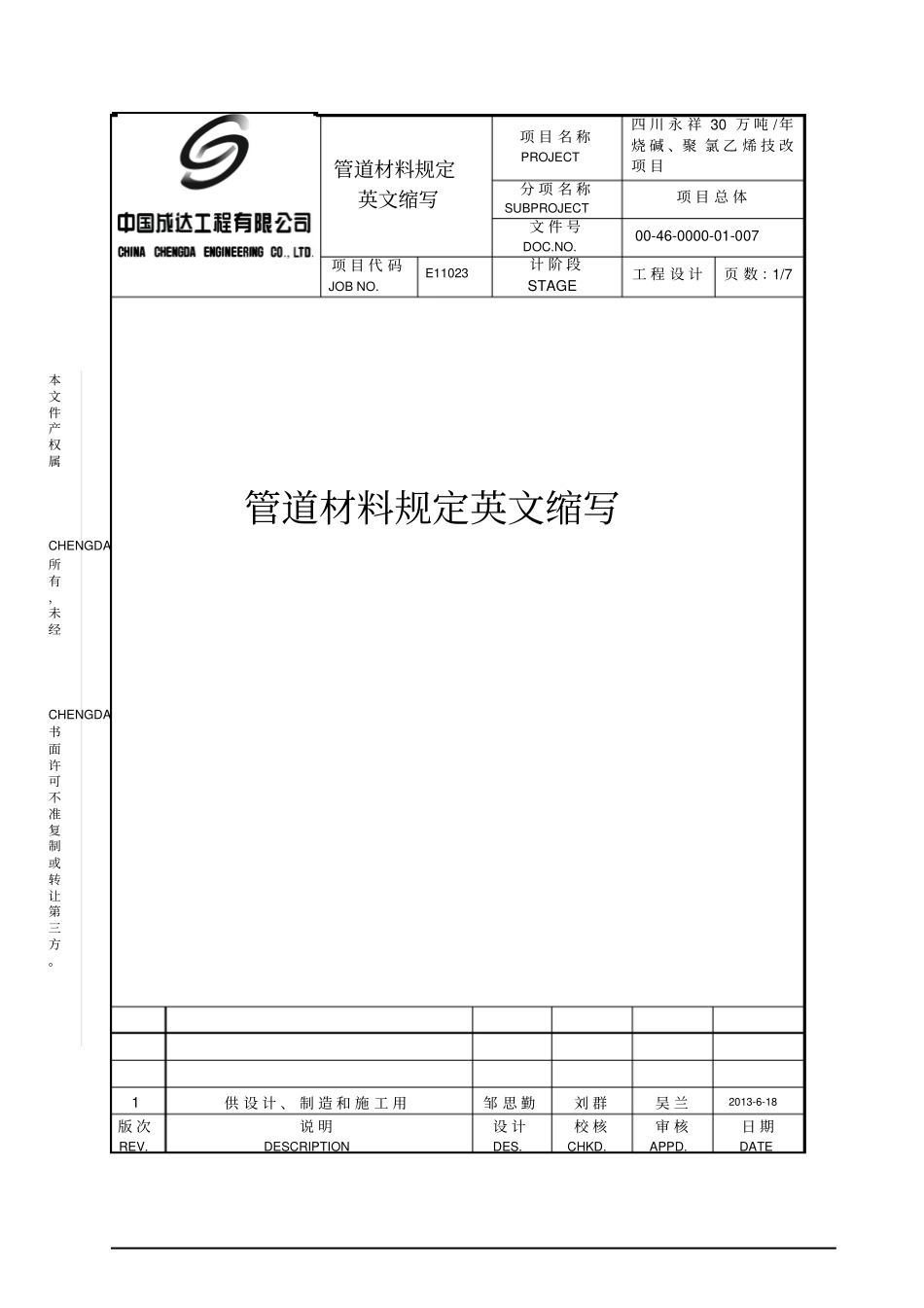

管道材料规定英文缩写项目名称PROJECT四川永祥30万吨/年烧碱、聚氯乙烯技改项目分项名称SUBPROJECT项目总体文件号DOC.NO.00-46-0000-01-007项目代码JOBNO.E11023计阶段STAGE工程设计页数：1/7管道材料规定英文缩写1供设计、制造和施工用邹思勤刘群吴兰2013-6-18版次REV.说明DESCRIPTION设计DES.校核CHKD.审核APPD.日期DATE本文件产权属CHENGDA所有，未经CHENGDA书面许可不准复制或转让第三方。项目代码：E11023图号：00-46-0000-01-007第2页共19页管道材料规定英文缩写说明如下：缩写英文中文APIAmericanpetroleuminstitute美国石油协会ASAlloysteel合金钢BALLBallvalve球阀BALLPBallvalve球阀BALRBallvalve球阀BBBoltedBonnet螺栓连接的阀盖BEBevelend焊接坡口端BFYLPButterflyvalve蝶阀BLPADCircularblank插板BLSPASpacer垫环BLSPCFigure88字盲板（关）BLSPOFigure88字盲板（开）BOLTBolt/Nut螺栓螺母BWButt-welding对焊CACorrosionallowance腐蚀余量CALCCalculate计算CAPBVCap管帽CAPOTCap管帽CICastiron铸铁CREConcentricreducer同心异径管CKLCheckvalve止回阀项目代码：E11023图号：00-46-0000-01-007第3页共19页CKSCheckvalve止回阀CKSSPCheckvalve止回阀CKSRCheckvalve止回阀CPLCoupling管接头CPLRReducingcoupling异径管接头CSCarbonsteel碳钢DIDuctileiron球墨铸铁DIASPDiaphragmValve隔膜阀DNNominaldiameter公称直径E45450Elbow450弯头E45LR450Elbow450弯头E45TLR450Elbowtrimmable450可剪切弯头E90900Elbow900弯头E90LR900Elbow（L=1.5D）900长半径弯头E90SR900Elbow（L=1D）900短半径弯头E90TLR900Elbowtrimmable900可剪切长半径弯头EFWElectricfusionwelded电熔焊EREEccentricreducer偏心异径管ERWEccentricresistancewelded电阻焊FBLDBlind盲法兰FFFlatface全平面FGForged锻制FMFemaleface凹面FBLDBlind盲法兰项目代码：E11023图号：00-46-0000-01-007第4页共19页FPLPlateflange板式平焊法兰FSOSlip-onflange带颈平焊法兰FSWSocketweldingflange承插焊法兰FTHDThreadedflange螺纹法兰FSSLLapJointFlange活套法兰FWNWeldingneckflange带颈对焊法兰FRWNReducingFlange异径法兰GOARGear&handwheeloperated齿轮和手轮操纵GALVGalvanized镀锌GATEGatevalve闸阀GATGatevalve闸阀GATRGatevalve闸阀GATSPGatevalve闸阀GLOBEGlobevalve截止阀GLOGlobevalve截止阀GLOFGlobevalve截止阀GLORGlobevalve截止阀GLOSPGlobevalve截止阀GASKETGasket垫片HHorizonta水平方向HCHoseConnection软管接头IDInsidediameter内径LIFTLiftcheckvalve升降式止回阀LFFEFemaleface凹面项目代码：E11023图号：00-46-0000-01-007第5页共19页LFTBEFemaleface（Wafer）对夹凹面LMTBEMaleface（Wafer）对夹凸面MMaleface凸面MAXMaximum最大M&FMMaleandfemale凹凸面MTOMaterialtakeof材料汇总,MINMinimum最小Mmmillimeter毫米NEEDLENeedlevalve针形阀NFNon-standardfitting非标管件NIPNipple短管接头NONumber数量NREQDNutrequired不需要ODOutsidediameter外径OS&YRisingstemoutsidescrewandyoke支架式明杆外螺纹OPOperating操作PEPlainend平端PIPEPipe管子PLUGPlug丝堵QTYQuantity数量RFRaisedface凸台式密封面RFFERaisedface凸台式密封面RFTBEWaferflanged（RF）法兰对夹式（RF）RJRingjointface环槽密封面项目代码：E11023图号：00-46-0000-01-007第6页共19页RJFERingjointface环槽密封面RPADReinforcedpad补强板REDCConcentricreducer同心异径管REDEEccentricreducer偏心异径管SABMSameasbodymaterial与阀体材料相同SAFETYSafetyvalve安全阀SAWSubmergedarcwelded埋弧焊SBStudbolt双头螺栓SchPipeschedule管表号SLSlip-onflange平焊法兰SMLSSeamless无缝SOLSockolet承插焊管座SPSpecialfitting特殊管件SSStainsteel不锈钢SSAWSpiralSubmergedarcwelded螺旋缝埋弧焊SWSocketwelding承插焊SWESocketwelding承插焊SWINGSwingcheckvalve旋启式止回阀SUMSummary汇总TTee等径三通TOLThreadolet螺纹管座TRBReducingTee异径三通TRIFReducingInstrumentTee仪表三通UGUnderground地下项目代码：E11023图号：00-...
