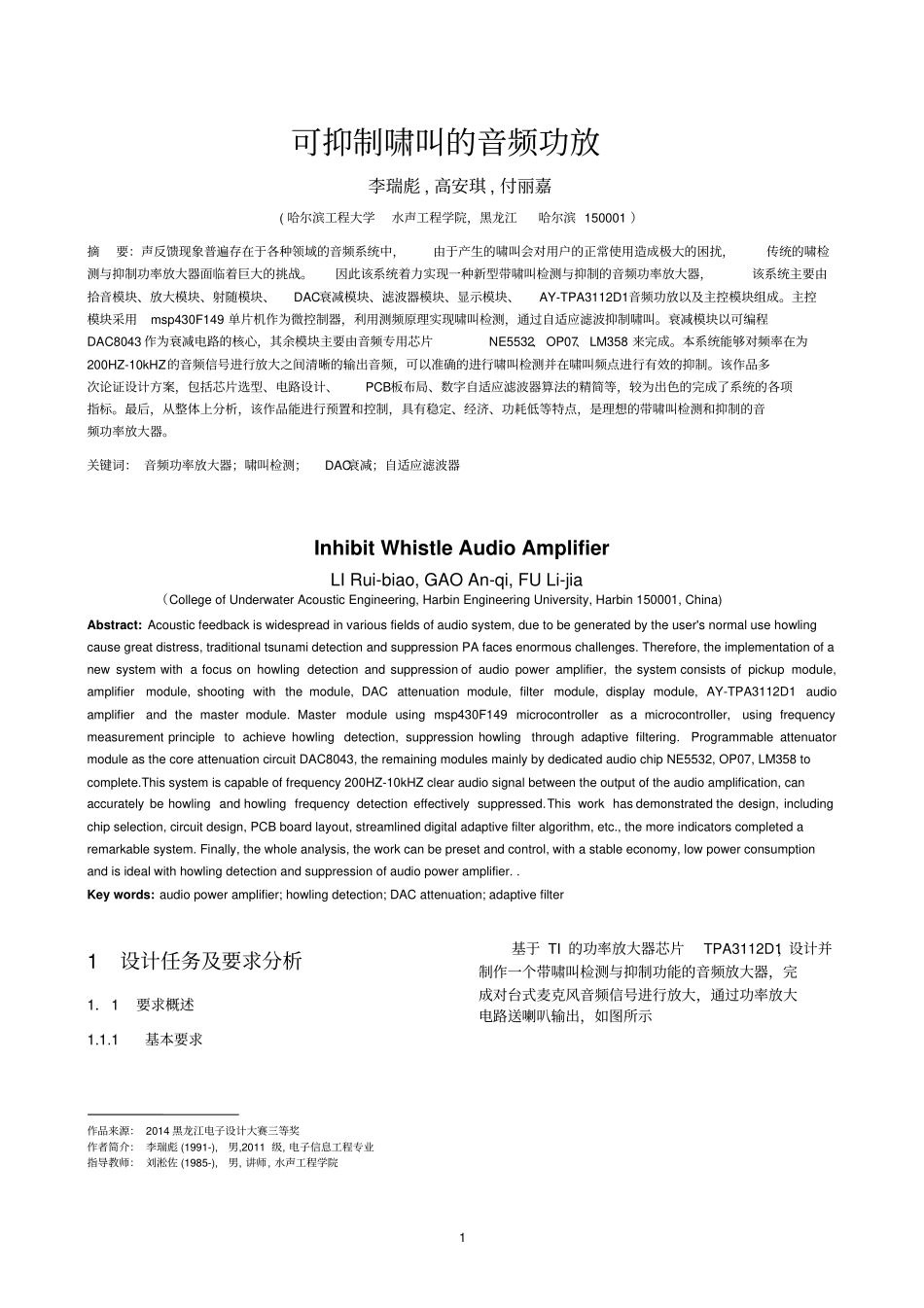

1可抑制啸叫的音频功放李瑞彪,高安琪,付丽嘉(哈尔滨工程大学水声工程学院,黑龙江哈尔滨150001)摘要:声反馈现象普遍存在于各种领域的音频系统中,由于产生的啸叫会对用户的正常使用造成极大的困扰,传统的啸检测与抑制功率放大器面临着巨大的挑战。因此该系统着力实现一种新型带啸叫检测与抑制的音频功率放大器,该系统主要由拾音模块、放大模块、射随模块、DAC衰减模块、滤波器模块、显示模块、AY-TPA3112D1音频功放以及主控模块组成。主控模块采用msp430F149单片机作为微控制器,利用测频原理实现啸叫检测,通过自适应滤波抑制啸叫。衰减模块以可编程DAC8043作为衰减电路的核心,其余模块主要由音频专用芯片NE5532、OP07、LM358来完成。本系统能够对频率在为200HZ-10kHZ的音频信号进行放大之间清晰的输出音频,可以准确的进行啸叫检测并在啸叫频点进行有效的抑制。该作品多次论证设计方案,包括芯片选型、电路设计、PCB板布局、数字自适应滤波器算法的精简等,较为出色的完成了系统的各项指标。最后,从整体上分析,该作品能进行预置和控制,具有稳定、经济、功耗低等特点,是理想的带啸叫检测和抑制的音频功率放大器。关键词:音频功率放大器;啸叫检测;DAC衰减;自适应滤波器InhibitWhistleAudioAmplifierLIRui-biao,GAOAn-qi,FULi-jia(CollegeofUnderwaterAcousticEngineering,HarbinEngineeringUniversity,Harbin150001,China)Abstract:Acousticfeedbackiswidespreadinvariousfieldsofaudiosystem,duetobegeneratedbytheuser'snormalusehowlingcausegreatdistress,traditionaltsunamidetectionandsuppressionPAfacesenormouschallenges.Therefore,theimplementationofanewsystemwithafocusonhowlingdetectionandsuppressionofaudiopoweramplifier,thesystemconsistsofpickupmodule,amplifiermodule,shootingwiththemodule,DACattenuationmodule,filtermodule,displaymodule,AY-TPA3112D1audioamplifierandthemastermodule.Mastermoduleusingmsp430F149microcontrollerasamicrocontroller,usingfrequencymeasurementprincipletoachievehowlingdetection,suppressionhowlingthroughadaptivefiltering.ProgrammableattenuatormoduleasthecoreattenuationcircuitDAC8043,theremainingmodulesmainlybydedicatedaudiochipNE5532,OP07,LM358tocomplete.Thissystemiscapableoffrequency200HZ-10kHZclearaudiosignalbetweentheoutputoftheaudioamplification,canaccuratelybehowlingandhowlingfrequencydetectioneffectivelysuppressed.Thisworkhasdemonstratedthedesign,includingchipselection,circuitdesign,PCBboardlayout,streamlineddigitaladaptivefilteralgorithm,etc.,themoreindicatorscompletedaremarkablesystem.Finally,thewholeanalysis,theworkcanbepresetandcontrol,withastableeconomy,lowpowerconsumptionandisidealwithhowlingdetectionandsuppressionofaudiopoweramplifier..Keywords:audiopoweramplifier;howlingdetection;DACattenuation;adaptivefilter1设计任务及要求分析1.1要求概述1.1.1基本要求作品来源:2014黑龙江电子设计大赛三等奖作者简介:李瑞彪(1991-),男,2011级,电子信息工程专业指导教师:刘淞佐(1985-),男,讲师,水声工程学院基于TI的功率放大器芯片TPA3112D1,设计并制作一个带啸叫检测与抑制功能的音频放大器,完成对台式麦克风音频信号进行放大,通过功率放大电路送喇叭输出,如图所示2图中设计示意图包括两部分:音频功放和啸叫检测与抑制,其中音频功放部分组要实现波形的最大不失真功率放大输出,频率响应范围在200Hz~10kHz,可程控设置功率放大器的输出功率范围为50mW~5W,在功率放大器输出功率为5W时,电路整体效率≥80%。另外,将台式麦克风与喇叭相隔1m背靠背放置,使用电脑播放音乐作为音频信号源。音频功率放大器能通过麦克风采集信号,经功率放大电路送喇叭输出,输出的音频信号清晰。1.1.2发挥部分主要设计并制作啸叫检测电路和啸叫抑制电路,完善音频功率放大器。啸叫检测电路能实时监测所产生啸叫,并计算啸叫的频率。实...
