iDEN功能测试VIP免费

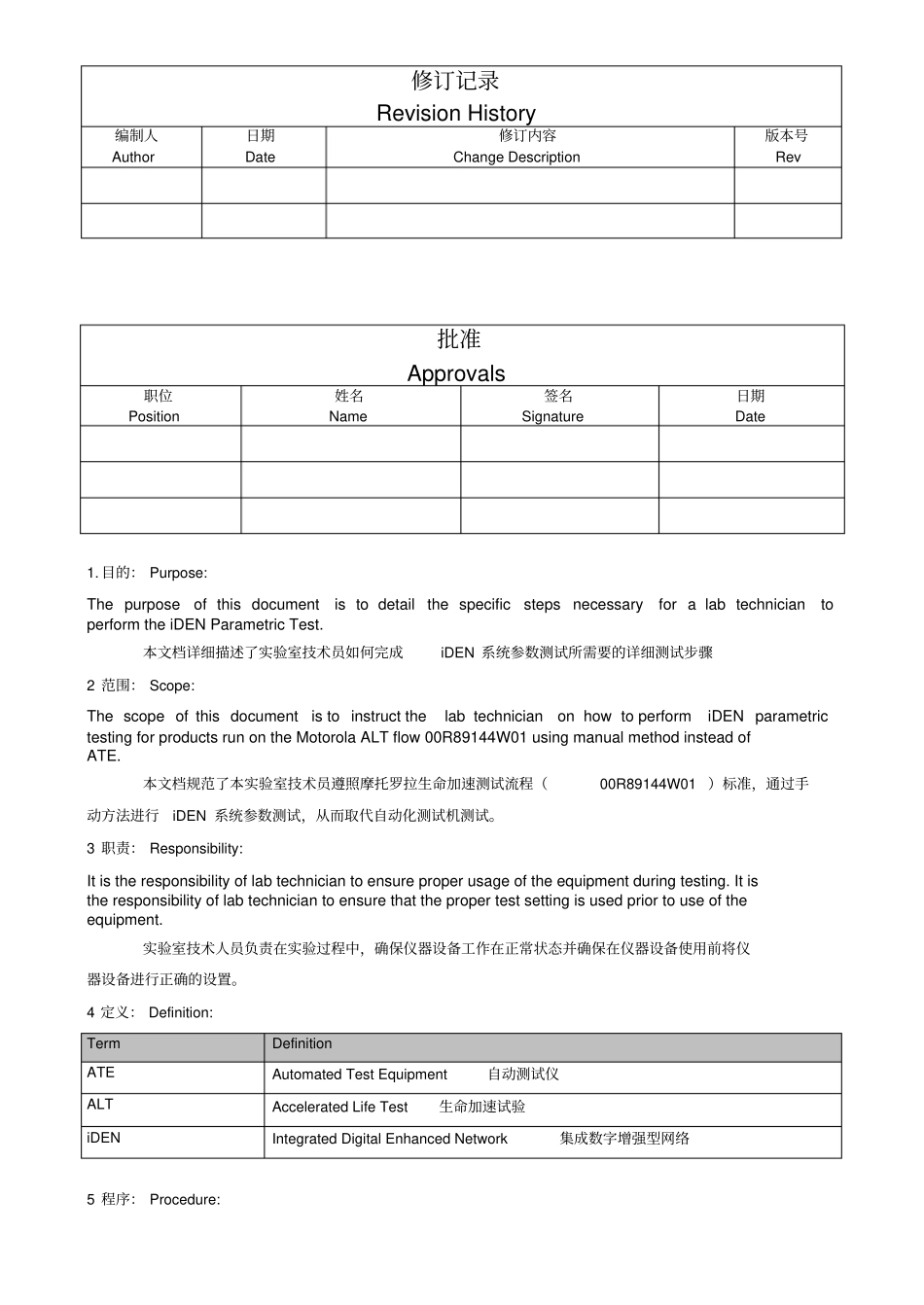

修订记录RevisionHistory编制人Author日期Date修订内容ChangeDescription版本号Rev批准Approvals职位Position姓名Name签名Signature日期Date1.目的：Purpose:ThepurposeofthisdocumentistodetailthespecificstepsnecessaryforalabtechniciantoperformtheiDENParametricTest.本文档详细描述了实验室技术员如何完成iDEN系统参数测试所需要的详细测试步骤2范围：Scope:ThescopeofthisdocumentistoinstructthelabtechnicianonhowtoperformiDENparametrictestingforproductsrunontheMotorolaALTflow00R89144W01usingmanualmethodinsteadofATE.本文档规范了本实验室技术员遵照摩托罗拉生命加速测试流程（00R89144W01）标准，通过手动方法进行iDEN系统参数测试，从而取代自动化测试机测试。3职责：Responsibility:Itistheresponsibilityoflabtechniciantoensureproperusageoftheequipmentduringtesting.Itistheresponsibilityoflabtechniciantoensurethatthepropertestsettingisusedpriortouseoftheequipment.实验室技术人员负责在实验过程中，确保仪器设备工作在正常状态并确保在仪器设备使用前将仪器设备进行正确的设置。4定义：Definition:TermDefinitionATEAutomatedTestEquipment自动测试仪ALTAcceleratedLifeTest生命加速试验iDENIntegratedDigitalEnhancedNetwork集成数字增强型网络5程序：Procedure:5.1主要设备：AgilentVectorSignalAnalyzerN9010A安捷伦无线电信号分析仪N9010AAgilentRFPowerMeterE4418B安捷伦射频功率计E4418BAgilentVectorSignalGeneratorE4438C安捷伦无线电信号发生器E4438CAgilentPowerSupply66319B安捷伦直流电源66319BWillTekRFShieldBoxandAntennaWillTek射频屏蔽盒与天线LaboratoryPC工业控制电脑5.2TestsetupRefertodiagramtosetuptheiDENparametrictestequipment.TheGPIBcableismeantforautomation.TheGPIBcabletotheE4438CisneededforonetimeloadingofiDENandMototalkwaveformstotheequipment.Allequipmentshouldbeturnedononehourbeforeanytestisdone.Thisistoallowtheequipmenttostabilizesufficientlyenoughtomakethecorrectmeasurement,以下是iDEN参数测试的连接图。GPIB电缆是用来进行自动化测试。第一次连接E4438C时需要用到GPIB电缆进行波形下载。所有仪器在测试前至少开机一小时以保证各项参数处于正常状态。5.3安装iDEN和Mototalk波形到E4438C仪器中。Thefollowingsoftwareandfilesareneeded.以下是安装波形所必备的软件a.IntuiLink.exeb.Microsoftofficec.i_16QAM.binandq_16QAM.binfilesforiDENwaveformsd.MTS_I.txtandMTS2_Q.txtfilesforMototalkwaveforms5.3.1InstalltheIntuilink.exesoftware.安装Intuilink软件5.3.2ConnectaGPIBcardtoE4438CwithaGPIBcable.将E4438C通过GPIB与电脑进行连接5.3.3OpenMicrosoftExcel打开Excel表格5.3.4GotoView>Toolbars>PSG/ESGsignalgenerator.Thefollowingtoolbarwillappear.点击视图菜单下的工具栏中的PSG/ESGsignalgenerator工具栏之后会出现类似下面的工具栏5.3.5ClickonAgilentPSG/ESG.Thefollowingdialogueboxwillappear.点击AgilentPSG/ESG按钮5.3.6ChooseE4438CandpressOK.选择E4438C后点击OK5.3.7PresstheConnecttoPSG/ESGSignalGeneratorbutton.选择连接到SignalGenerator。5.3.8ChoosethecorrectaddressforE4438CandpressIdentifyInstrument.ThenpressConnectandthestatuswillshow“Connected”.NextpressClosebutton.选择E4438C仪器正确地址并点击IdentifyInstrument识别仪器按钮，然后点击Connect连接按钮，并且右侧的状态由原先的disconnect转变为Connected，点击Close关闭按钮5.3.9ToloadwaveformintoE4438C.PresstheDownloadARBWaveformDatabutton.点击DownloadARBwaveform按钮进行下载波形5.3.10Inthedialogue,selectFileFolders,etcandbrowseforthewaveforms.进入到对话框后点击Browse按钮选择波形Filenames:i_16QAM.binandq_16QAM.bin选择i_16QAM.bin文件Type:14-BitInternalValues类型：选择14BitInternalValues14位内部值FileType:LittleEndian文件类型：选择LittleEndianE443...
