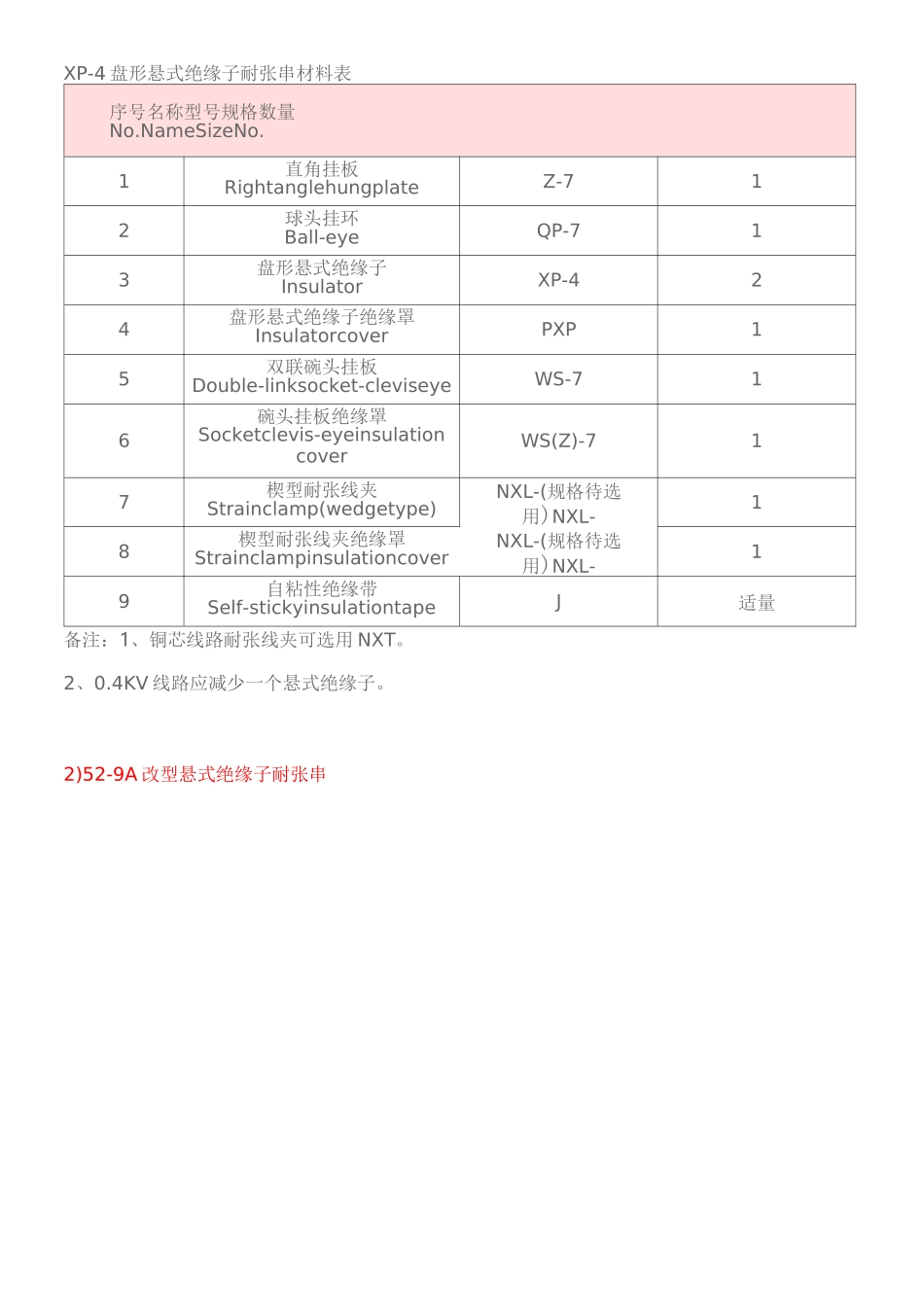

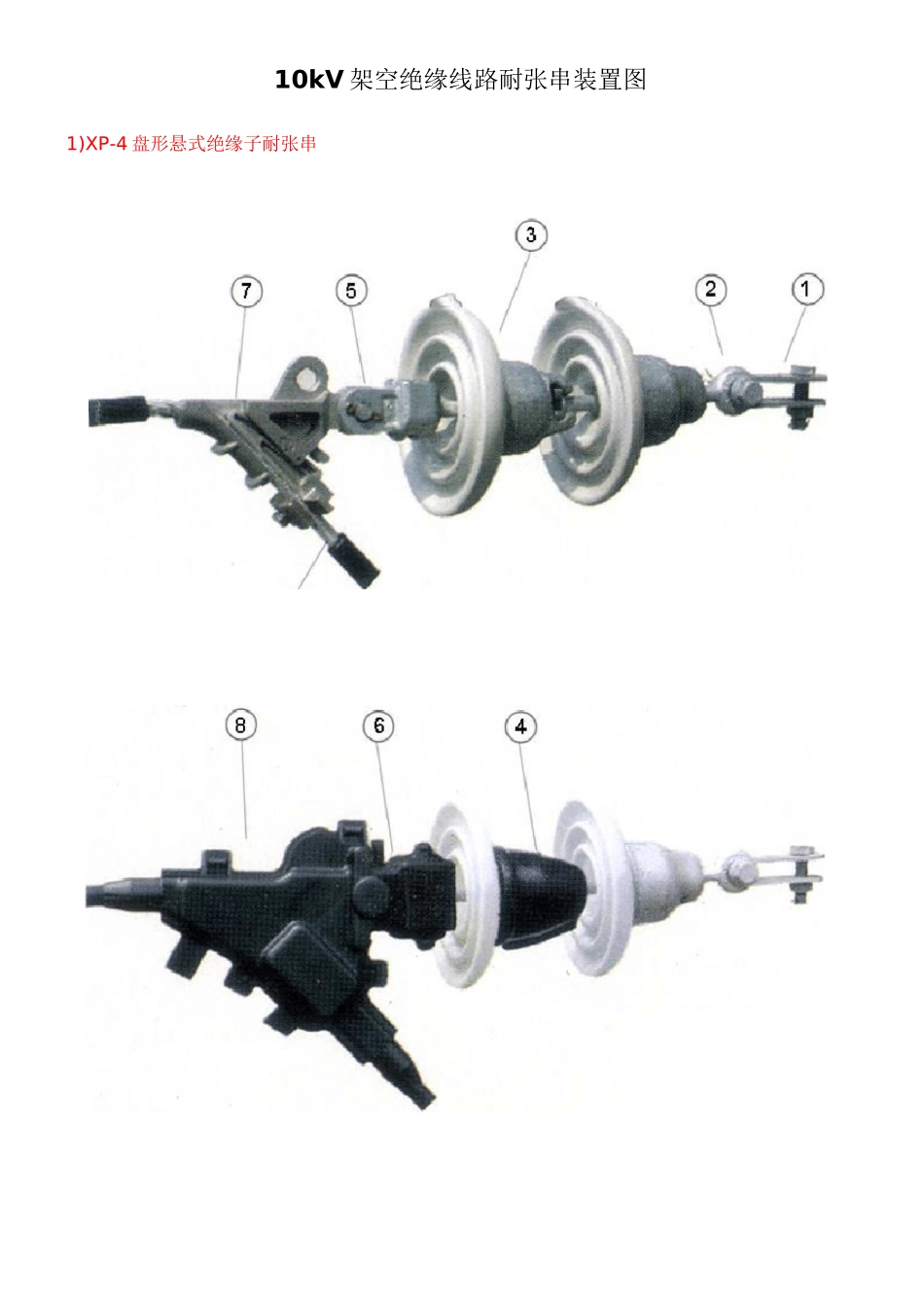

10kV架空绝缘线路耐张串装置图1)XP-4盘形悬式绝缘子耐张串XP-4盘形悬式绝缘子耐张串材料表序号名称型号规格数量No.NameSizeNo.1直角挂板RightanglehungplateZ-712球头挂环Ball-eyeQP-713盘形悬式绝缘子InsulatorXP-424盘形悬式绝缘子绝缘罩InsulatorcoverPXP15双联碗头挂板Double-linksocket-cleviseyeWS-716碗头挂板绝缘罩Socketclevis-eyeinsulationcoverWS(Z)-717楔型耐张线夹Strainclamp(wedgetype)NXL-(规格待选用)NXL-18楔型耐张线夹绝缘罩StrainclampinsulationcoverNXL-(规格待选用)NXL-19自粘性绝缘带Self-stickyinsulationtapeJ适量备注：1、铜芯线路耐张线夹可选用NXT。2、0.4KV线路应减少一个悬式绝缘子。2)52-9A改型悬式绝缘子耐张串52-9A改型悬式绝缘子耐张串材料表序号名称型号规格数量No.NameSizeNo.1U型挂环ShackleU-712改型悬式绝缘子Suspensioninsulator52-9A23盘形悬式绝缘子绝缘罩InsulatorinsulationcoverPXP(Z)14平行挂板ParallelclevisP-715平行挂板绝缘罩P-7(Z)1Pareallelclevisinsulationcover6楔型耐张线夹Strainclamp(wedgetype)NXL-(规格待选用)NXL-17楔型耐张线夹绝缘罩StrainclampinsulationcoverNXL-(规格待选用)NXL-18自粘性绝缘带Self-stickyinsulationtapeJ适量备注：1、铜芯线路耐张线夹可选用NXT。2、0.4KV线路应减少一个悬式绝缘子。3)双铁头瓷拉棒耐张串④®(0双铁头瓷拉棒耐张串材料表序号No.名称Name型号规格Size数量No.1U型挂环ShackleU-712双铁头瓷拉棒Doubleiron-headporcelainpullingstickSL-15/3013双铁头瓷拉棒绝缘罩Doubleiron-headporcelainpullingstickinsulationcoverSL(Z)-15/3014楔型耐张线夹Strainclamp(wedgetype)NXL-(规格待选用)NXL-15楔型耐张线夹绝缘罩StrainclampinsulationcoverNXL-(规格待选用)NXL-16自粘性绝缘带Self-stickyinsulationtapeJ适量备注：1、铜芯线路耐张线夹可选用NXT。4）高原型复合绝缘子耐张串■1:高原型复合绝缘子耐张串序号No.名称Name型号规格Size数量No.1直角挂板RightanglehungplateZ-712球头挂环Ball-eyeQP-713高原型复合绝缘子InsulatorHJII-10/7014双联碗头挂板Double-linksocket-cleviseyeWS-715碗头挂板绝缘罩Socketclevis-eyeinsulationcoverWS(Z)-71亿尔沃电力触46楔型耐张线夹Strainclamp(wedgetype)NXL-(规格待选用)NXL-(sizechoose)17楔型耐张线夹绝缘罩StrainclampinsulationcoverNXL-(规格待选用)NXL-(sizechoose)18U型挂环U-719自粘性绝缘带Self-stickyinsulationtapeJ适量备注：1、铜芯线路耐张线夹可选用NXT。瓷拉棒绝缘子SL-15/30参数图纸SL-15/30XS-10/20XSC-10/20瓷拉棒绝缘子，瓷拉棒厂家5丄L巾IXSL-15/30瓷拉棒绝缘子技术参数型号图号额定电压kV抗拉负荷kN爬电距离(mm)雷电全波冲击耐受电压kV工频耐受电压kV工频是耐受电压KvSL-15/30（双铁315302601057545XS-10/20（单铁410203601057545XSC-10/20（全瓷）510203101057545
