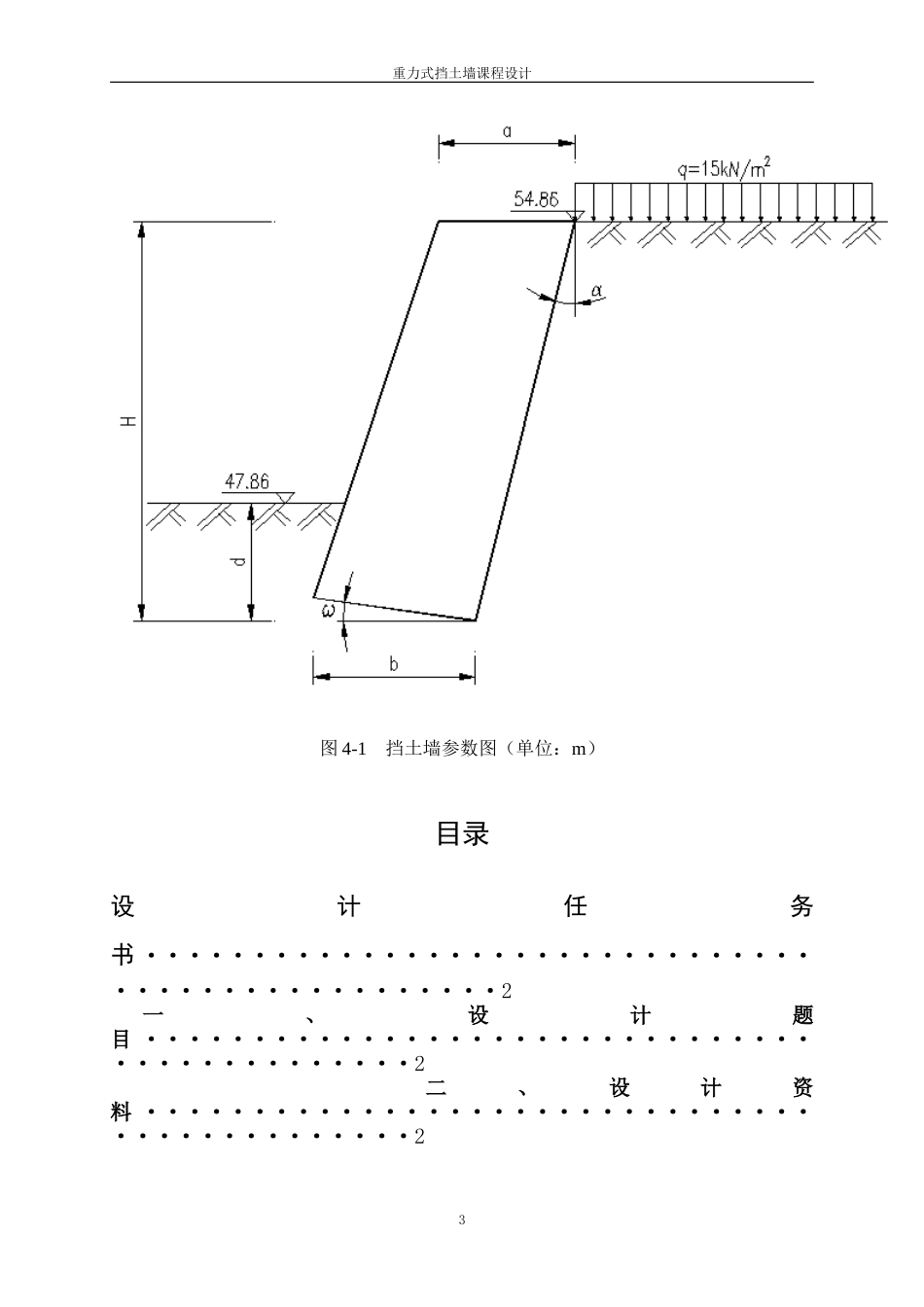

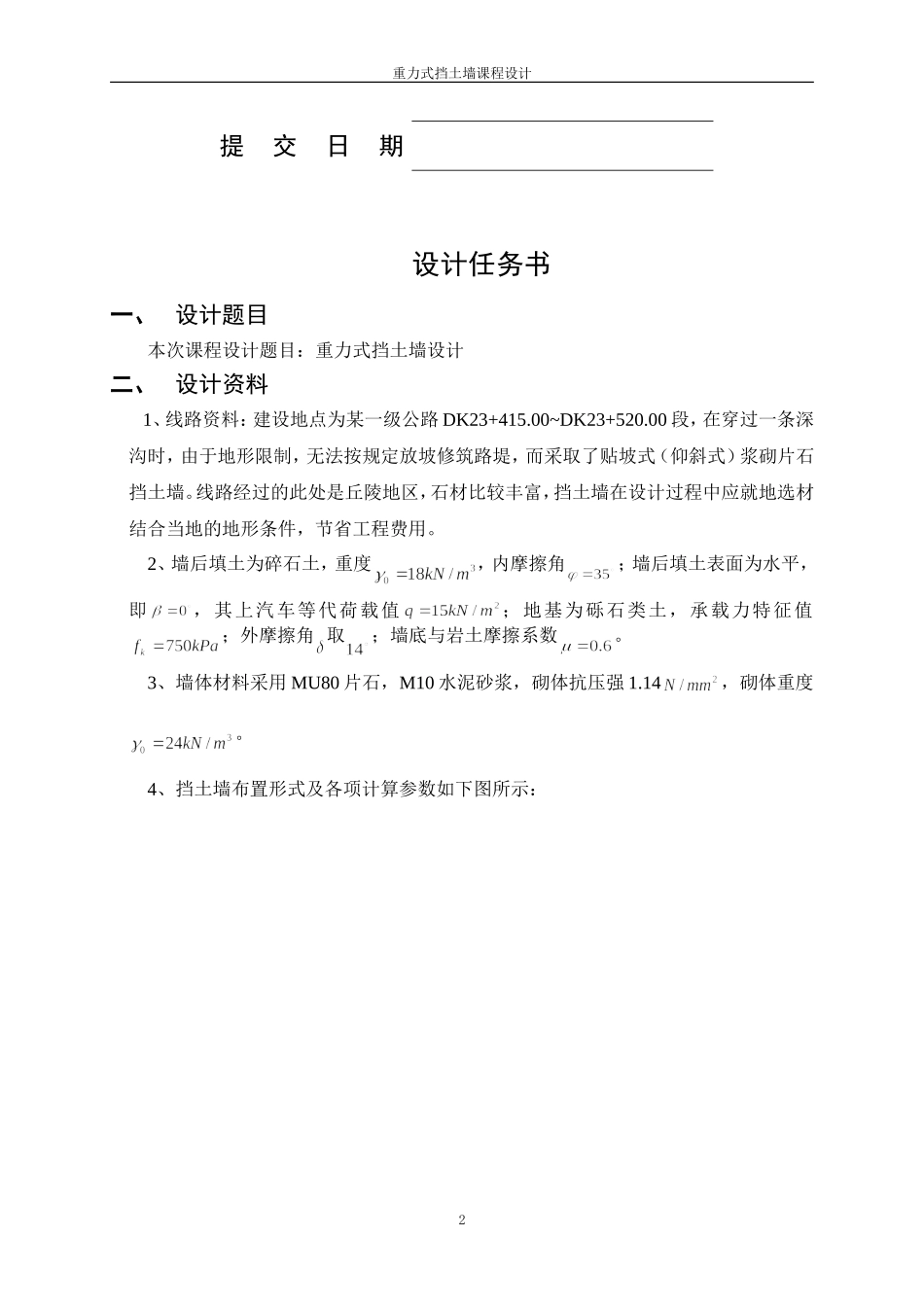

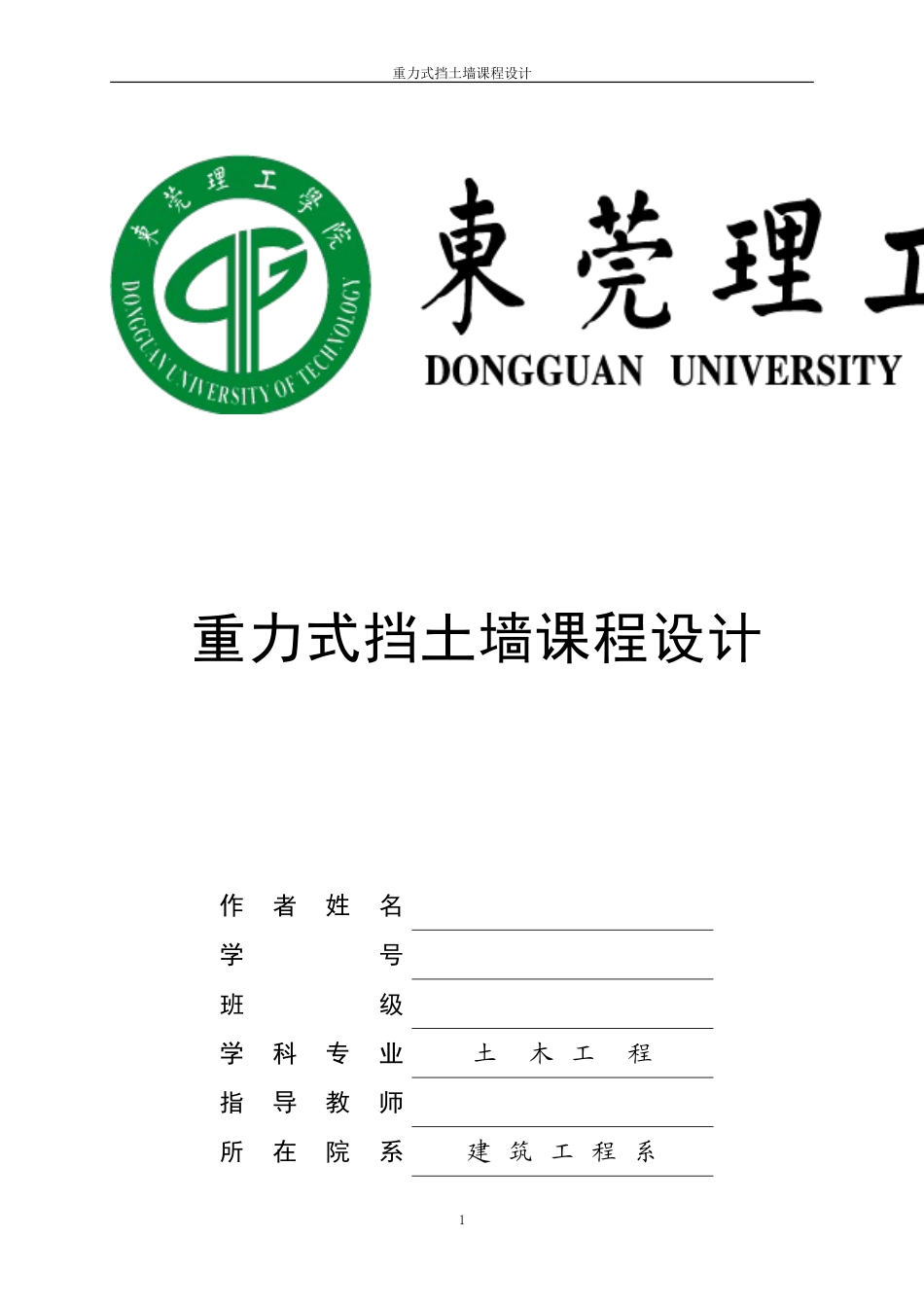

重力式挡土墙课程设计重力式挡土墙课程设计作者姓名学号班级学科专业土木工程指导教师所在院系建筑工程系1重力式挡土墙课程设计提交日期设计任务书一、设计题目本次课程设计题目：重力式挡土墙设计二、设计资料1、线路资料：建设地点为某一级公路DK23+415.00~DK23+520.00段，在穿过一条深沟时，由于地形限制，无法按规定放坡修筑路堤，而采取了贴坡式（仰斜式）浆砌片石挡土墙。线路经过的此处是丘陵地区，石材比较丰富，挡土墙在设计过程中应就地选材结合当地的地形条件，节省工程费用。2、墙后填土为碎石土，重度，内摩擦角；墙后填土表面为水平，即，其上汽车等代荷载值；地基为砾石类土，承载力特征值；外摩擦角取；墙底与岩土摩擦系数。3、墙体材料采用MU80片石，M10水泥砂浆，砌体抗压强1.14，砌体重度。4、挡土墙布置形式及各项计算参数如下图所示：2重力式挡土墙课程设计图4-1挡土墙参数图（单位：m）目录设计任务书·················································2一、设计题目·············································2二、设计资料·············································23重力式挡土墙课程设计设计计算书·················································4一、设计挡土墙的基础埋深、断面形状和尺寸·················4二、主动土压力计算·······································41、计算破裂角········································42、计算主动土压力系数K和K1··························43、计算主动土压力的合力作用点·························5三、挡土墙截面计算·······································51、计算墙身重G及力臂ZG·······························62、抗滑稳定性验算·····································63、抗倾覆稳定性验算···································64、基底应力验算·······································75、墙身截面应力验算···································7四、设计挡土墙的排水措施·································8五、设计挡土墙的伸缩缝和沉降缝···························8六、参考文献·············································84重力式挡土墙课程设计七、附图·················································8设计计算书一、设计挡土墙的基础埋深、断面形状和尺寸如图所示，挡土墙墙体高为H=8.5m，基础埋置深度d=1.5m,墙身纵向分段长度为L=10m；墙面与墙背平行，墙背仰斜，仰斜坡度1：0.2()，墙底倾斜度0.2:1（ω=11.31°），墙顶宽2.1m，墙底宽2m。二、主动土压力计算1、计算破裂角经试算，按破裂面交于荷载中部进行计算：<90°tan=-tan+=-0.667+=0.486=26°2、计算主动土压力系数K和K1K=5重力式挡土墙课程设计=3、计算主动土压力的合力作用点kN=三、挡土墙截面计算6重力式挡土墙课程设计图3-4-1挡土墙计算图1、计算墙身重G及力臂ZG墙身体积计算：墙身自重计算：力臂ZG计算：ZG1=0.125H+0.476b1=0.125×8.5+0.476×2.1=2.06mZG2=0.651b1=0.651×2.1=1.37m7重力式挡土墙课程设计2、抗滑稳定性验算满足抗滑稳定性要求。3、抗倾覆稳定性验算墙底倾斜，需把求得的、修正为、。满足抗倾覆稳定性要求。4、基底应力验算满...
