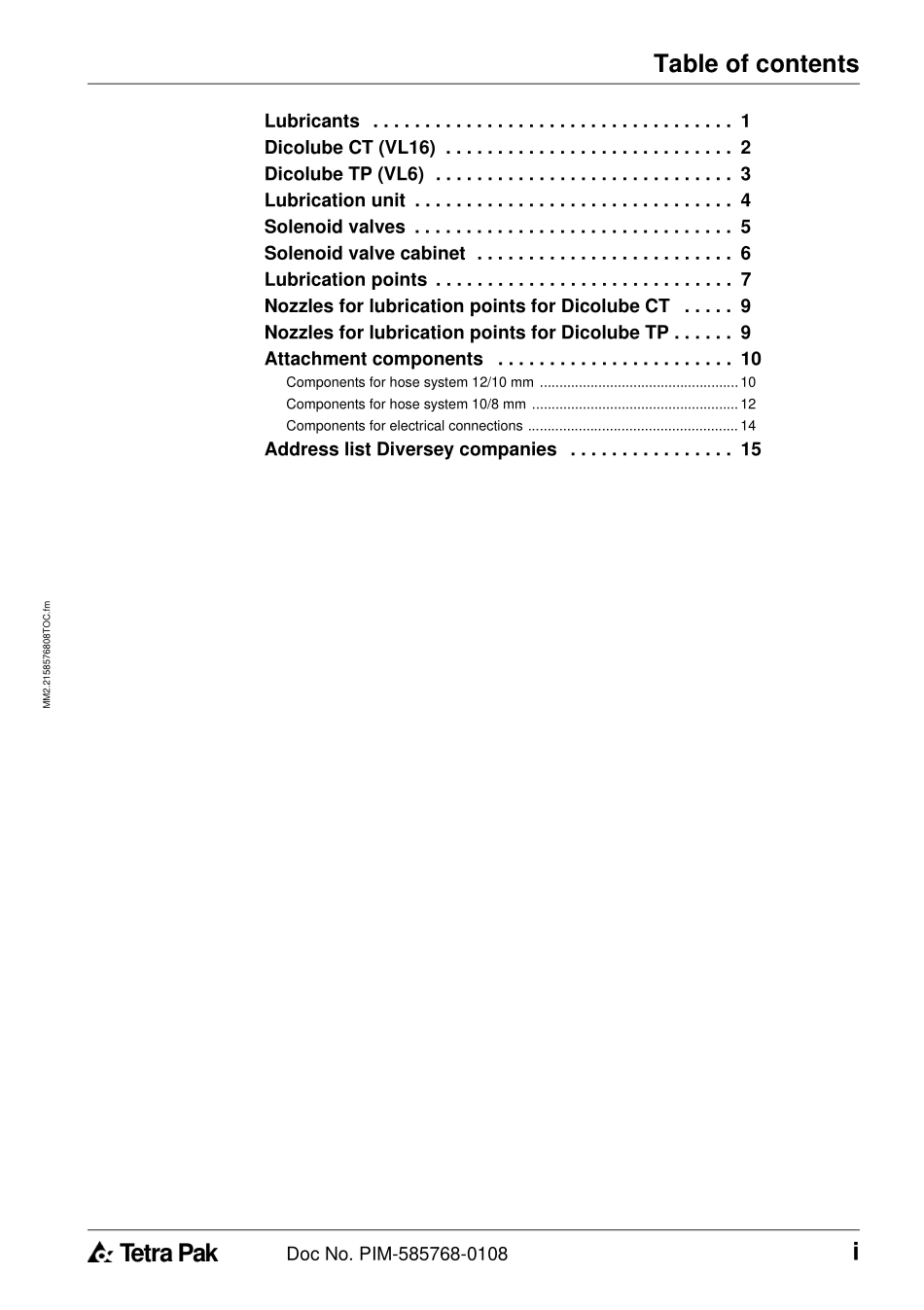

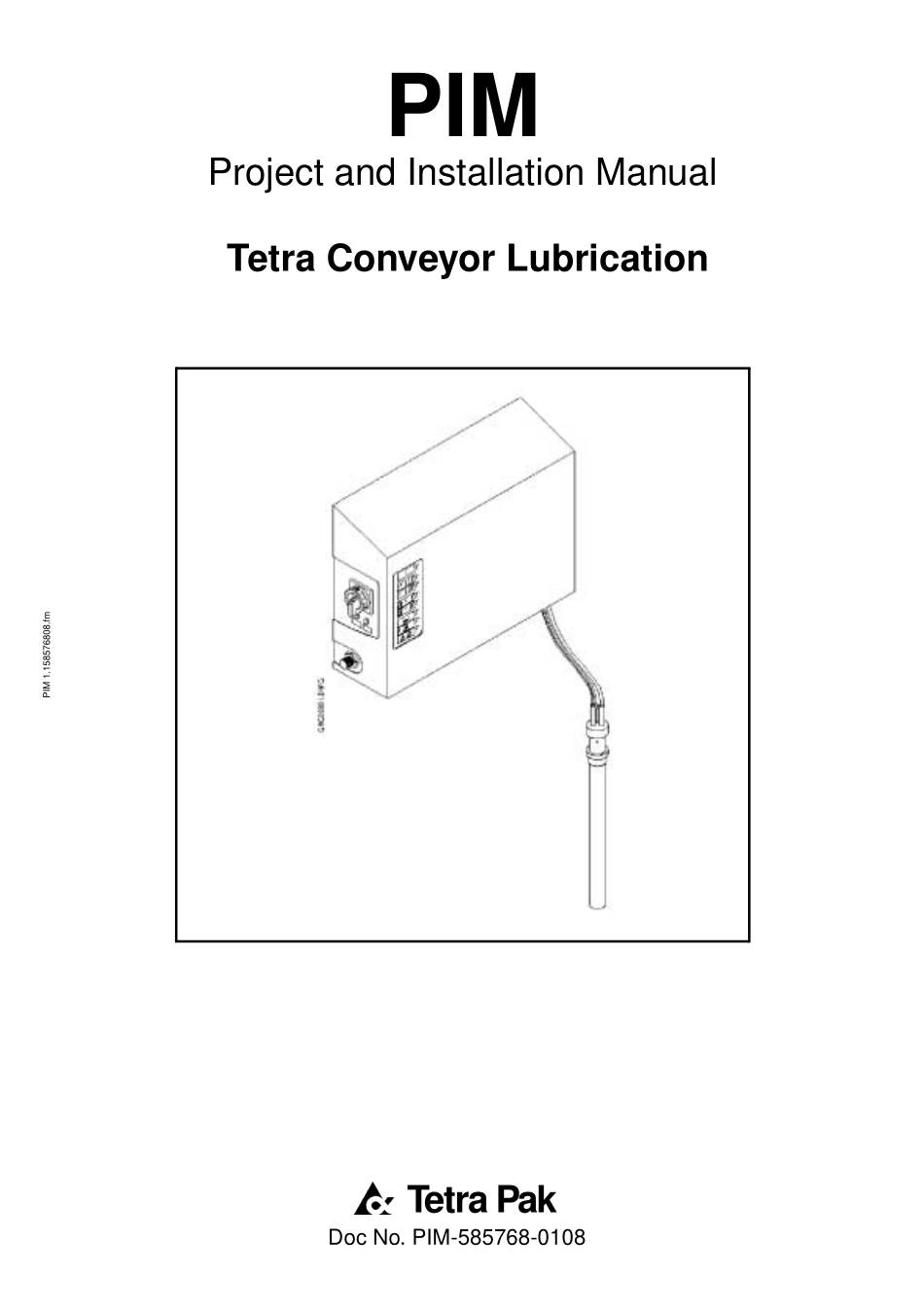

DocNo.PIM-585768-0108PIM1.158576808.fmTetraPakPIMTetraConveyorLubricationProjectandInstallationManualPIM1.158576808.fmTetraConveyorlubricationDocNo.PIM-585768-0108Issue2001-11TableofcontentsiDocNo.PIM-585768-0108MM2.2158576808TOC.fmTetraPakLubricants...................................1DicolubeCT(VL16)............................2DicolubeTP(VL6).............................3Lubricationunit...............................4Solenoidvalves...............................5Solenoidvalvecabinet.........................6Lubricationpoints.............................7NozzlesforlubricationpointsforDicolubeCT.....9NozzlesforlubricationpointsforDicolubeTP......9Attachmentcomponents.......................10Componentsforhosesystem12/10mm...................................................10Componentsforhosesystem10/8mm.....................................................12Componentsforelectricalconnections......................................................14AddresslistDiverseycompanies................15TableofcontentsTetraPakiiDocNo.PIM-585768-0108MM2.2158576808TOC.fmThispageintentionallyleftblankTetraConveyorLubricationLubricants2PIMConveyorsDocNo.PIM-585768-0108TetraPakPIM1.1TH501230en.fmDicolubeCT(VL16)TPNo.90296-90Note!Thislubricantshouldnotbeusedforpackagesprintedwithwatersolublecolors,seepage3.PropertiesinuseDICOLUBECTensuresoptimumshopconditionsthroughlowfoamlevelandhighlubricationquality.DICOLUBECTmaintainsgoodhygienethankstotheeffectivecleaning.DICOLUBECTisinsensitivetowaterpHvalue.ProducttypeNeutralconveyorlubricant.UseDICOLUBECTcanbeusedforalltypesofpackagesandconveyorsexceptthefollowing;TB/TBA200S,TB/TBA250S,TBA1000Sq,allTetraPrismapackages,allTetraToppackages,allTetraRexpackagesandallpackagesprintedwithwatersolublecolors.Dosage1:400-1:600dependingontheconditions.InstructionsforuseDICOLUBECTshouldbedosedbymeansoflubricationunitsTP30/TP85orotherkindofdosageequipment.pHvalueConcentrate:Appr.8.0Workingsolution:ExistingpHContentsNeutralizedalcalamine,non-ionicstenside.SafetyprecautionsUseglovesandgoggleswhenhandlingtheconcentrate.Ifsplashesgetintoeyes(concentratedform),rinsethoroughlywithwaterimmediatelyatleast15minutes.StorageCoolbutnotbelowfreezingpoint.Density0.99gram/cm3at20°C.StateofpreparationLiquid.ColourLightyellow.Storageshelf-life2yearsinnotopenedpackage.Quantity20kgplasticcan(20.2litres)208kgbarrel(210.1litres)AvailablefromDiversey.725kgcontainer(732.3litres)AvailablefromDiversey.(AddresslistDiverseycompaniesseepage15).ManufacturerScan-DiverseyA/SSmedeholm3DK2730HERLEVDenmarkNote!TobeorderedfromTetraPakPartsABordirectlyfromtheDiverseycompanies,seeaddresslistpage15LubricantsTetraConveyorLubricationPIM1.1TH501230en.fmTetraPakDocNo.PIM-585768-0108PIMConveyors3DicolubeTP(VL6)LubricantforTB/TBA200S,TB/TBA250S,TBA1000SqSpincap,TBA1000Sq,allTetraPrismapackages,allTetraToppackagesandallTetraRexpackages..TPNo.90296-88PropertiesinuseDicolubeTPdecreasesthefrictionbetweenthepackageandtheconveyor.DicolubeTPproducesathinsiliconfilmontheconveyorandbecauseofthatitonlyneedsshortdosingtimescomparedtothetraditionalconveyorlubricants.DicolubeTPdoesnotaffecttheprintingcolourorthepolyethylenecoatingonthepackage.ProducttypeLowfoamingconveyorlubricant,liquid.UseDicolubeTP(VL6)isaspeciallyproducedsiliconebasedlubricantwithbiostaticactivityforpolyethylenecoveredpackage.DicolubeTPcanbeusedin...
